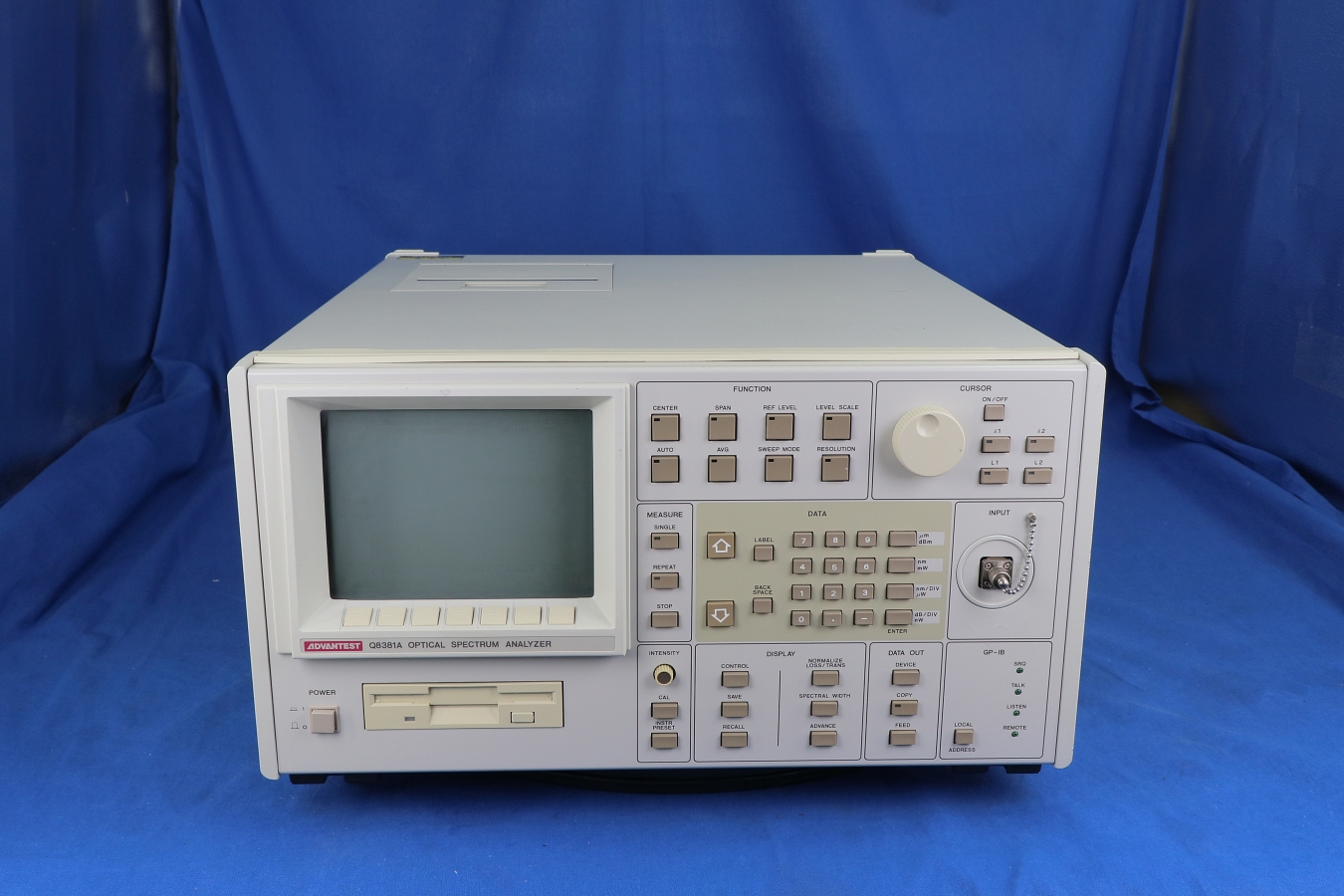

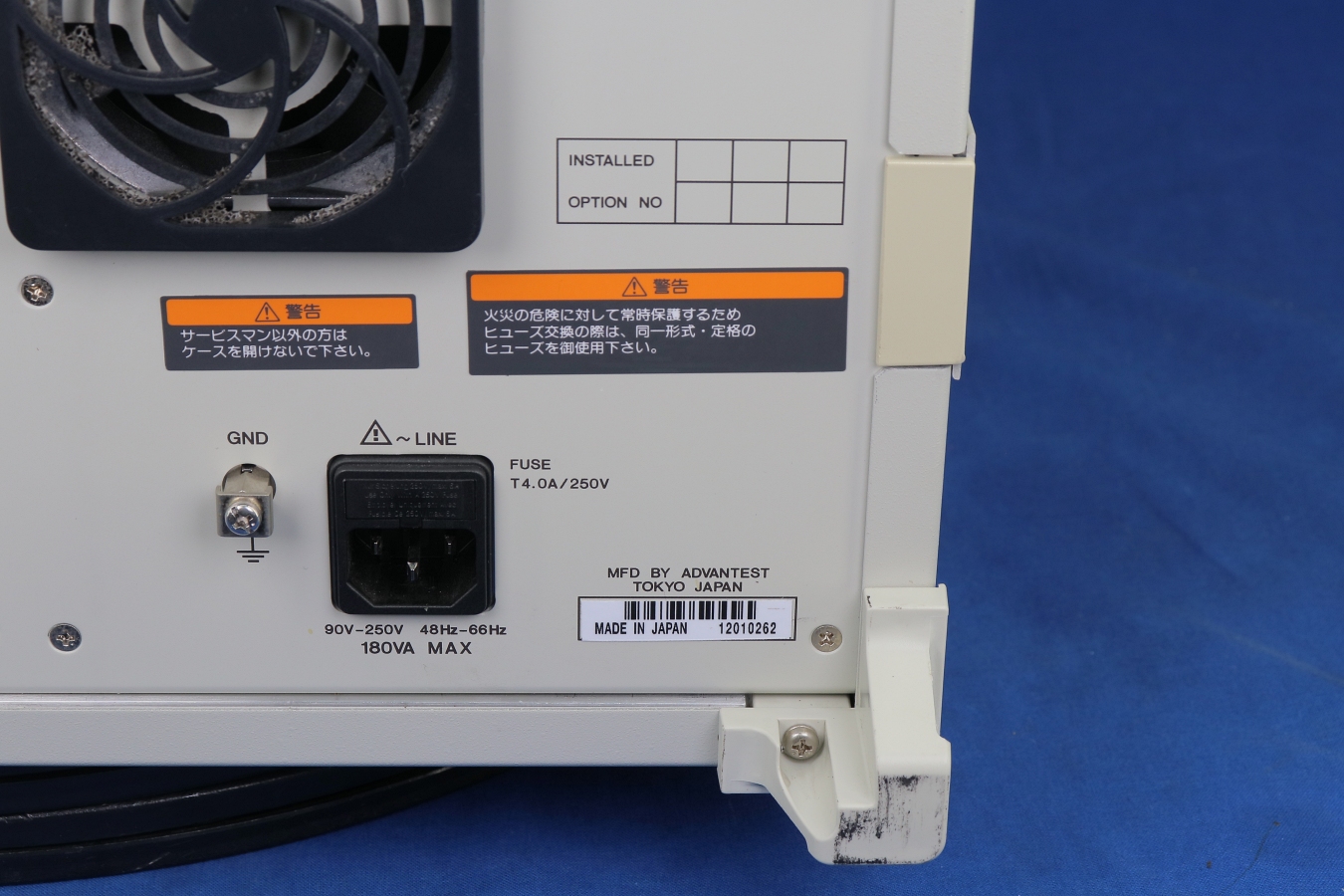

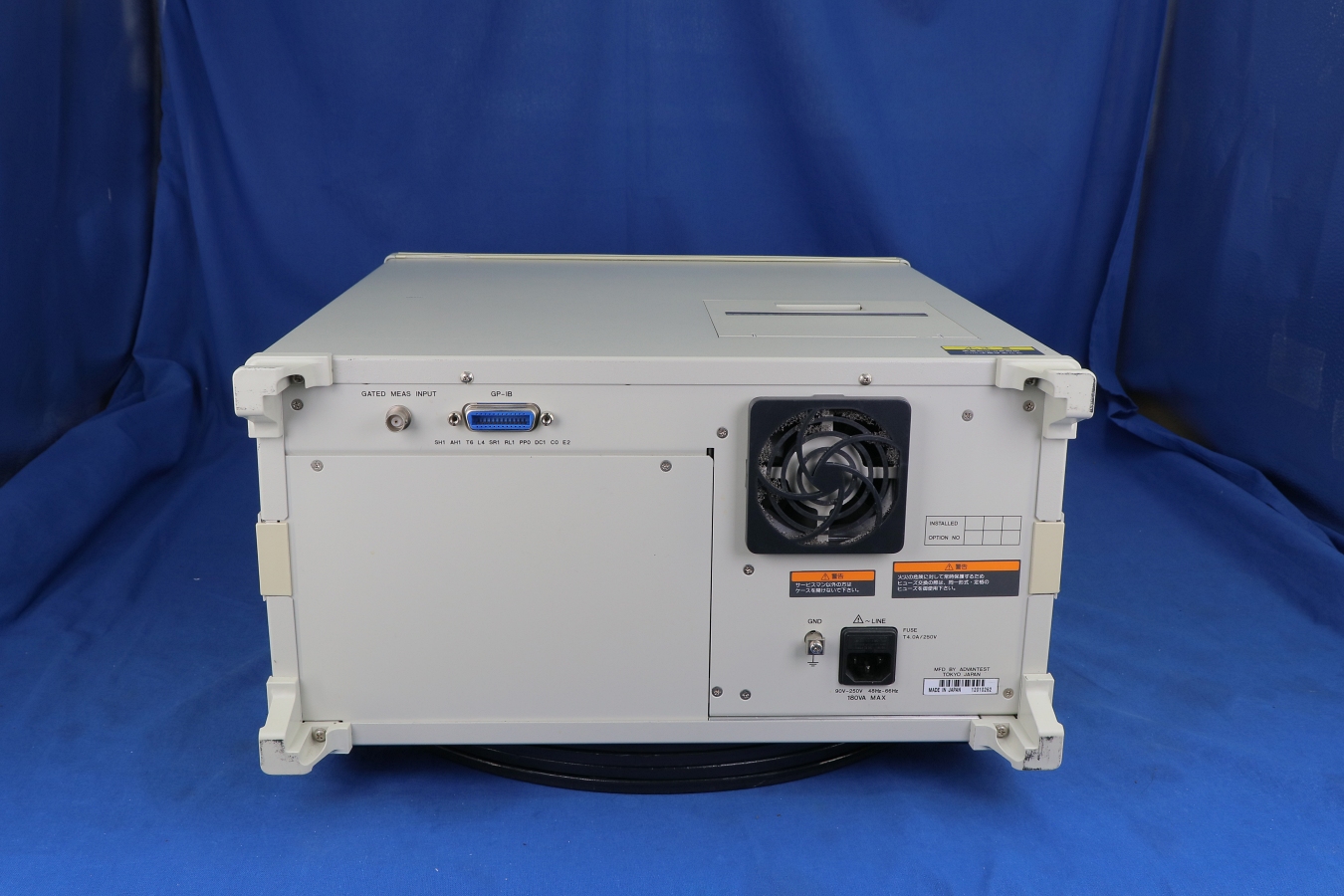

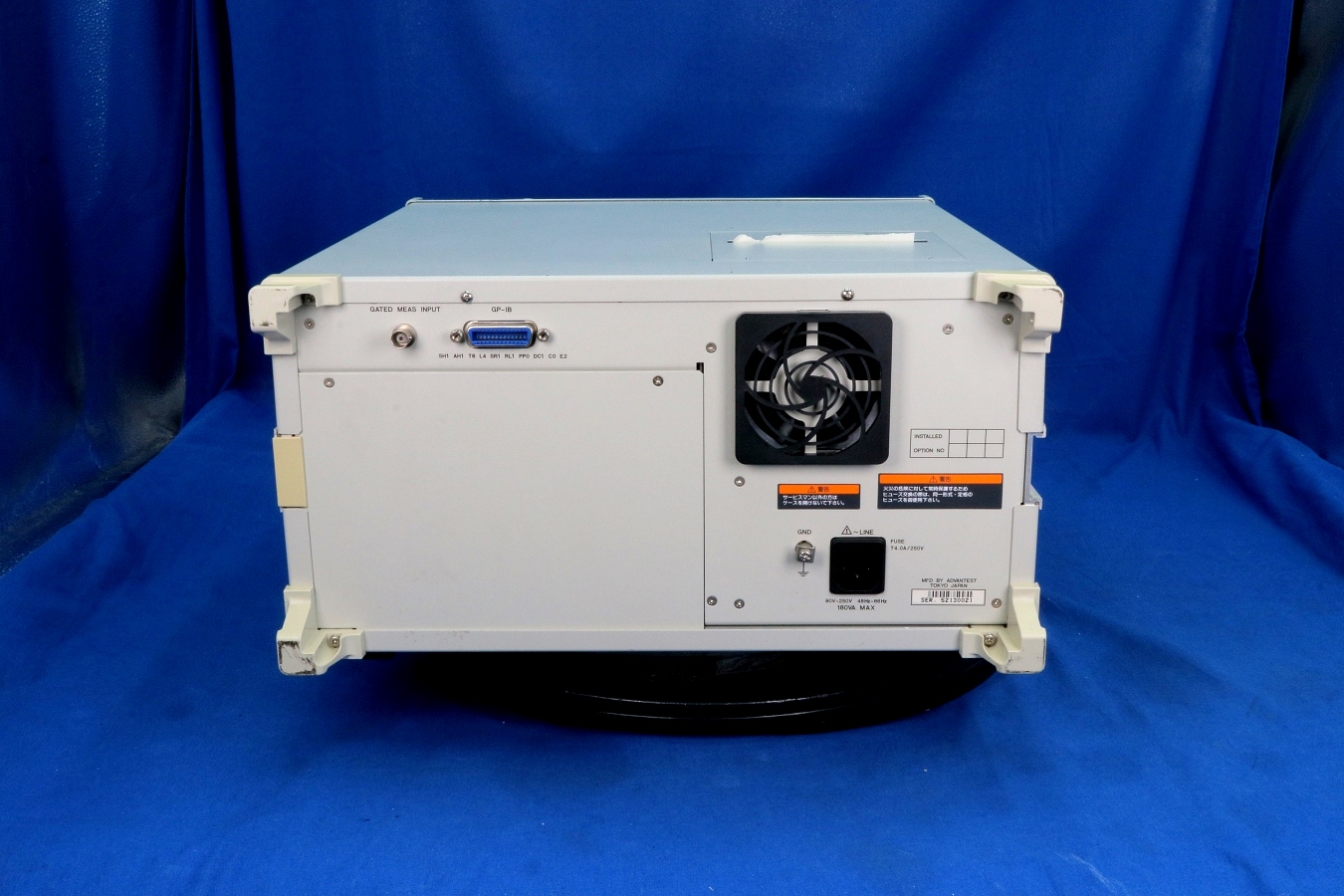

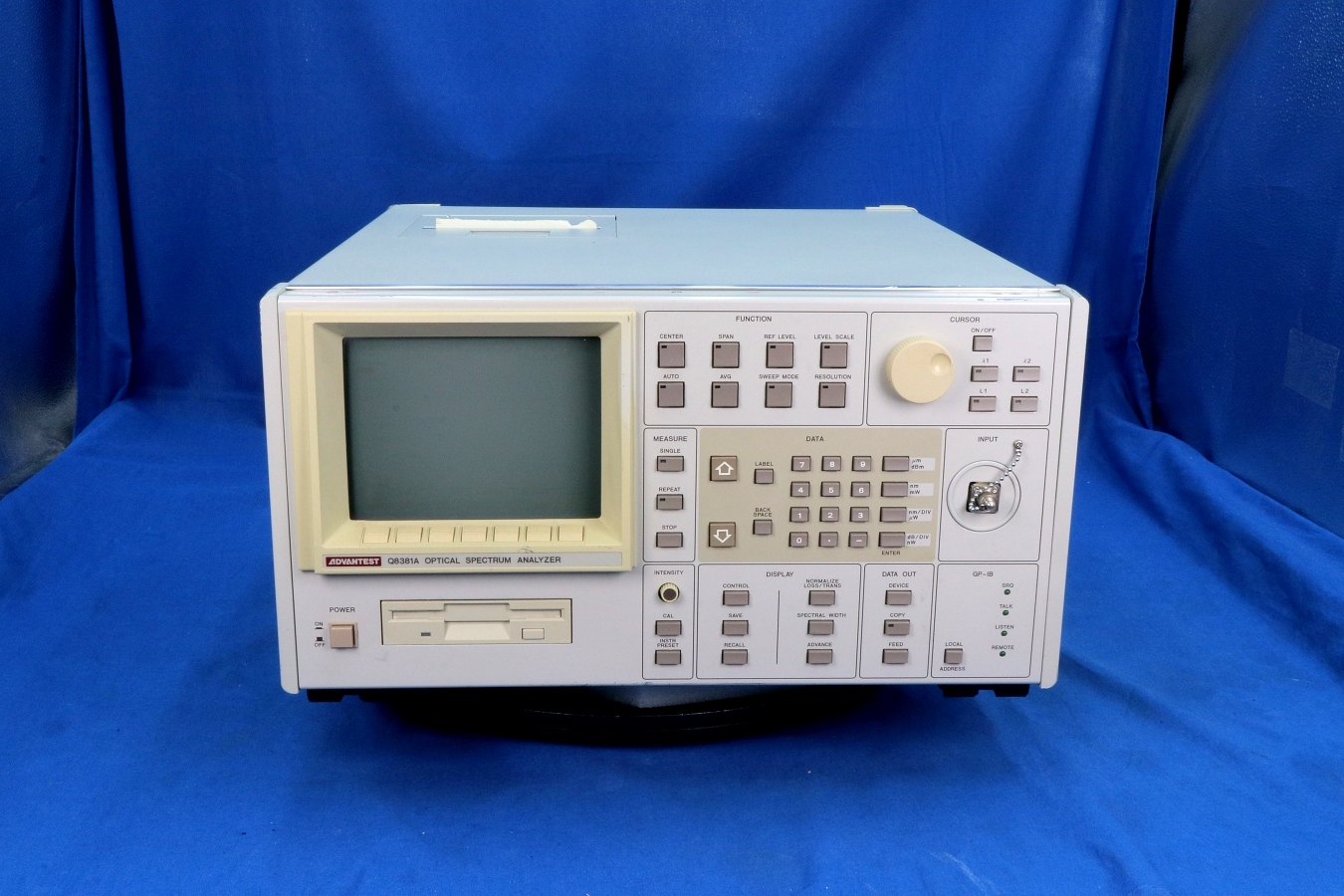

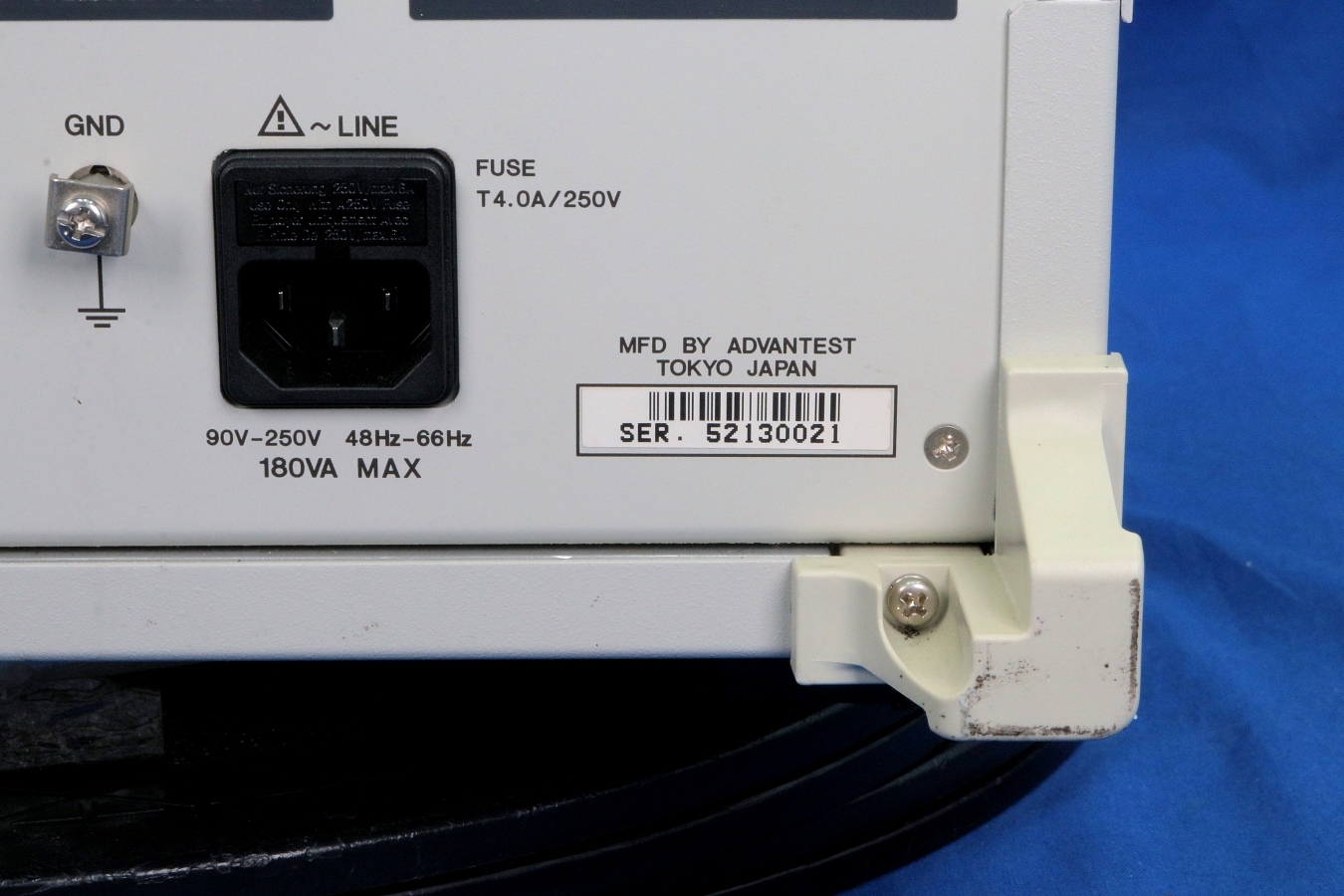

Additional Features: Wide Wavelength Range: 0.35 to 1.75 µm Low Polarization Dependence: ± 0.1 dB or less High Input Sensitivity: -85 dB Unique Pulse Light Measurement Function Power Monitoring Function Versatile Memory Function Specifications Wavelength Measurement range: 0.35 to 1.75 µm Resolution: 0.1, 0.2, 0.5, 1.0, 2.0, 5.0 nm Accuracy: ± 0.5 nm (23 ± 5 °C), 1.0 nm (10 to 40°C) Repeatability: 0.1 nm or less (during one-minute repetitive sweep) Level Measurement range (input sensitivity): -85 to +10 dBm (1.1 to 1.6 µm); -75 to +10 dBm (0.7 to 1.6 µm); -70 to +10 dBm (0.4 to 1.65 µm); -60 to +10 dBm (0.35 to 1.75 µm) Polarization dependence: ± 0.1 dB or less Accuracy: ± 1.5 dB or less (at wavelength of 0.633, 1.31, and 1.55 µm) Linearity: ± 0.5/20 dB, ± 1.0/40 dB Scale: 0.2, 0.5, 1.0, 2.0, 5.0, and 10.0 dB/DIV and linear Dynamic range: 40 dB or more (with ± 1 nm level difference from peak wavelength); 50 dB or more (with ± 5 nm level difference from peak wavelength) Sweep Span: 0.1 nm to 140 nm/DIV and zero Measurement time: 0.8 sec or less (with a span of 200 nm or less); 1.5 sec or less (with a span of 500 nm or less) Pulse light measurement Peak hold mode: Incorporates a circuit for measuring the peak level within the specified gate time (1 ms to 10 s). (Recommended optical pulse width: 30 μs or more), Optical pulse repetitive frequency: 0.1 Hz or more Synchronous measurement input (GATED MEAS INPUT): Can control the measurement timing using an external input signal; BNC-type connector; Input level: 74 AC series or equivalent (High: 3.5 V, Low: 1.5 V), positive logic pulse width: 10 ns or more; Minimum pulse width: 10 ns or more (Recommended optical pulse width: 30 μs or more), Optical pulse repetitive frequency: DC to 100 MHz Processing function Memory function: Internal RAM; Measurement data: 33, Measurement condition: 10 (Battery backup); Built-in floppy disk drive; Conforms to the MS-DOS format (Disk type: 2DD/2HD), Capacity: 720 KB/1.2 MB (Formatted) Display: Dual-screen superimposition display function, vertical dual-screen split function and three-dimensional cursor display function Calculation/analysis: Automatic optimum measurement condition setting, Automatic peak search, Normalization (LOSS/TRANS mode); Power monitoring function (with trend chart), Half-value width measurement, Averaging, Luminosity correction display Input/output Optical input: FC-type connector Data output: General-purpose interface bus (GPIB) (IEEE488-1978), Built-in printer (with a print speed of 8 s or less, standard), Direct plotter output General specification Operating environment: Temperature: +10 to +40°C, Relative humidity: 85% or less (without condensation) Storage environment: Temperature: -10 to +50°C, Relative humidity: 90% or less (without condensation) Power supply: 90 to 250 VAC, 48 to 66 Hz, 180 VA or less Dimensions: Approx. 424 × 221 × 450 (W × H × D) mm The Advantest Q8381A optical spectrum analyzer can analyze a wide wavelength band from 350 to 1750 nm and a wide dynamic range from -85 to +10 dBm (1.1 to 1.6 µm), accommodating measurements on display LEDs and optical devices for communication. In addition, ADVANTEST’s unique technology realizes low polarization dependence and a high-level measurement accuracy of ± 1.5 dB. In addition to the automatic optimum measurement condition setting, automatic peak search and half-value width measurement functions, the Q8381A mounts the pulse light measuring function, power monitoring function and luminosity compensation display functions for improvement of operation and analysis capabilities. In conventional pulse light measurement, even if a number of averagings are made and the average power of duty ratio is obtained; low level and data missing may result. The Q8381A has solved all these problems. Wide Wavelength Measurement with High Sensitivity The Q8381A can measure a wide wavelength range from 1.1 to 1.6 µm at a high sensitivity of -85 dBm. Therefore, level measurement for spontaneous emission light from an erbium doped fiber amplifier (EDFA) and wavelength characteristic measurement in combination with white light source can be performed over a wide dynamic range. Wide Dynamic Range Measurement By minimizing the ambient light level, the Q8381A achieves a wide dynamic range of 40 dB at 1 nm and 50 dB at 5 nm from the peak wavelength. This level of performance is ideal for measurement on the side-mode suppression ratio of DFB laser diodes. High-Speed Measurement The Q8381A can achieve high-speed measurement in 0.8 seconds or less (with a span of 200 nm) in the NORMAL mode, allowing spectrum variation to be measured securely. In adjustment of the filters center wavelength, it can make measurement in real-time manner by means of inter-marker sweep. Low Polarization Dependence Ensures High-Accuracy Level Measurements With Advantest’s unique technology, the Q8381A can achieve a level measurement accuracy of ± 1.5 dB, ensured by a polarization dependence as low as ± 0.1 dB over all wavelength bands. The wavelength sensitivity characteristic is also compensated in all the wavelength bands, enabling more accurate level measurements. Accurate Pulse Light Measurement To date, the spectrum of a pulse-modulated optical signal was measured after averaging. However, the measured spectrum may be lower than the actual light-emitting level or data missing may occur. To solve this problem, the Q8381A provides two measurement modes: PULSE sweep mode and GATED MEAS mode. Power Monitoring Function When analyzing beam light using an optical spectrum analyzer, coupling to optical fiber is required. With the conventional method, the beam light is fed to the analyzer while monitoring the coupling condition using an optical power meter. The Q8381A’s power monitor function can be used in the same manner as the optical power meter.
