16451B HP Fixture
Dielectric Test Fixture up to 30MHz Evaluate the dielectric constant of solid dielectric materials; complies with ASTM D150
REQUEST A QUOTE
Stock
|
Detail
|
Option
|
Download
|
Video

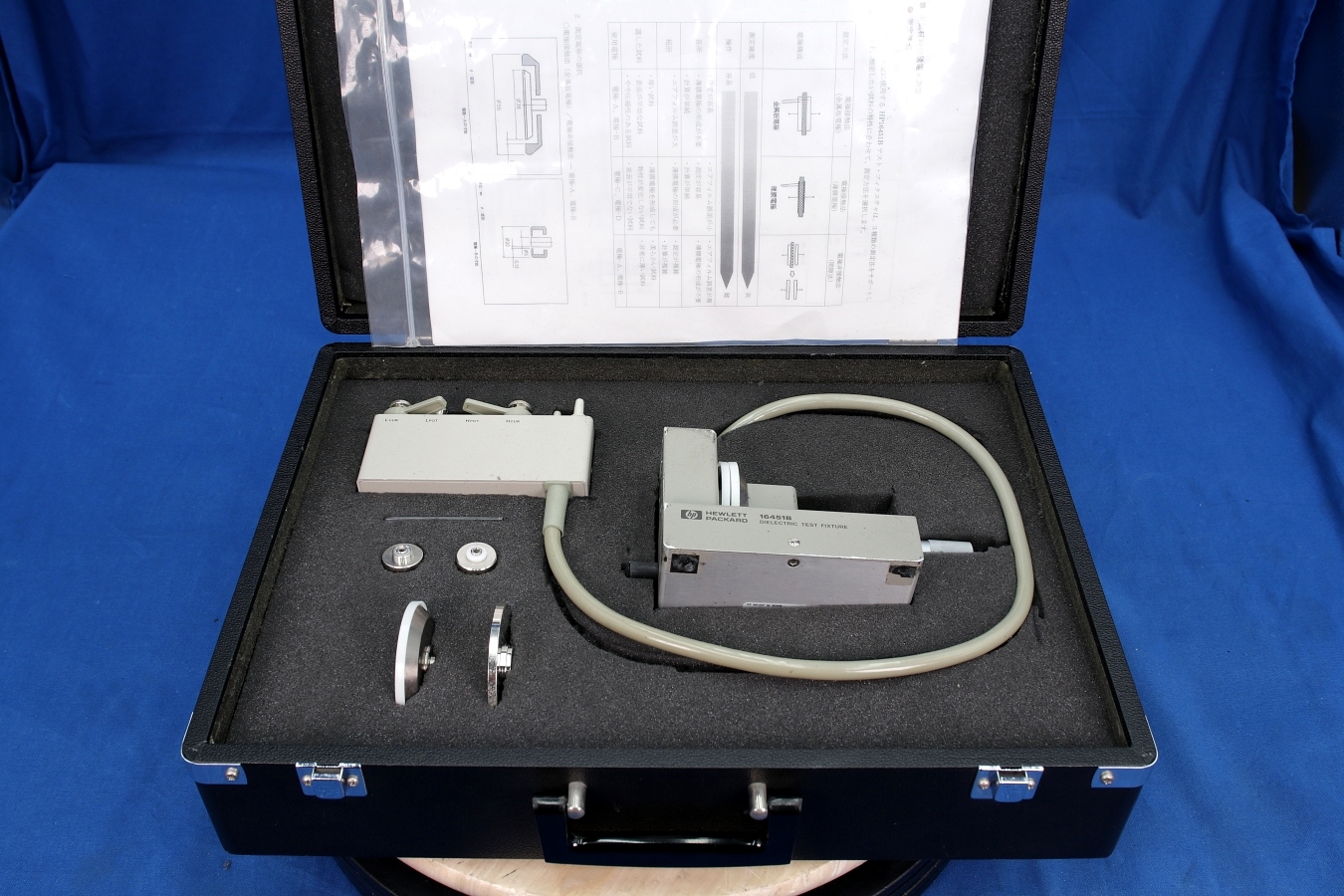

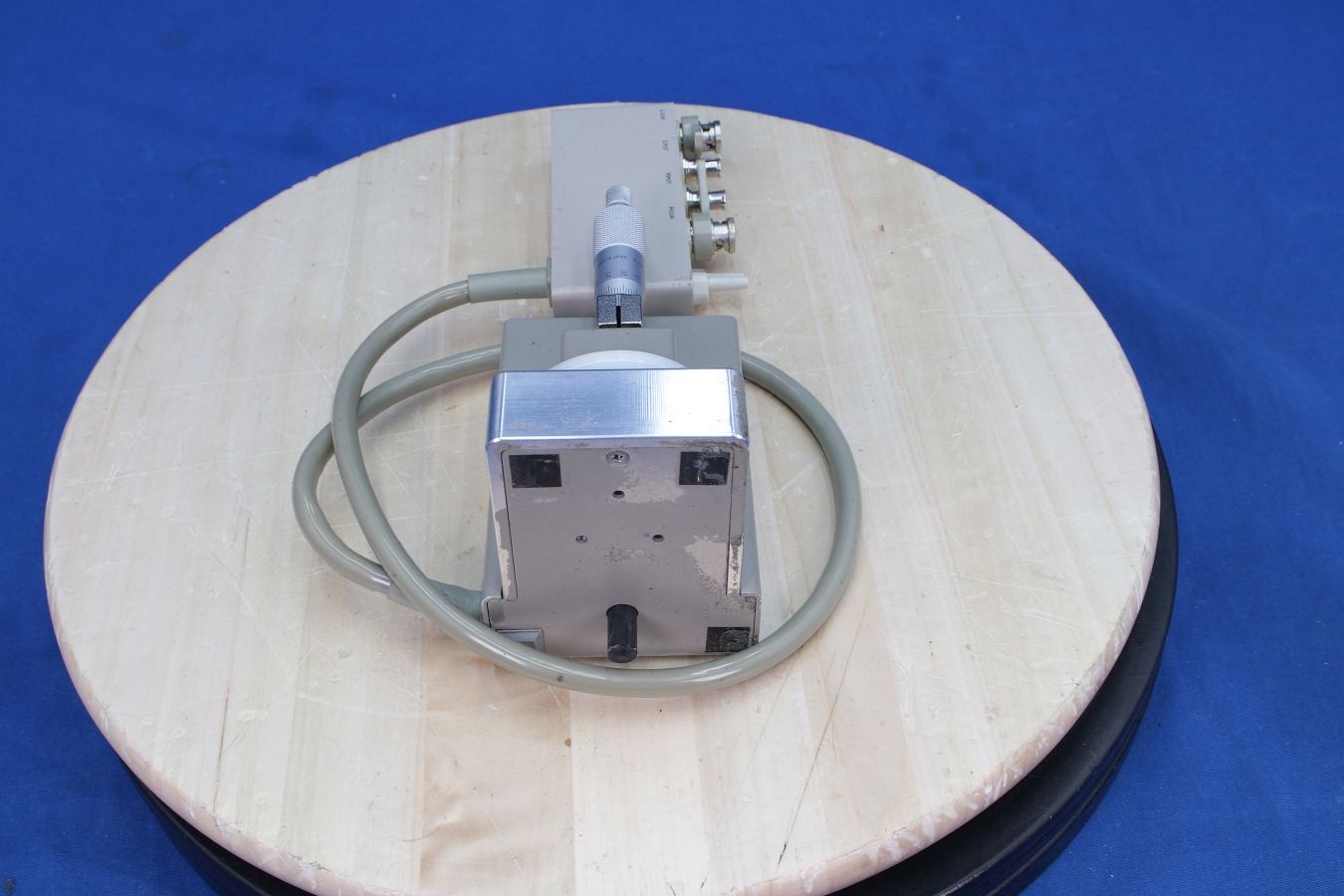

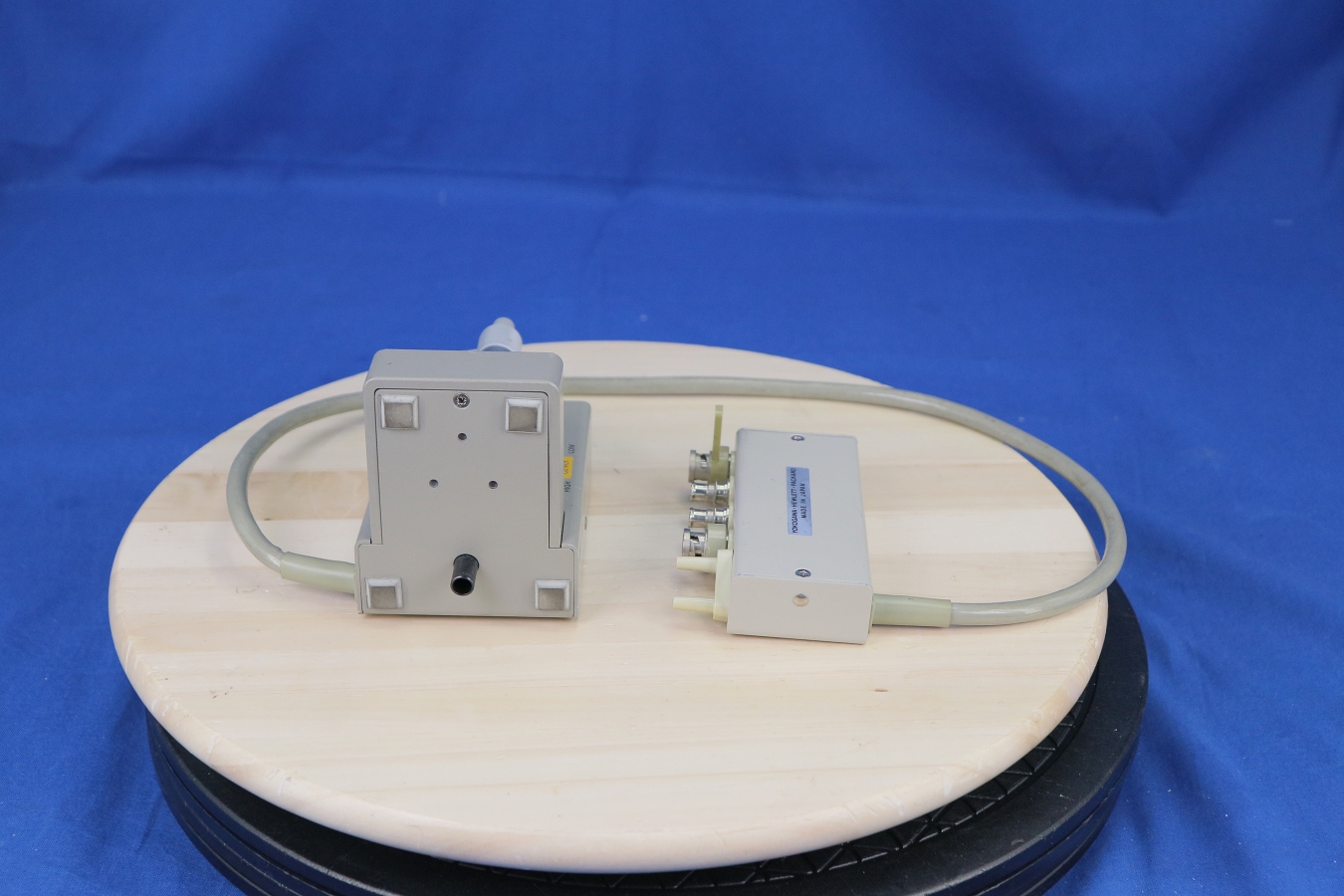

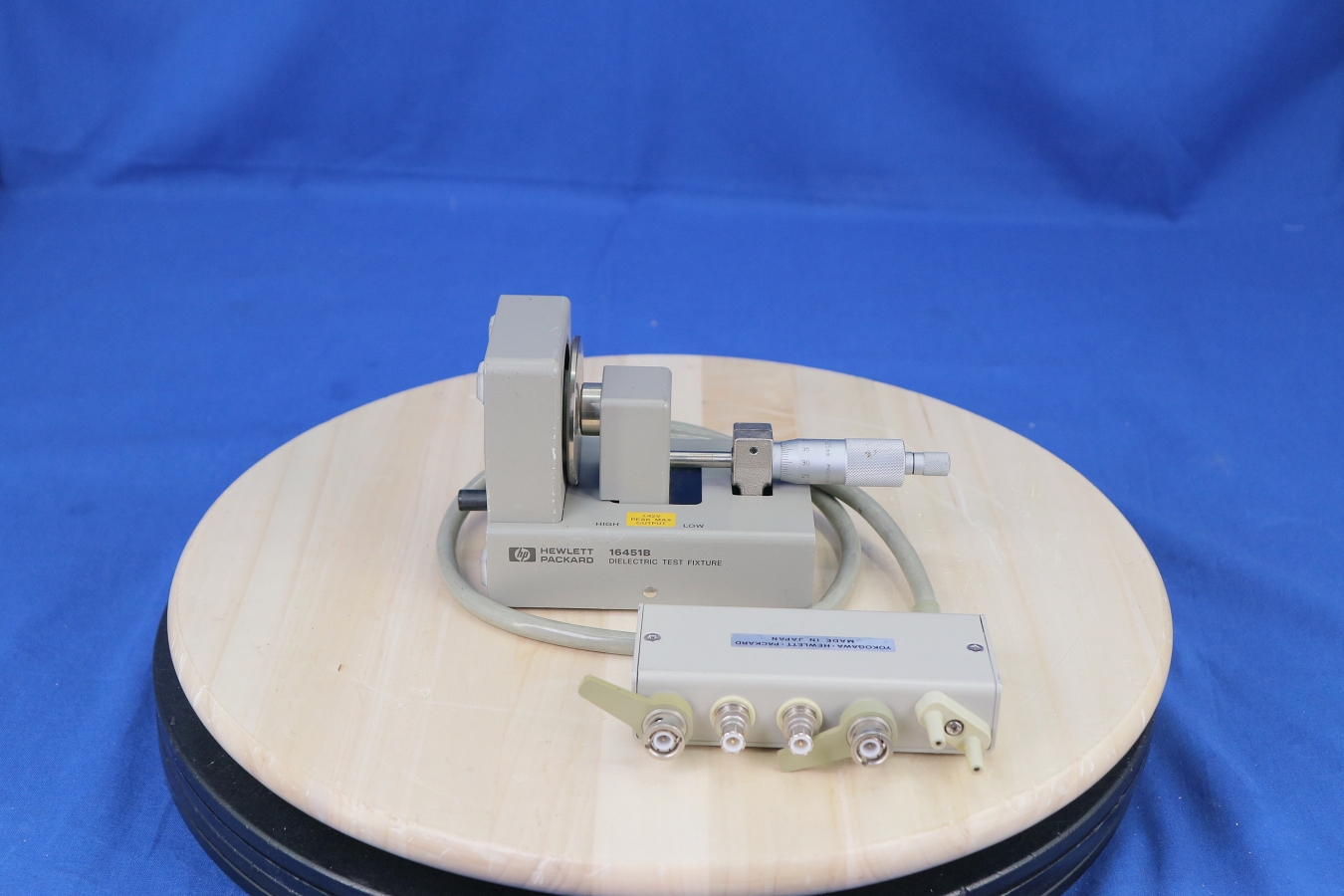

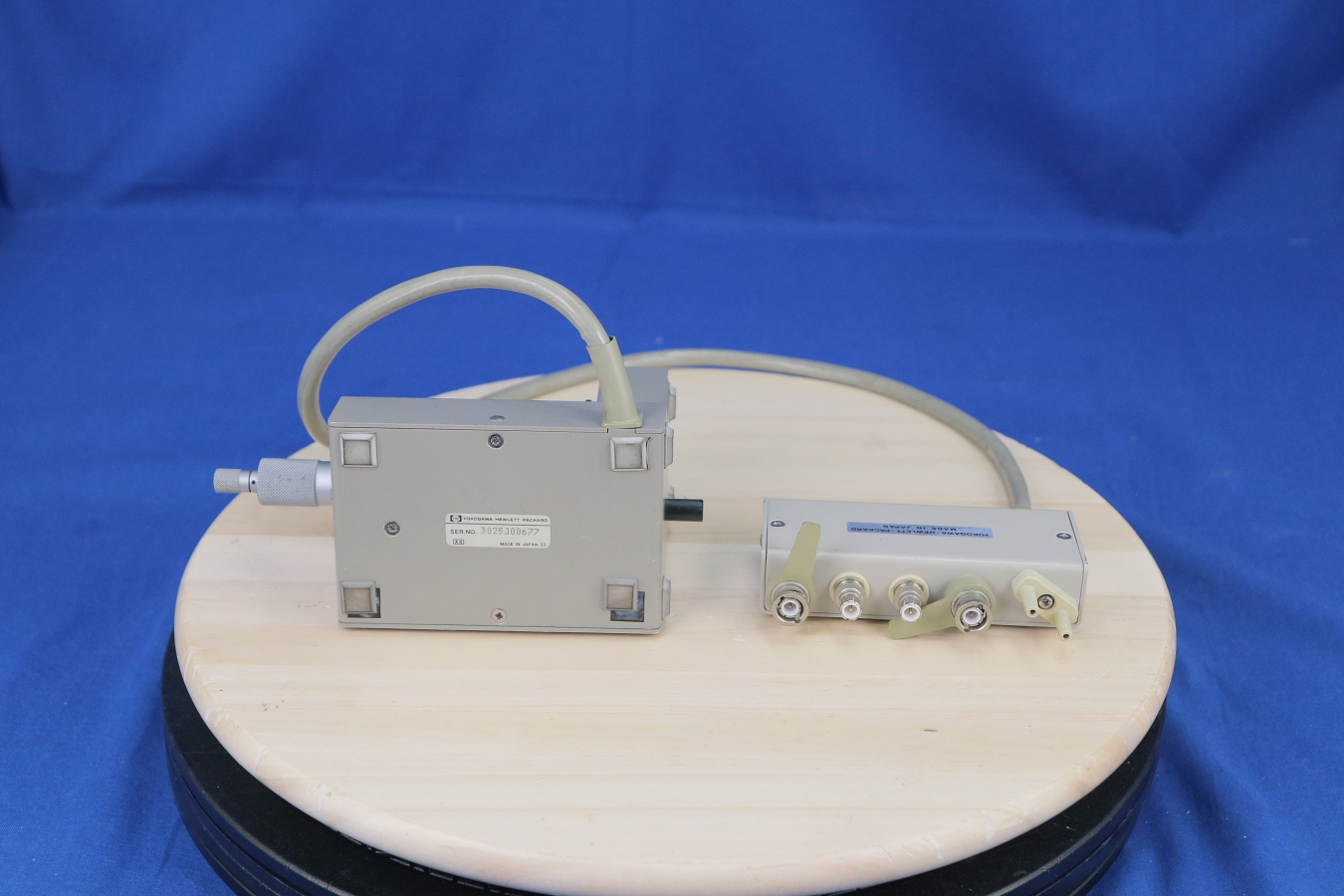

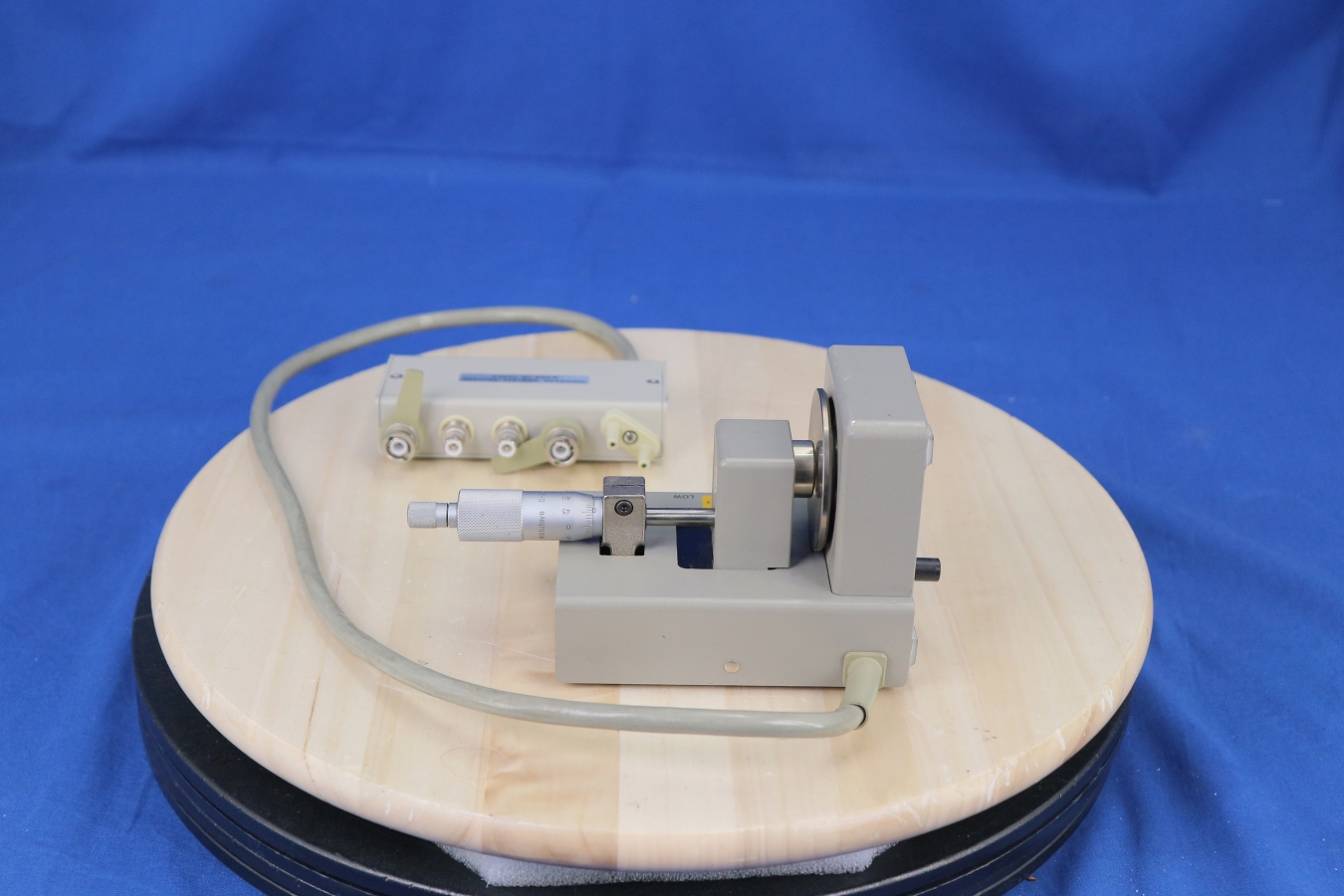

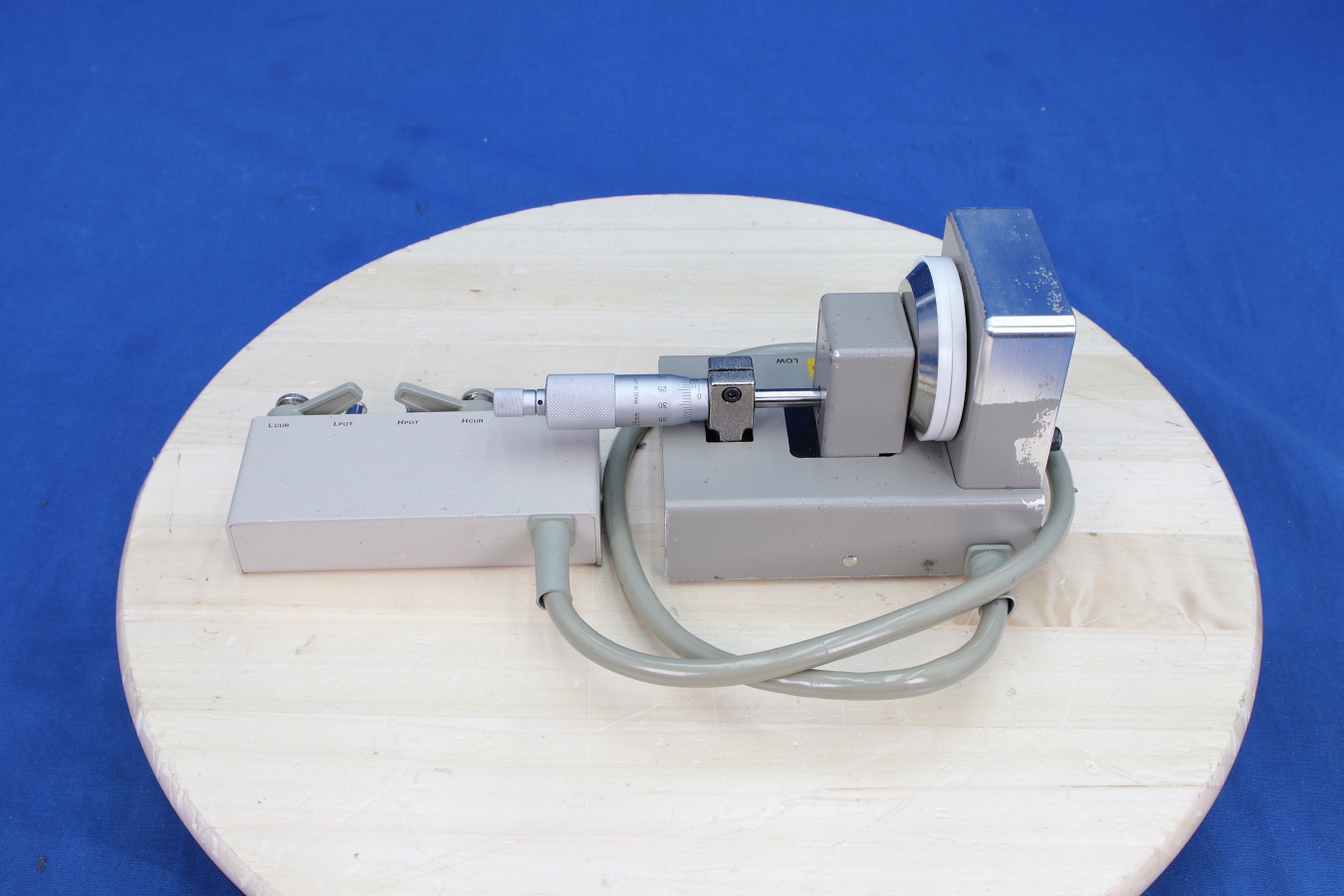

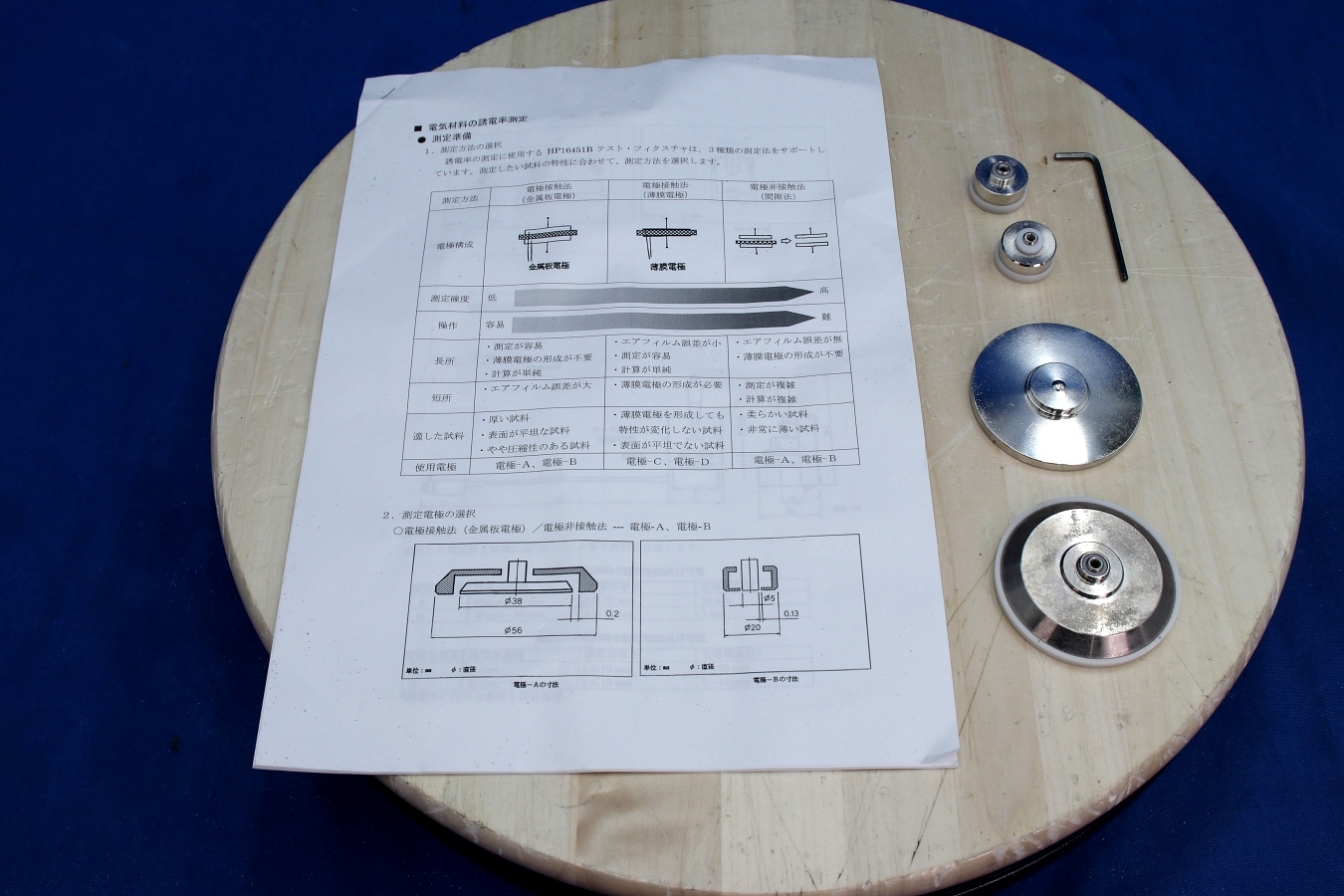

16451B HP Fixture
Price: CALL
Detail

Frequency:
≤ 30 MHz

Measurement parameters:
capacitance (C), dissipation factor (D), and dielectric constant (εr', εr'')

Material-under-test size:
thickness: ≤ 10 mm
diameter: 10 to 56 mm

The 16451B is used to evaluate the dielectric constant of solid dielectric materials accurately, and complies with ASTM D150. The 16451B employs the parallel plate method, which sandwiches the material between two electrodes to form a capacitor. An LCR meter or an impedance analyzer is then used to measure the capacitance created from the fixture.
