16380A HP Standard
Capacitance: 1pF, 10pF, 100pF, 1000pF
Nominal Accuracy within 1%
Calibration Accuracy within .01%
Calibration Stability: <50 ppm/year
Dissipation Factor: <0.0001
Terminal Connector: 4-Terminal Pair, BNC

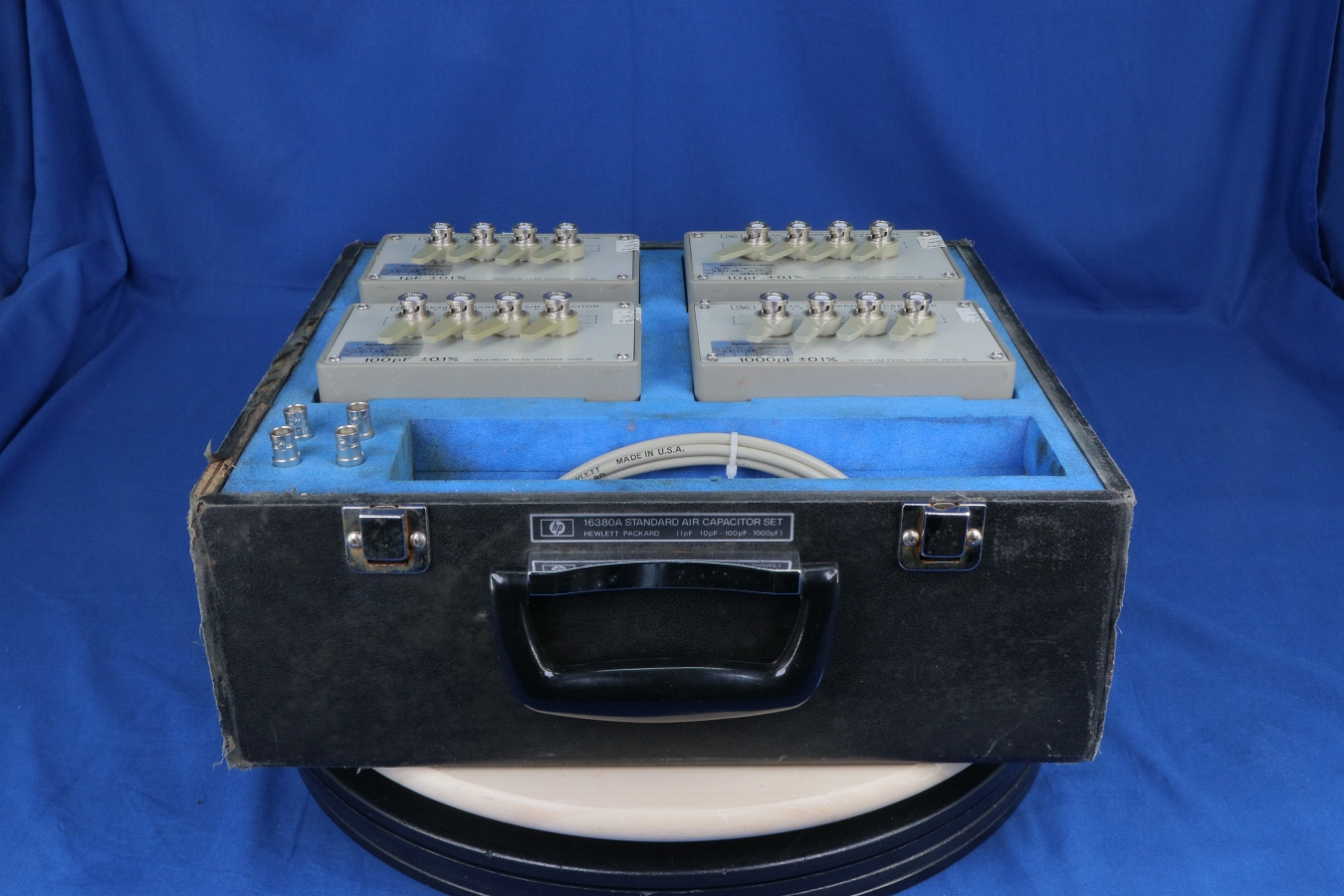

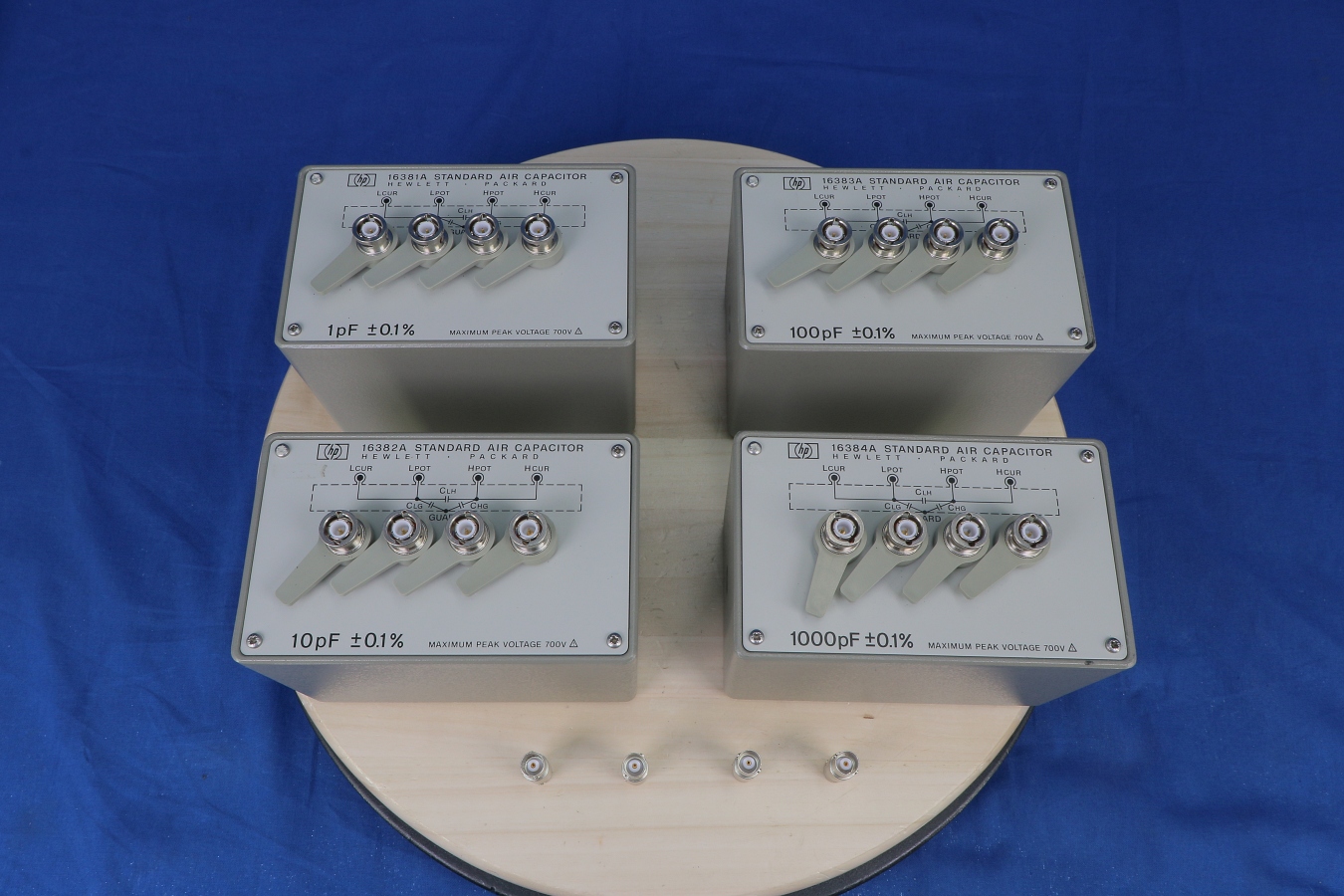

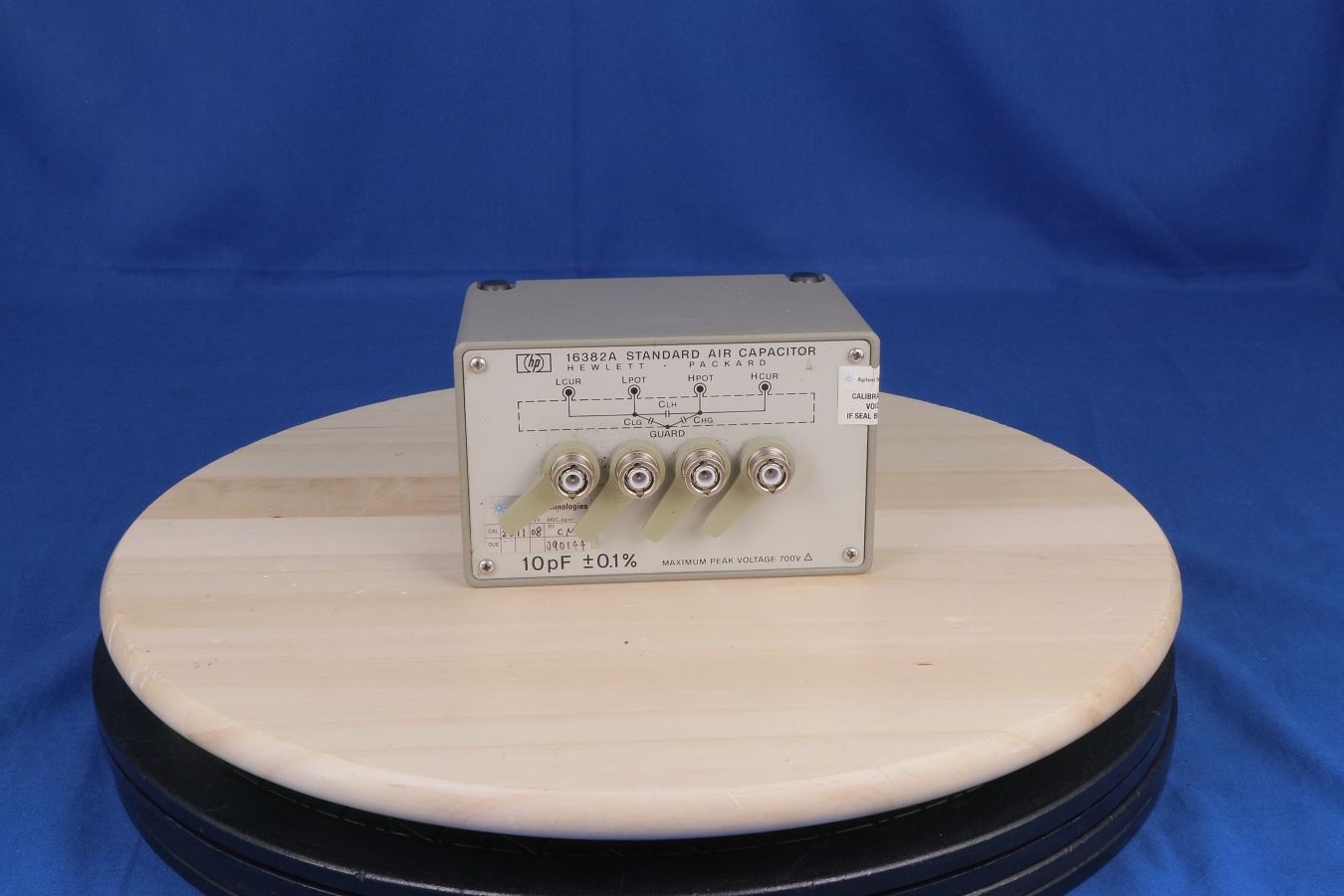

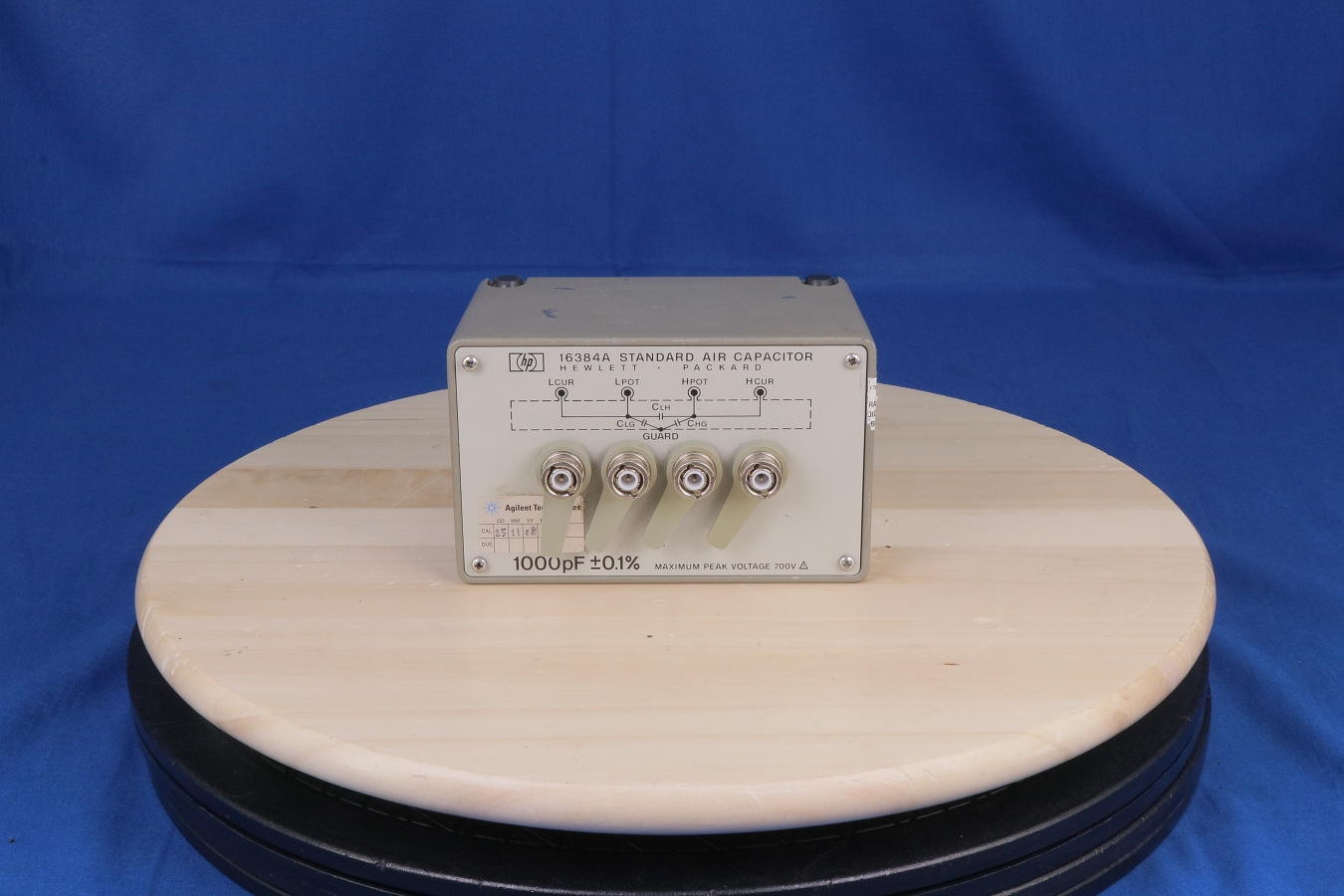

The Agilent 16380A is a standard capicatator set consisting of four precision capacitors - 1pF (16381A), 10pF (16382A), 100pF (16383A), 1000pF (16384A). These capicators are primarily used for performance tests of Agilent's 4-terminal pair LCR meters and impedance analyzers.
REQUEST A QUOTE
Detail
Capacitance: 1pF, 10pF, 100pF, 1000pF
Nominal Accuracy within 1%
Calibration Accuracy within .01%
Calibration Stability: <50 ppm/year
Dissipation Factor: <0.0001
Terminal Connector: 4-Terminal Pair, BNC
The Agilent 16380A is a standard capicatator set consisting of four precision capacitors - 1pF (16381A), 10pF (16382A), 100pF (16383A), 1000pF (16384A). These capicators are primarily used for performance tests of Agilent's 4-terminal pair LCR meters and impedance analyzers.
