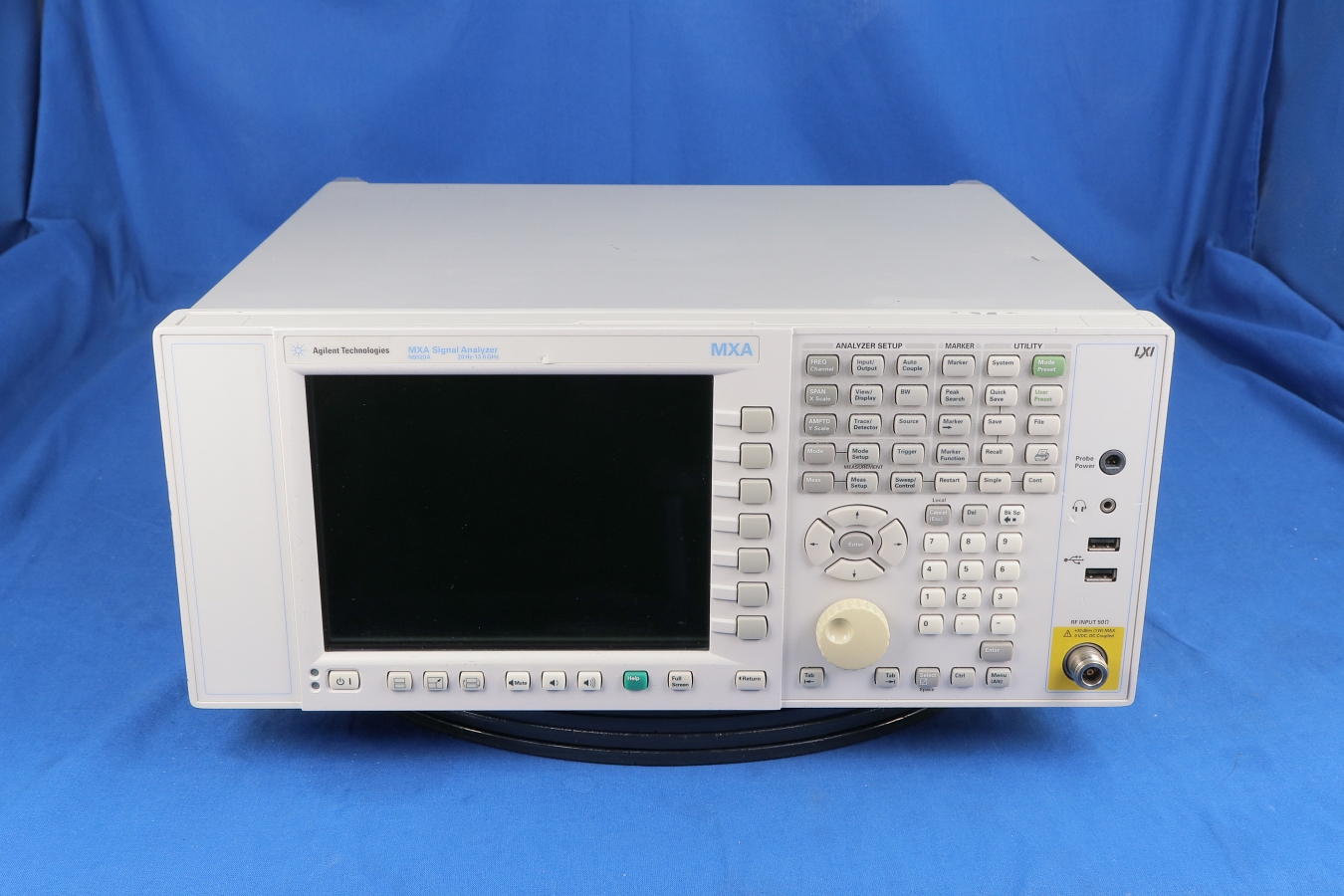

N9020A Agilent Analyzer
Additional Features: Functionality: 20 Hz to 3.6, 8.4, 13.6, or 26.5 GHz; internal preamplifier options up to 26.5 GHz 25 MHz (standard) or 40 MHz (optional) analysis bandwidth Basic EMI precompliance measurement capability available, including CISPR 16-1-1 bandwidths, detectors, amplitude correction factor, band preset, tune & listen at marker, and limit lines Performance: ±0.23 dB absolute amplitude accuracy +20 dBm third order intercept (TOI) -166 dBm displayed average noise level (DANL) with preamplifier -78 dB W-CDMA ACLR dynamic range (with noise correction on) Measurement Applications & Software: MXA supports over 25 measurement applications, covering cellular communication, wireless connectivity, digital video and general purpose. Advanced analysis of more than 70 signal formats, software runs inside the MXA Agilent's PowerSuite one-button power measurements included as standard Automation & Communication Interface LXI class C compliant, SCPI and IVI-COM USB 2.0, 1000Base-T LAN, GPIB Programming remote language compatibility with PSA, 8566/68, and 856x Automation & communication interface: LXI compliant, SCPI and IVI-COM USB 3.0, 1000Base-T LAN, GPIB Programming remote language compatibility with PSA, 8566/68, and 856x Common X-Series user interface / Open Windows 7 operating system (standard) Migrate your existing MXA from Windows XP to Windows 7 The MXA is designed to accelerate the development of new wireless devices for quick delivery to manufacturing and the marketplace. It has the versatility to easily adapt to your evolving test requirements by addressing multiple formats, generations and devices. Real-time spectrum analyzer capability can be added as an upgrade to new and exisiting MXAs to help you capture and understand the most elusive signals in an increasingly complex signal environment. Coupled with 160 MHz of wideband analysis bandwidth, the MXA allows you to make accurate analysis of next-generation wireless communications and connectivity signals. The N9020A MXA signal analyzer is a member of the X-Series spectrum analyzers, which is an evolutionary approach to signal analysis that spans instrumentation, measurements and software. It gives you the flexibility to satisfy your business and technical requirements across multiple products and programs - now and in the future.
REQUEST A QUOTE
Stock
|
Detail
|
Option
|
Download
|
Video
N9020A Agilent Analyzer
526: 20 Hz to 26.5 GHz / B25: 25MHz Maximum bandwidth / IDE: FUJITSU MHV2040AH / PC1: Intel(R) Pentium(R) M processor 1600MHz / WXP: WIndows XP Pro for Embedded Systems, 32 bit OS / 526: 20 Hz to 26.5 GHz / N9020A-B25: Analysis bandwidth, 25 MHz / N9060A-2FP: Spectrum Analyzer Measurement Application / N9060A-3FP: Amplitude correction and limit lines / N9060A-4FP: TOI and Harmonics / N9060A-5FP: ACP 18 Carrier / N9073A-1FP: Standard-based, one-button W-CDMA measurements; supports analog baseband analysis with Option BBA (BBIQ inputs) / N9073A-AFP: W-CDMA Feature Enhancements / N9060A-6FP: TV Trigger and IQ Analyzer Enhancement / N9060A-7FP: Zero Span, Register, Trace and Spurious Enhancements / N9073A-BFP: W-CDMA Feature Enhancements / N9073A-CFP: W-CDMA Feature Enhancements / N9073A-DFP: W-CDMA Feature Enhancements / N9073A-EFP /
Price: CALL
N9020A Agilent Analyzer
IDE: FUJITSU MHV2040AH / PC1: Intel(R) Pentium(R) M processor 1600MHz / 526: 20 Hz to 26.5 GHz / N9020A-B25: Analysis bandwidth, 25 MHz / EA3: Electronic attenuator, 3.6GHz / P26: Preamplifier, 26.5 GHz / PFR: Precision frequency reference 10 MHz / N9060A-2FP: Spectrum Analyzer Measurement Application / N9060A-3FP: Amplitude correction and limit lines / N9060A-4FP: TOI and Harmonics / N9072A-2FP: cdma2000 Measurement Application / N9073A-1FP: Standard-based, one-button W-CDMA measurements; supports analog baseband analysis with Option BBA (BBIQ inputs) / N9073A-2FP: Adds HSPA measurements; requires 1FP/1TP / N9075A-2FP: Standard-based, one-button Mobile WiMAX measurements; supports analog baseband analysis with Option BBA (BBIQ inputs) / N9076A-1FP: CDMA1xEVDO Measurement Application / N9080A-1FP: LTE Measurement Application /
Price: CALL
N9020A Agilent Analyzer
Price: CALL
N9020A Agilent Analyzer
PC4: Intel(R) Core(TM) i7 CPU L 620 @ 2.00GHz, 8 GB / SSD: INTEL SSDSA2CW080G3 ATA DEVICE / W7X: Microsoft Windows Embedded Standard, 64 bit OS / 526: 20 Hz to 26.5 GHz / N9020A-B25: Analysis bandwidth, 25 MHz / EA3: Electronic attenuator, 3.6GHz / P13: Preamplifier, 13.6 GHz / N9060A-2FP: Spectrum Analyzer Measurement Application / N9060A-3FP: Amplitude correction and limit lines / N9060A-4FP: TOI and Harmonics / N9060A-5FP: ACP 18 Carrier / N9068A-2FP: Phase Noise Measurement Application / N9068A-AFP: Phase Noise Feature Enhancements / N9069A-1FP: Noise Figure Measurement Application / N9071A-2FP: GSM/EDGE Measurement Application / N9071A-3FP: EDGE Evolution Measurement Application / N9071A-AFP: GSM/EDGE Feature Enhancements / N9072A-2FP: cdma2000 Measurement Application / N9073A-1FP: Standard-based, one-button W-CDMA measurements; supports analog baseband analysis with Option BBA (BBIQ inputs) / N9073A-2FP: Adds HSPA measurements; requires 1FP/1TP / N9073A-3FP: HSPA+ Measurement Application / N9073A-AFP: W-CDMA Feature Enhancements / N9074A-2FP / N9074A-XFP: Single Acq Combined OFDM Measurements / N9075A-2FP: Standard-based, one-button Mobile WiMAX measurements; supports analog baseband analysis with Option BBA (BBIQ inputs) / N9076A-1FP: CDMA1xEVDO Measurement Application / N9077A-2FP: WLAN 802.11a/b/g Measurement Application / N9077A-3FP: WLAN 802.11n Measurement Application / N9077A-4FP: WLAN 802.11ac Measurement Application / N9077A-5FP: WLAN 802.11 List Sequence Measurement Application / N9077A-6FP: WLAN 802.11ah Measurement Application / N9080B-1FP: LTE Measurement Application / N9080B-2FP: LTE-Adv FDD Measurement Application / N9082B-1FP: LTE-TDD Measurement Application / N9082B-2FP: LTE-Adv TDD Measurement Application /
Price: CALL
N9020A Agilent Analyzer
526: 20 Hz to 26.5 GHz / IDE: FUJITSU MHV2040AH / PC1: Intel(R) Pentium(R) M processor 1600MHz / WXP: WIndows XP Pro for Embedded Systems, 32 bit OS / N9020A-B25: Analysis bandwidth, 25 MHz / EA3: Electronic attenuator, 3.6GHz / PFR: Precision frequency reference 10 MHz / N9060A-2FP: Spectrum Analyzer Measurement Application / N9060A-3FP: Amplitude correction and limit lines / N9060A-4FP: TOI and Harmonics / N9073A-1FP: Standard-based, one-button W-CDMA measurements; supports analog baseband analysis with Option BBA (BBIQ inputs) / N9073A-2FP: Adds HSPA measurements; requires 1FP/1TP / N9075A-2FP: Standard-based, one-button Mobile WiMAX measurements; supports analog baseband analysis with Option BBA (BBIQ inputs) / N9080A-1FP: LTE Measurement Application /
Price: CALL
Detail
Additional Features: Functionality: 20 Hz to 3.6, 8.4, 13.6, or 26.5 GHz; internal preamplifier options up to 26.5 GHz 25 MHz (standard) or 40 MHz (optional) analysis bandwidth Basic EMI precompliance measurement capability available, including CISPR 16-1-1 bandwidths, detectors, amplitude correction factor, band preset, tune & listen at marker, and limit lines Performance: ±0.23 dB absolute amplitude accuracy +20 dBm third order intercept (TOI) -166 dBm displayed average noise level (DANL) with preamplifier -78 dB W-CDMA ACLR dynamic range (with noise correction on) Measurement Applications & Software: MXA supports over 25 measurement applications, covering cellular communication, wireless connectivity, digital video and general purpose. Advanced analysis of more than 70 signal formats, software runs inside the MXA Agilent's PowerSuite one-button power measurements included as standard Automation & Communication Interface LXI class C compliant, SCPI and IVI-COM USB 2.0, 1000Base-T LAN, GPIB Programming remote language compatibility with PSA, 8566/68, and 856x Automation & communication interface: LXI compliant, SCPI and IVI-COM USB 3.0, 1000Base-T LAN, GPIB Programming remote language compatibility with PSA, 8566/68, and 856x Common X-Series user interface / Open Windows 7 operating system (standard) Migrate your existing MXA from Windows XP to Windows 7 The MXA is designed to accelerate the development of new wireless devices for quick delivery to manufacturing and the marketplace. It has the versatility to easily adapt to your evolving test requirements by addressing multiple formats, generations and devices. Real-time spectrum analyzer capability can be added as an upgrade to new and exisiting MXAs to help you capture and understand the most elusive signals in an increasingly complex signal environment. Coupled with 160 MHz of wideband analysis bandwidth, the MXA allows you to make accurate analysis of next-generation wireless communications and connectivity signals. The N9020A MXA signal analyzer is a member of the X-Series spectrum analyzers, which is an evolutionary approach to signal analysis that spans instrumentation, measurements and software. It gives you the flexibility to satisfy your business and technical requirements across multiple products and programs - now and in the future.
Option
Option Description
205 Basic VSA-lite
235 Pre-amplifier
333 X-Series analyzer connectivity
503 9 kHz to 3.0 GHz Frequency Range
507 Frequency range, 9 kHz to 7.0 GHz
513 Frequency range, 10 Hz to 13.6 GHz
526 20 Hz to 26.5 GHz
AYA Vector modulation analysis
B1X Increase analysis bandwidth from 10/25 to 160 MHz
B25 25MHz Maximum bandwidth
B40 40MHz Maximum bandwidth
BBA Baseband Analog I/Q
DP2 Digital processor with 2 GB capture memory
EA3 Electronic attenuator, 3.6GHz
EP3 Enhanced phase noise
FSA Mechanical attenuator, 2 dB steps, 0 to 70 dB
IDE FUJITSU MHV2040AH
LFE Low Frequency Enabled (allows frequency range to 3 Hz)
N9020A-B25 Analysis bandwidth, 25 MHz
N9060A-2FP Spectrum Analyzer Measurement Application
N9060A-3FP Amplitude correction and limit lines
N9060A-4FP TOI and Harmonics
N9060A-5FP ACP 18 Carrier
N9060A-6FP TV Trigger and IQ Analyzer Enhancement
N9060A-7FP Zero Span, Register, Trace and Spurious Enhancements
N9068A-2FP Phase Noise Measurement Application
N9068A-AFP Phase Noise Feature Enhancements
N9069A-1FP Noise Figure Measurement Application
N9071A-2FP GSM/EDGE Measurement Application
N9071A-3FP EDGE Evolution Measurement Application
N9071A-AFP GSM/EDGE Feature Enhancements
N9072A-2FP cdma2000 Measurement Application
N9073A-1FP Standard-based, one-button W-CDMA measurements; supports analog baseband analysis with Option BBA (BBIQ inputs)
N9073A-2FP Adds HSPA measurements; requires 1FP/1TP
N9073A-3FP HSPA+ Measurement Application
N9073A-AFP W-CDMA Feature Enhancements
N9073A-BFP W-CDMA Feature Enhancements
N9073A-CFP W-CDMA Feature Enhancements
N9073A-DFP W-CDMA Feature Enhancements
N9073A-EFP
N9074A-2FP
N9074A-XFP Single Acq Combined OFDM Measurements
N9075A-2FP Standard-based, one-button Mobile WiMAX measurements; supports analog baseband analysis with Option BBA (BBIQ inputs)
N9076A-1FP CDMA1xEVDO Measurement Application
N9077A-2FP WLAN 802.11a/b/g Measurement Application
N9077A-3FP WLAN 802.11n Measurement Application
N9077A-4FP WLAN 802.11ac Measurement Application
N9077A-5FP WLAN 802.11 List Sequence Measurement Application
N9077A-6FP WLAN 802.11ah Measurement Application
N9080A-1FP LTE Measurement Application
N9080B-1FP LTE Measurement Application
N9080B-2FP LTE-Adv FDD Measurement Application
N9082B-1FP LTE-TDD Measurement Application
N9082B-2FP LTE-Adv TDD Measurement Application
NFE Noise Floor Extension
NUL LO/IM nulling, Minimizes the LO feed-thru and intermodulation distortion
P03 Preamplifier, 100 kHz to 3.6 GHz
P13 Preamplifier, 13.6 GHz
P26 Preamplifier, 26.5 GHz
PC1 Intel(R) Pentium(R) M processor 1600MHz
PC4 Intel(R) Core(TM) i7 CPU L 620 @ 2.00GHz, 8 GB
PFR Precision frequency reference 10 MHz
RTL Real-time link
SSD INTEL SSDSA2CW080G3 ATA DEVICE
T03 9 kHz to 3 GHz Tracking Generator Frequency
W7X Microsoft Windows Embedded Standard, 64 bit OS
WXP WIndows XP Pro for Embedded Systems, 32 bit OS
