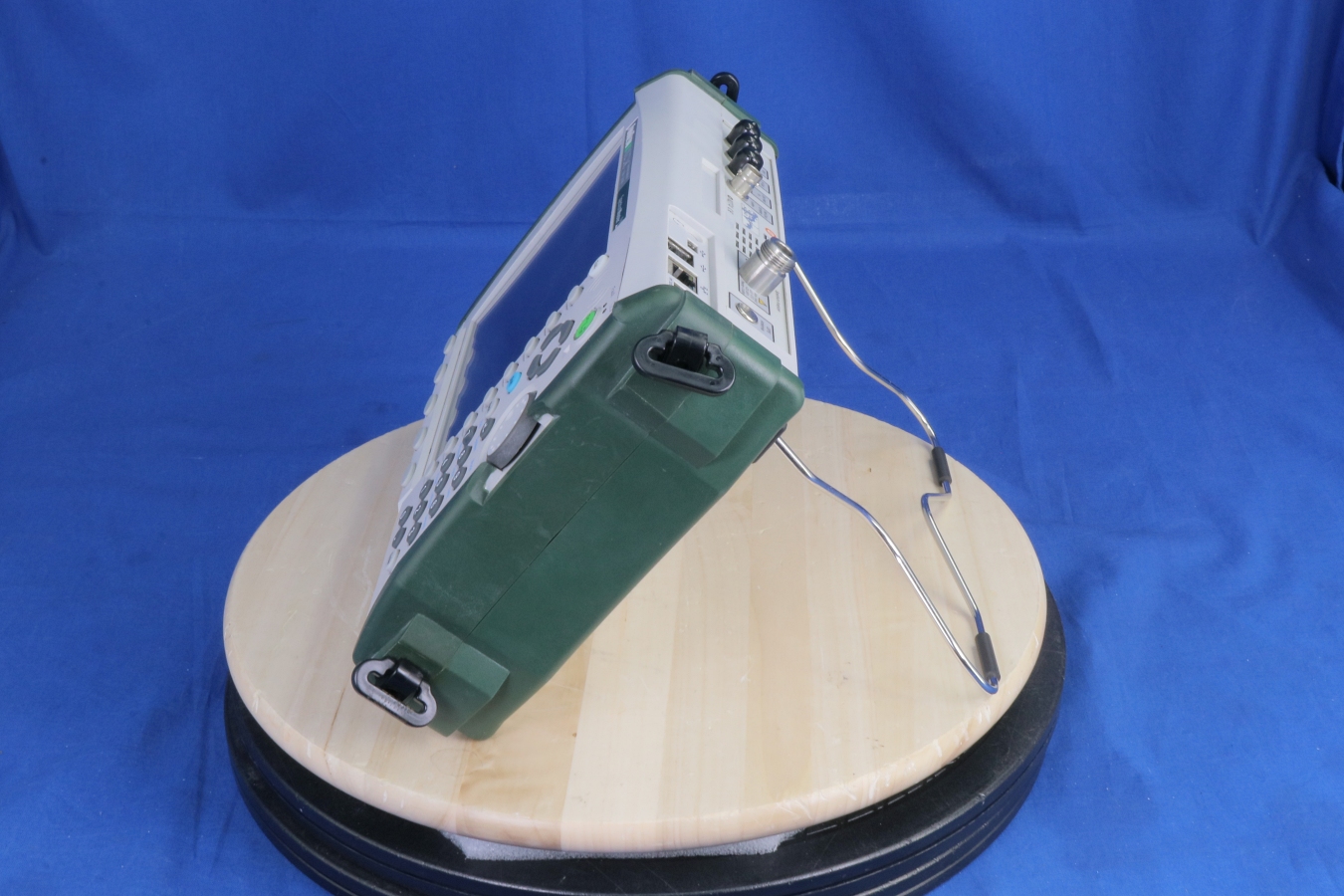

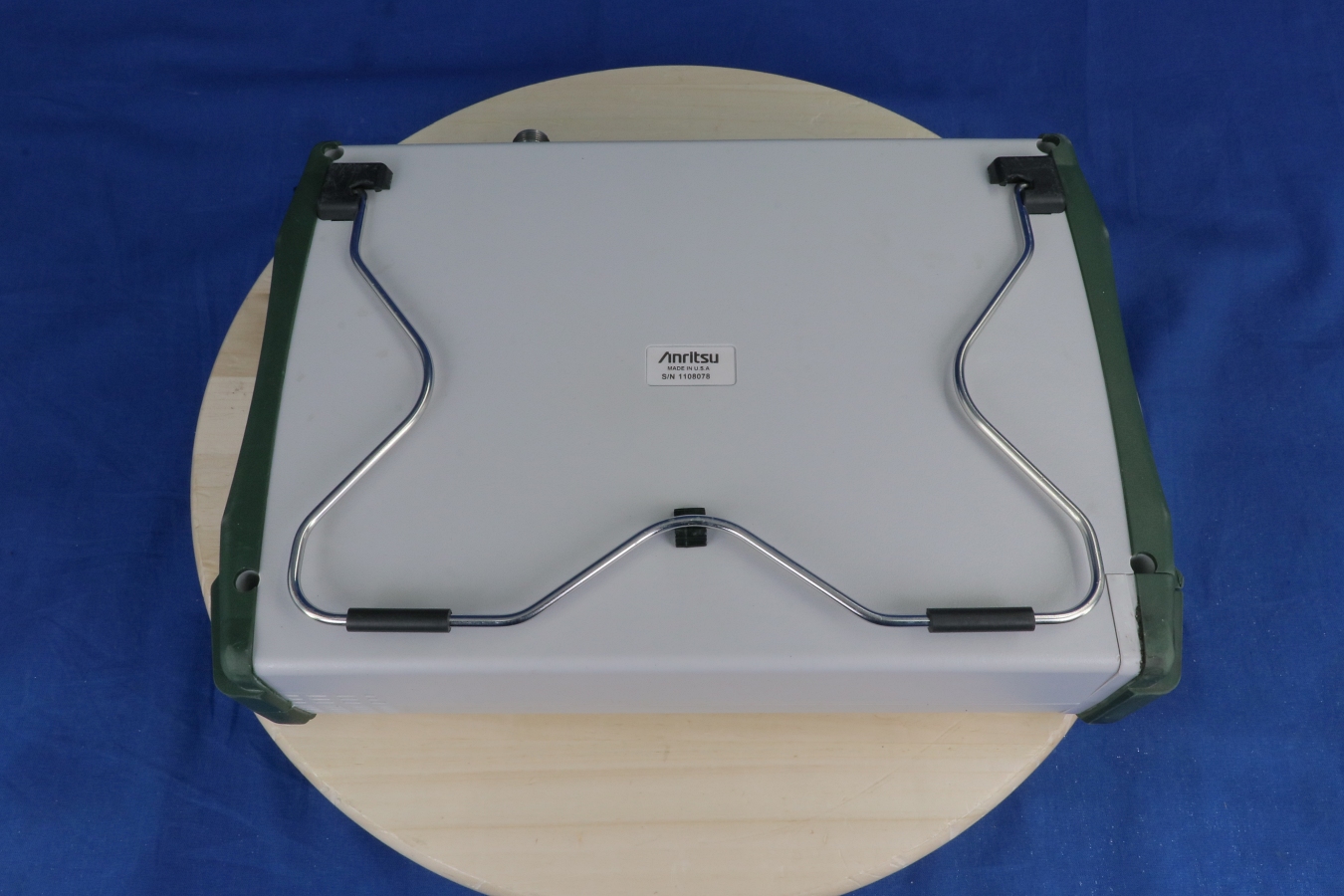

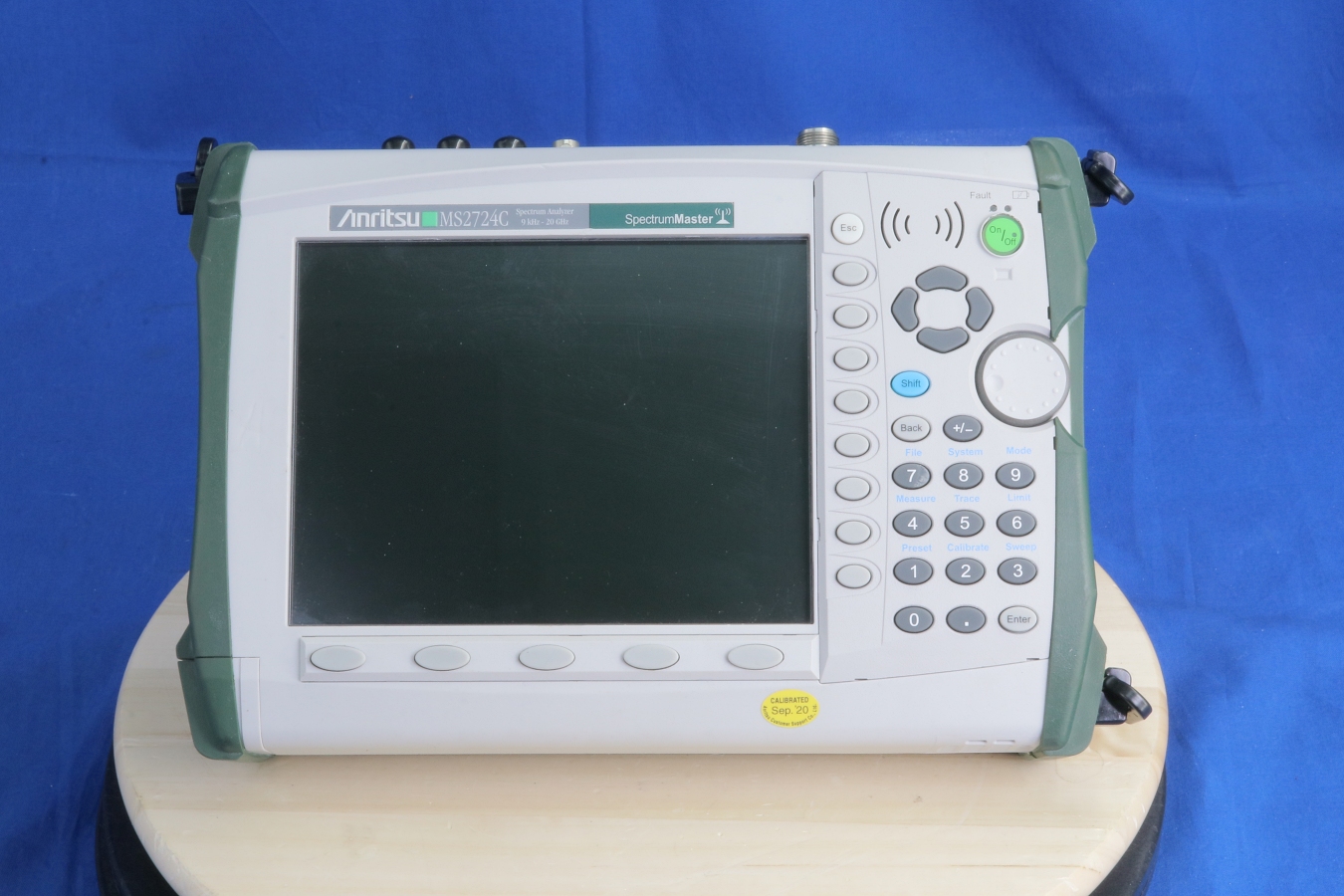

Additional Features: Frequency range: 9 kHz to 20 GHz Measure: Occupied Bandwidth, Channel Power, ACPR, C/I, Emission Masks Interference Analyzer: Spectrogram, Signal Strength, RSSI, Mapping Dynamic Range: > 104 dB in 1 Hz RBW DANL: –160 dBm in 1 Hz RBW @ 1 GHz preamp On Phase Noise: –100 dBc/Hz @ 10 kHz offset at 1 GHz Frequency Accuracy: ± 25 ppb with GPS On 1 Hz to 10 MHz Resolution Bandwidth (RBW) Traces: Normal, Max Hold, Min Hold, Average, # of Averages Detectors: Peak, Negative, Sample, Quasi-peak, and true RMS Markers: 6, each with a Delta Marker, or 1 Reference with 6 Deltas Limit Lines: up to 40 segments with one-button envelope creation Trace Save-on-Event: crossing limit line or sweep complete Sweep Modes: Fast, Performance, No FFT, burst detect The Anritsu MS2724C high performance handheld spectrum analyzer provides the wireless professional the performance needed for the most demanding measurements in harsh RF and physical environments. Whether it is for spectrum monitoring, broadcast proofing, interference analysis, RF and microwave measurements, regulatory compliance, or Wi-Fi and wireless network measurements, the Spectrum Master is the ideal instrument for making fast and reliable measurements.

Option	Description
19	High Accuracy Power Meter (Requires external USB Power Sensor)
44	W-CDMA/HSPA+ RF Measurements
45
541	LTE Signal Analyzers (Channel Spectrum)
542	LTE Signal Analyzers (Power vs. Resource Block)
543	LTE Signal Analyzers
9
