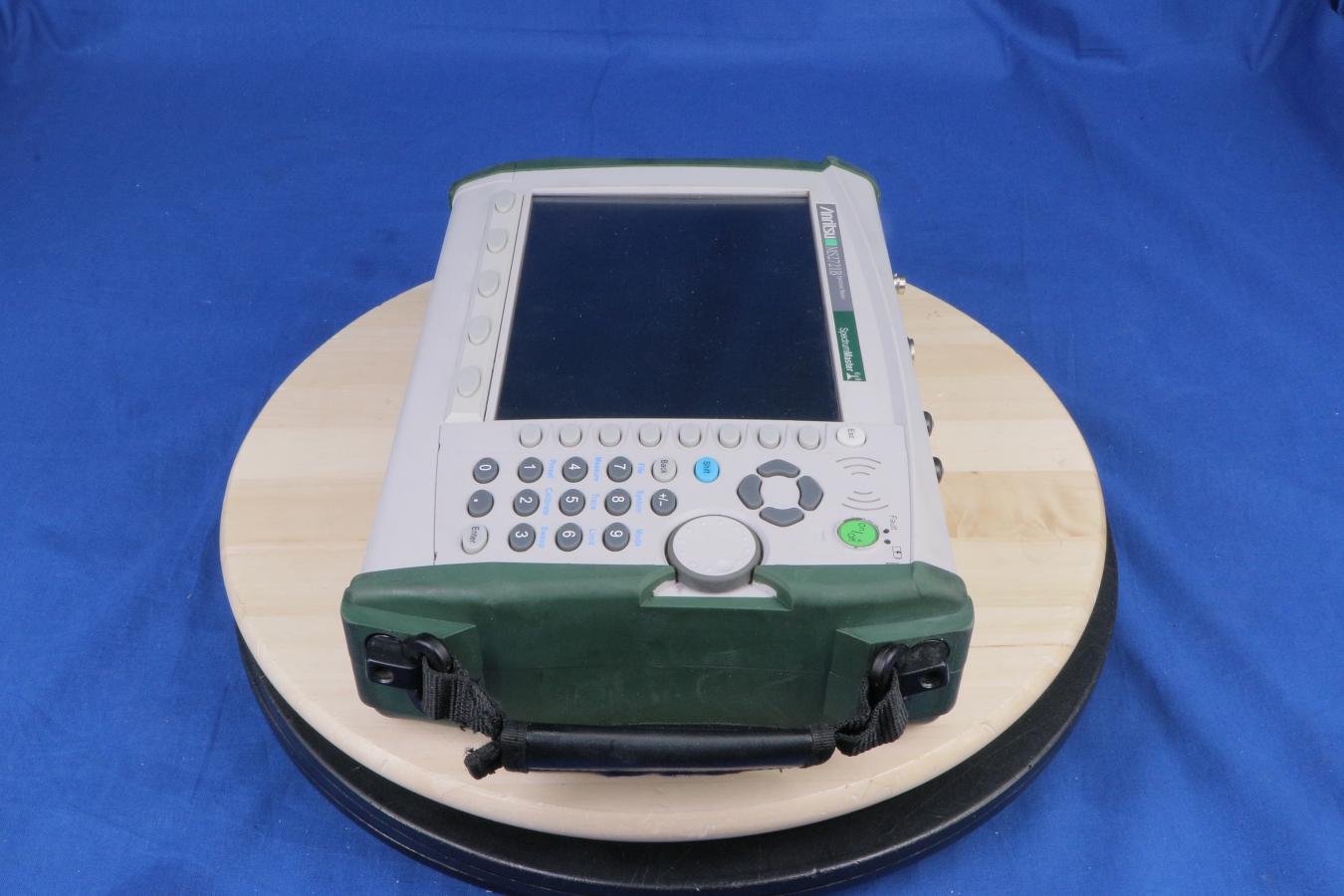

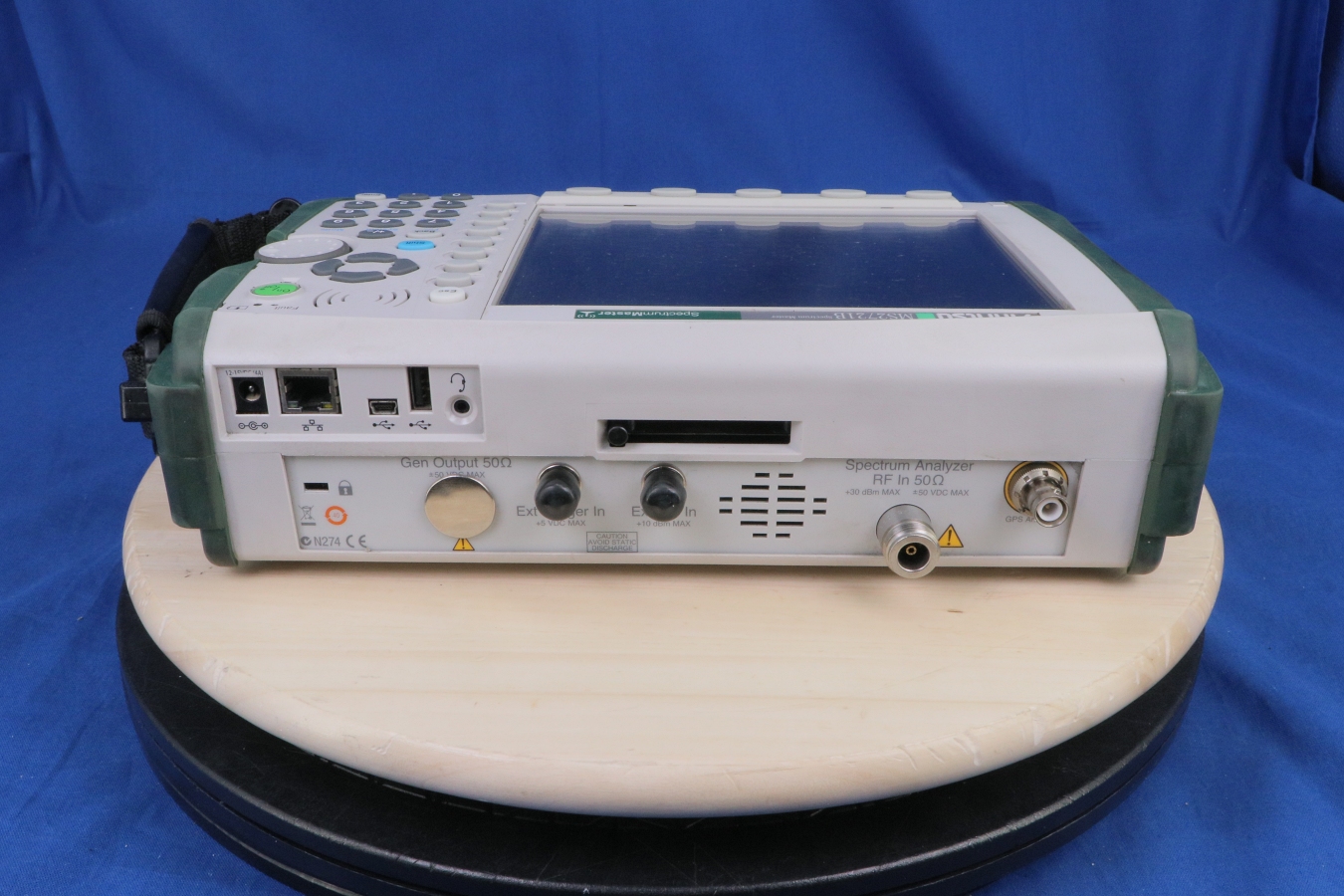

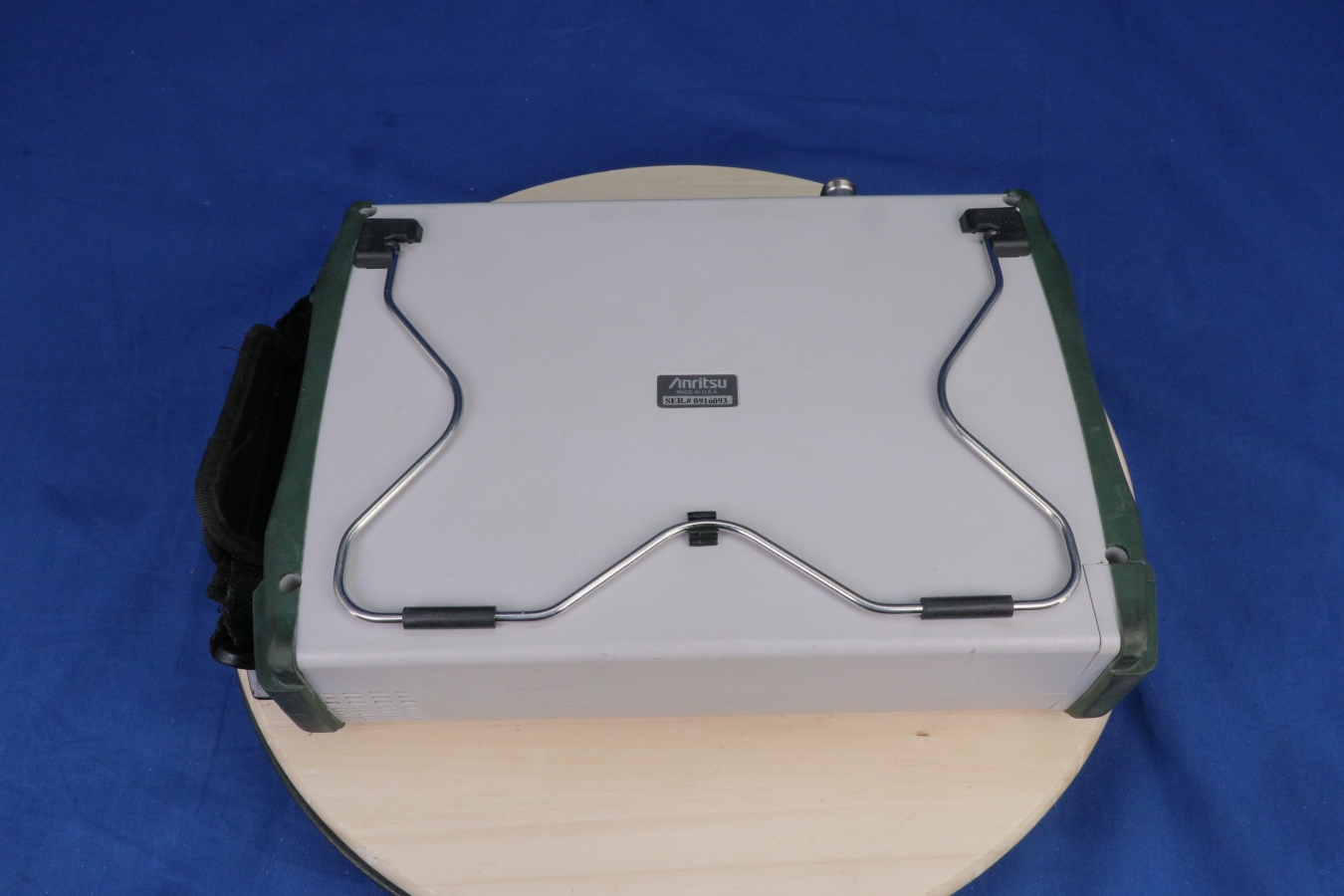

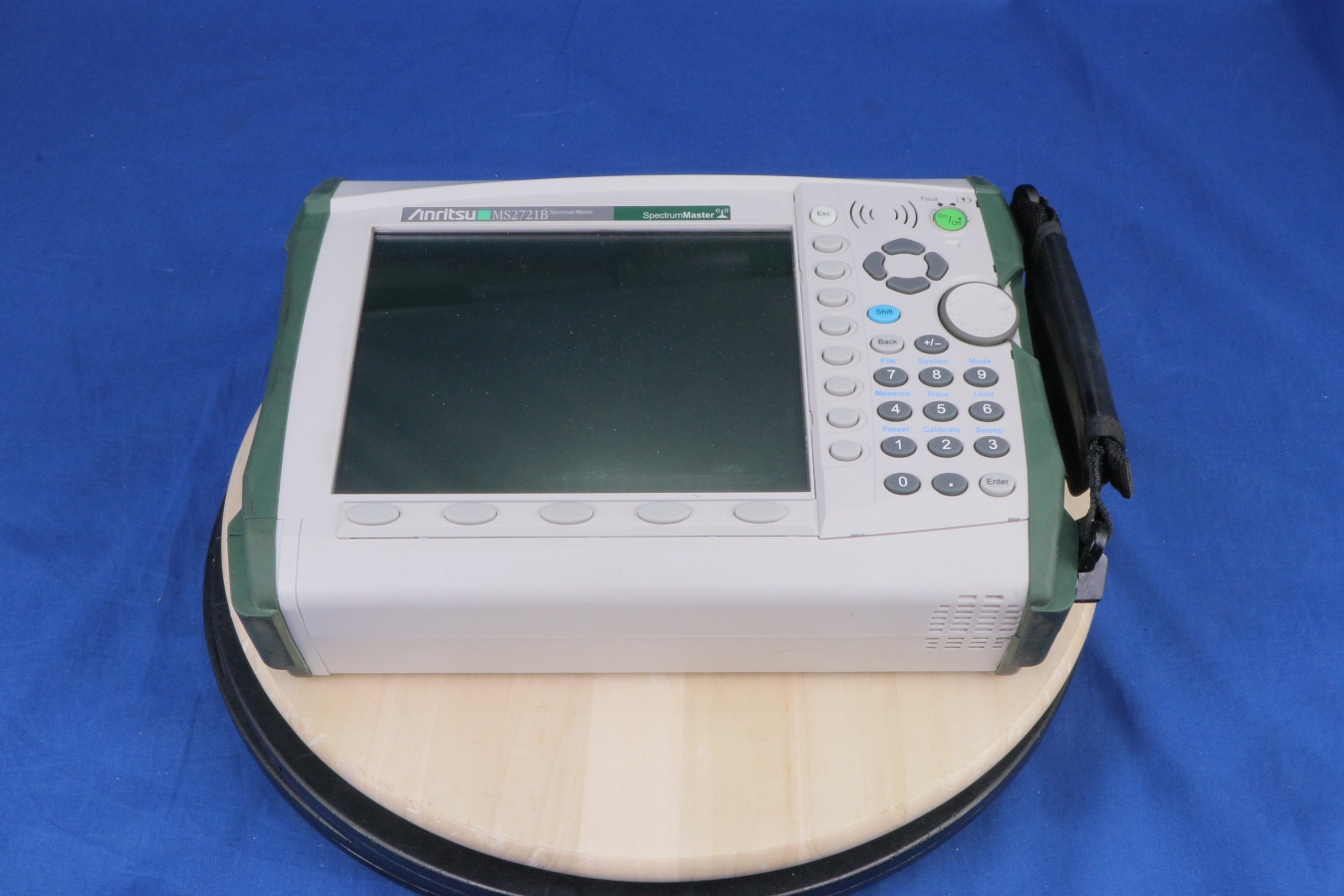

Frequency range: 9 kHz to 7.1 GHz Measure: Occupied Bandwidth, Channel Power, ACPR, C/I Interference Analyzer: Spectrogram, Signal Strength, RSSI Dynamic Range: > 101 dB in 1 Hz RBW DANL: –163 dBm in 1 Hz RBW Phase Noise: –95 dBc/Hz @ 10 kHz offset at 1 GHz Frequency Accuracy: < ± 25 ppb with GPS On 1 Hz to 3 MHz Resolution Bandwidth (RBW) Traces: Normal, Max Hold, Min Hold, Average, # of Averages Detectors: Peak, Negative, Sample, Quasi-peak, and true RMS Markers: 6, each with a Delta Marker, or 1 Reference with 6 Deltas Limit Lines: up to 40 segments with one-button envelope creation Trace Save-on-Event: crossing limit line or sweep complete Capabilities and Functional Highlights LTE, GSM/EDGE W-CDMA/HSDPA TD-SCDMA/HSDPA CDMA, EV-DO WiMAX - Fixed, Mobile DVB-T/H, SFN, BER ISDB-T, SFN AM/FM/SSB Demodulator Tracking Generator Gated Sweep High Accuracy Power Meter 4, 6, 8, 18, 26 GHz USB Sensors Channel Scanner 8.4" Display Internal Preamplifier standard < 5 minute warm-up time 2.3 hour battery operation time Ethernet/USB Data Transfer MST Remote Access Tool GPS tagging of stored traces The Anritsu MS2721B handheld spectrum analyzer is designed to conduct highly accurate analysis on the new wave of wireless LAN and cellular signals, including 802.11a, 3G, ultra-wideband, WiMAX, and wireless medical patient monitoring systems. This high performance handheld spectrum analyzer is ideal for AM and FM broadcast proofing because the wide dynamic range and low phase noise make NRSC measurements on analog and IBOC signals easy with no need for an external carrier notch filter. Weighing in at less than 7 pounds, it is equally at home on the engineering bench and in the field.

Option	Description
020	Tracking Generator
31	GPS (includes GPS antenna)
42
43
44	WCDMA/HSDPARF Meas
62
63
65	WCDMA/HSDPADemod (requires Opt. 009)
66
67
9	IQ Demodulation Hardware
90
