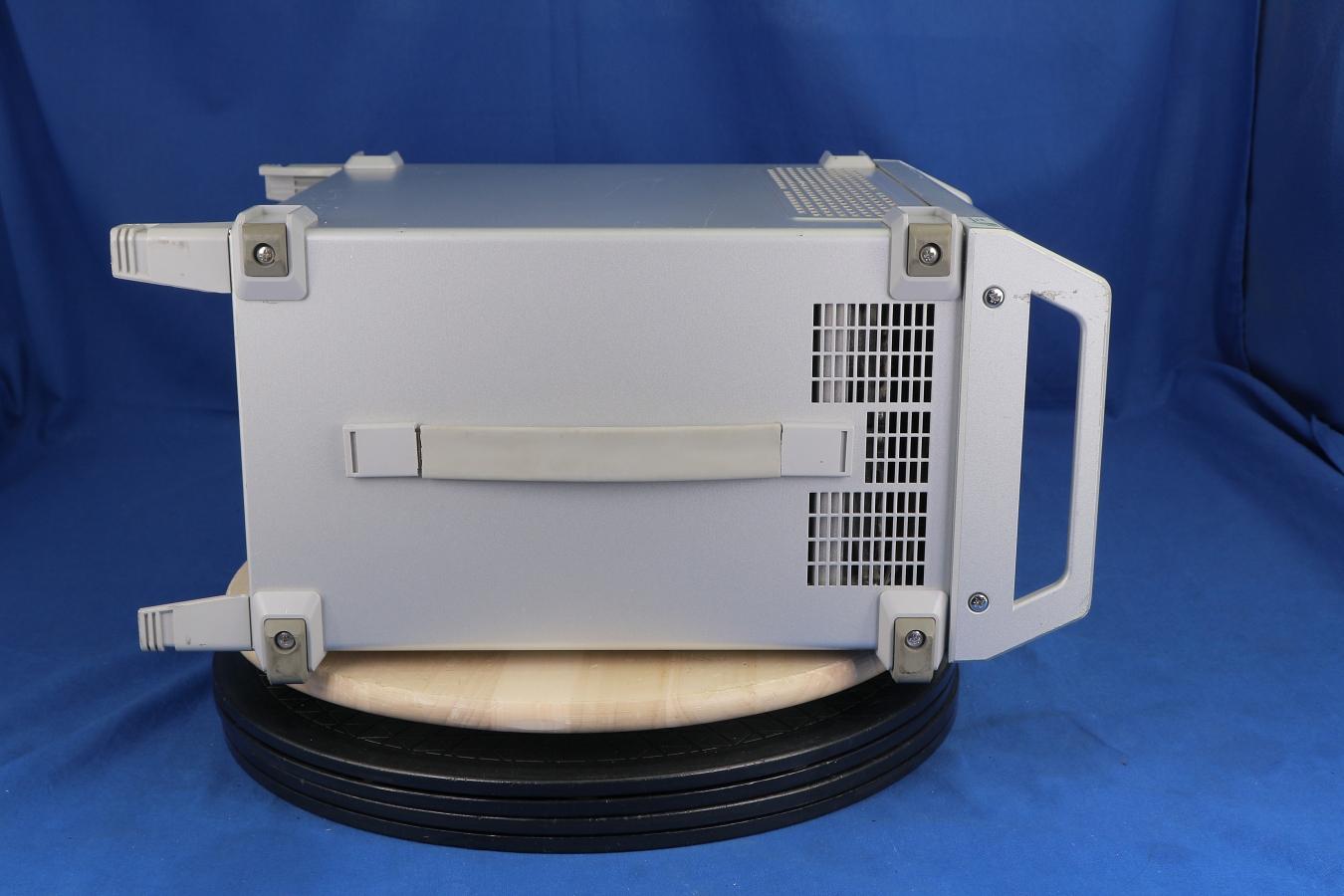

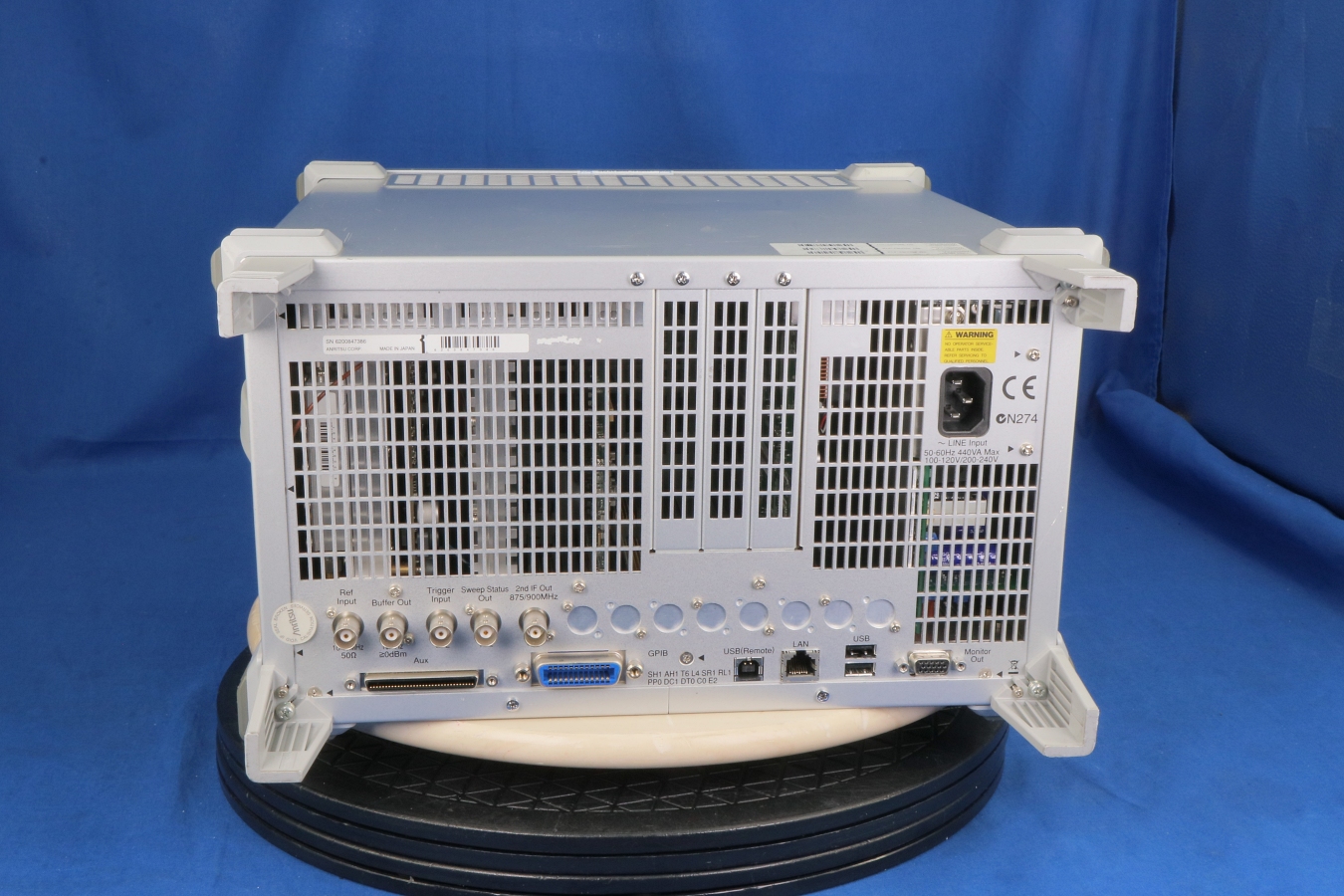

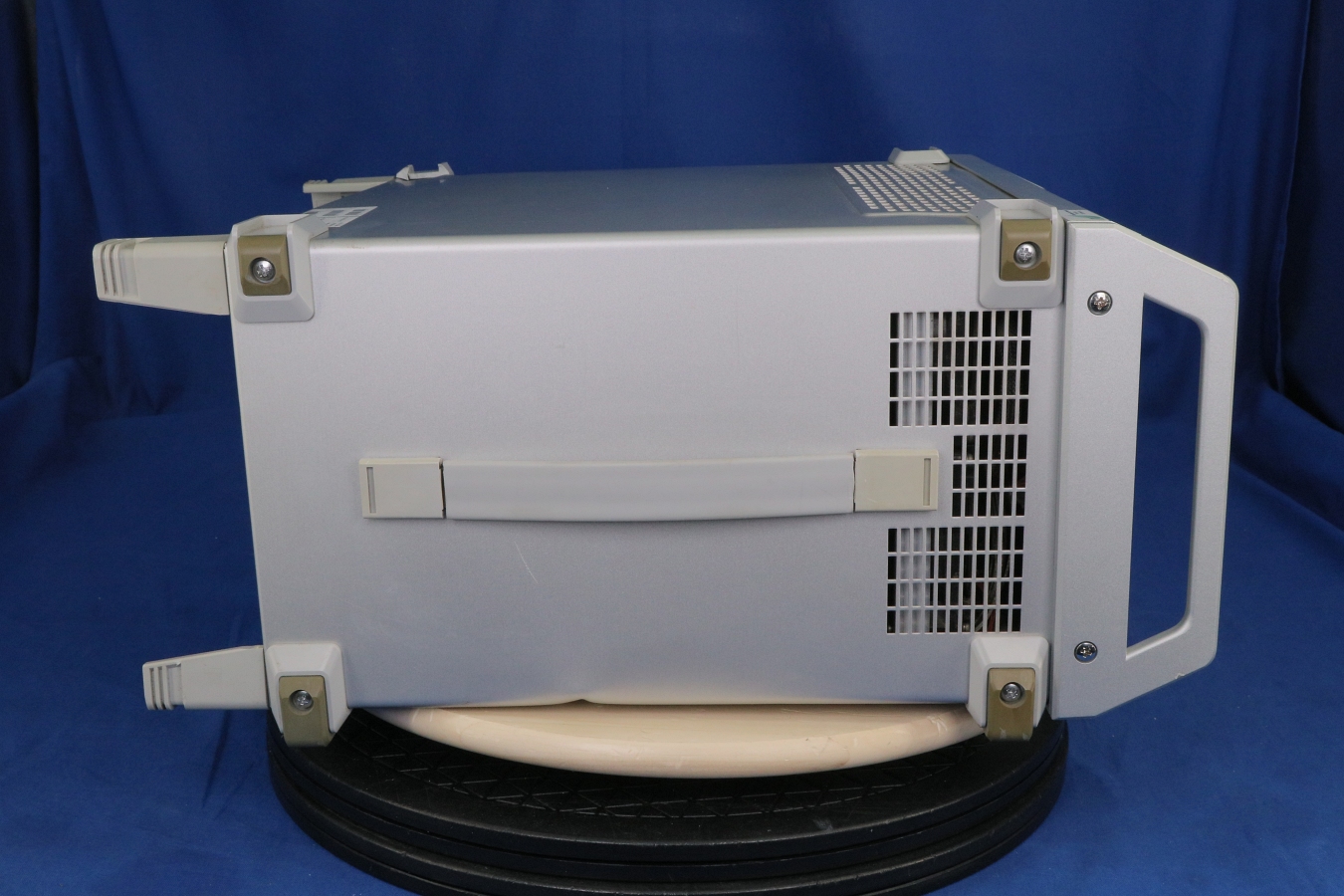

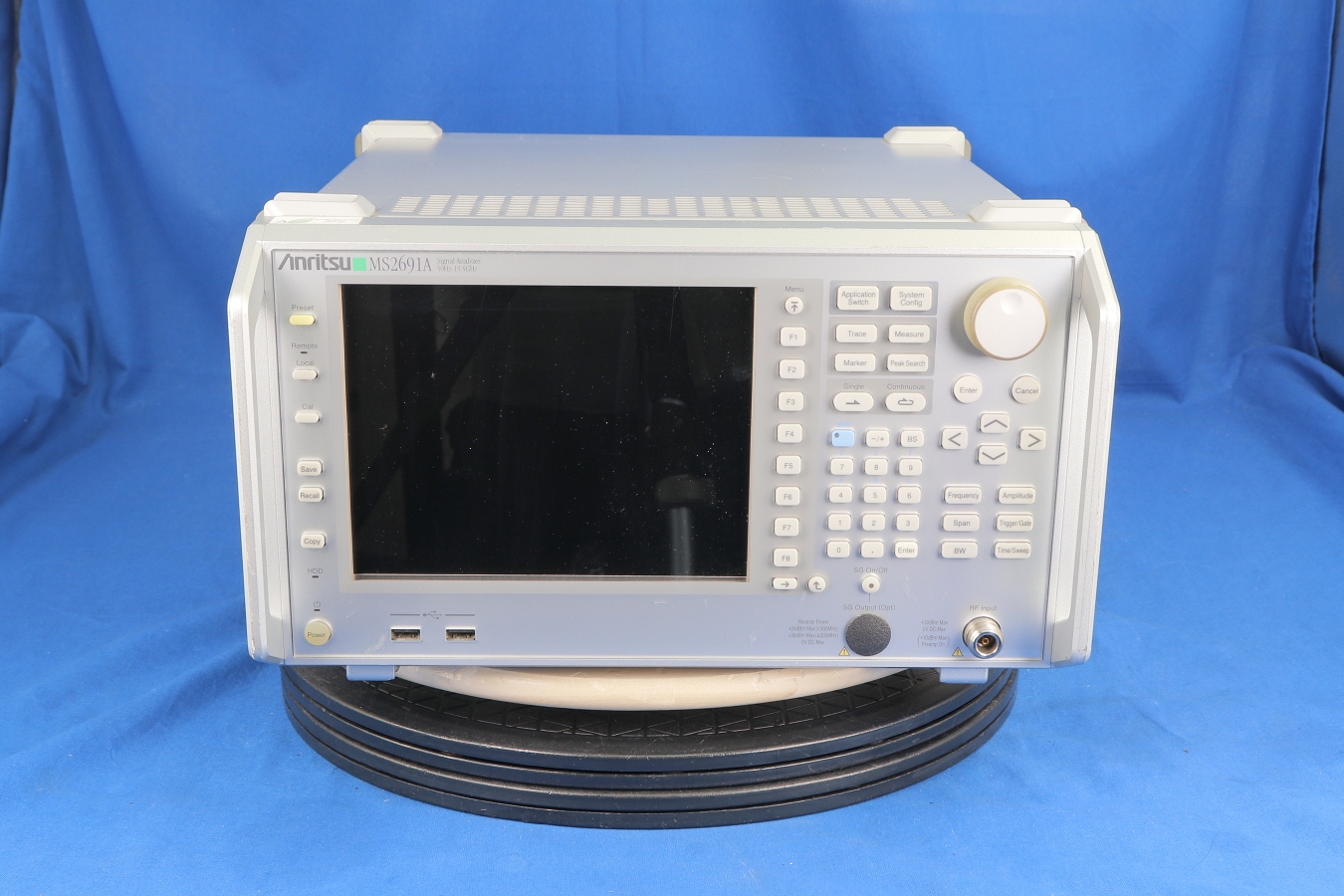

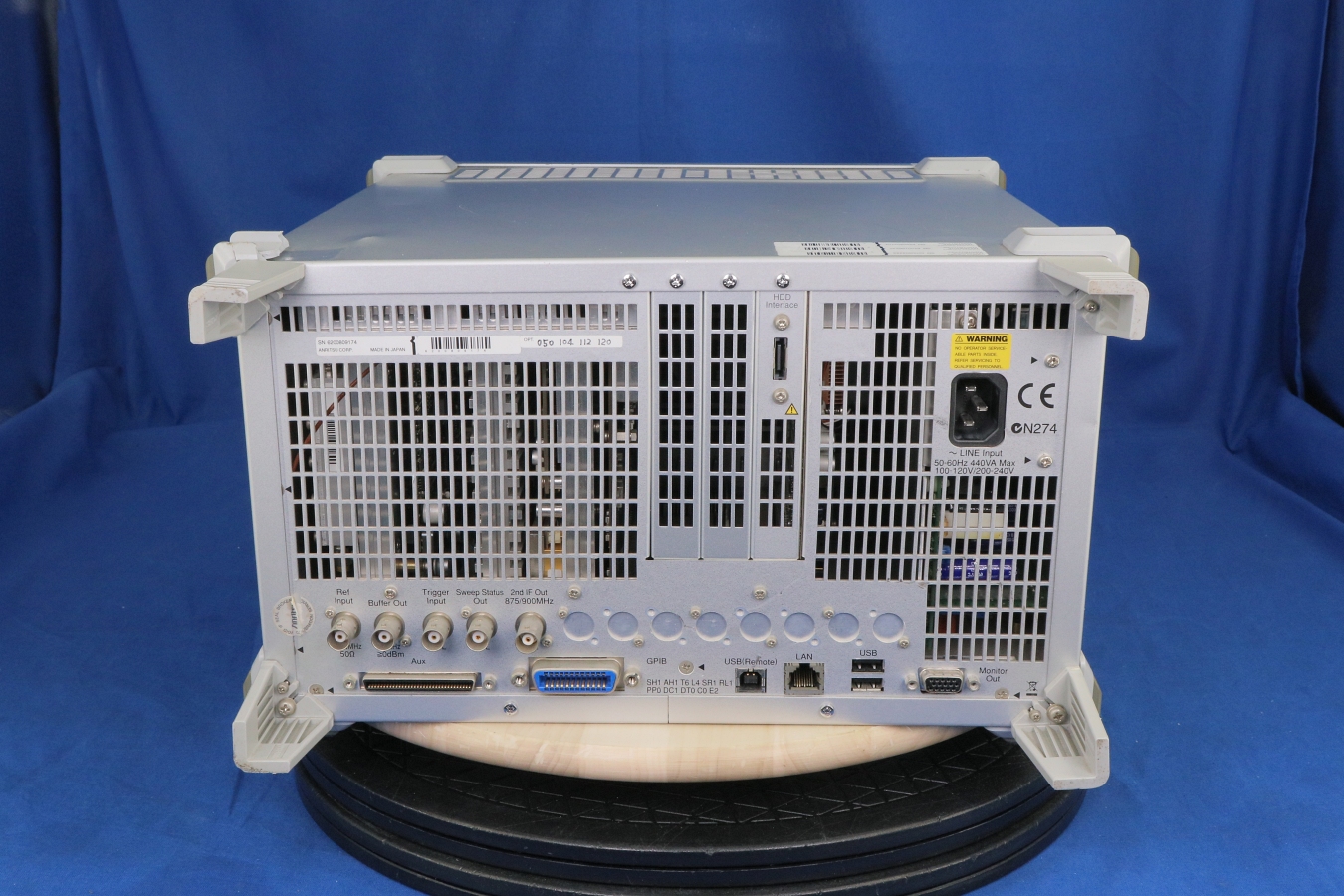

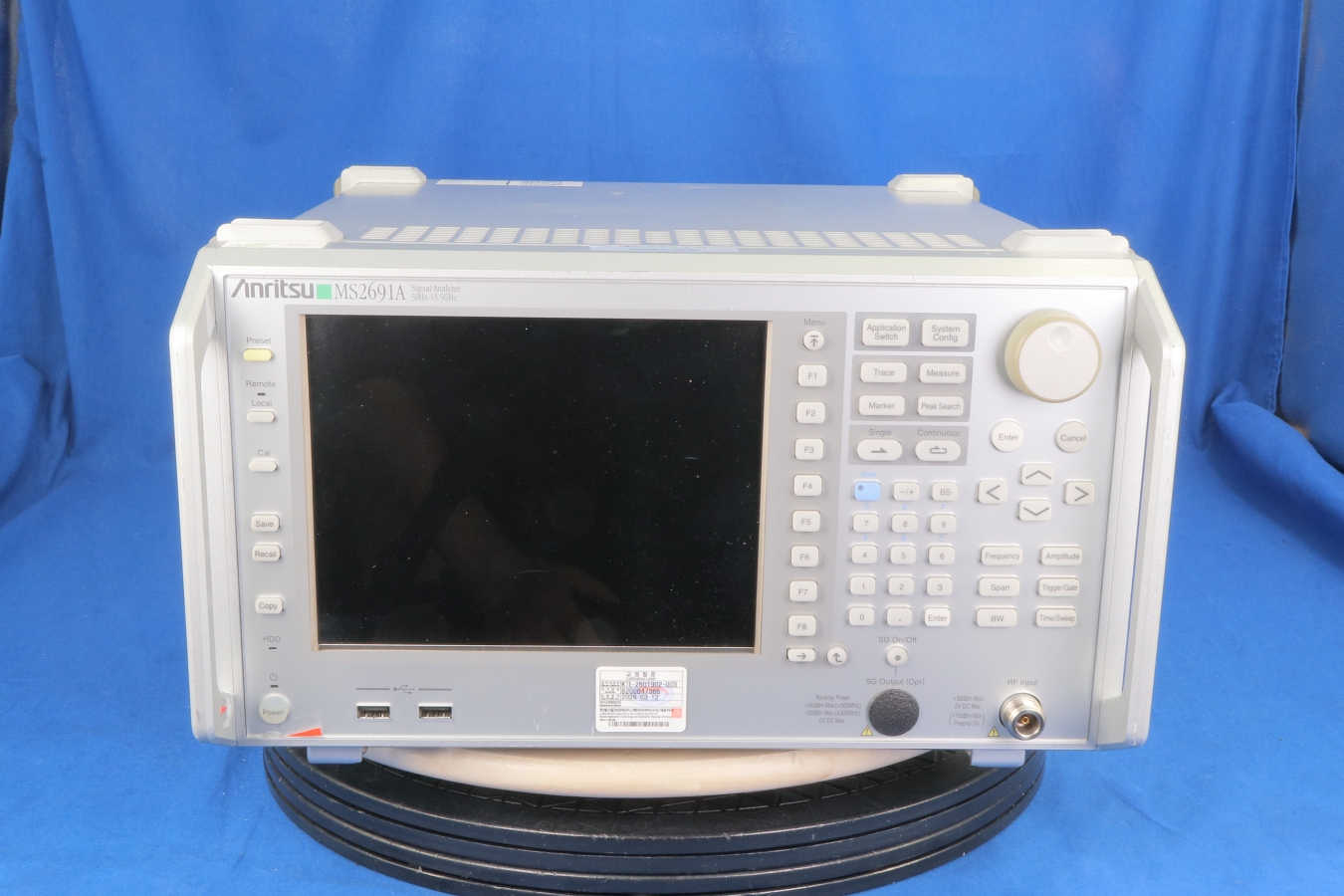

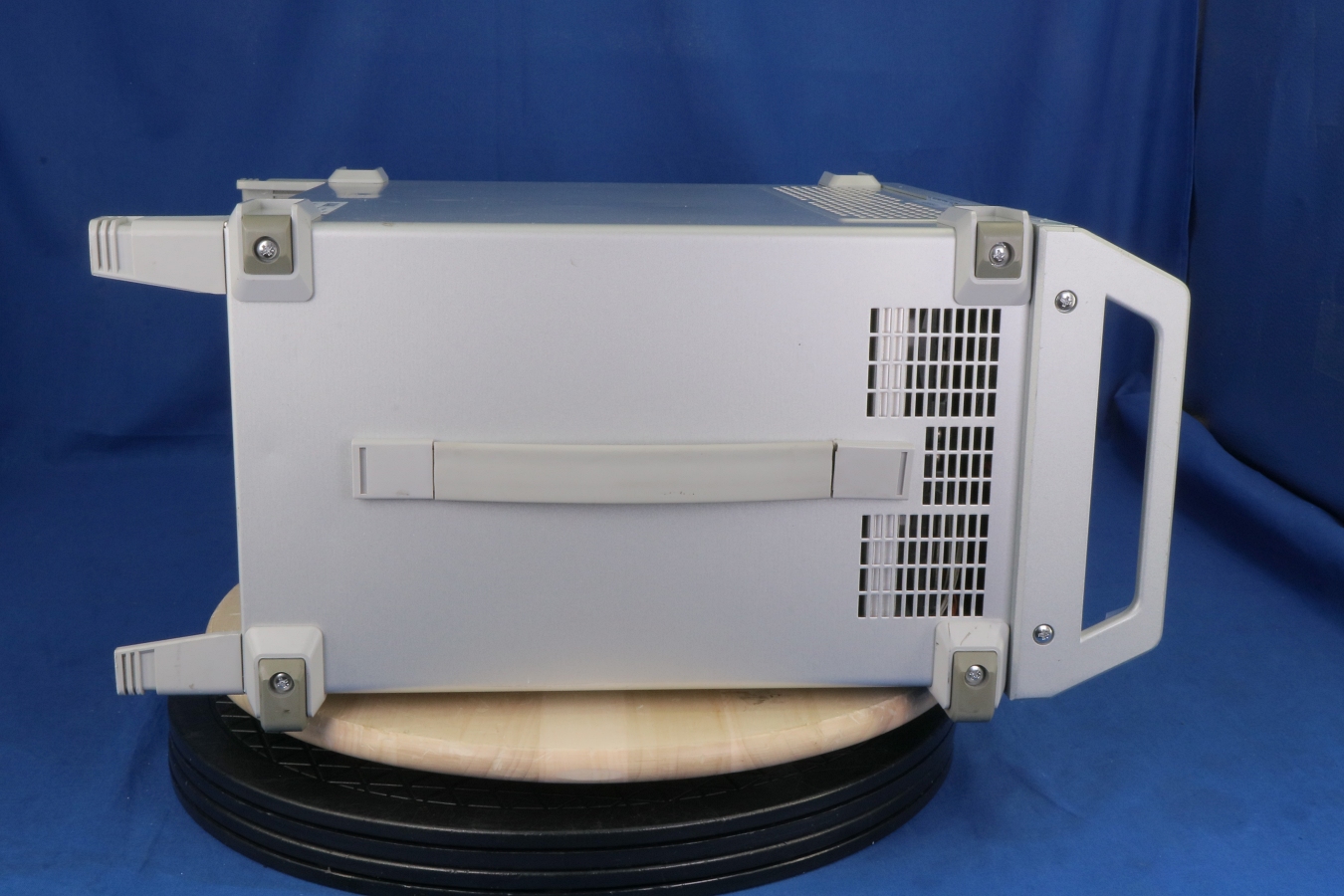

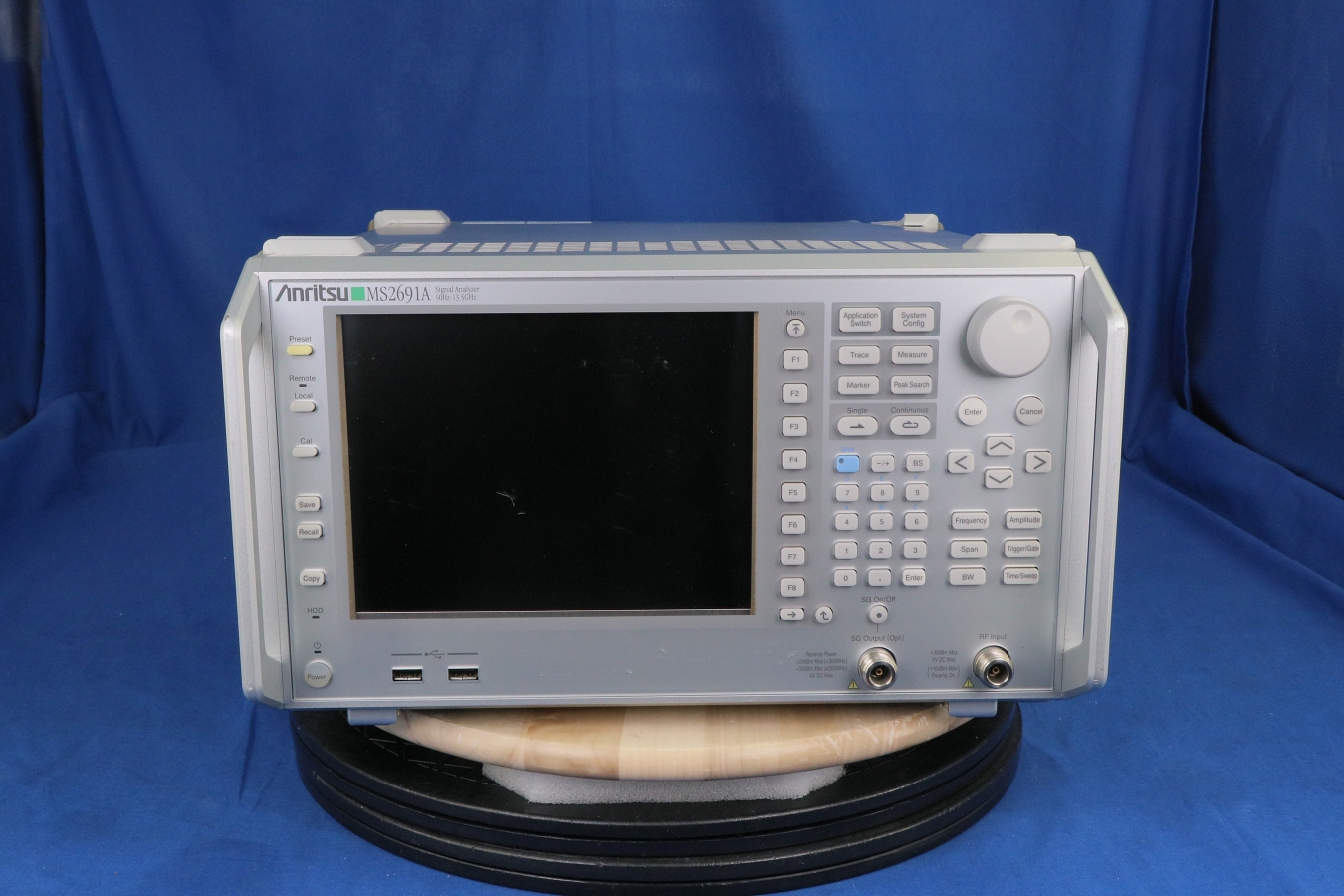

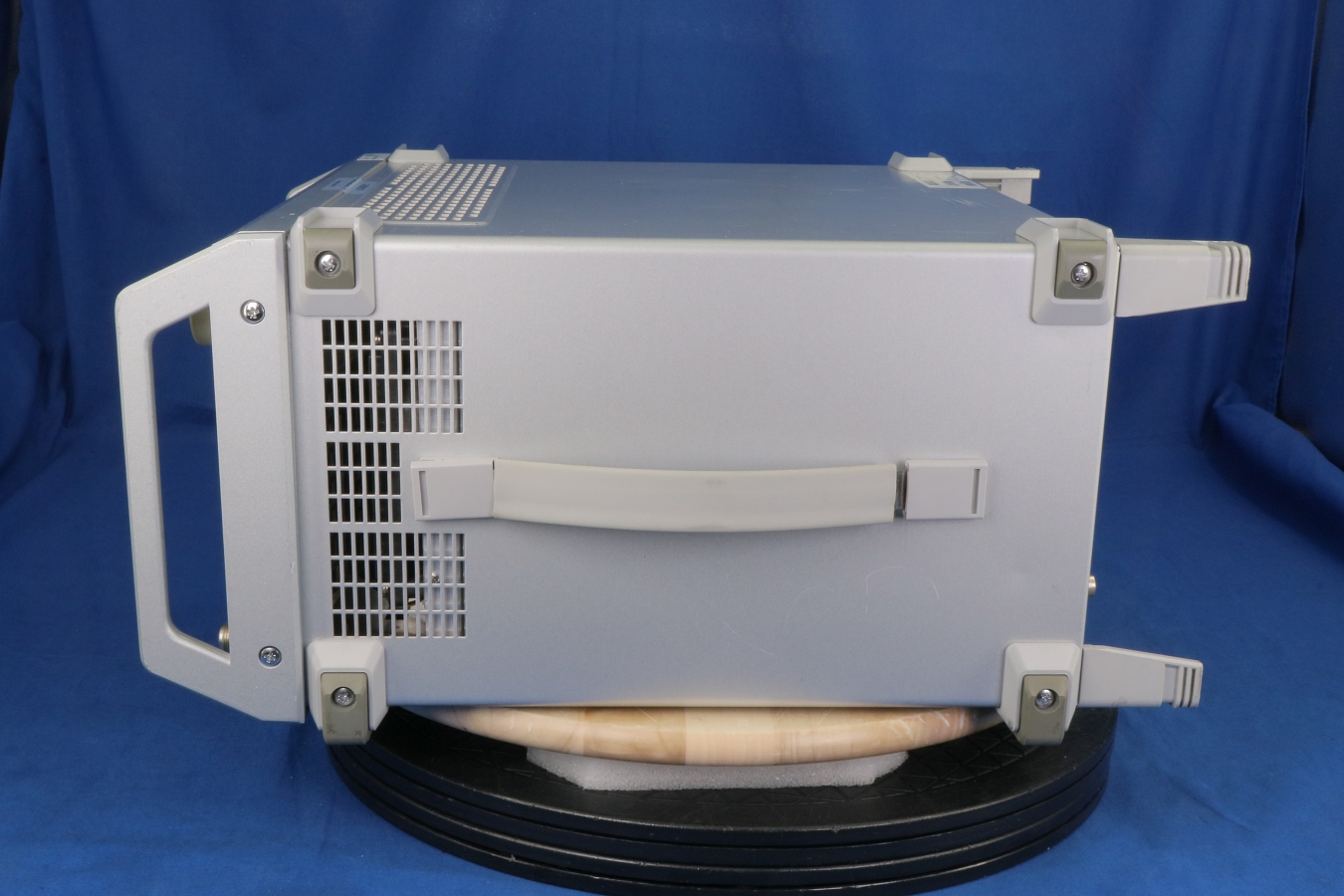

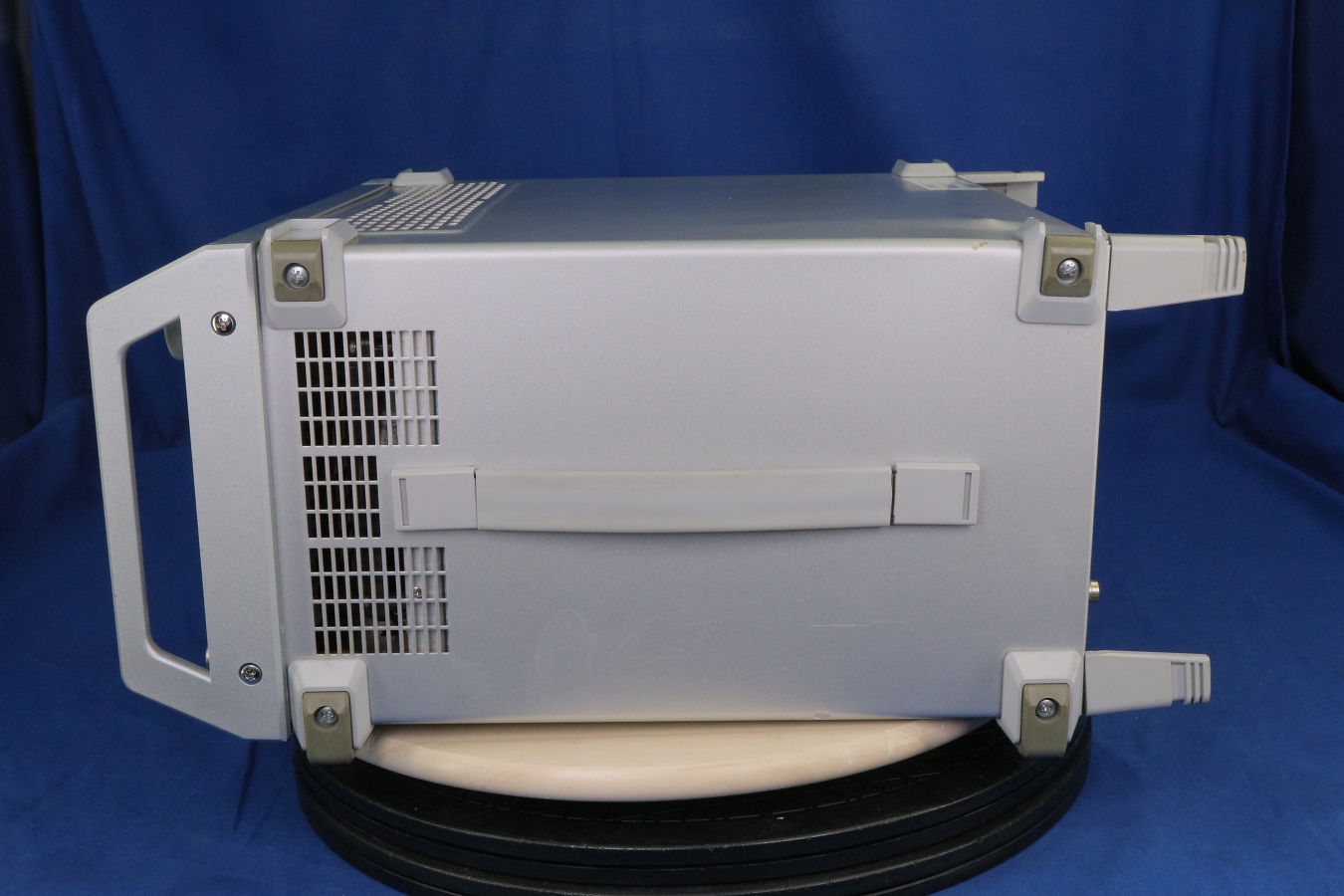

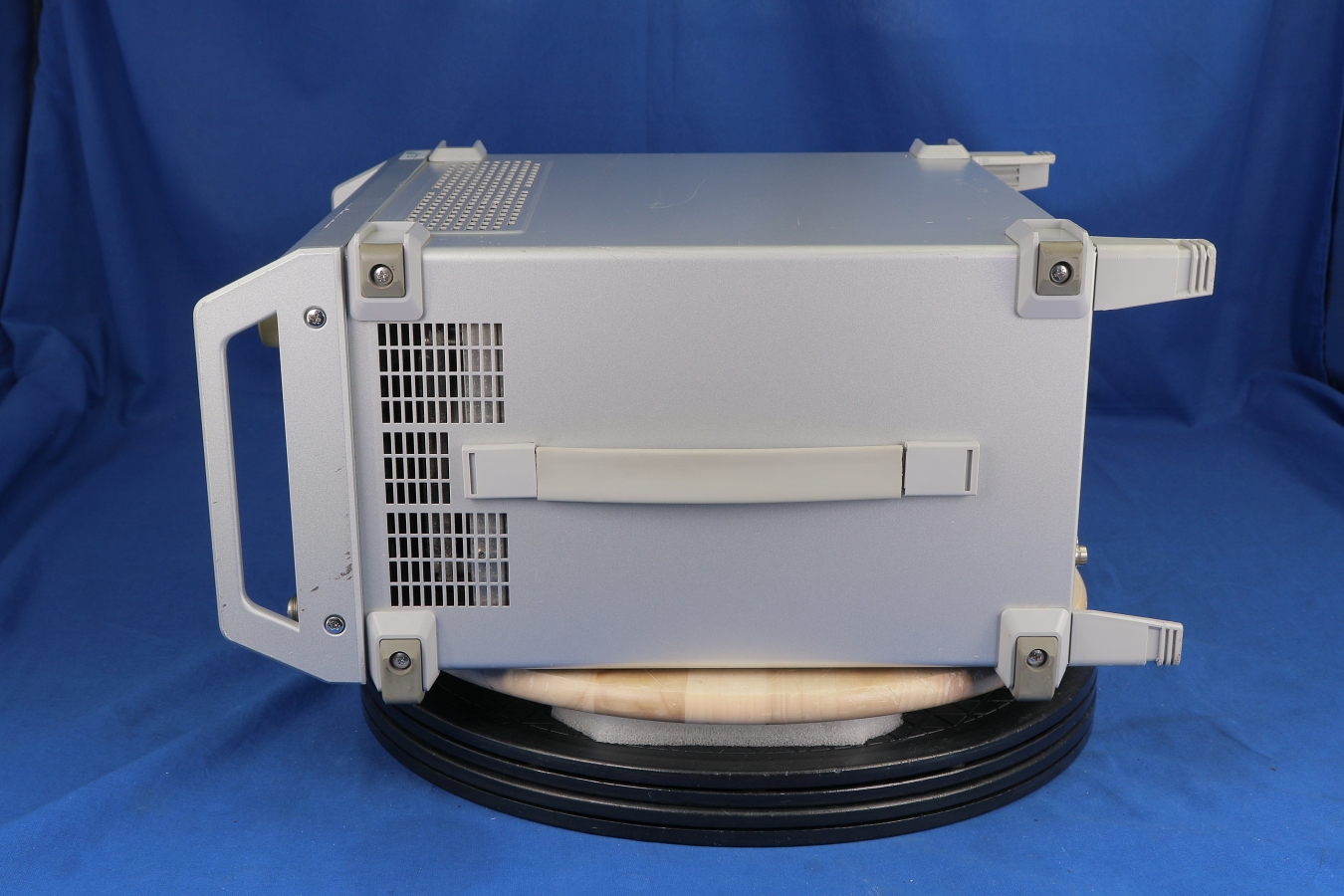

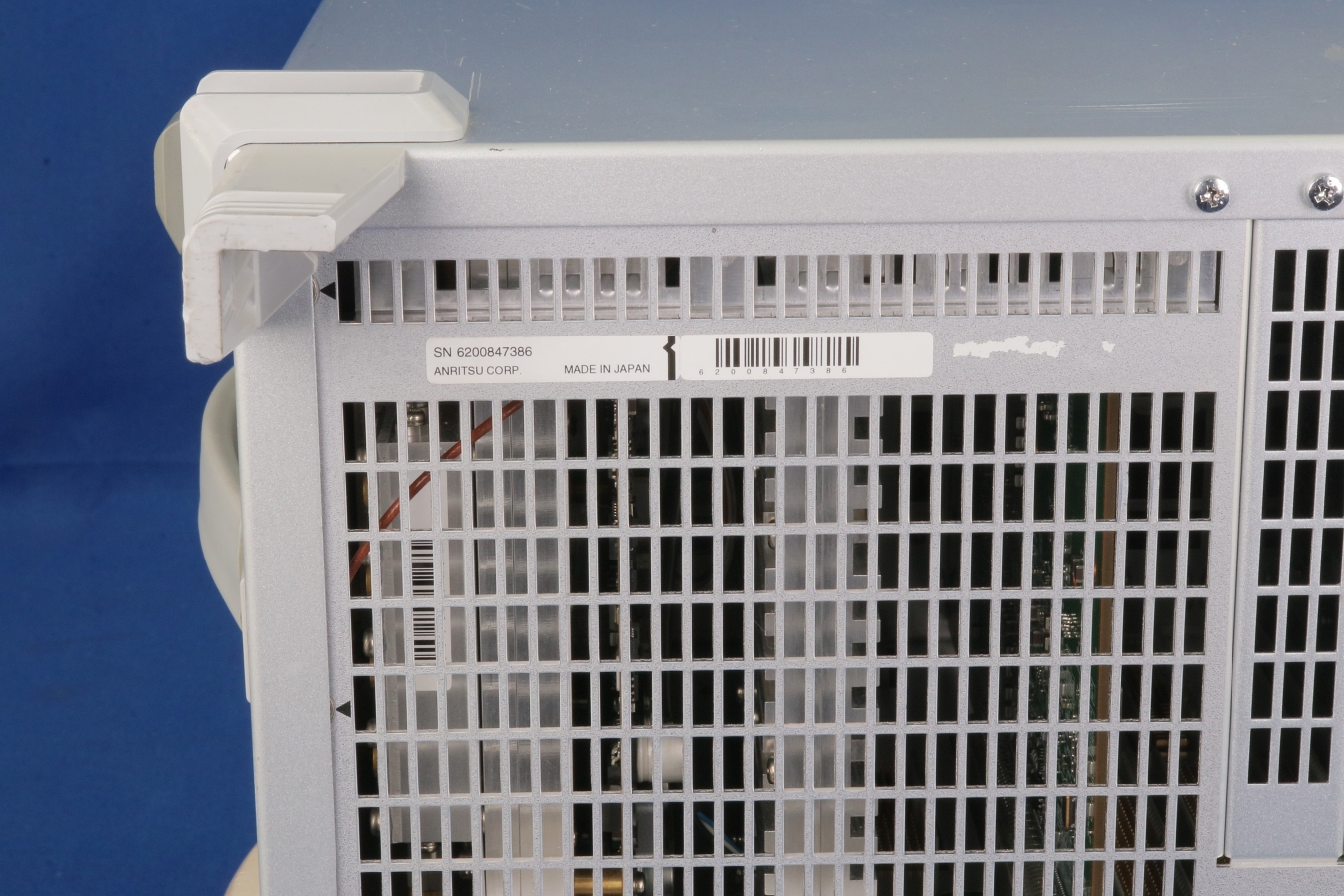

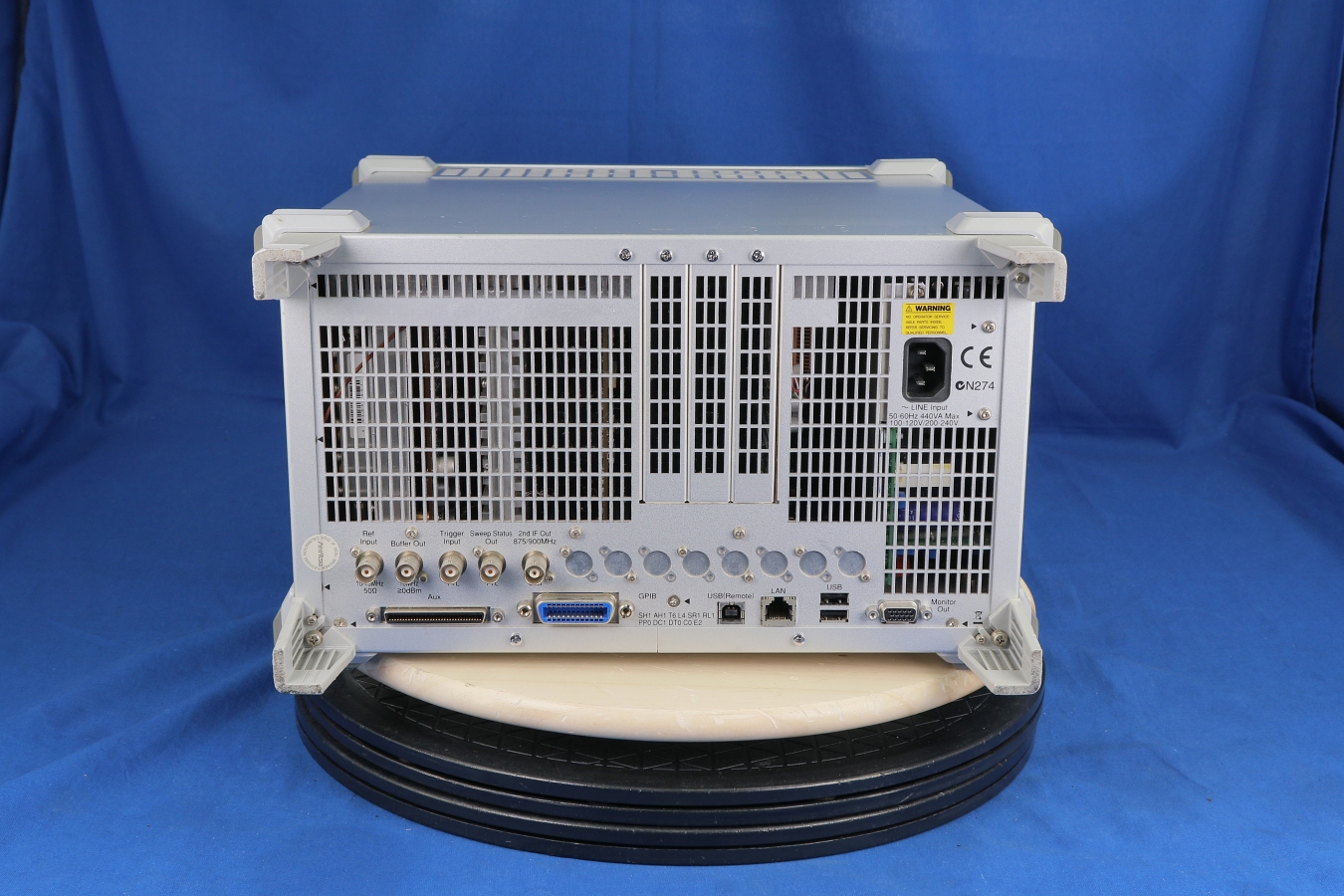

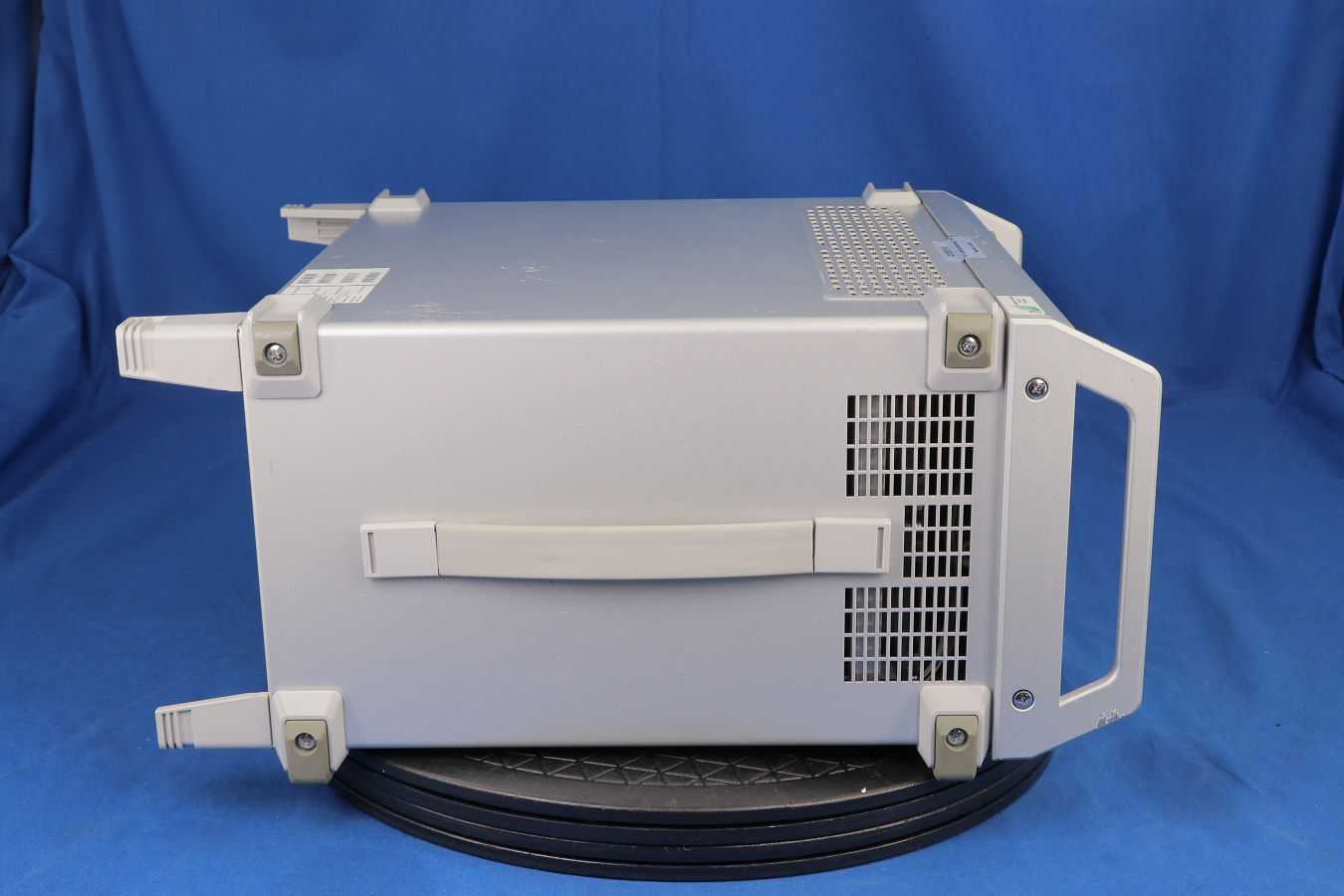

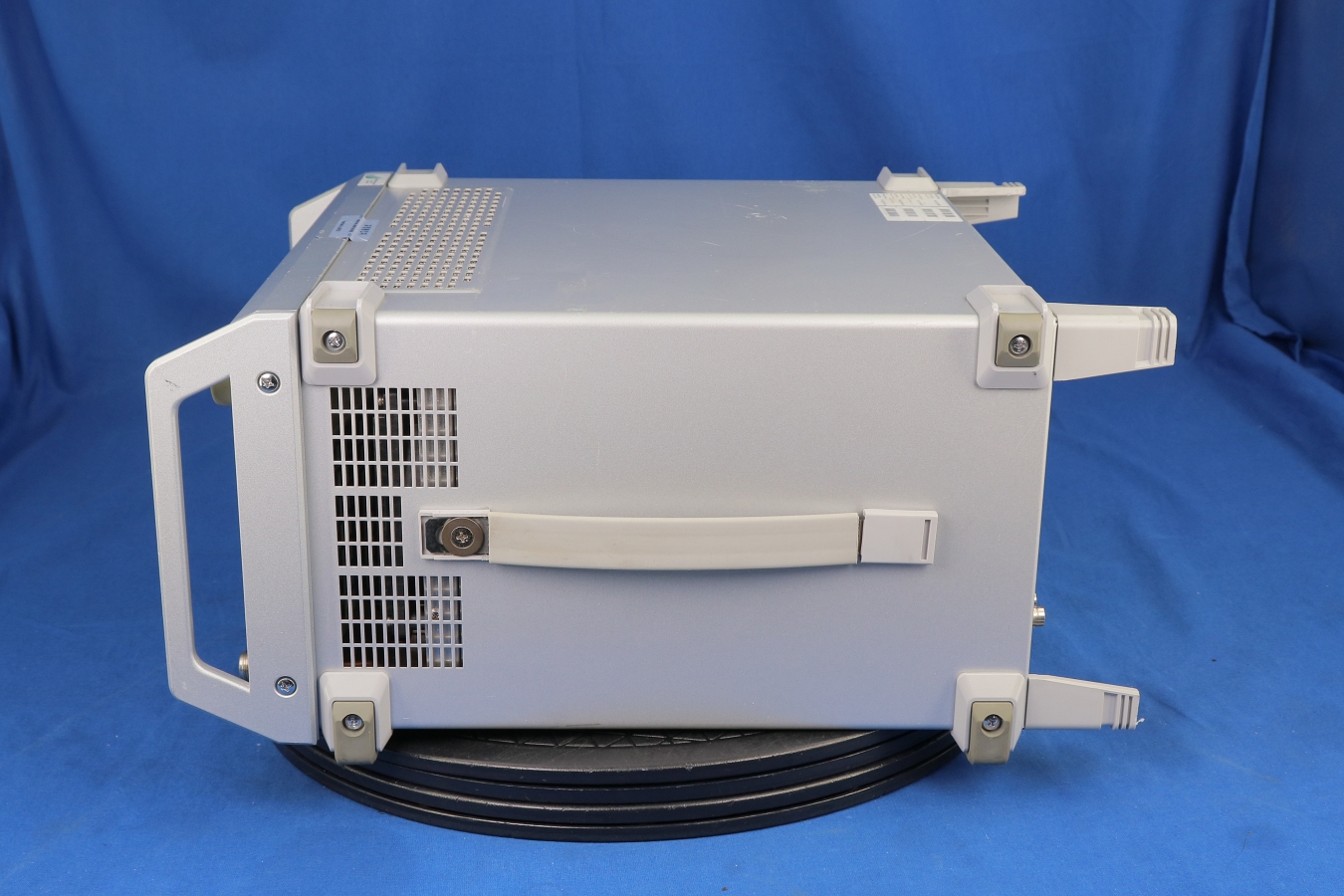

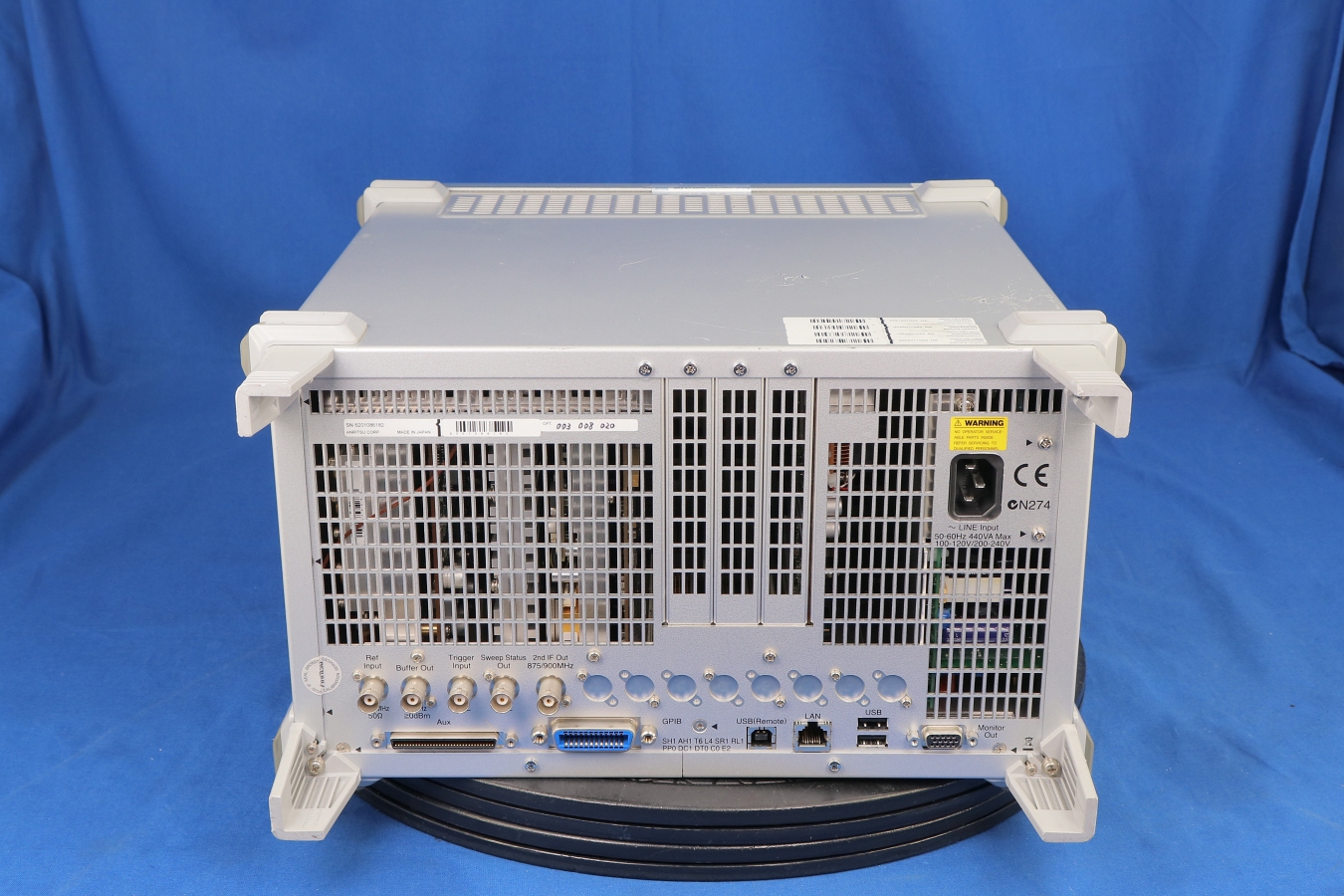

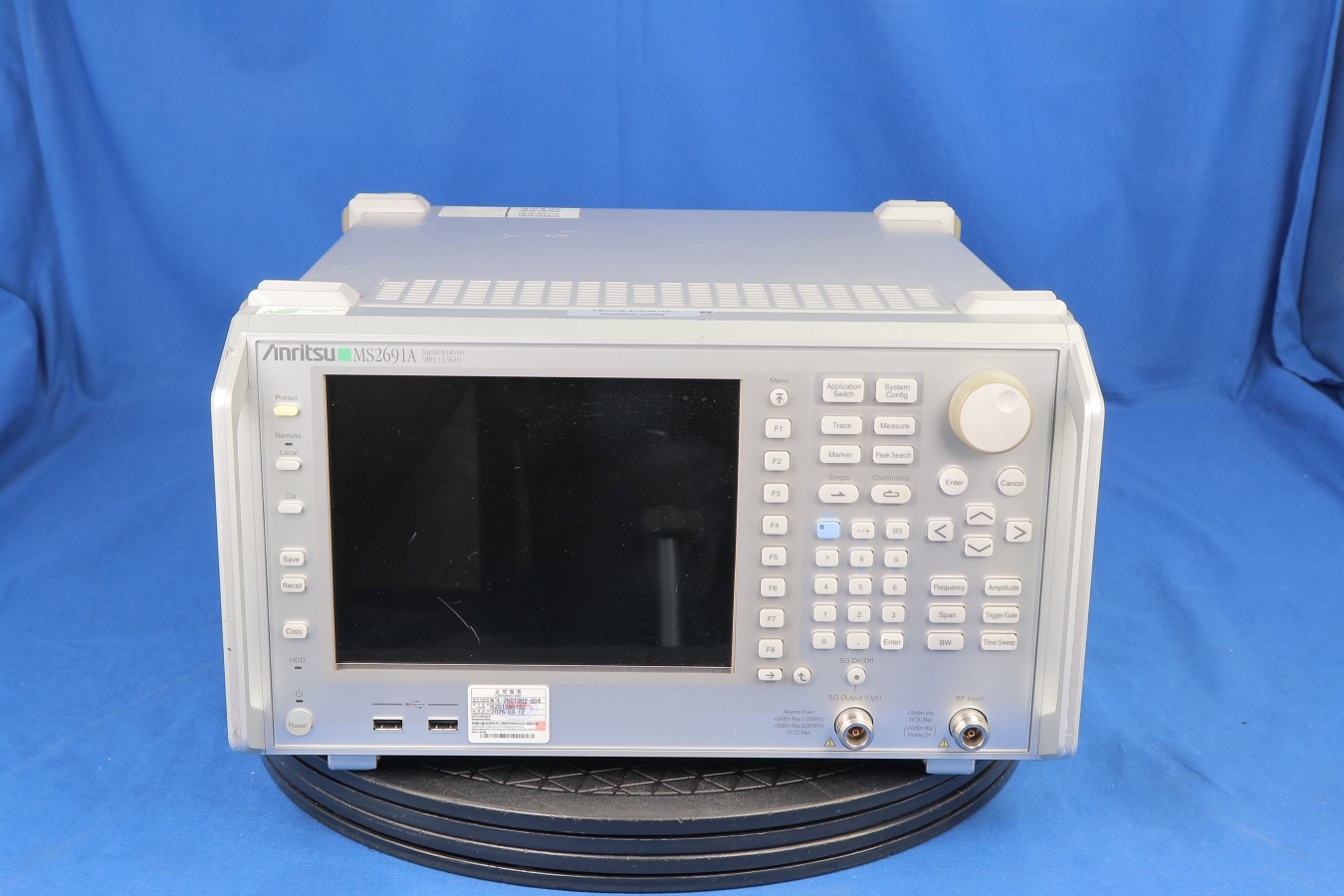

MS2691A Anritsu Signal Analyzer
Frequency Range: 50 Hz to 13.5 GHz
Analysis Bandwidth: 31.25 MHz (Standard) 62.5 MHz/125 MHz (Options)
Microwave Preselector Bypass (Option): 6 GHz to 26.5 GHz
One-Box Tester with the addition of the Signal Generator option
Batch Capture Measurements for the fastest analysis time
The Anritsu MS2691A Signal Analyzer is the latest high performance signal analyzer for next-generation communication applications. The Anritsu MS2691A Signal Analyzer base units include swept spectrum analysis, FFT signal analysis, and a precision digitizer function. Add options to incorporate a Signal Generator, to turn the instrument into a hassle free, plug and play, one box solution.
The Anritsu MS2691A Signal Analyzer supports a standard analysis bandwidth of 13.5 MHz that can be extended to 62.5 MHz /125 MHz with optional hardware. Using a patented calibration process, the multipoint amplitude calibration and the phase calibration result in a level accuracy of ±0.5 dB across a 6 GHz span. No other analyzer on the market can meet that specification. These boxes are superlative in every way-they measure the widest signals and using the latest technology, make measurements faster than ever before. The modular architecture ensures a box that grows as measurement requirements change. A series of options enables standards-based modulation analysis, vector signal generation, and BER measurement. The end-user can configure a one-box solution that dramatically reduces cost, footprint, and Total Average Cycle Time (TACT) for device evaluation.
