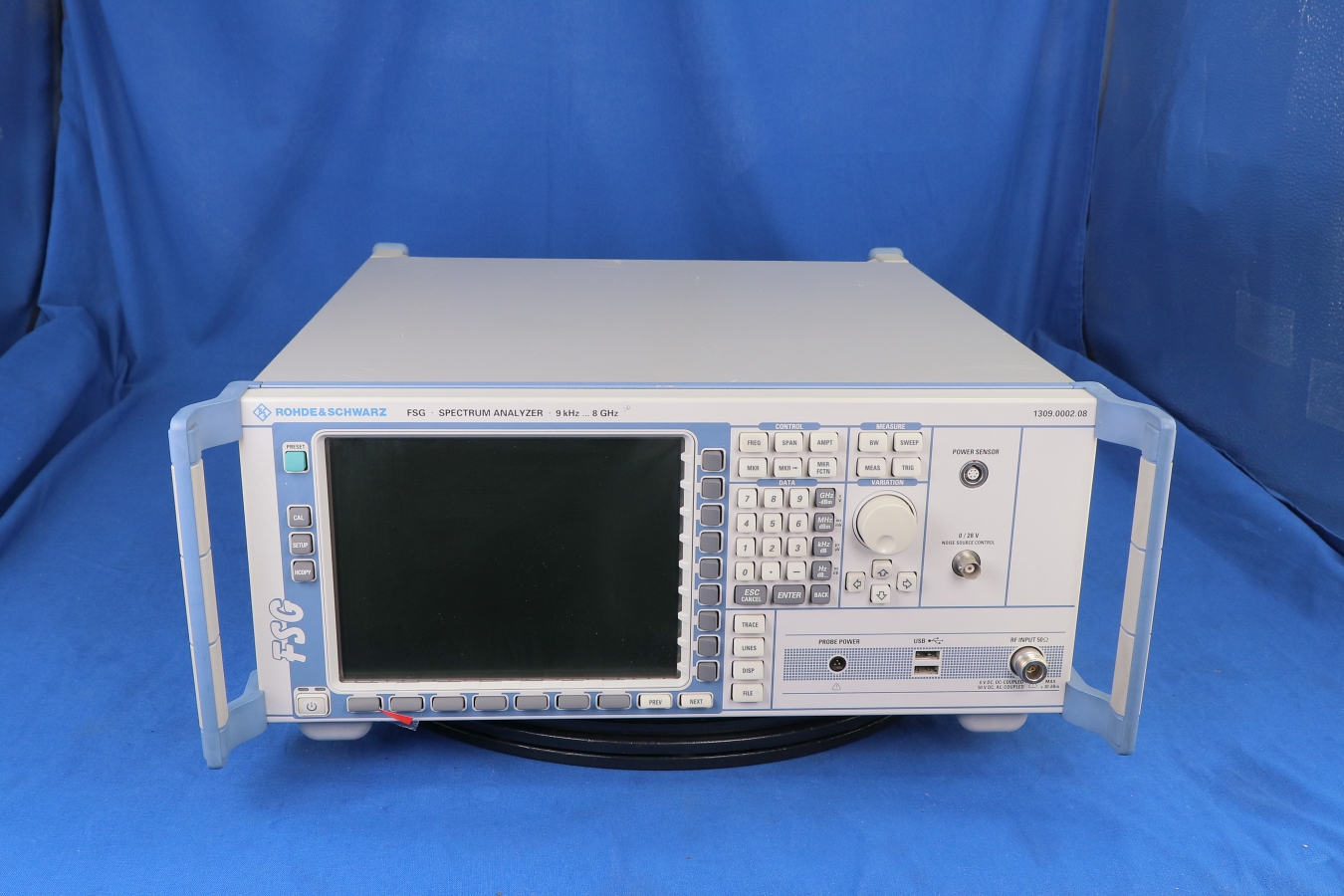

Additional Features: Frequency range: 9 kHz to 8 GHz 28 MHz demodulation bandwidth 4 Msample I and Q memory I/Q data extraction, e.g. for MCPA adjustment Fast, fully integrated vector signal analysis ACLR performance of a high-end spectrum analyzer Measurement functions for TOI, MC ACP(R), OBW, CCDF, APD, etc Measurement applications for cellular standards, wireless connectivity standards and general purpose, e.g. phase noise, noise figure, vector signal analysis, etc. In addition to broadband demodulation capabilities, the FSG8 provides the dynamic range that is required for multicarrier measurements or the measurement of spurious emissions at base transceiver stations (BTS). Functions at a glance With its wide range of functions, the FSG8 is practically unparalleled on the spectrum analyzer market. Even the base unit comes standard with all important functions. The FSG8 is ideal for applications in the development and production of the following: 3GPP and GSM-MCPA, WiMAX, LTE, Wireless LAN (WLAN).
