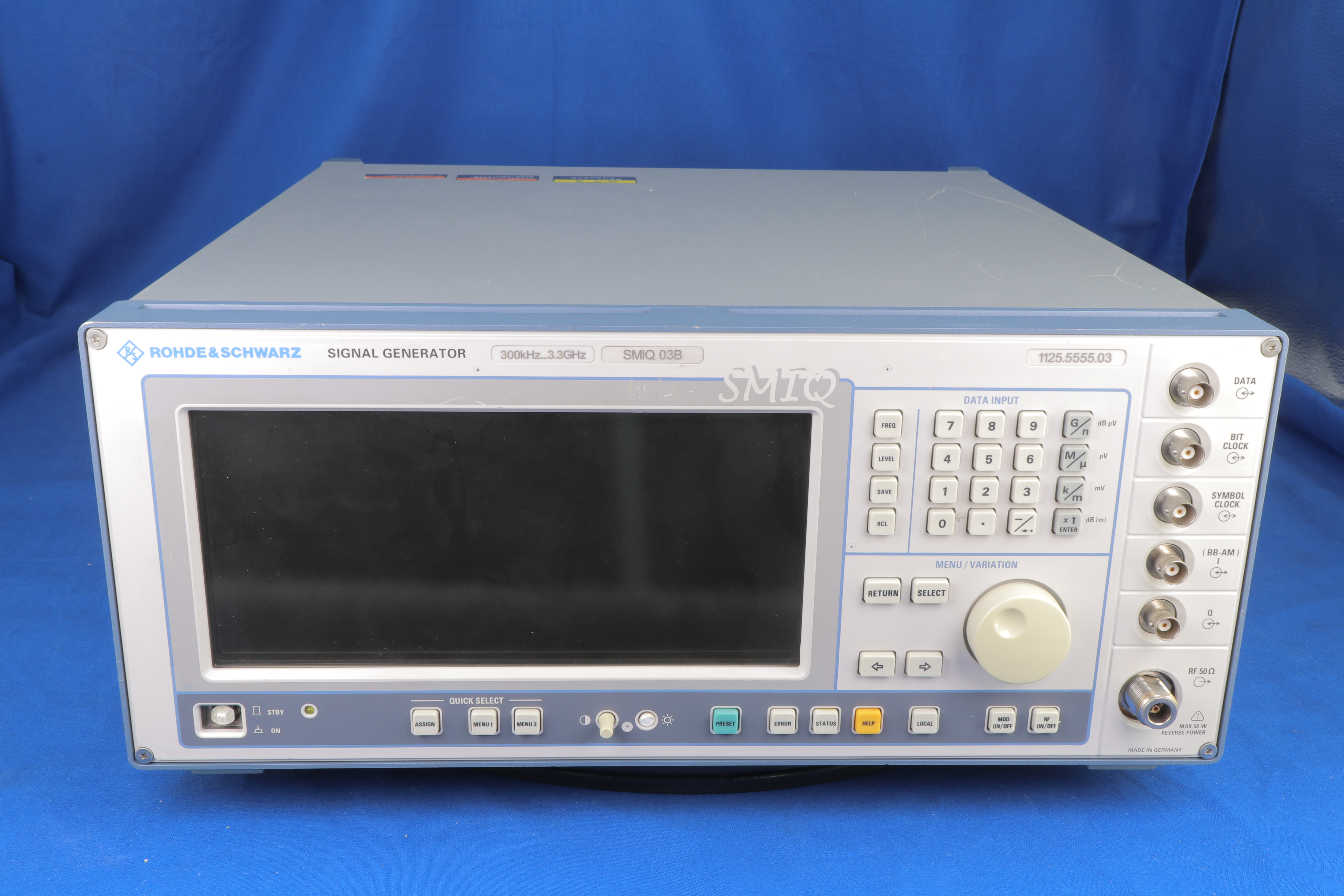

Additional Features: Frequency Range: 300 kHz - 3.3 GHz  Frequency Resolution: 0.1 Hz  Output Range: -140 dBm - 13 dBm  Output Resolution: 0.1 dB  Programmable Interface: -126 dBc/Hz  SSB Phase Noise Range: -116 dBc/Hz - -126 dBc/Hz  Time Base Stability: 0.000001/yr AM, FM, Pulse, Phase and Digital Modulation IEEE Interface The SMIQ03B is a vector signal generator with a frequency range of 300 kHz to 3.3 GHz. The high-grade I/Q modulator fitted as standard ensures minimum error vector magnitude and high intermodulation suppression. Using modern digital signal processor (DSP) technology, the versatile concept allows the generation of high-precision digital modulation signals at high bit rates without any limitations on modulation modes or standards. In addition to digital modulation, the SMIQ03B provides the full range of analog modulation modes as well as simultaneous modulation capability.

Option	Description
B1	Reference Oscillator OCXO
B10
B11	Data Generator
B12	Memory Extension, 32 Mbit
B14	Fading Simulator, 6 paths
B17

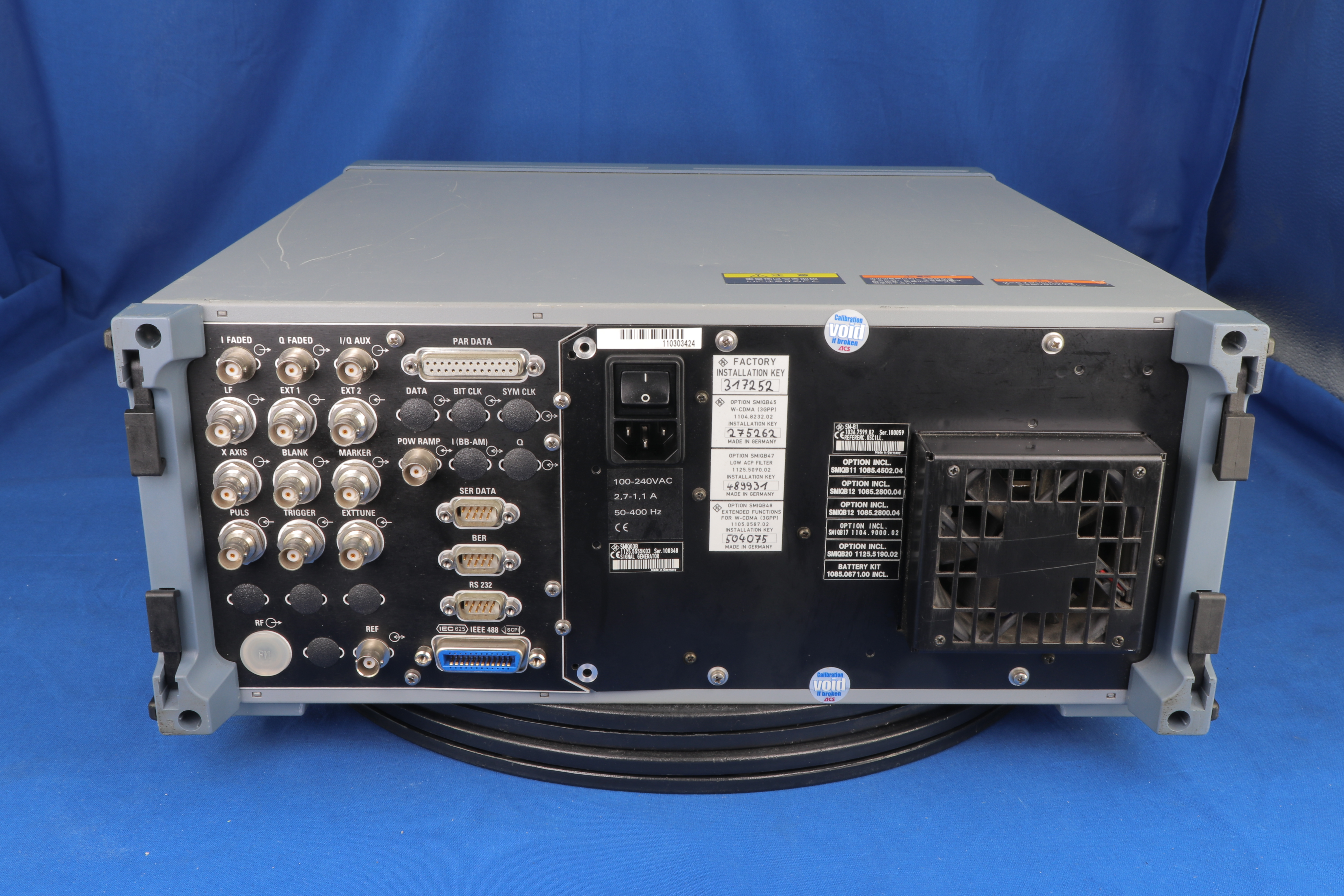

B19	RF and AF Rear Connectors
B20	Modulation Coder
B42	Digital Standard IS-95 CDMA
B45	Digital Standard WCDMA to 3GPP (FDD)
B48	Extended Functions for WCDMA (3GPP)
B5	FM/PhaseM Modulator
B50
B60	Arbitrary Waveform Generator incl. R&S WinIQSIM
K12	Digital Standard cdma2000 (for option R&S SMIQB60)
SM-B5	FM/?M Modulator
SMIQB11	Data Generator
SMIQB20	Modulation Coder
