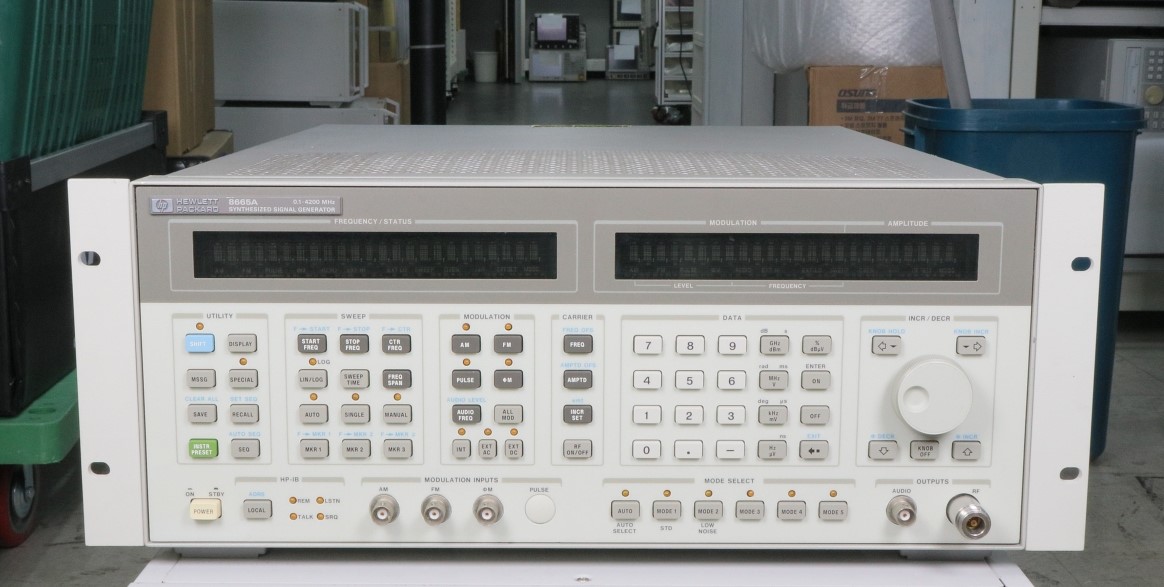

Additional Features: Frequency: 4.2 GHz 100 dBc nonharmonic spurious to 2 GHz reduces error when testing spurious immunity of receivers AM, FM, and optional pulse modulation 0.01 Hz frequency resolution 140 dBc/Hz typical SSB phase noise at 20 kHz offset at 1 GHz with Option 004 The Agilent 8665A is a high performance signal generator suited for basic receiver testing up to 4.2 GHz. With Option 004 (low-noise enhancement), it can be used for out-of-channel receiver testing or as a clock source where having the lowest phase jitter is important. Radar testing can be done by adding Option 008 (pulse modulation) . Pulse width and delay can be internally adjusted between 50 ns and 999 ns, eliminating the need for an external pulse generator. Standard FM rates of up to 2 MHz and deviations to 20 MHz are suitable for many applications such as high-speed digital communications.

Option	Description
001	High Stability Time Base
002	2 GHz Doubled Output
003	Rear-Panel Input/Output
004	Low-noise Enhancement
005	Electronic Attenuator (N/A with Option 002)
007	Synthesized Audio Oscillator
008	Pulse Modulation
009	Specified VOR/ILS
010	Reduced-Leakage Configuration
011	2 GHz Internal Frequency Counter
H10	DECT Modulation
