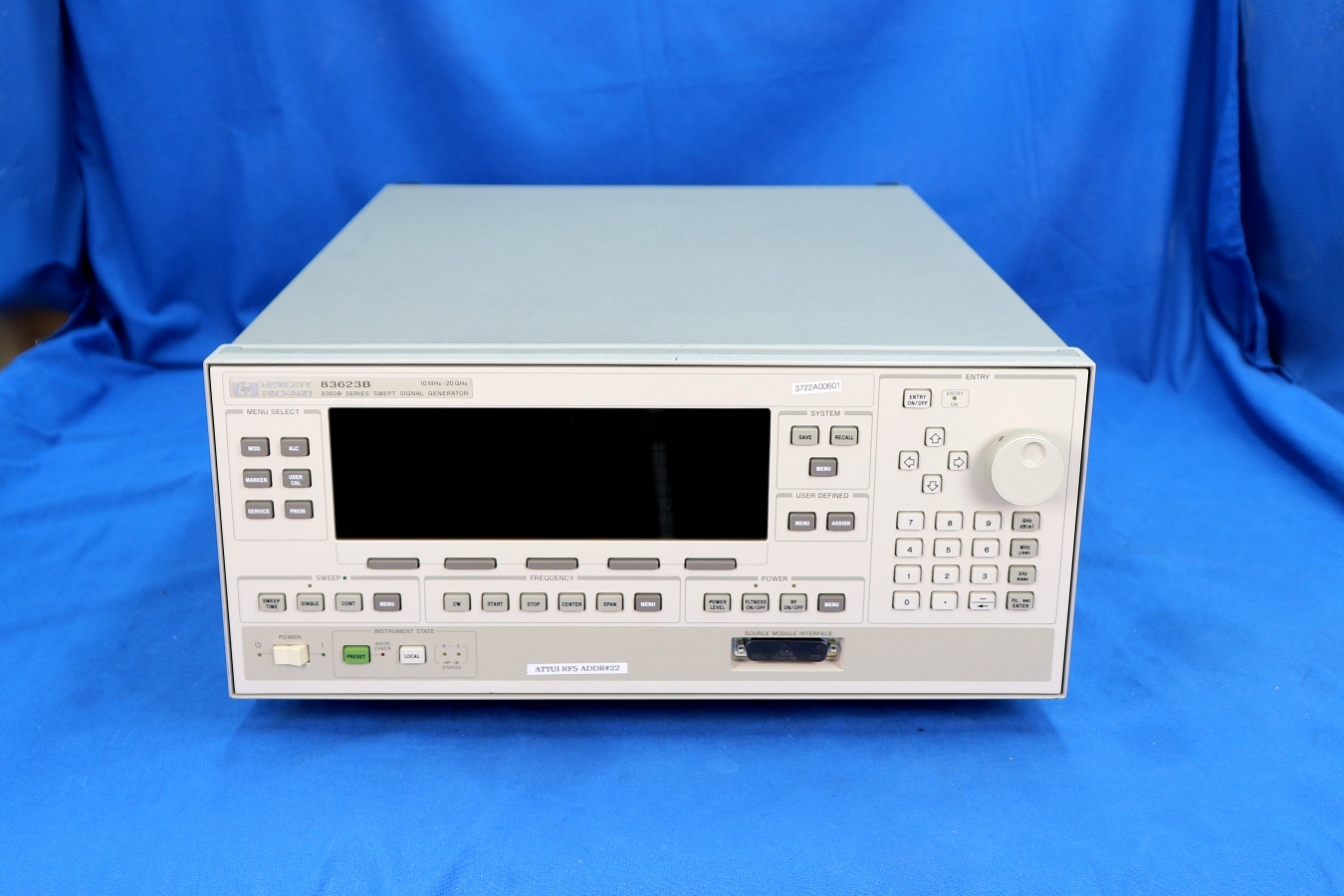

Frequency range: 0.01-20 GHz +17 dBm calibrated output power -50 dBc harmonics <20 GHz typical SSB phase noise <-80 dBc at 10 GHz and 10 kHz offset Complete analog sweeper 1 Hz frequency resolution (Option 008) Pulse, amplitude and frequency modulation (Keysight Agilent HP 8360B Series only) -110 dBm output power with step attenuator (Option 001) The Agilent 83623B is the standard of excellence for applications requiring the high performance and accuracy of a synthesized source and the speed and versatility of a sweep oscillator. Synthesized broadband frequency coverage and precise 1 Hz frequency resolution (Opt 008) are generated by indirect synthesis, enabling the Agilent 83623B to achieve low single-sideband phase noise performance. The Agilent 83623B also delivers excellent harmonic performance with harmonics at least 25 dB below the carrier from 2.0 to 20 GHz.

Option	Description
001	Add step attenuator

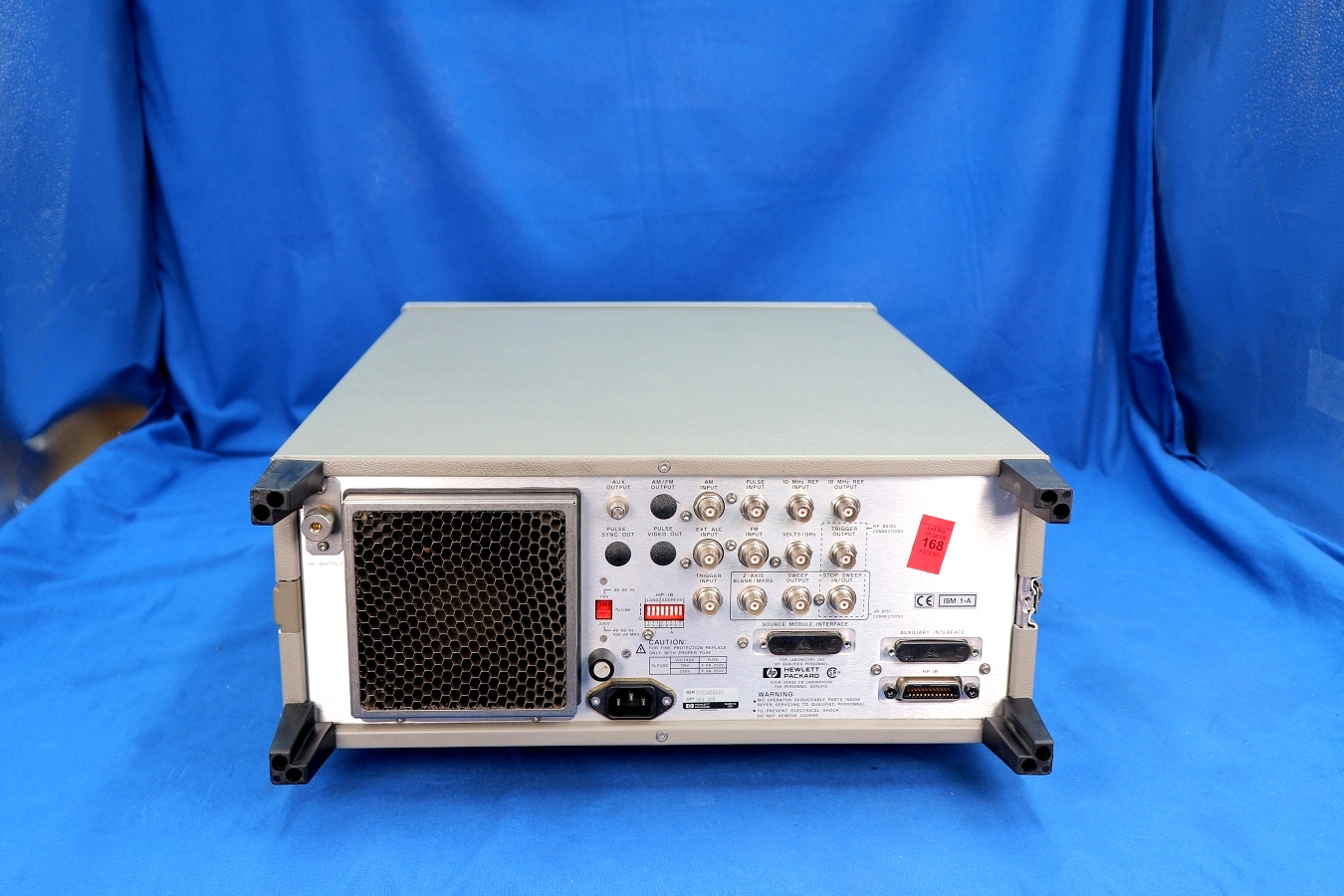

004	rear panel RF output
008	1Hz frequency resolution
