8116A HP Pulse Generator

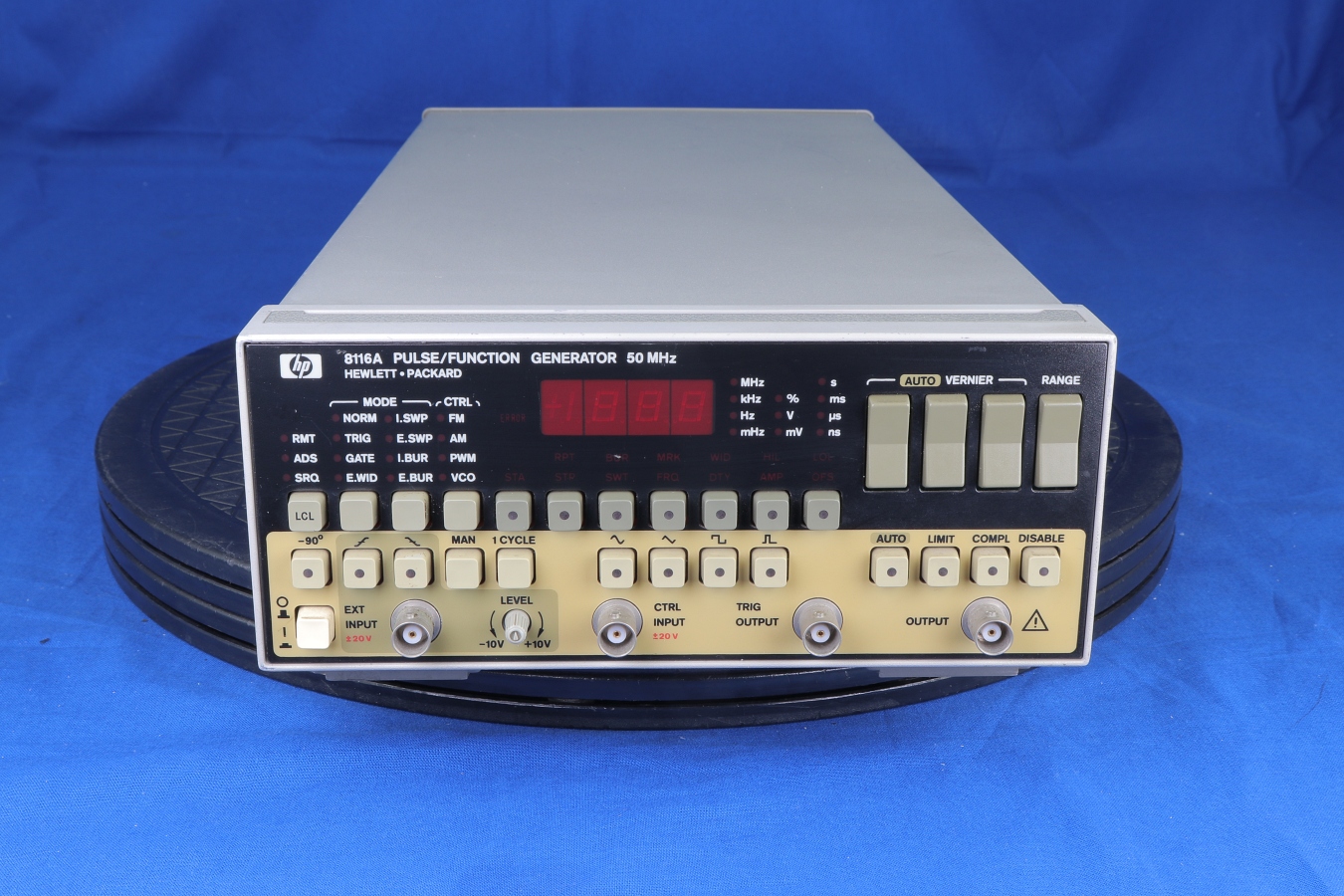

Additional Features: Frequency: 1 mHz to 50 MHz Sine, triangle, square, haverfunctions and DC 32Vpp for all waveforms Variable (10 ns min) pulse width, 6 ns transitions Wide range of operating capability Self-prompting operating concept Error recognition and self test The Agilent 8116A is a Pulse/Function Generator that is fully programmable and features pulse as well as function generator capabilities in one small instrument. The Agilent 8116A, Pulse/Function Generator, has a 1 mHz to 50 MHz band for all waveforms and a wide choice of operating and modulating modes assures high flexibility. In normal mode its auto-vernier increments any desired parameter continuously until a stop signal is applied. This Pulse/Function Generator, offers a safety feature which prevents the output from exceeding a given magnitude. It also offers a wide range of operating capability, self-prompting operating concept, error recognition and self test, sine, triangle, square, haverfunctions and DC, variable (10 ns/min) pulse width, 6 ns transitions.
REQUEST A QUOTE
Stock
|
Detail
|
Option
|
Download
|
Video
8116A HP Pulse Generator
Price: CALL
Detail
Additional Features: Frequency: 1 mHz to 50 MHz Sine, triangle, square, haverfunctions and DC 32Vpp for all waveforms Variable (10 ns min) pulse width, 6 ns transitions Wide range of operating capability Self-prompting operating concept Error recognition and self test The Agilent 8116A is a Pulse/Function Generator that is fully programmable and features pulse as well as function generator capabilities in one small instrument. The Agilent 8116A, Pulse/Function Generator, has a 1 mHz to 50 MHz band for all waveforms and a wide choice of operating and modulating modes assures high flexibility. In normal mode its auto-vernier increments any desired parameter continuously until a stop signal is applied. This Pulse/Function Generator, offers a safety feature which prevents the output from exceeding a given magnitude. It also offers a wide range of operating capability, self-prompting operating concept, error recognition and self test, sine, triangle, square, haverfunctions and DC, variable (10 ns/min) pulse width, 6 ns transitions.
Option
Option Description

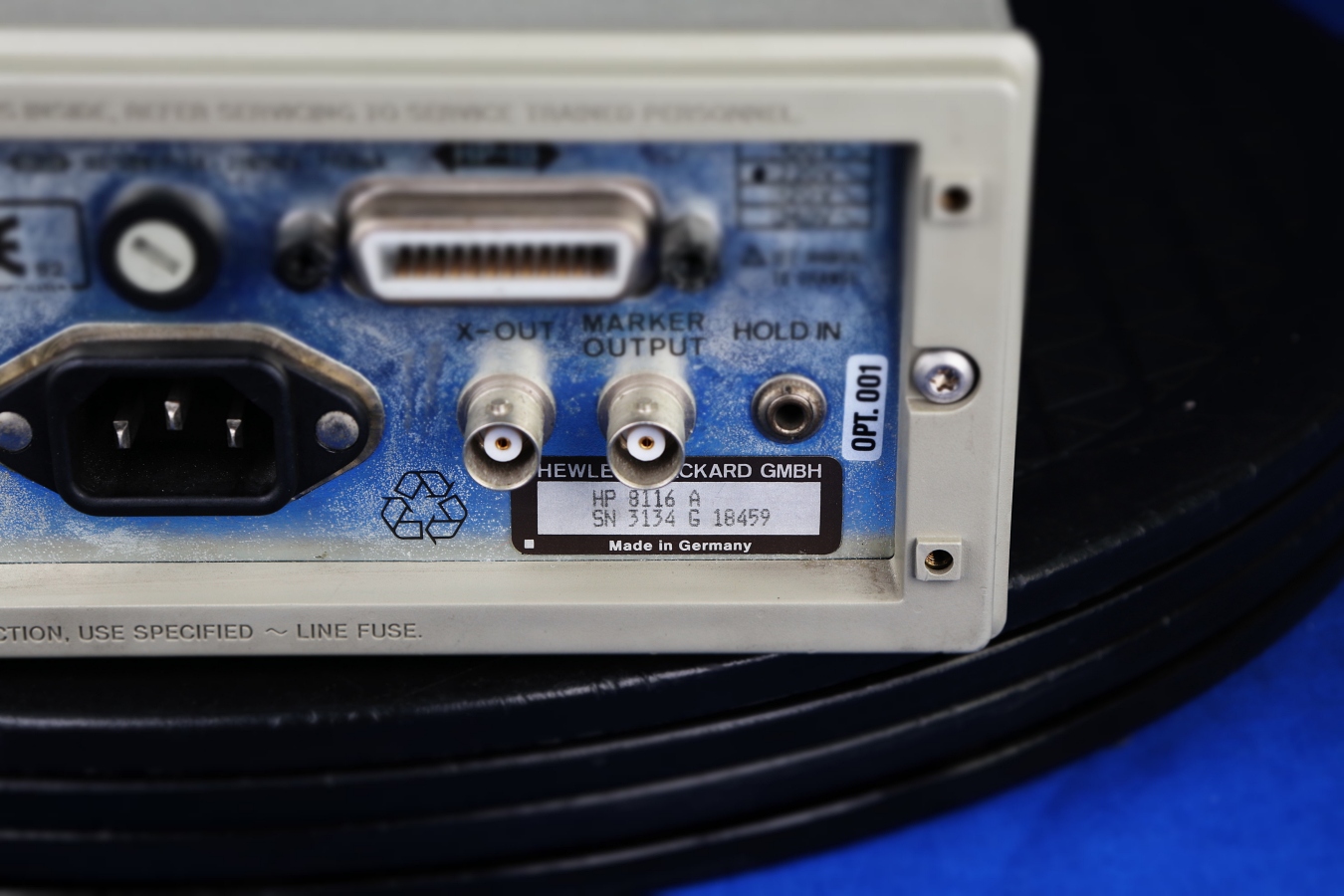

001 Burst and Logarithmic Sweep
