34411A Agilent Multimeter
6½ Digit
REQUEST A QUOTE

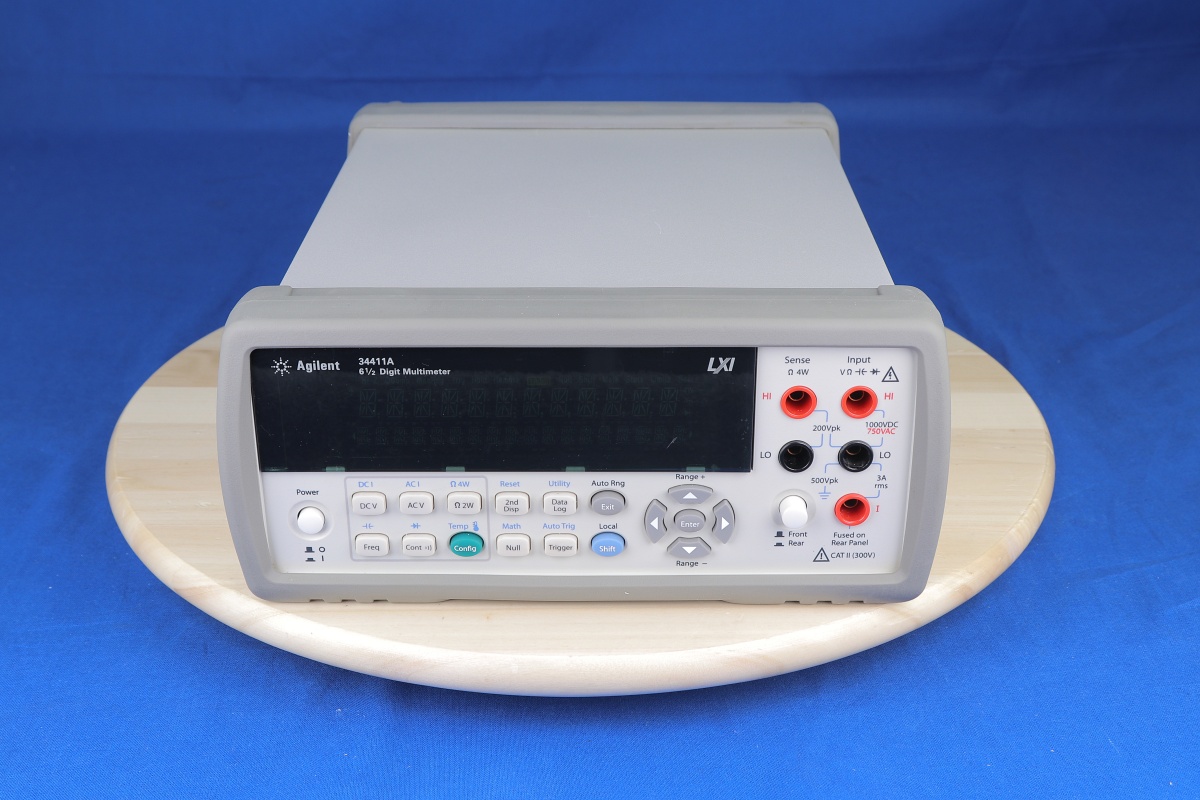

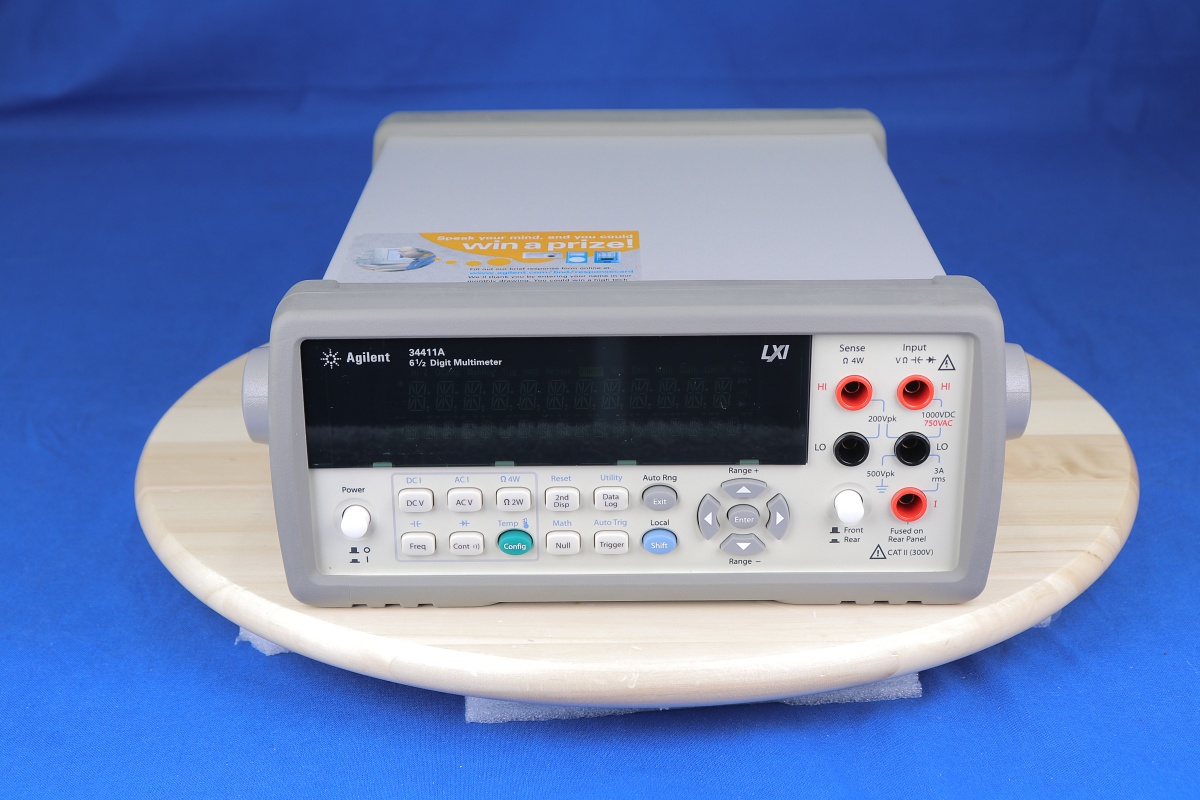

34411A Agilent Multimeter
34411A Agilent Multimeter
34411A Agilent Multimeter
Detail
Additional Features:
6½ digit resolution
Basic accuracy: .0030 % DC,0.06% AC
14 measurement functions including capacitance & temperature
50,000 readings/sec. @ 4½ digits to the PC
1M reading memory
Analog level and pre/post triggering
Programmable Pre/Post triggering
DCV, ACV, DCI, ACI, 2-wire and 4-wire Resistance, Frequency, Period, Continuity, and Diode Test
Capacitance & Temperature measurements
Expanded measurement ranges
System Capability:

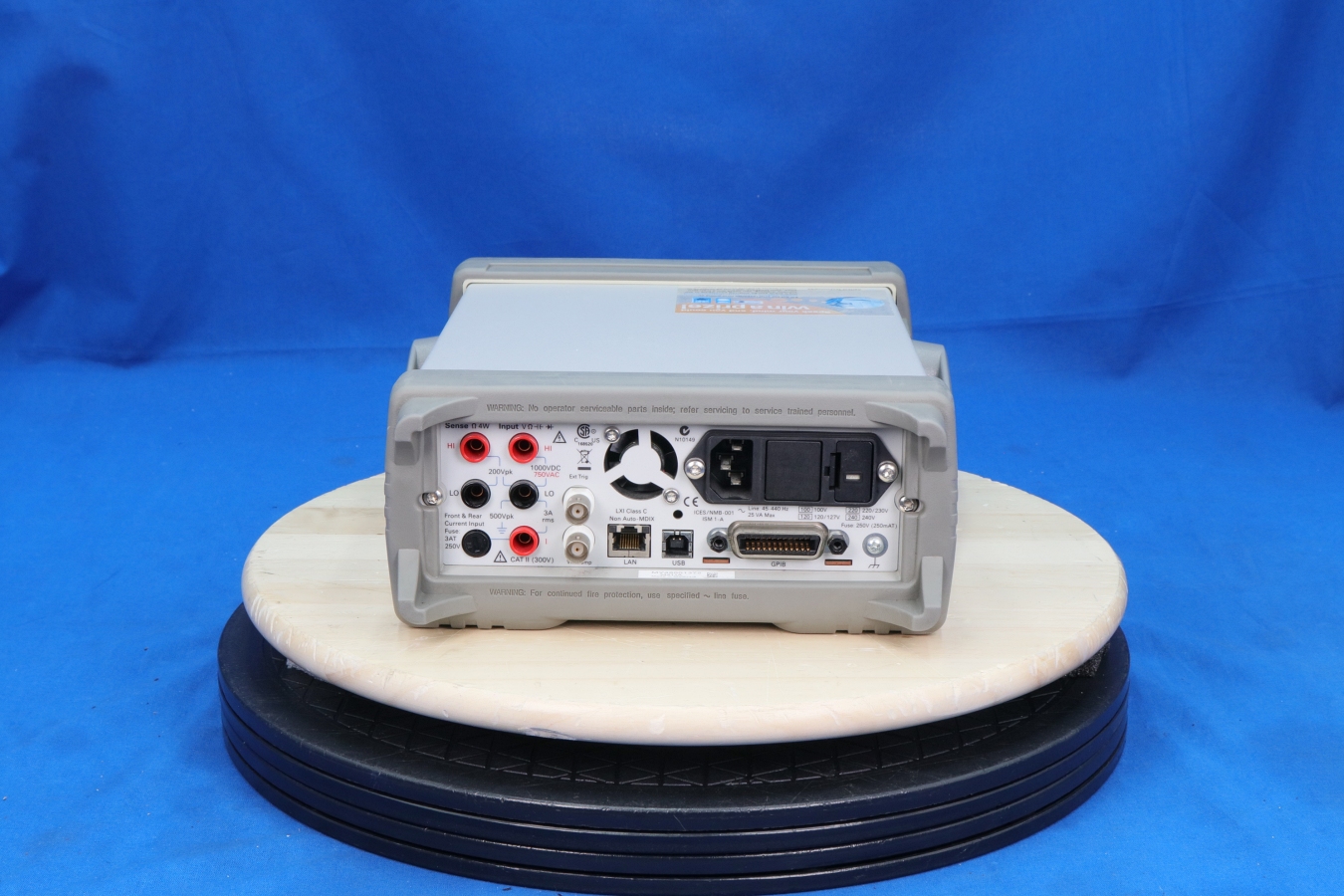

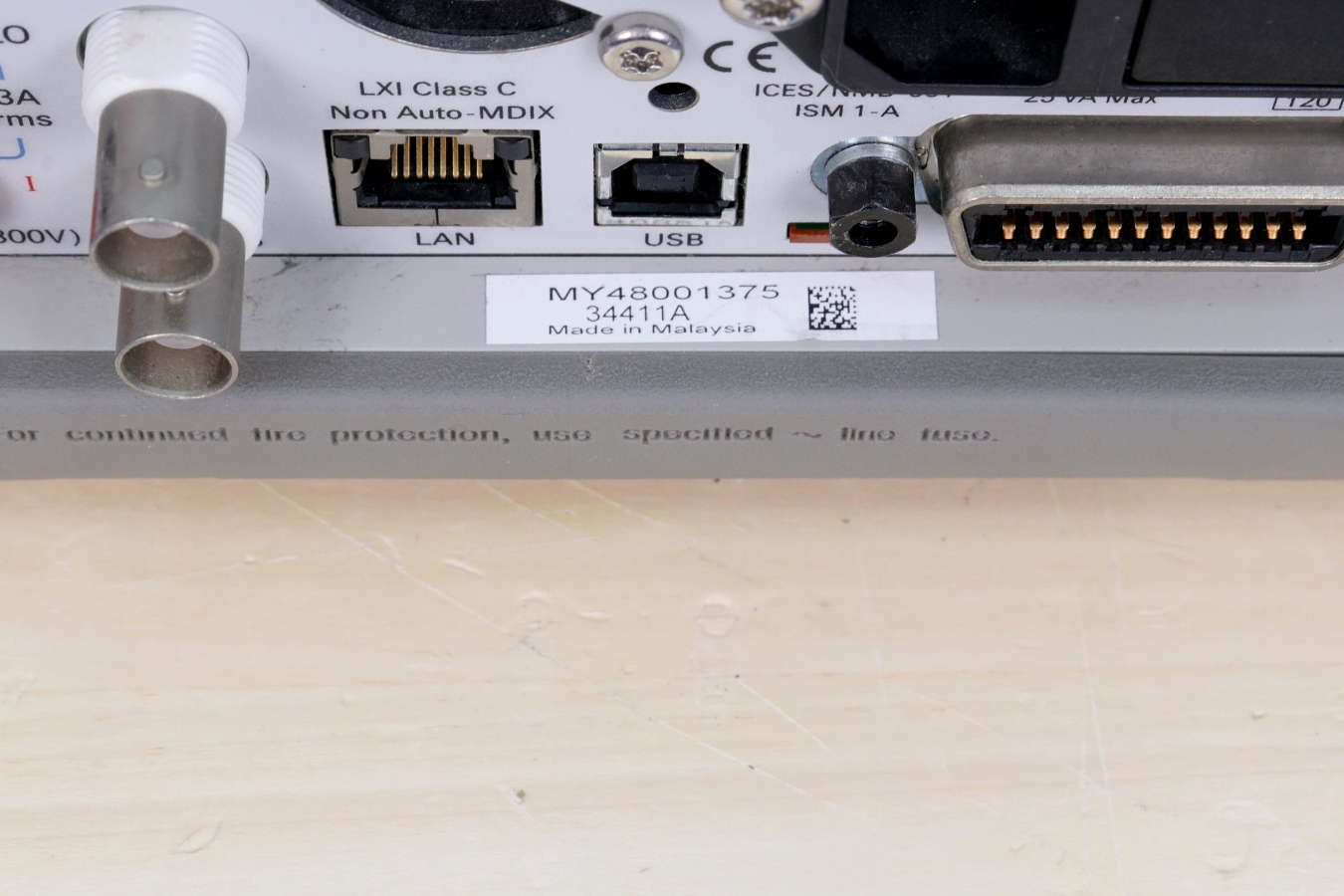

LAN (LXI compliant), USB & GPIB standard
10,000 readings/sec @ 5½ digits to the PC
1,000 readings/sec @ 6½ digits to the PC
The Agilent 34411A is a 6½ Digit DMM that achieves an impressive 50,000 readings a second at 4½ digits, and can stream readings to your computer at this same speed.

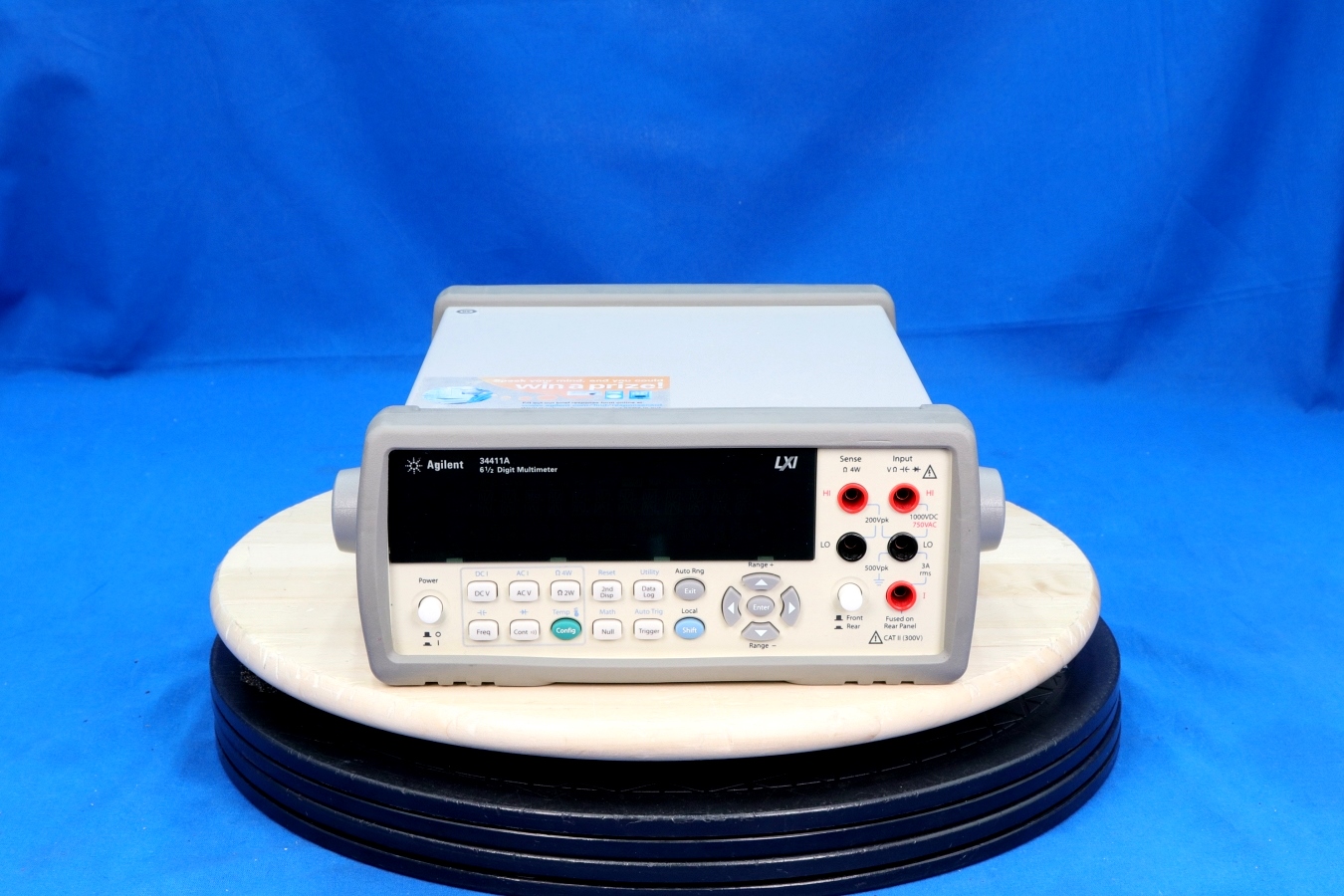

The Agilent 34410A and 34411A 6½-Digit DMMs represent the latest generation of multimeters from Agilent Technologies. Building on the phenomenal success of the industry-standard Agilent 34401A, these meters offer improved accuracy, expanded measurement capability, dramatically improved measurement speed and throughput, and modern computer interfaces including LAN and USB. The dual display offers both dual measurement capabilities and ease of use when setting up and configuring the DMM. Improvements have been made in every facet of the 34401A to make the best even better, whether you use it on the bench or in a system.
