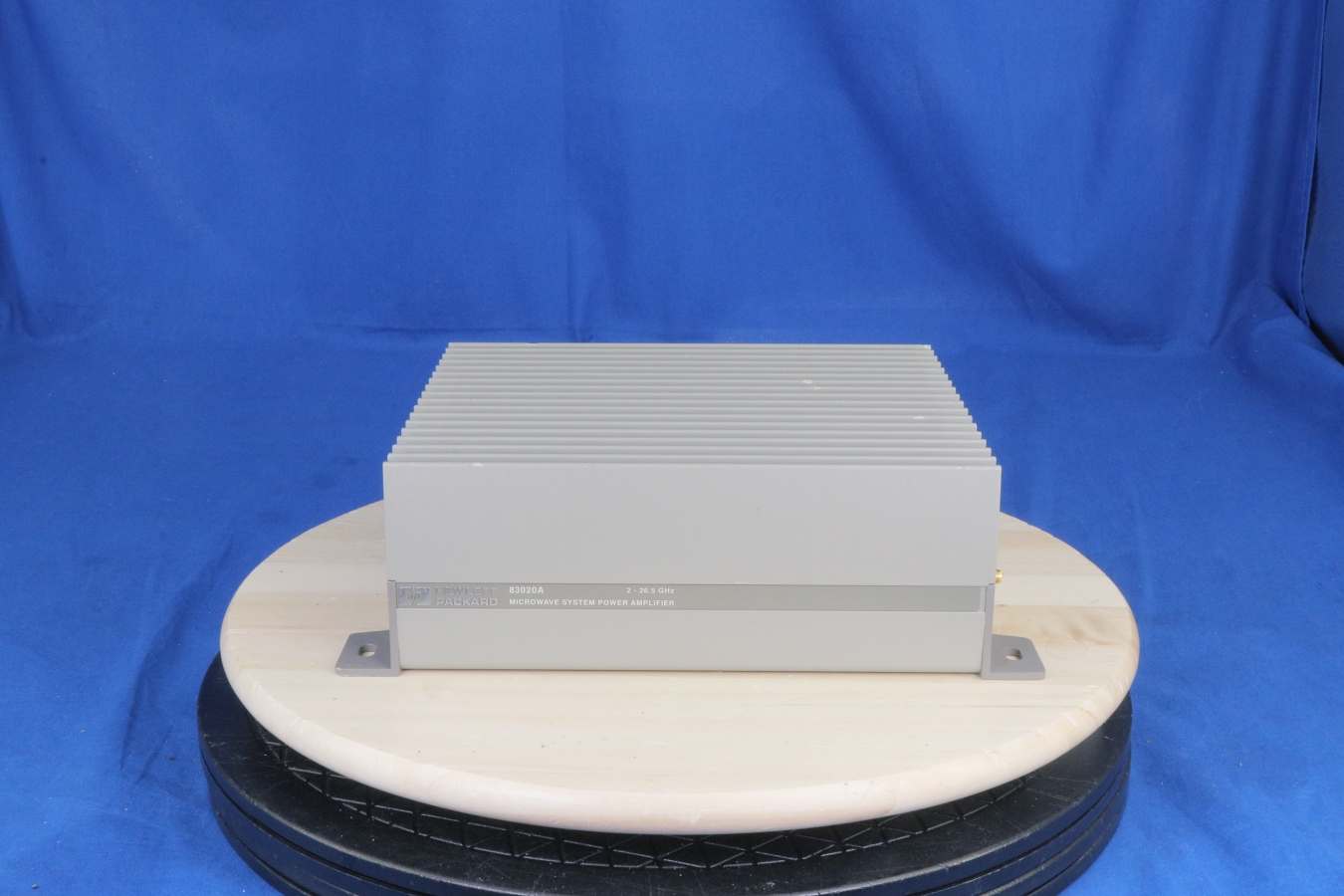

83020A HP RF Amplifier
Superior RF performance Gain of more than 30dB (to 20 GHz), 27 (to 26.5 GHz) P1dB of more than 27dBm (to 20 GHz),23dBm (to 26.5 GHz) Noise figure of less than 10dB to 20 GHz,13 to 26.5 GHz (typ) Connectors Type RF connectors: 3.5mm(f) DC Detector output connector: BNC (f) Bias Option Works with 87422A 70W Power Supply The Agilent 83020A microwave system amplifier is a compact, off-the-shelf amplifier designed for systems designers and integrators.
REQUEST A QUOTE
Stock
|
Detail
|
Option
|
Download
|
Video
83020A HP RF Amplifier
87422A: 90W, +-15V for 83020A & +-12V for 83017A /
Price: CALL
83020A HP RF Amplifier
Price: CALL
Detail
Superior RF performance Gain of more than 30dB (to 20 GHz), 27 (to 26.5 GHz) P1dB of more than 27dBm (to 20 GHz),23dBm (to 26.5 GHz) Noise figure of less than 10dB to 20 GHz,13 to 26.5 GHz (typ) Connectors Type RF connectors: 3.5mm(f) DC Detector output connector: BNC (f) Bias Option Works with 87422A 70W Power Supply The Agilent 83020A microwave system amplifier is a compact, off-the-shelf amplifier designed for systems designers and integrators.
Option
Option Description
87422A 90W, +-15V for 83020A & +-12V for 83017A
