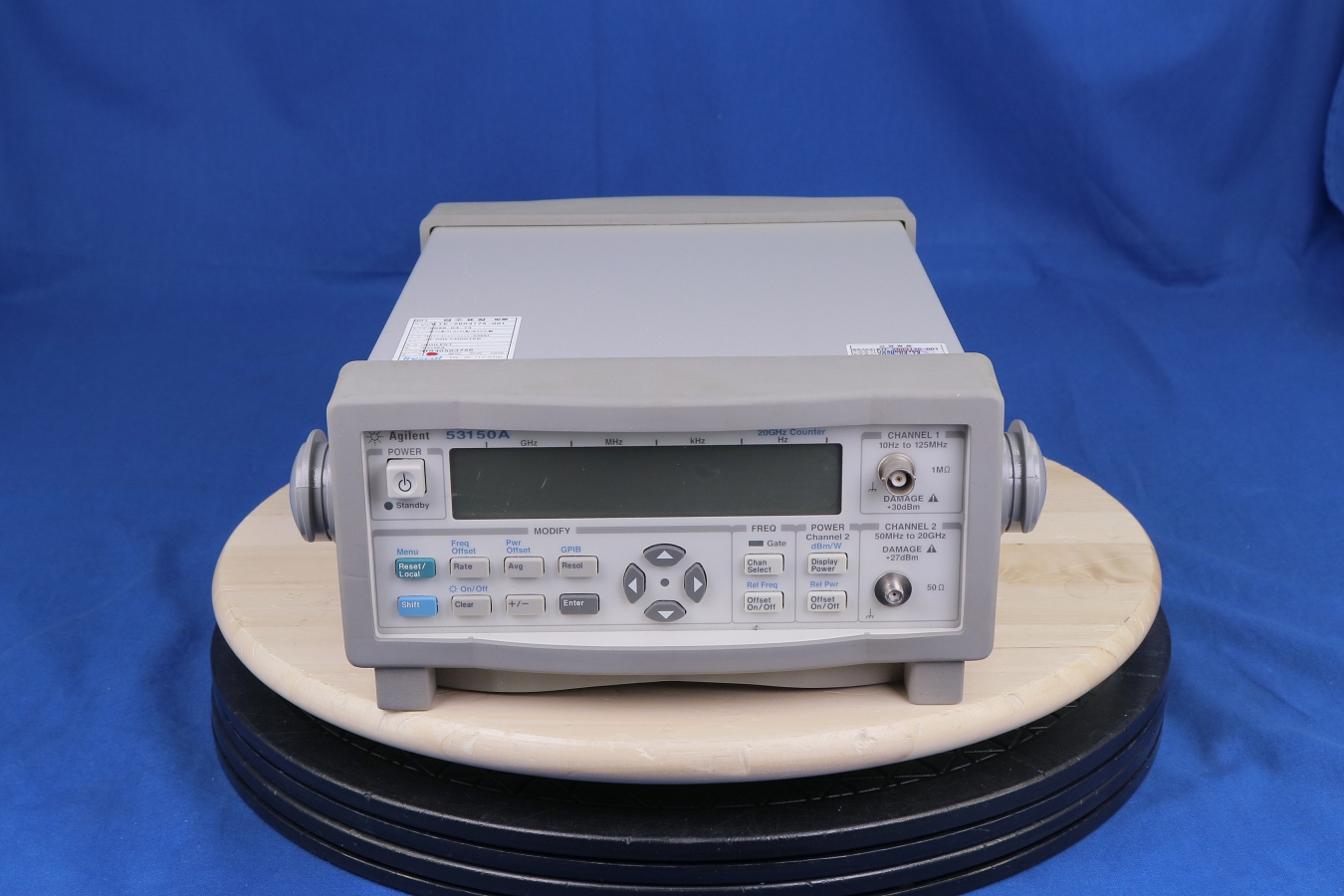

Additional Features: Ultra-wideband, single input from 50 MHz to 20 GHz Simultaneous frequency and power measurement with analog peaking indicator Rugged, lightweight design for field use Optional battery operation, oven timebase, and soft carrying case GPIB and RS-232 interfaces standard The Agilent 53150A is a full-featured 20 GHz, CW microwave counter and power meter that is perfectly suited for bench top or ATE environments, yet is tough enough to handle the most rugged field applications. It offers high performance with an ultra-wideband input that covers the RF and microwave spectrum from 50 MHz to 20 GHz. Frequency and power are measured simultaneously with this same input. The power measurement accuracy and repeatability of these counters rivals power meters with diode sensors. Since frequency and power of the input signal are measured simultaneously, adjustment for the diode’s frequency response is done automatically. And like the latest in diode sensors, compensation is also made for deviation from square law. If ac power is unavailable, the internal, replaceable camcorder batteries provide at least 2.5 hours of continuous operation. The unit can also be powered from an external 11-18 Vdc source. For benchtop and ATE applications, the Agilent HP 53150A delivers full functionality and high measurement speed. The fully programmable RS-232 interface and high speed HP-IB interface are standard features. Additional capabilities include full control of resolution, sampling rate, and HP-IB address plus extensive self-diagnostics, fast acquisition times and full programmability. Performance surpasses the industry standard Agilent HP 5350 Series, in virtually every aspect, in a package less than half the weight and size.

Option	Description
001	Oven Time Base
