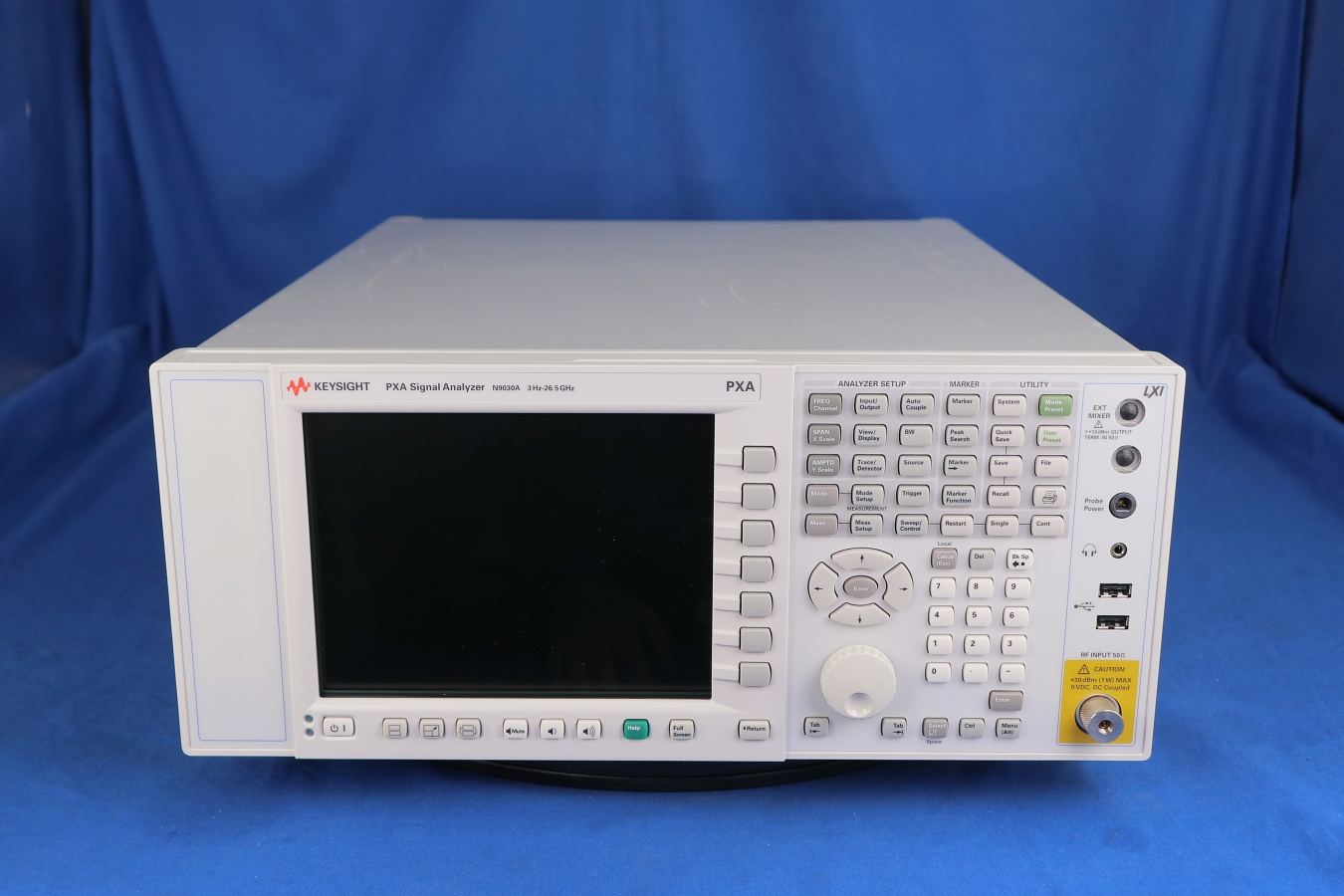

N9030A Keysight Spectrum Analyzer
Price: CALL
Detail
- Test with 160 MHz analysis bandwidth & industry-leading performance
- Extend frequency up to 110 GHz with Keysight smart mixers; to THz with others
- Capture transient or intermittent signals with real-time spectrum analysis
- Simplify application-specific testing with PathWave X-Series measurement apps: phase noise, noise figure, LTE-Advanced, WLAN, and more
- Perform deeper troubleshooting with the PathWave 89600 VSA software
Option
| Option | Description |
|---|---|
| 526 | 3Hz to 26.5GHz |
| B1X | 10Hz to 160MHz Analysis bandwidth |
| B40 | 40MHz Analysis Bandwidth |
| C35 | APC 3.5 mm (Male) input connector |
| EA3 | Electronic attenuator 3Hz to 3.6GHz |
| EXM | External Mixing |
| LNP | Low Noise Path |
| MPB | Microwave Preselector Bypass |
| N9064A | Vector Signal Analysis Performance |
| N9069A | Noise Figure Measurement Application |
| N9073A | W-CDMA/HSPA/HSPA+ measurement application |
| N9080A-1FP | LTE-FDD |
| N9080B | LTE-Advanced FDD measurement application |
| N9082B | LTE-Advanced TDD measurement application |
| P03 | PreAMP |
| P26 | PreAMP 9KHz to 26.5GHz |
| RT2 | Real-time analysis Up to 160 MHz Analysis BW option determines the max real-time bandwidth |
