M9714 MAYNUO Electronic Load
DC Electronic Load, Programmable, 150V/240A/1200W, CC / CV/ CR/ CW/ CC + CV, CR + CV 혼합 모드
REQUEST A QUOTE
M9714 MAYNUO Electronic Load
Price: CALL
Detail
Détails
The Maynuo M9714 is an electronic load with an output of up to 1200 Watts. The electronic load can be set by means of the buttons and the clear display on the device, or via the supplied software. There is also a selection of frequently used test functions available, for this see the datasheet of the M9714.

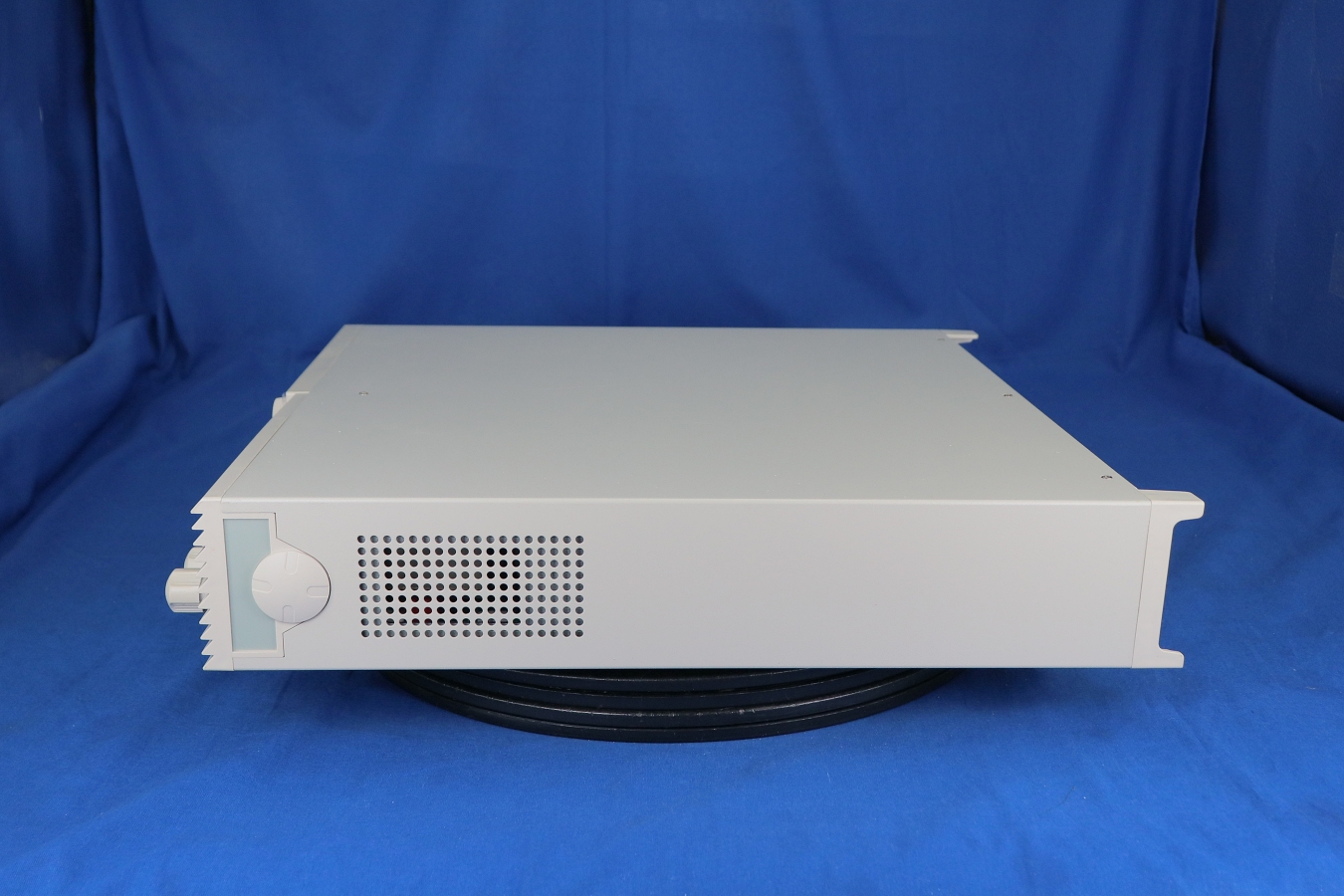

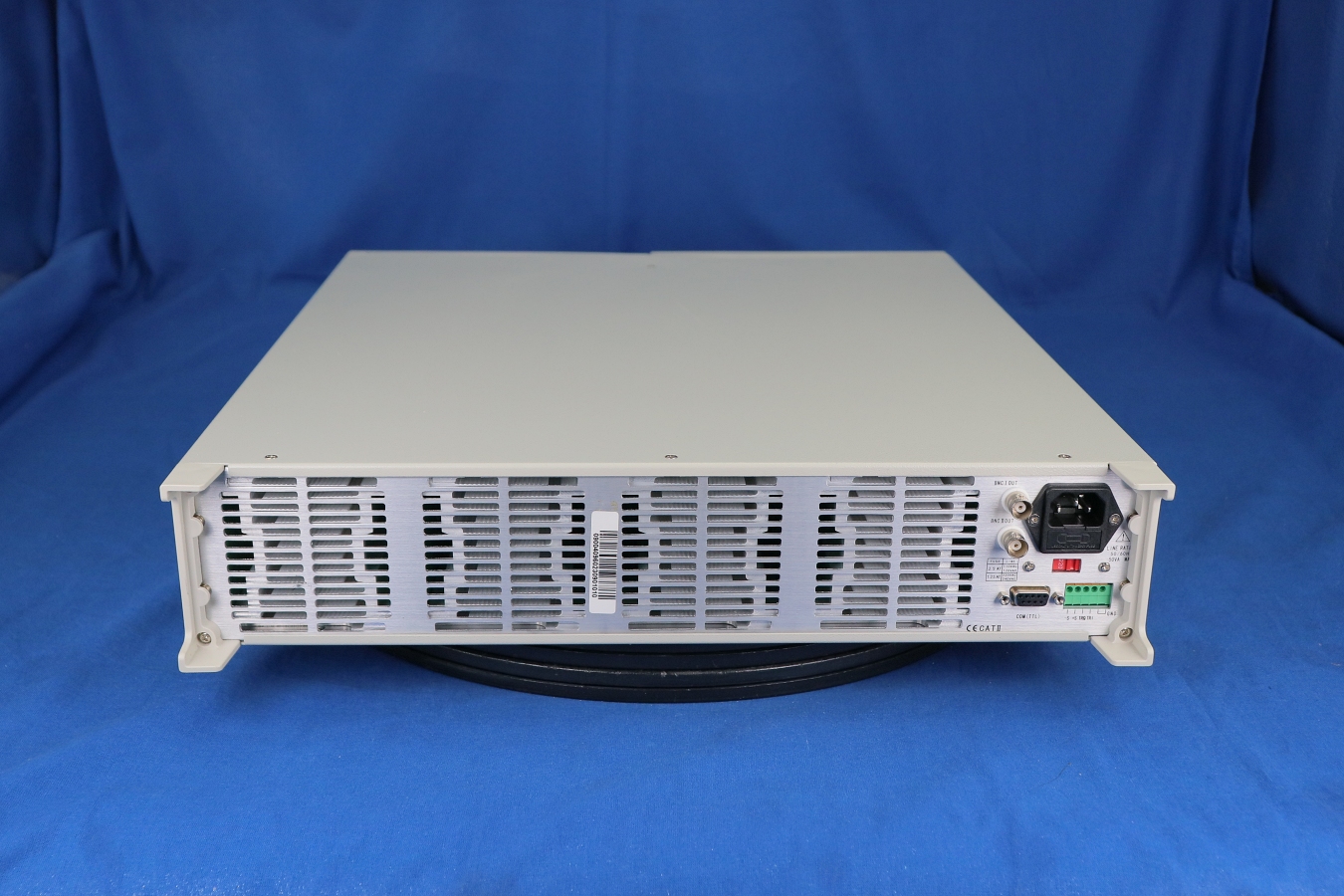

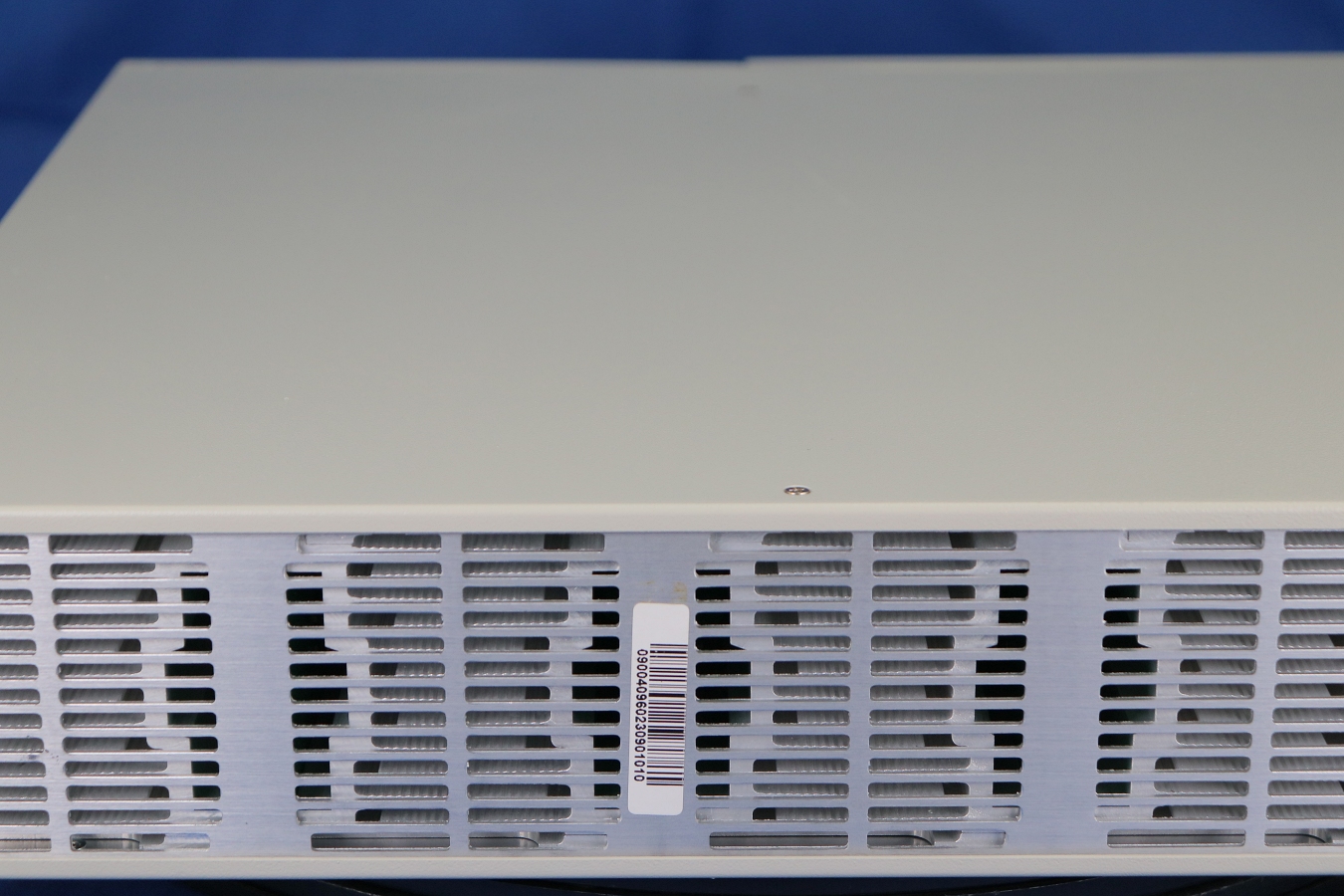

This electronic load is rack mountable, and protected against overheating, overload and polarity reversal. The M9714 is equipped with a fan that is automatically controlled according to temperature.
Specifications
| Power (input) | 1200 W |
| Current (input) | 0-240 A |
| Voltage (input) | 0-150 V |
| Setting accuracy current | 0-24 A: 1 mA 0-240 A: 10 mA |
| Setting accuracy voltage | 0.1-20 V: 1 mV 0.1-150 V: 10 mV |
| Short-circuit current | 0-24 A: 26.4 A 0 - 240 A: 264 A |
| Short-circuit resistance | 7 mOhm |
| Weight | 17.6 Kg |
| Dimensions | 428 x 103.5 x 453.5 mm (W x H x D) |
