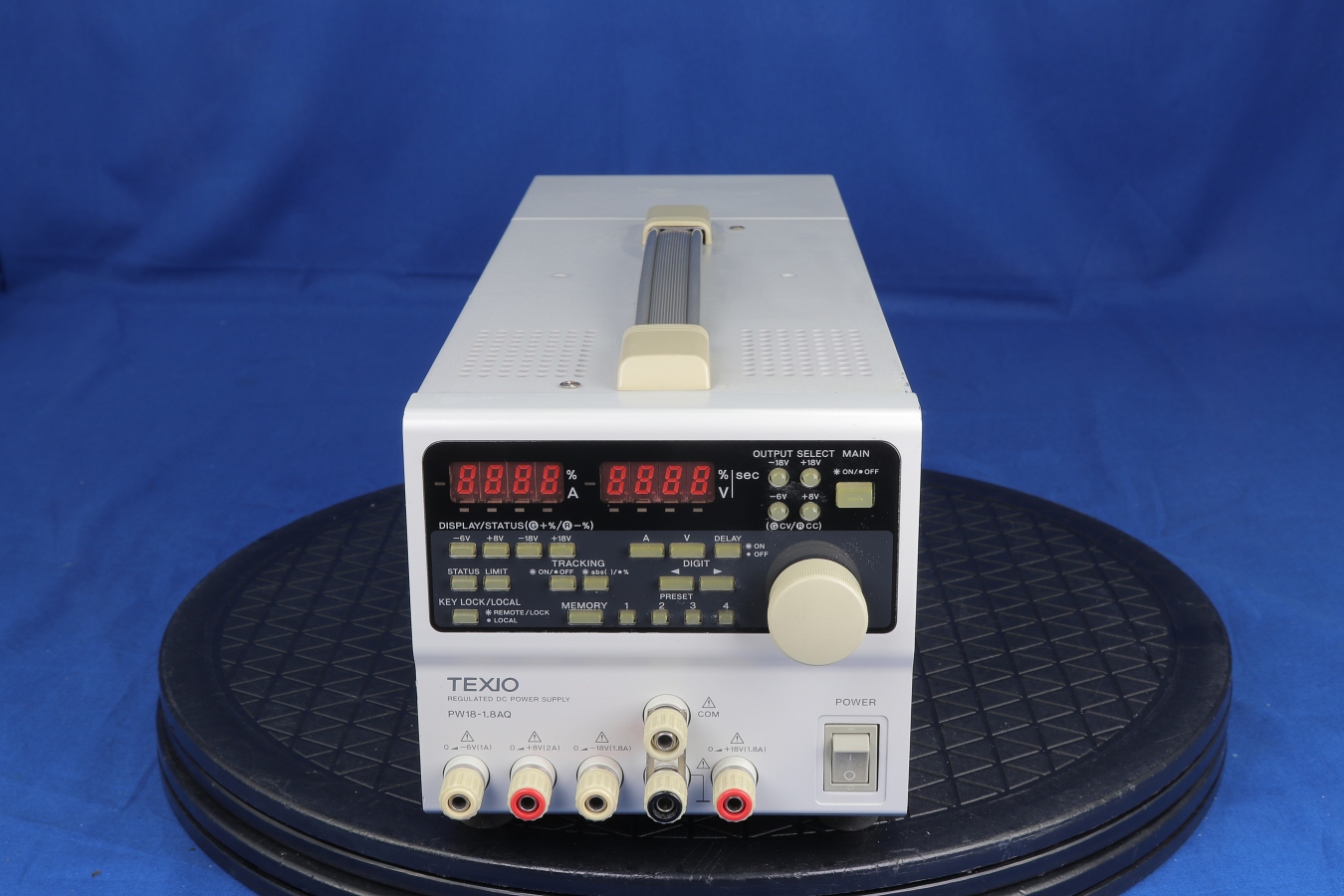

PW18-1.8AQ Texio DC Power Supply
4 CH, Output (Voltage, Current): +/-18V, 1.8A; 8V,2A; -6V/1A
REQUEST A QUOTE
PW18-1.8AQ Texio DC Power Supply
Price: CALL
PW18-1.8AQ Texio DC Power Supply
Price: CALL
Detail
Channels: 4
Output (Voltage, Current): +/-18V, 1.8A; 8V,2A; -6V/1A
Ripple: 0.5 mVrms, 1.5 mArms
Line regulation: 1mV, 2mA
Load regulation: 2mV, 5mA
Power: 245W/300VA
Case dimensions 138(W)×124(H) ×380(D) mm
Weight Approx.9.1kg
Option
| Option | Description |
|---|---|
| 0E3 | 230 Vac ± 10%, 47-63 Hz Input |
| 0E9 | |
| OEM | 115 Vac ± 10%, 47-63 Hz Input |
