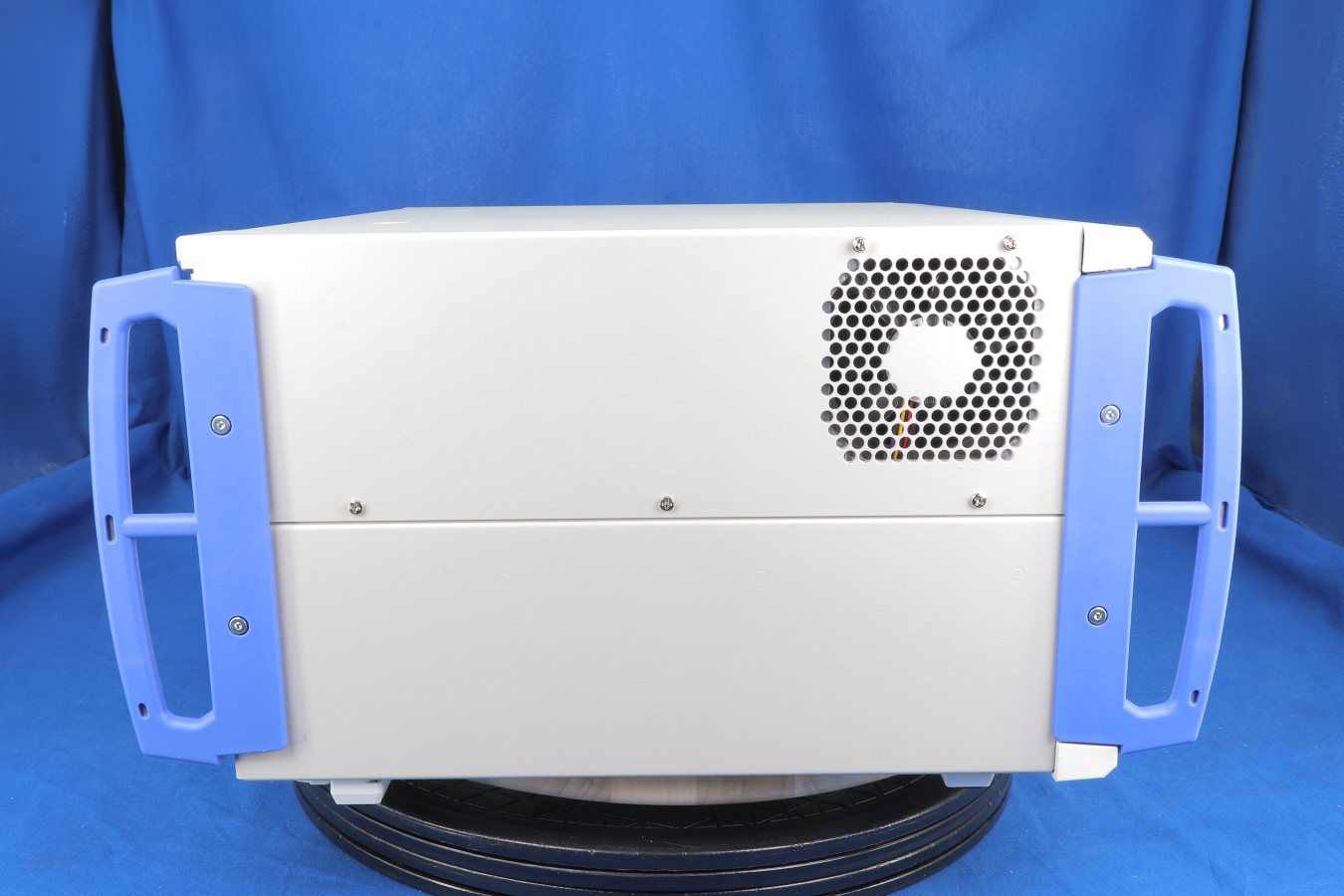

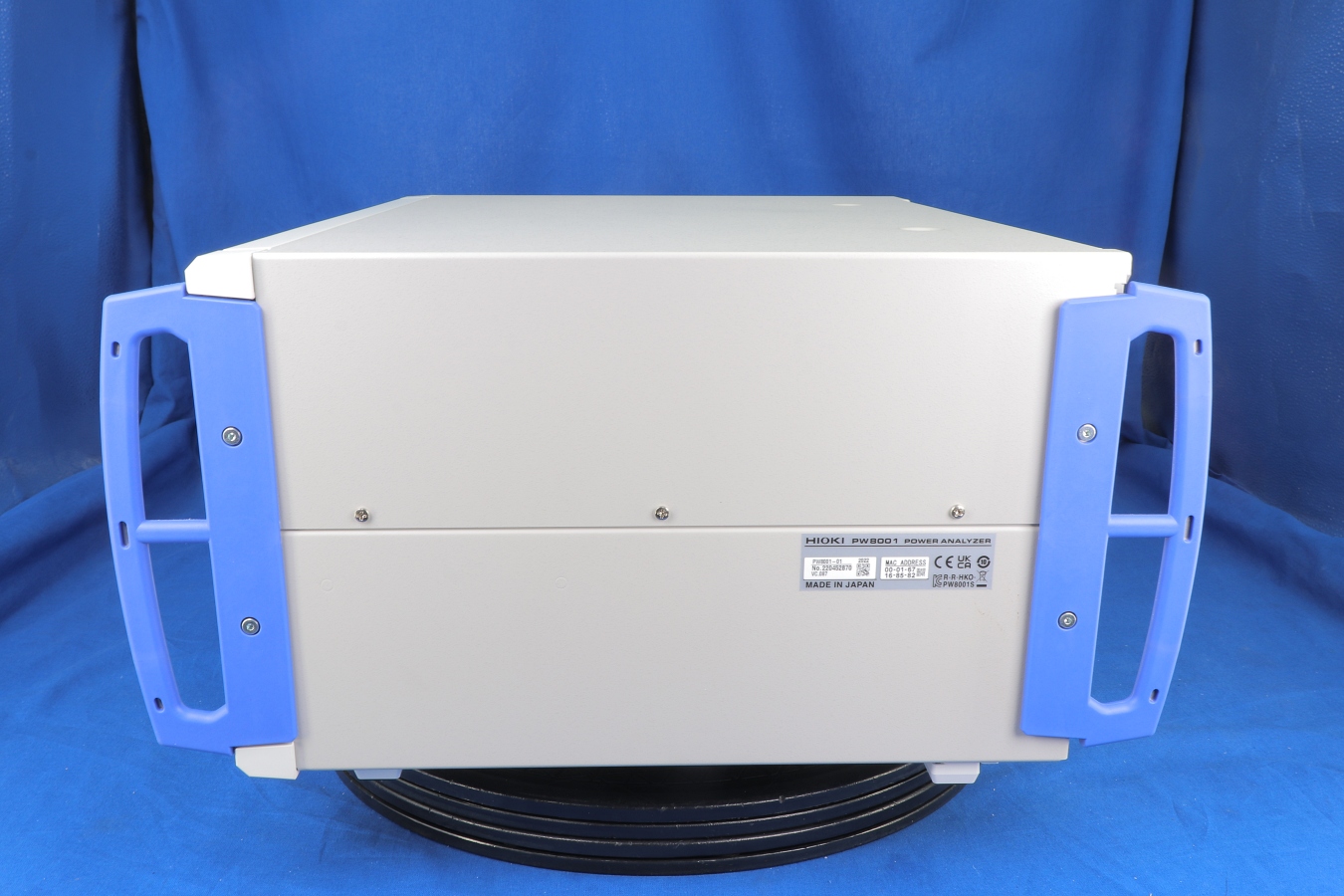

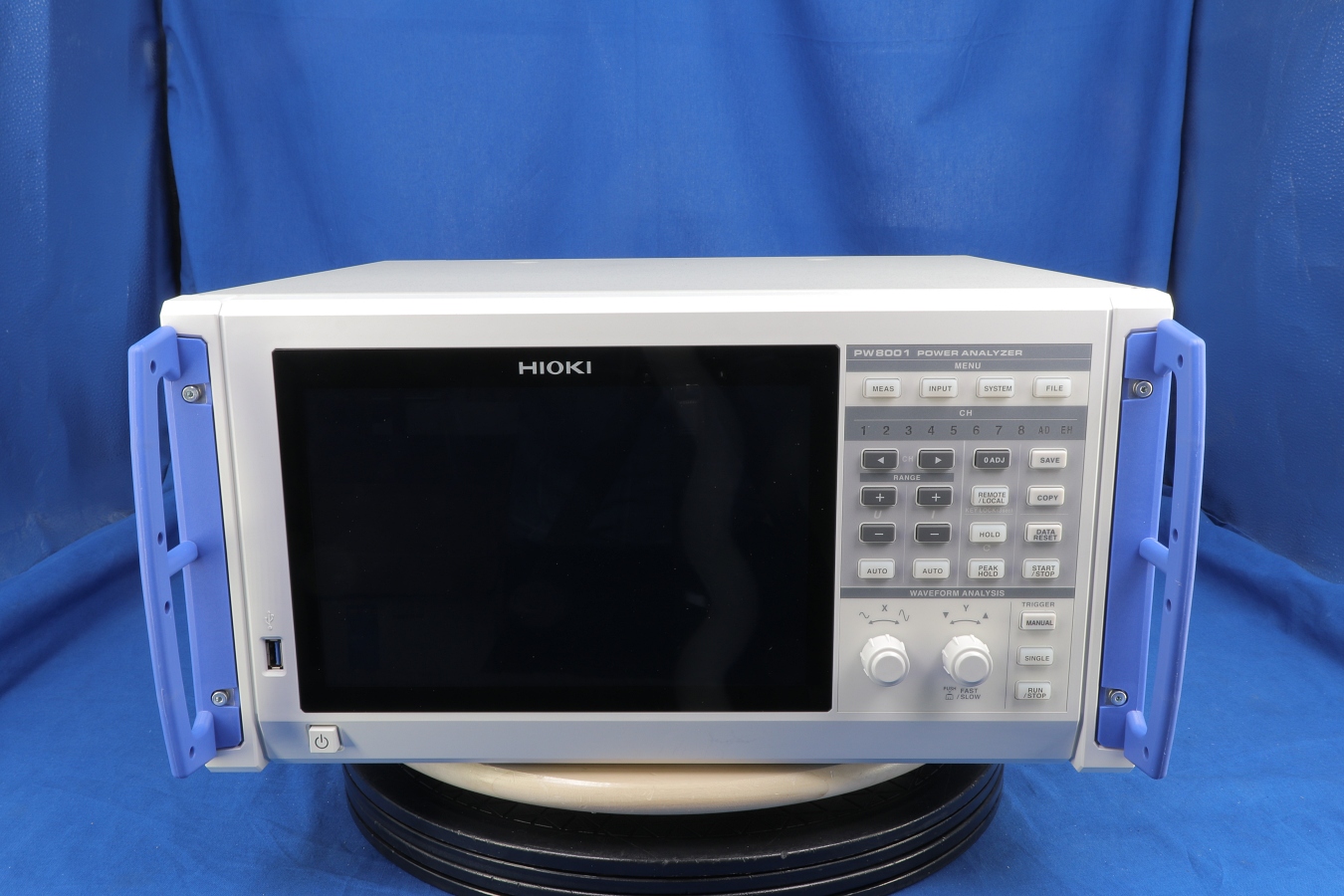

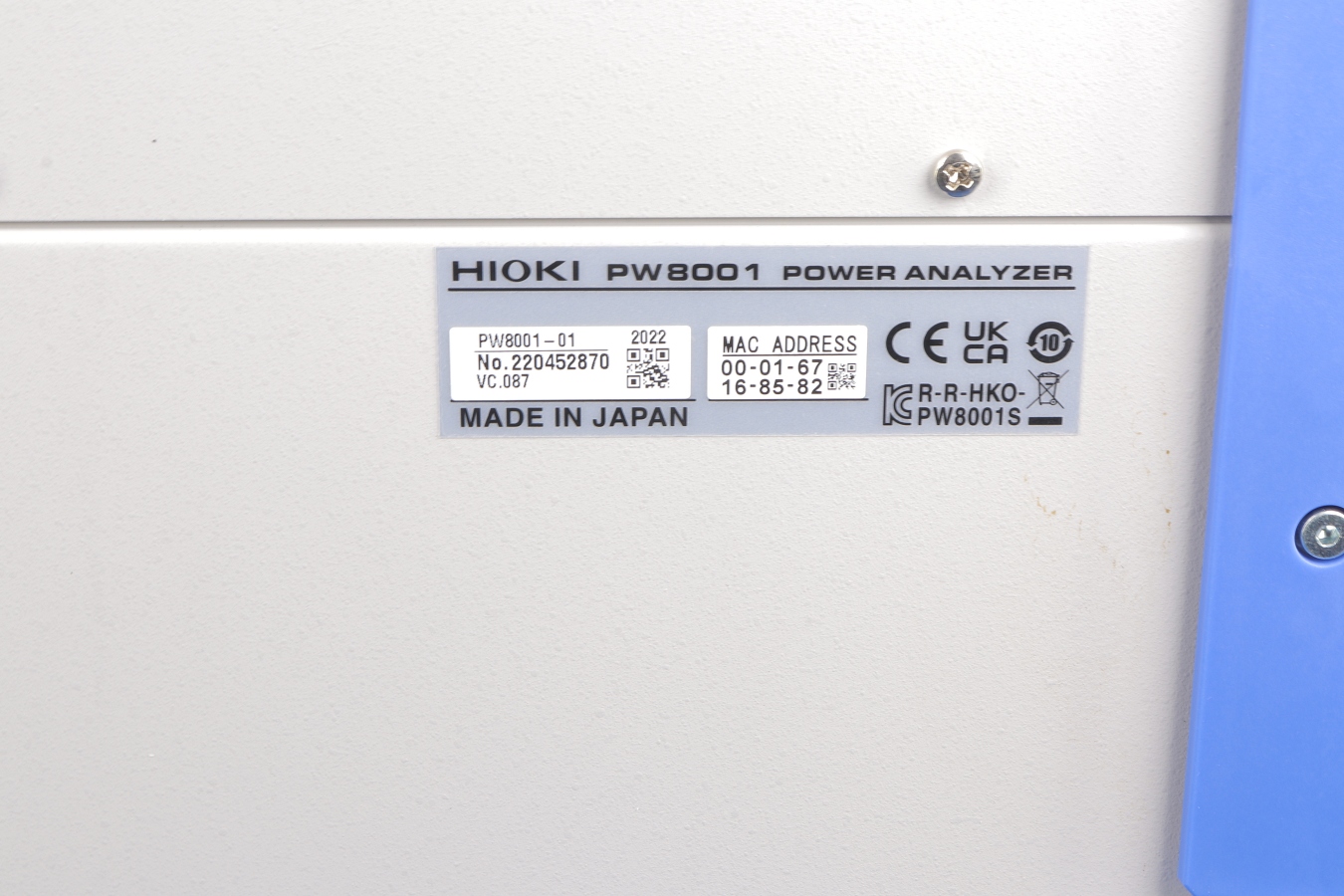

PW8001 Hioki Digital Power Analyzer
Power Analyzer DC, 0.1 Hz to 5 MHz, 3-phase 4-wire, High Precision Power Analyzer for Motor and Inverter Efficiency Analysis
REQUEST A QUOTE
Stock
|
Detail
|
Option
|
Download
|
Video
PW8001 Hioki Digital Power Analyzer
Price: CALL
Detail

Key Features

  • World-class measurement accuracy: Basic accuracy ±0.03%, DC accuracy ±0.05%, 50 kHz accuracy 0.2% (*1)
  • Accurate capture of power fluctuations caused by high-speed switching: Sampling performance 18-bit, 15 MHz, Noise Resistance (CMRR) 110 dB, 100 kHz (*1)

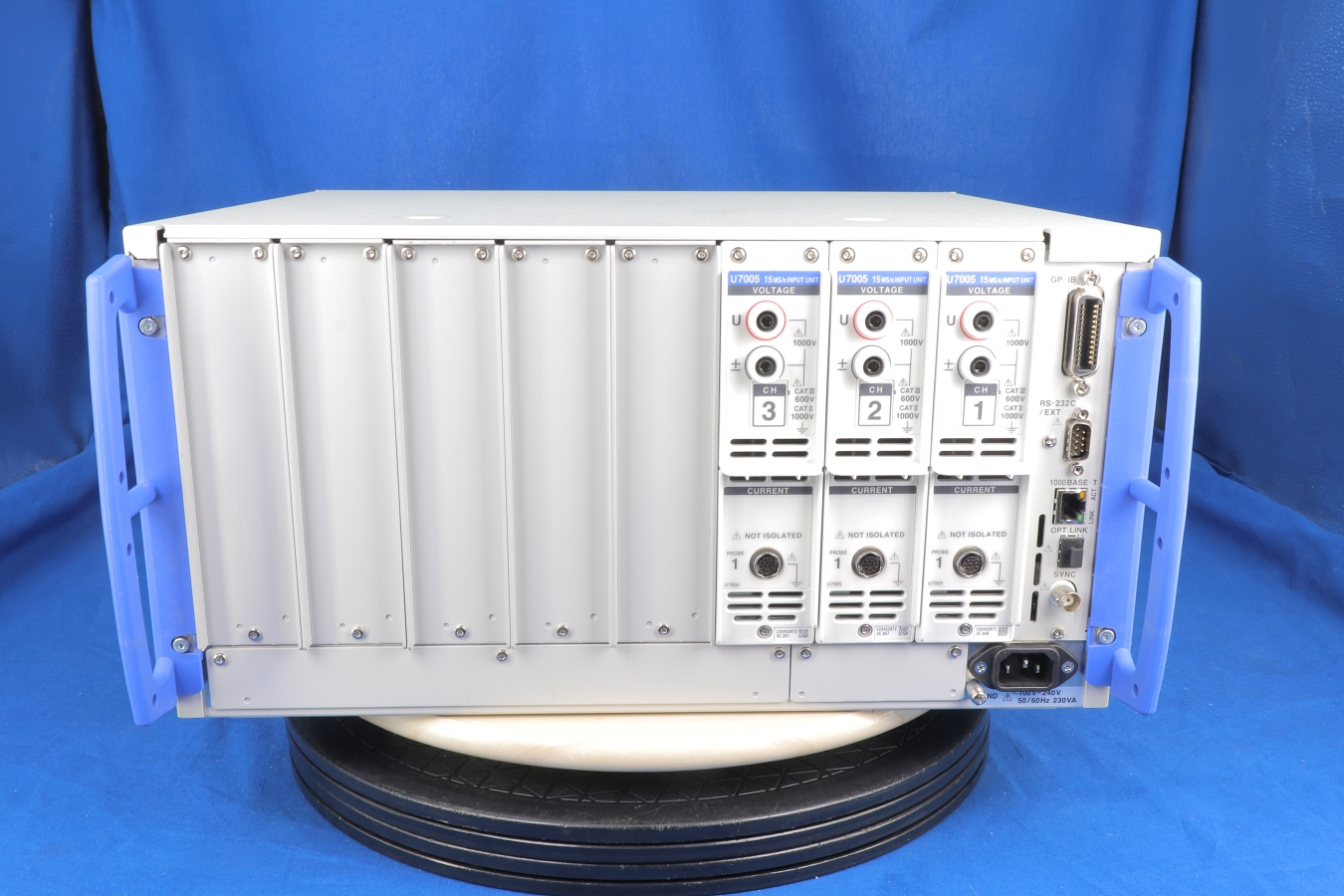

  • Up to 8 power channels optimizing your measurement: 8-channel power measurement
  • Accurately measure high-frequency, low-power-factor power: Current sensor automatic phase correction function (*2)
  • Simultaneous analysis of 4 motors: 4-motor/2-motor simultaneous analysis function
  • Integration of measurement data into CAN networks: CAN or CAN FD output function
  • Intuitive and Quantitative Insights with Power Spectrum Analysis (PSA) function
  • Safe evaluation of increasingly high-voltage solar inverters: 1500 V DC CAT II / 1000 V DC CAT III (*3)
  • Earning Japan Calibration Service System (JCSS) Certification for DC Power Measurement. (*4)
