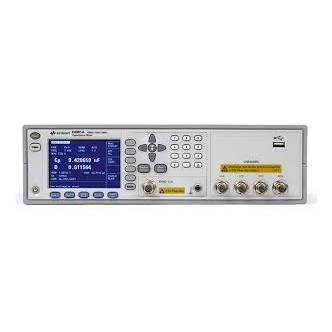

Additional Features: Time Measurement High speed measurement: 2.3 ms (1 MHz), 3.0 msec (1 kHz), 11.0 ms (120 Hz) Basic Accuracy Accurate testing CD: 0.07% 0.0005 More Features 9 Sorting Bin Multi-channel correction 256 Compatible SCPI command and Handler / Scanner interfaces with the 4268A and 4288A Test signal level compensation for high value ceramic capacitor tests Versatile PC connectivity (LAN, USB and GPIB) The Agilent E4981A capacitance meter offers a high-speed with reliable measurements for ceramic capacitor testing in the production lines. The Agilent E4981A capacitance meter contributes improvements of the test throughput, while attaining excellent component quality for ceramic capacitor testing.

Option	Description
001	120Hz/ 1KHz/ 1MHz
002	120 Hz / 1 kHz
600
A6J
