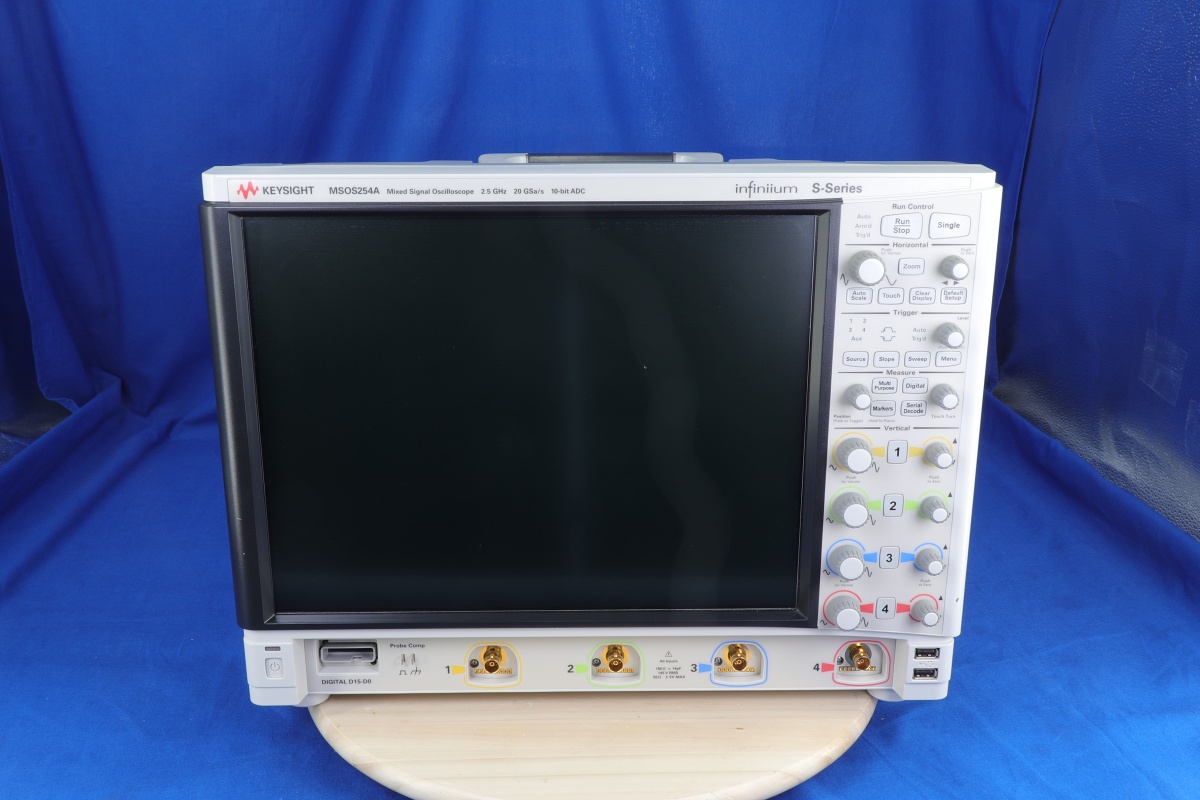

The DSOS254A S-Series oscilloscopes have 2.5 GHz of bandwidth, a 15” XGA capacitive touch screen, and a 10-bit analog-to-digital converter.

• 2.5 GHz bandwidth (upgradable)
• 4 analog channels
• achieve up to 16 bits of vertical resolution with our advanced system architecture
• capture a longer signal trace with 20 GSa/s maximum sample rate and 100 Mpts/channel of standard memory
• get superior signal integrity with an average system effective number of bits (ENOB) of 8.1 bits at full bandwidth
• gain increased usability with the multi-touch supported 15-inch capacitive touch screen and solid state drive for fast boot and reliability
• improve your testing with a wide range of protocol, compliance, and analysis software

What's included:

• four N2873A 500-MHz passive probes
• probe accessory pouch
• Keysight I/O libraries suite

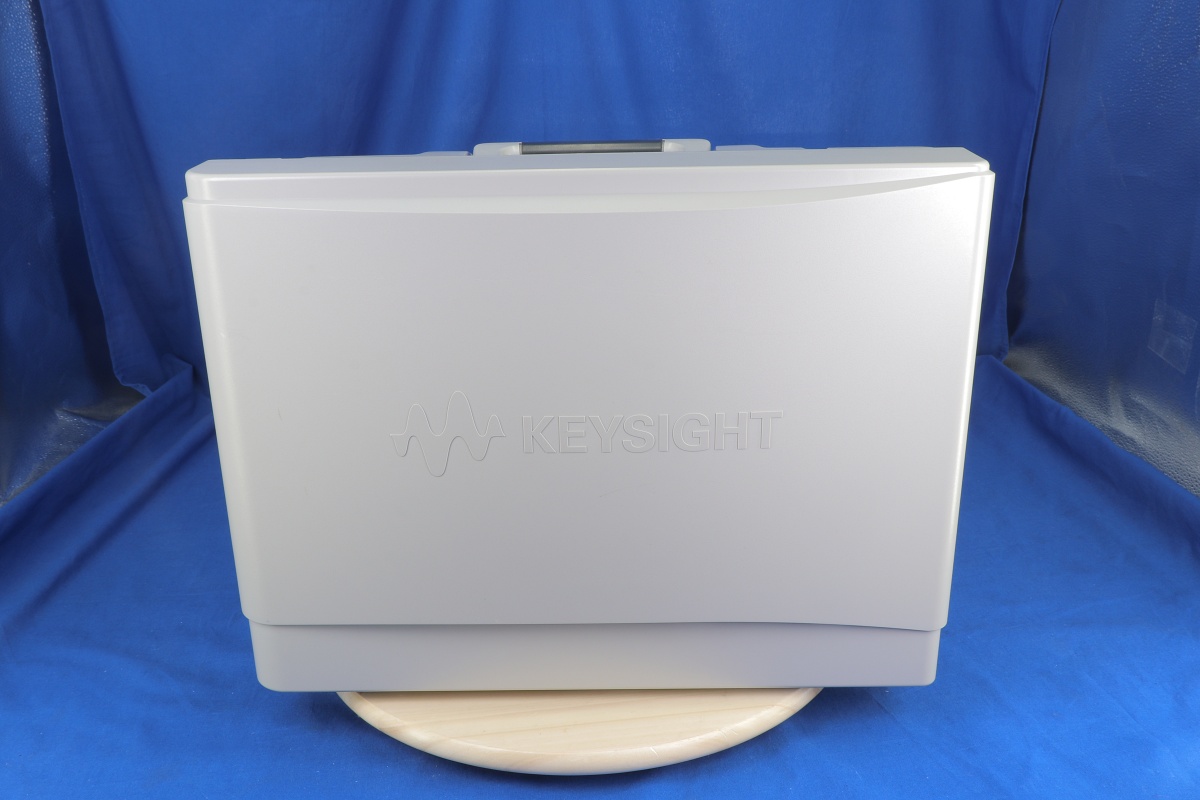

• localized power cord, front panel cover
• 8 GHz BNC calibration cable
• deyboard and mouse
• user guide and programmer’s guide ship on oscilloscope drive
• service guide available on Keysight.com
• Download BenchVue Basic app for free to control your instruments
