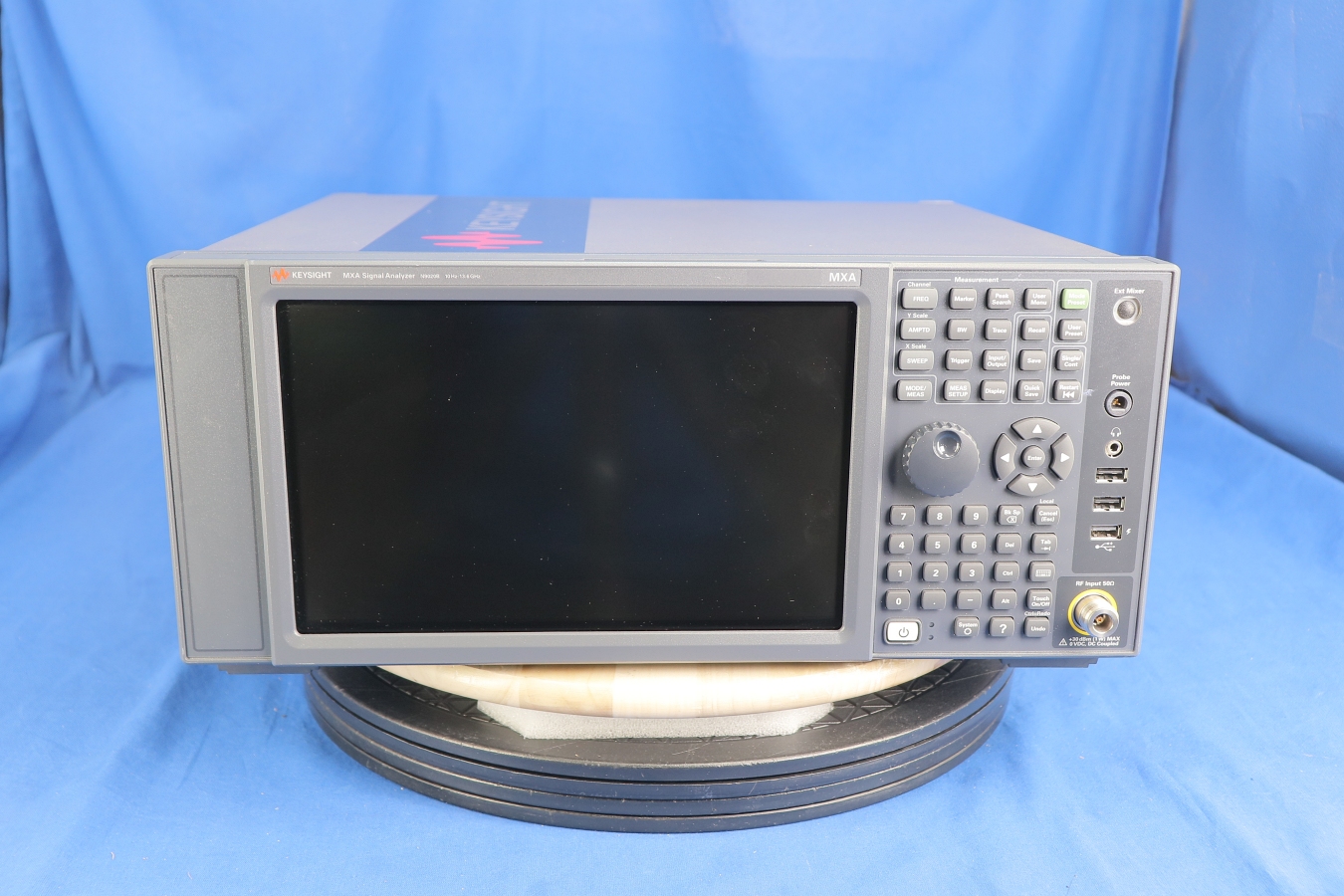

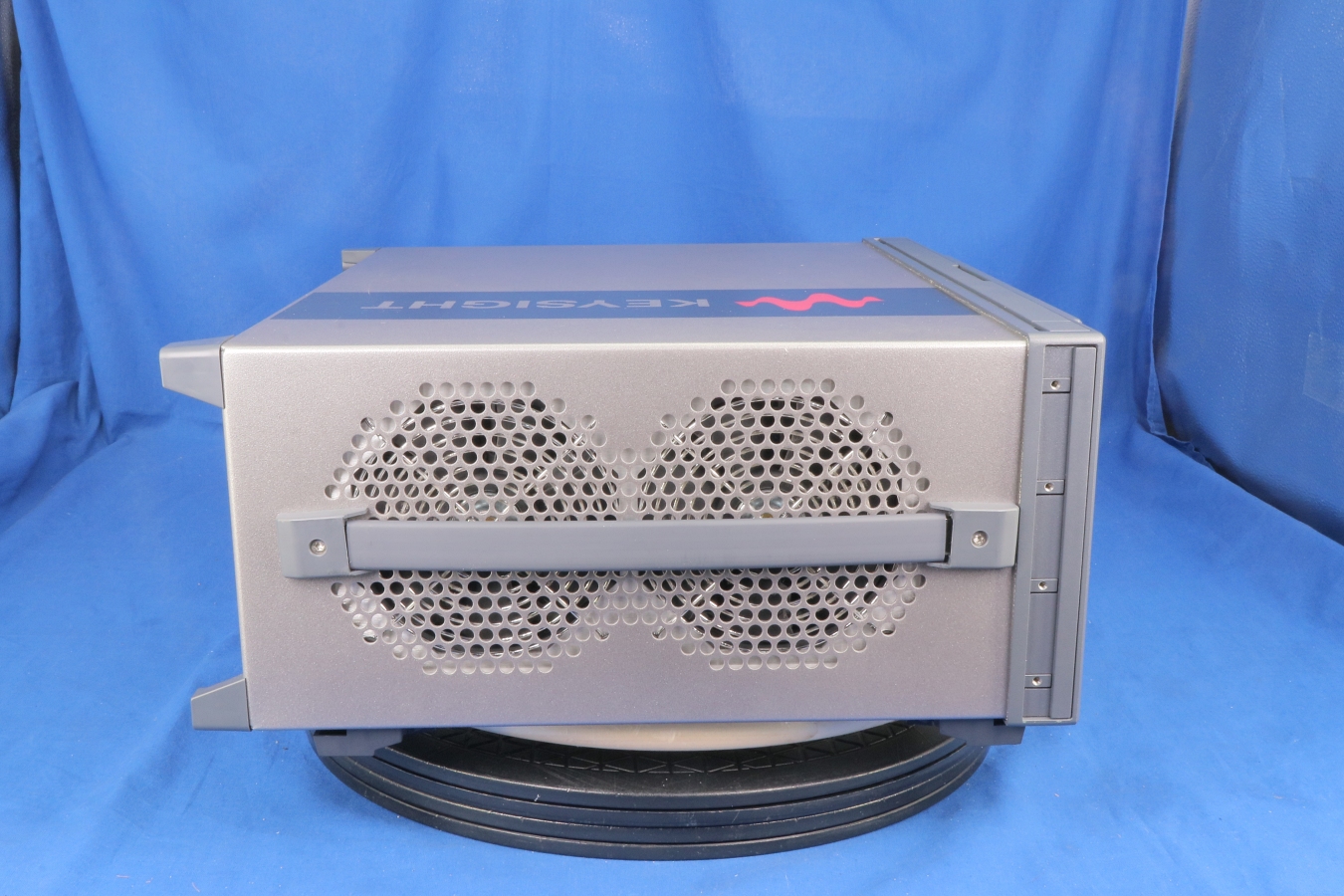

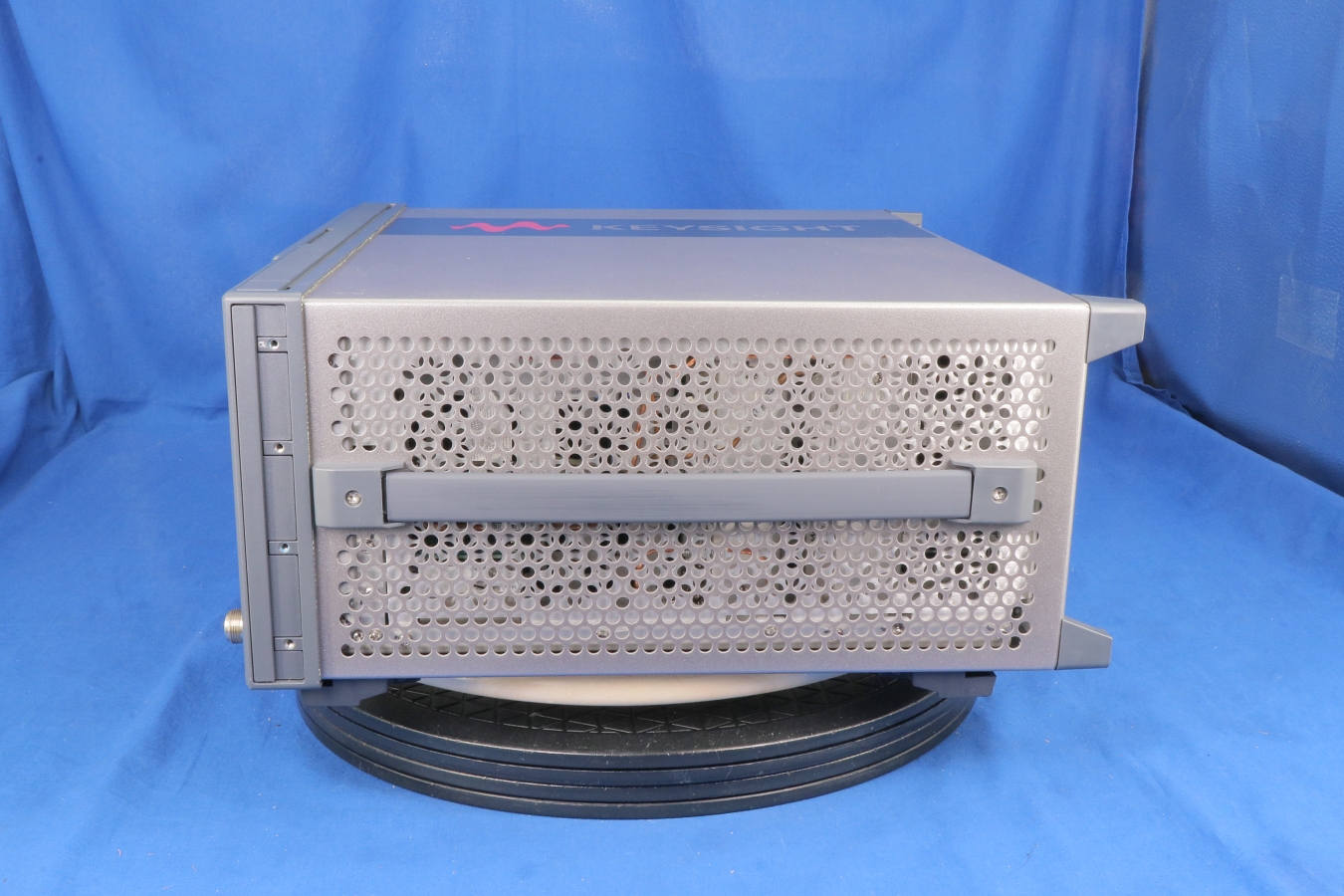

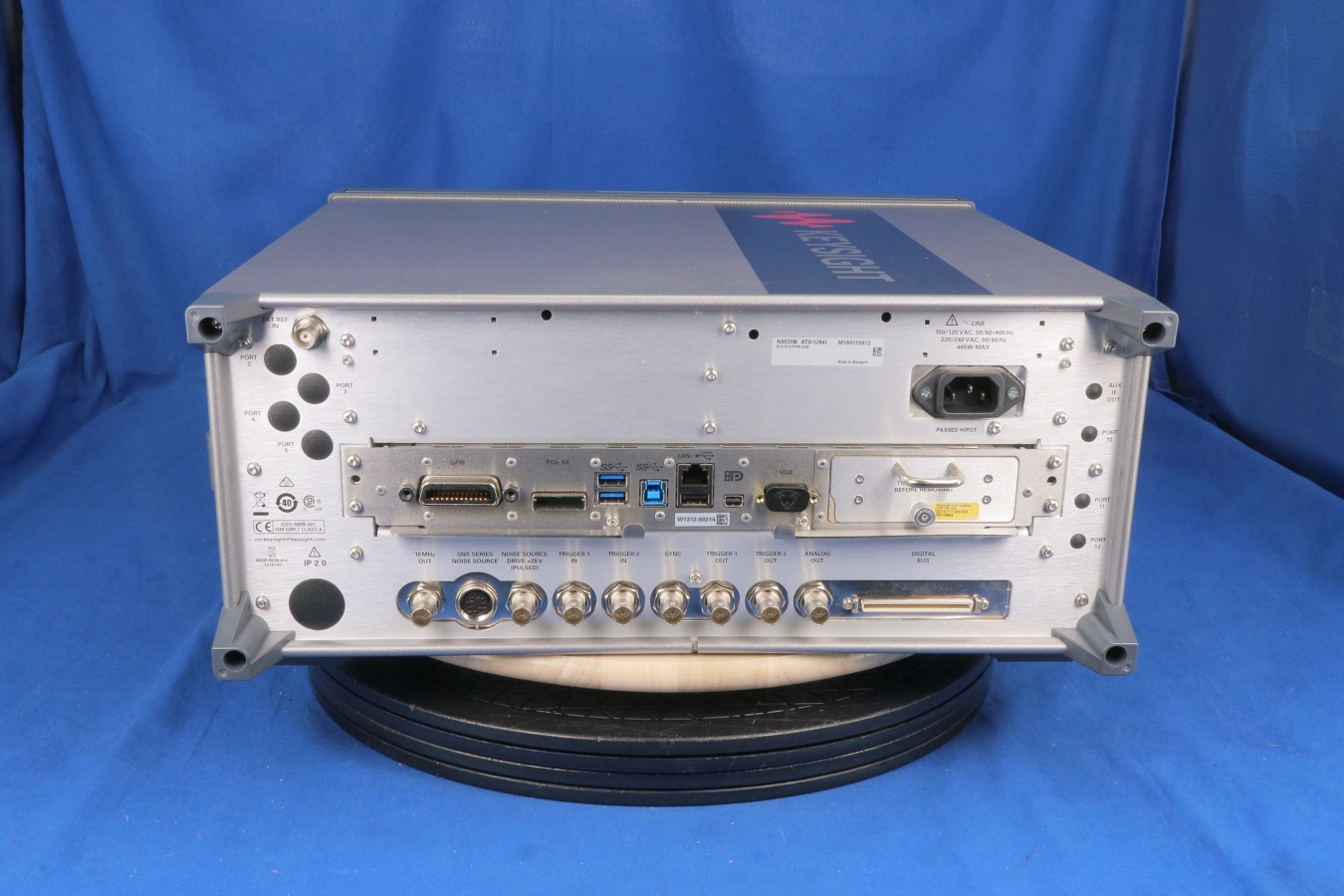

N9020B Keysight Spectrum Analyzer
526: 10Hz to 26.5GHz /
Price: CALL
Detail
| Frequency | 10 Hz to 50 GHz; Mixers to 1.1 to n/a |
|---|---|
| Frequency Options | 3.6,8.4,13.6,26.5,32,44,50 GHz, Mixers to 1.1 THz |
| Standard Attenuator Range | 70 dB |
| Standard Attenuator Step | 2 dB |
| Real-Time Bandwidth Options | 85, 125, 160 MHz |
| DANL @1 GHz | -172 dBm |
| Maximum Analysis Bandwidth | 160 MHz |
| Phase Noise @1 GHz (1 MHz offset) | -136 dBc/Hz |
| Phase Noise @1 GHz (10 kHz offset) | -114 dBc/Hz |
| Phase Noise @1 GHz (30 kHz offset) | -114 dBc/Hz |
| Spur Free Dynamic Range | 72 dBc |
| TOI @1 GHz (3rd Order Intercept) | +20 dBm |
| Applications Available | Yes |
| Maximum Real-Time Bandwidth | 160 MHz |
| Overall Amplitude Accuracy | ±0.23 dB |
| Bandwidth Options | 25 standard, 25, 85, 160 MHz |
| Performance Level | ◆◆◆◆◇◇ |
| Applications-Cellular |
|
| Applications-General Purpose |
|
| Applications-Wireless Connectivity |
|
| Maximum Dynamic Range 3rd Order @1 GHz | n/a |
| Minimum Duration for 100% Probability of Intercept | 3.57 µs |
| Detectable Signal Duration w/Signal to Mask >60 dB | 5 ns |
| Display Views |
|
| Triggering |
|
| Applications with Frequency Mask Trigger |
|
| DANL @2 GHz, No Preamplifier | -154 dBm/Hz |
| DANL @10 GHz, No Preamplifier | -151 dBm/Hz |
| Benchtop | Yes |
| Real-Time Data Streaming | Yes |
Option
| Option | Description |
|---|---|
| 526 | 10Hz to 26.5GHz |
| P26 | PreAMP 26.5GHz |
