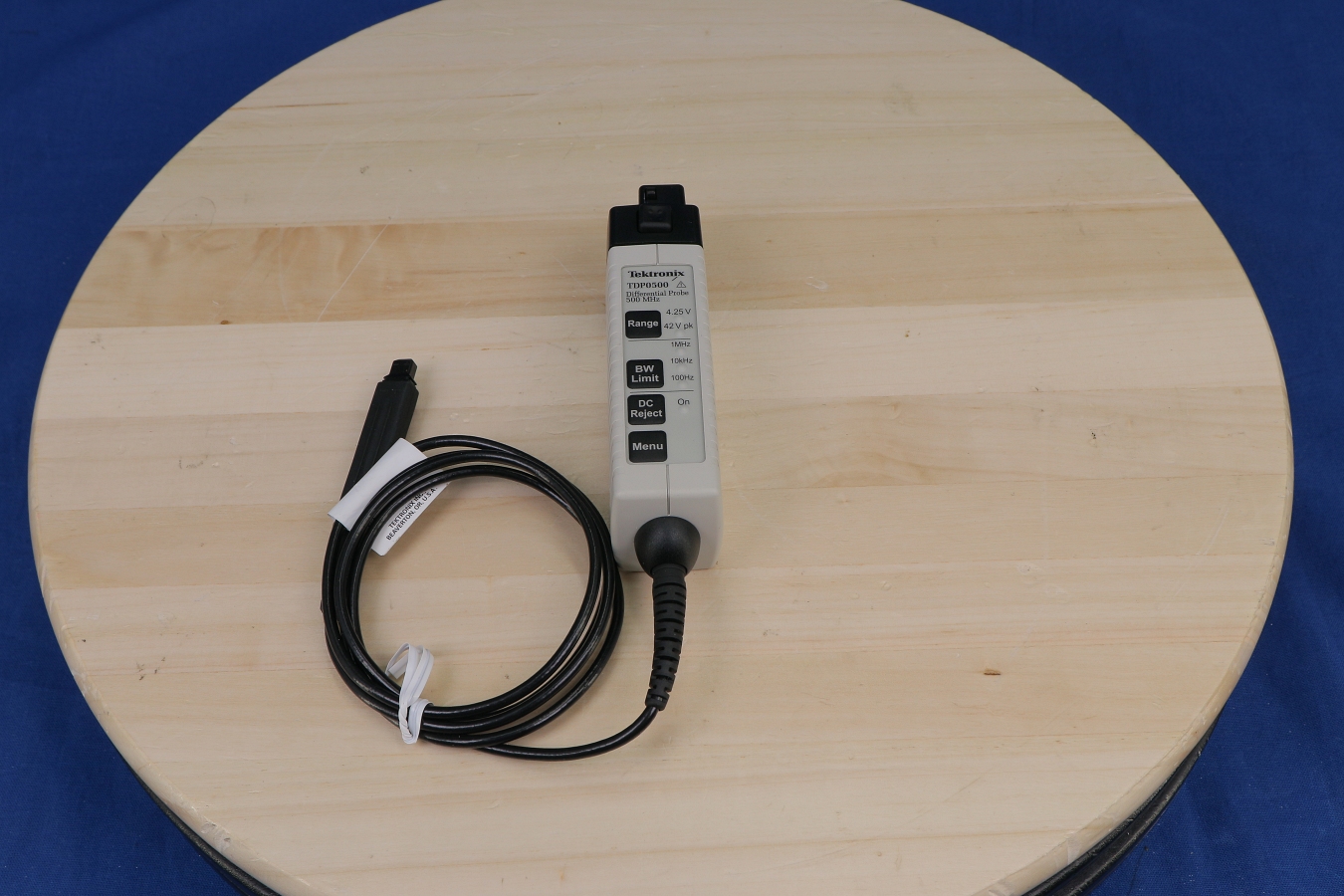

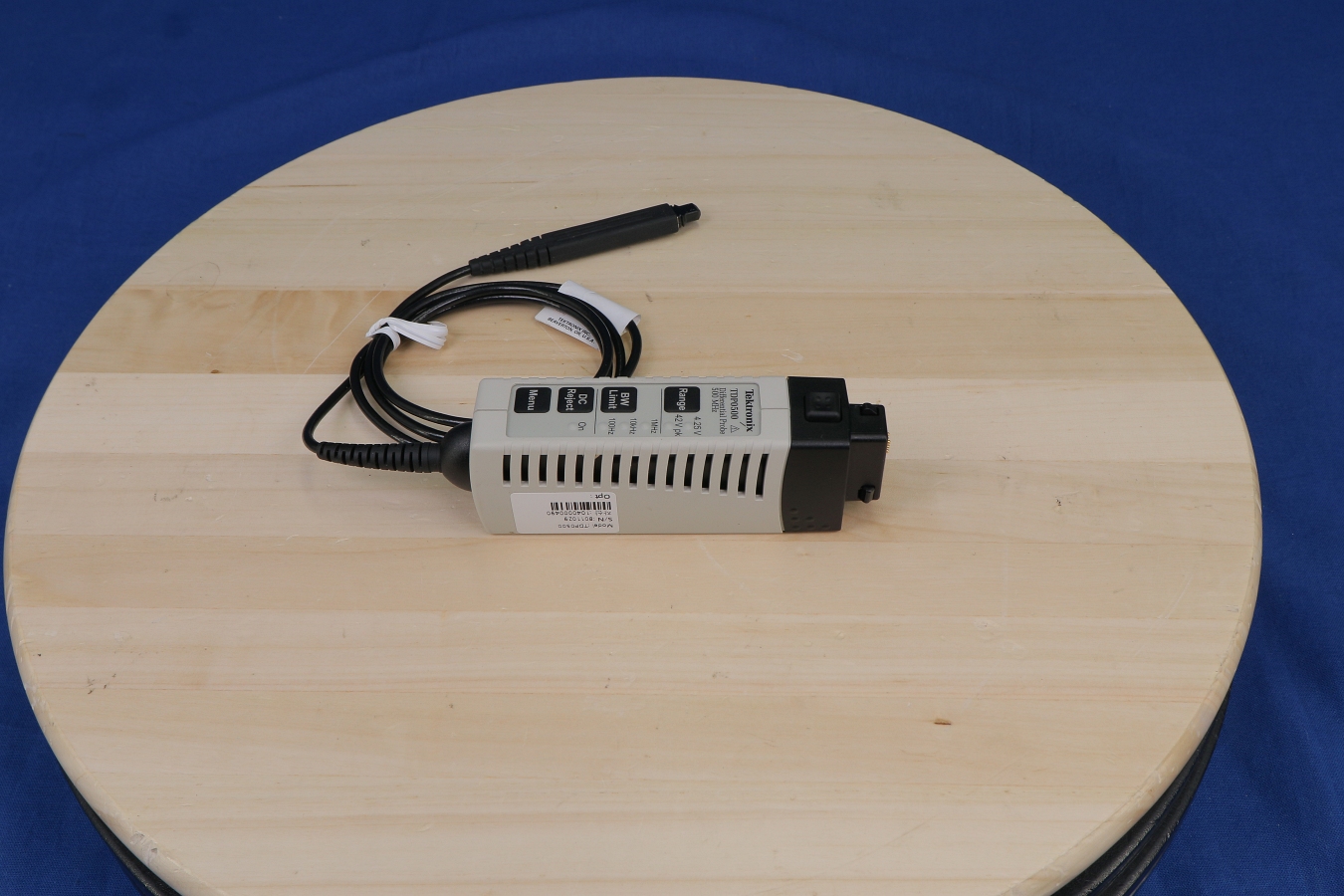

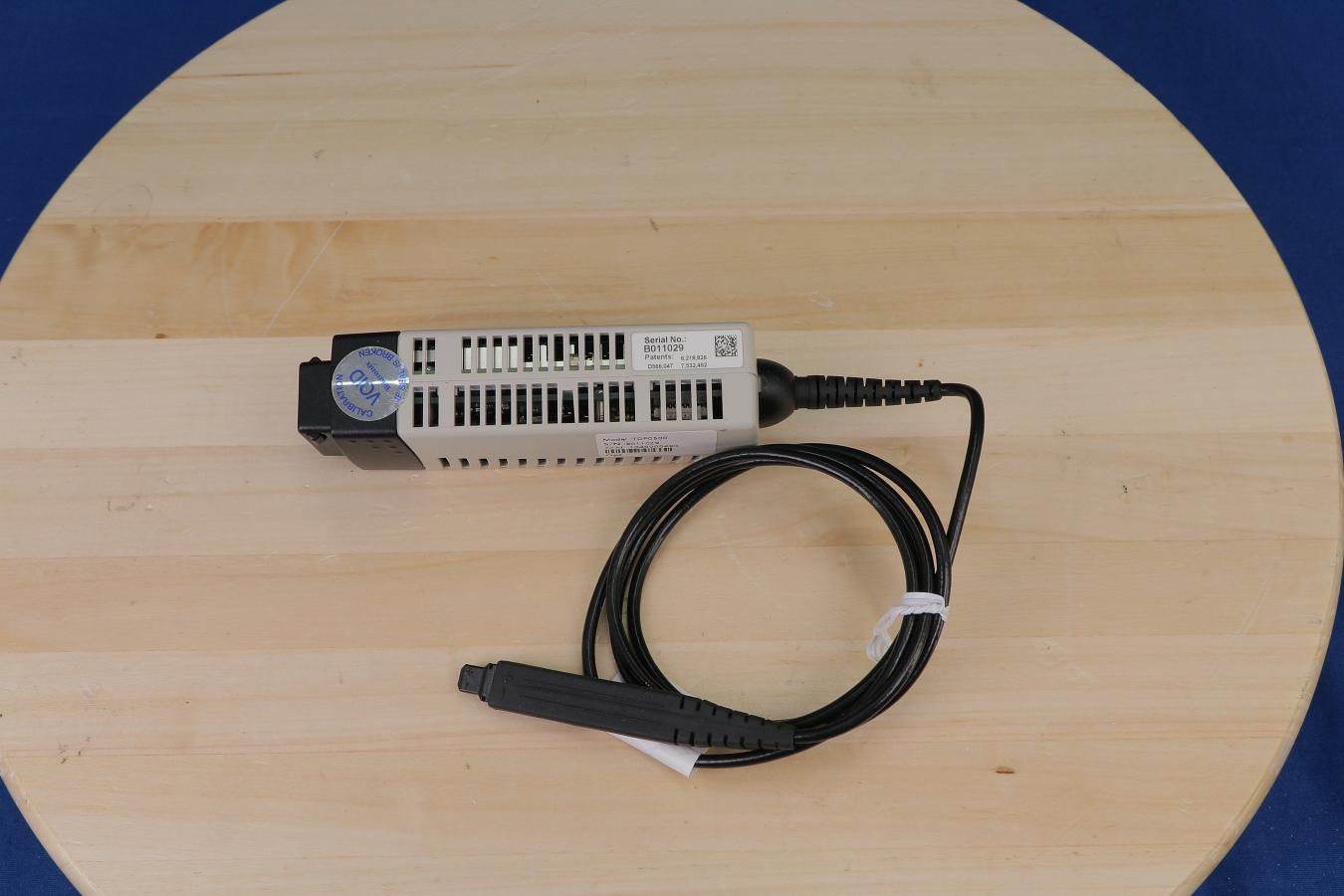

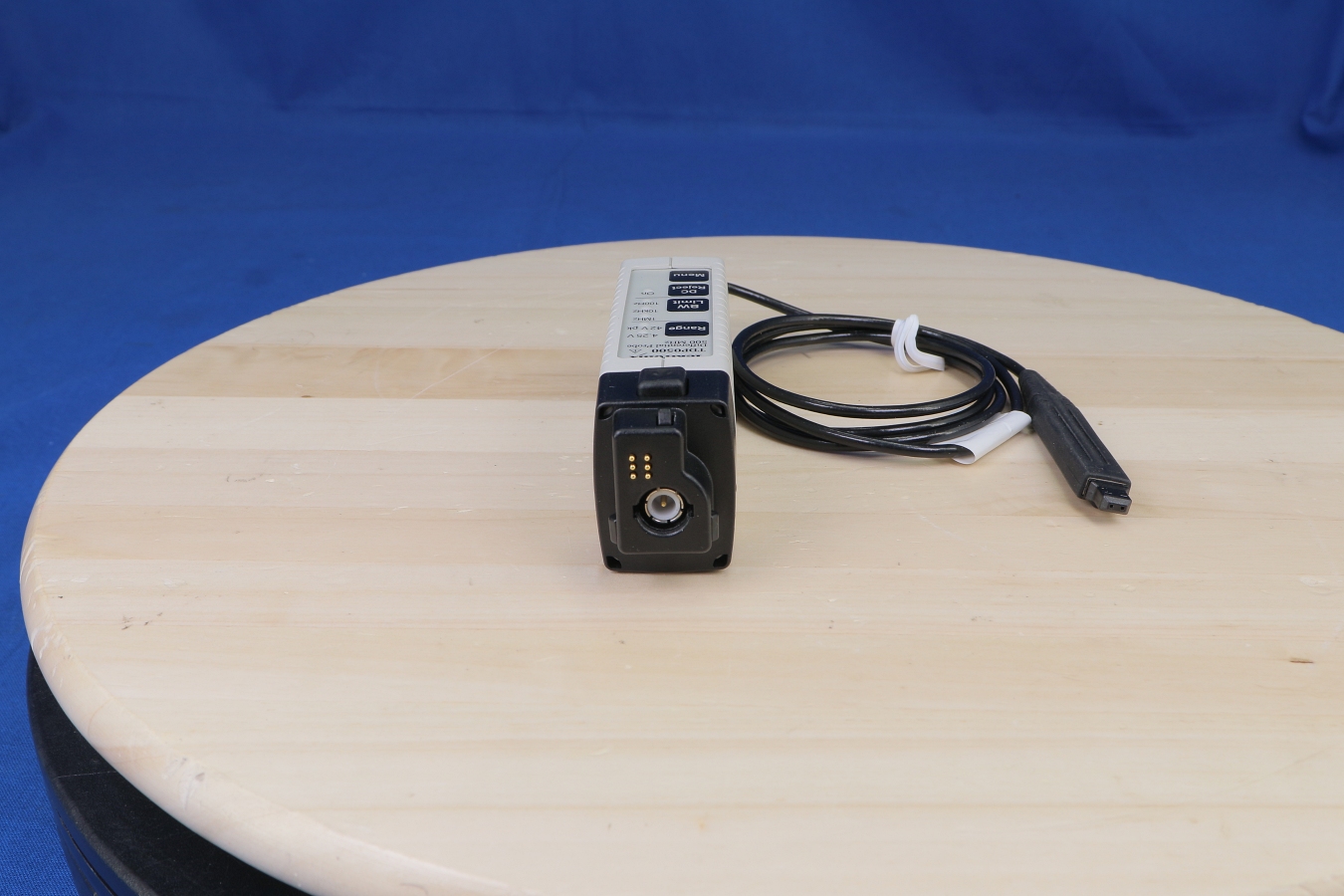

The Tektronix TDP0500 is a High Voltage Differential Probe with a bandwidth of 500 MHz and a TekVPI-interface for Tektronix Oscilloscopes.

It offers excellent electrical and mechanical performance, selectable bandwidths limiting filters and versatile connection possibilities. And is designed for high speed signal capture with easy operation.

Probe bandwidth: 500 MHz

Attenuation: 5-fold, 50-fold

Rise time (only probe): <= 700="">

Differential input capacitance: <1 pF

Differential input resistance: 1 Mohms

Differential input voltage: +/- 42 V (DC + peak AC)

>18 dB CMRR (at 250 MHz 50-fold attenuation)

Max. input voltage (without destruction): +/- 100 V (DC + peak AC)

Selectable bandwidths limiting filters: 100 Hz, 10 kHz, 1 MHz, full

DC-Suppression: 0.4 Hz (5-fold), 4 Hz (50-fold)
