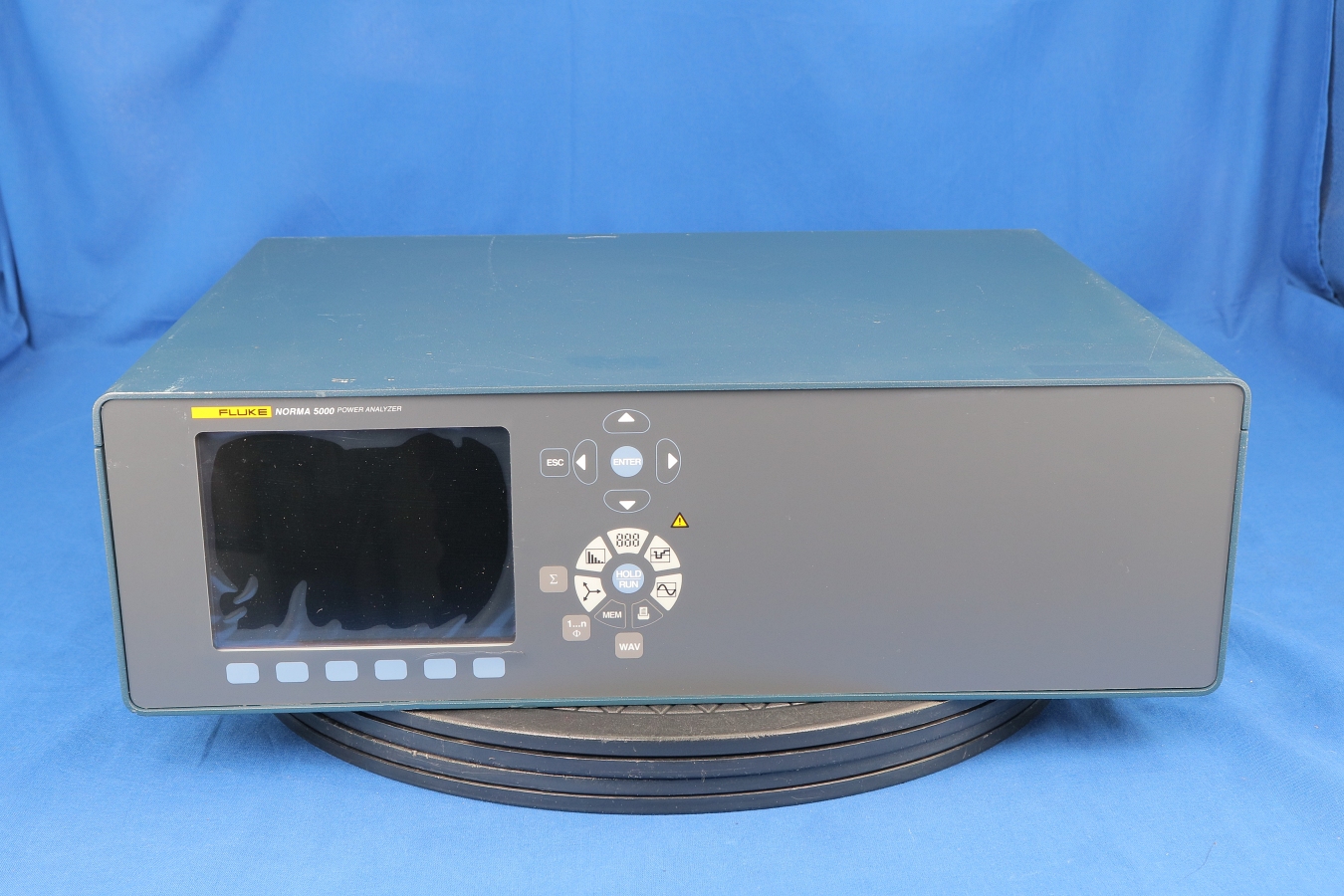

Fluke Norma 4000/5000 Series of High Precision Power Analyzers Offers

Based on a patented high-bandwidth architecture, Fluke Norma Series power analyzers deliver precise measurements of single or three-phase current and voltage, harmonics analysis, Fast Fourier Transformation (FFT) analysis, as well as calculations of power and other derived values. They provide class-leading accuracy and common mode rejection for any waveform, frequency, or phase shift.

Features

• Simple user interface ensures easy, intuitive operation
• Standard configurations allow users to specify the exact functionality required for their own unique application
• Accurately display dynamic events on all phases at exactly the same point in time with simultaneous parallel acquisition of all phases

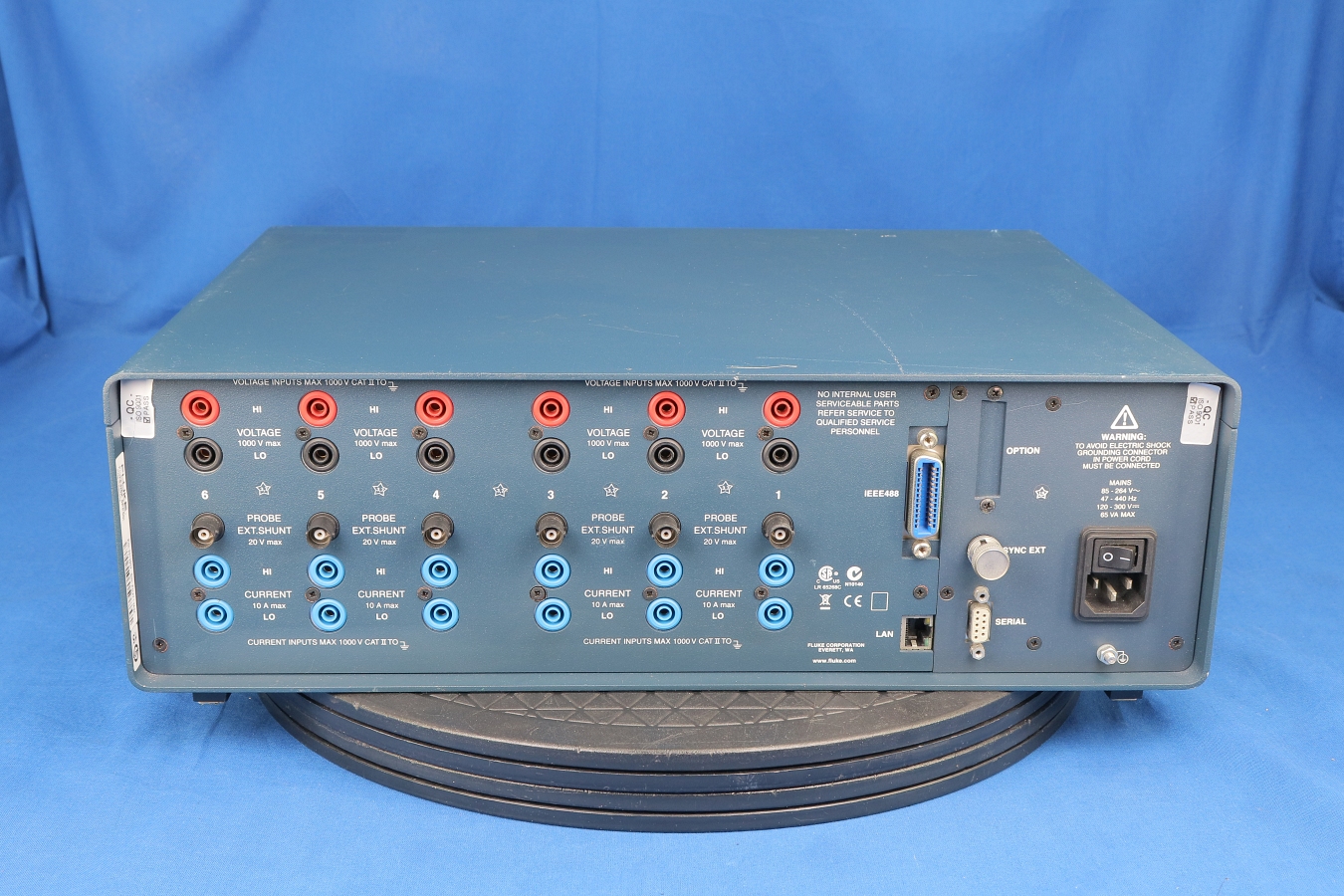

• All inputs are galvanically isolated to avoid short circuits in all applications
• Voltage, current and power harmonics up to the 40th
• FFT analysis, vector diagram display, recorder function and Digital Oscilloscope (DSO) mode included
• User-selectable average time (from 15ms up to 3600s) for dynamic measurements
• 4 MB on-board memory for storage of measured values
• RS232 and USB available as standard; optional IEEE 488/Ethernet available
• Optional process interface available to measure torque and speed with external sensors; includes four analog outputs for easy use on motor and drive applications
• 341 kHz or 1MHz sample rates for detailed signal analysis
• Bandwidth from dc to 3MHz/10MHz for reliable measurement precision
• Includes Fluke NormaView PC software for setup, data download, analysis & report writing

Applications

• Motors
• Inverters
• Lighting
• Power supplies
• Transformers
• Making Automotive components more efficient
