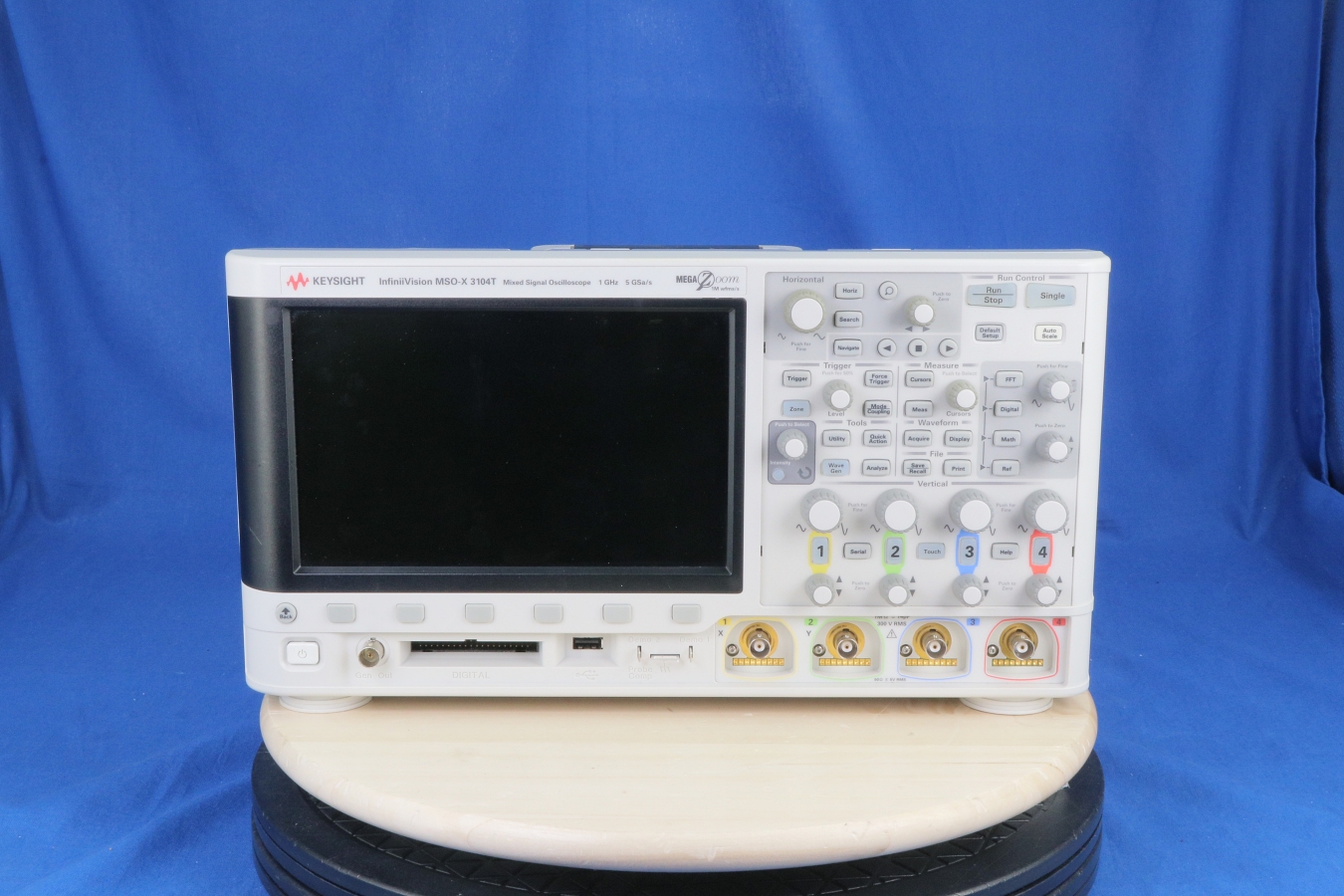

MSOX3104T Keysight Mixed Signal Oscilloscope
Mixed Signal Oscilloscope: 1 GHz, 4 Analog Plus 16 Digital Channels
REQUEST A QUOTE
Detail
he MSOX3104T, 1 GHz oscilloscope provides 4 analog plus 16 digital channels, 4 Mpts memory, 1,000,000 waveforms/sec update rate and standard touch zone trigger with an 8.5-in capacitive touch screen.
HIGHLIGHTS
- 1 GHz
- 4 analog plus 16 digital channels
- Easily view and analyze your signals on the large 8.5-inch capacitive touch screen
- Isolate signals in seconds with exclusive Zone touch triggering
- See more signal detail with the 1,000,000 wfms/s update rate
- Capture more data with up to 4 Mpts memory
- Expand your measurement capabilities with full upgradability: Add 20 MHz arbitrary waveform generator, 3-digit voltmeter, serial trigger and analysis & mask testing at any time
- Factory 3-year warranty (90 days for unserialized accessories such as passive probes)
- Certificate of calibration, 3-year calibration interval
- Secure erase
- One N2843A 500 MHz 10:1 attenuation passive probe per channel
- One N2756A 16 digital channel MSO cable
- Multi-language interface and help: English, Chinese (simplified), Chinese (traditional), Czech, French, German, Italian, Japanese, Korean, Portuguese, Russian, Spanish, Polish, Thai, Turkish
- Documentation CD containing localized user’s guide, service guide, and programmer’s manual
- Localized power cord and overlay
Option
| Option | Description |
|---|---|
| AUDIO | Audio serial triggering and decode (I²S) |
| AUTO | Automotive serial triggering and decode (CAN/CAN-dbc/LIN) |
| COMP | Computer serial triggering and decode (RS232/UART) |
| DSOXLAN | LAN/VGA module Plug-in module to support LAN and VGA connectivity |
| DVM | 3-digit voltmeter (DVM) |
| EDK | Education and training kit |
| EMBD | Embedded serial triggering and decode (I²C, SPI) |
| FLEX | FlexRay serial triggering and decode |
| FRA | FRA Option |
| MASK | Mask limit testing |
| MSO | 16 Digital Channels |
| PWR | Power analysis application |
| WAVEGEN | Dual-channel WaveGen 20 MHz arbitrary/function generator |
