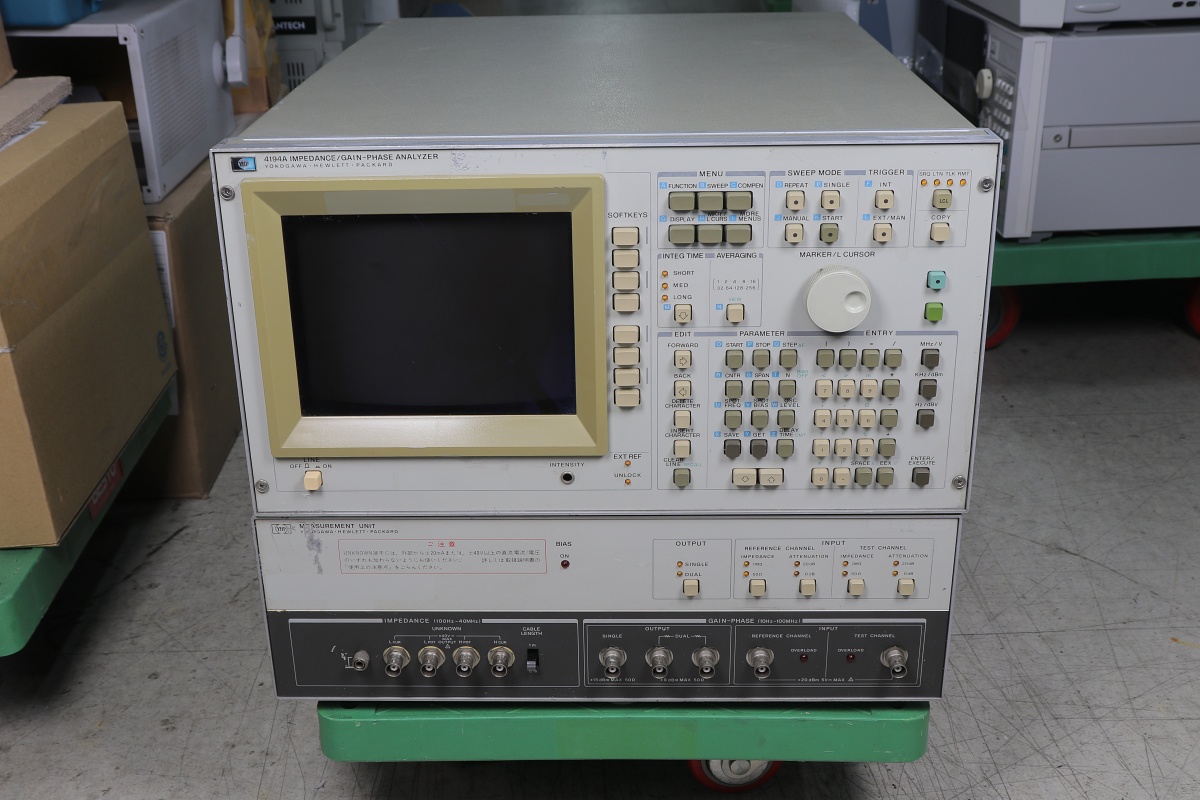

Wide range impedance measurement: 100 Hz to 40 MHz, 10mΩ to 100MΩ 10 kHz to 100 MHz, 0.1Ω to 1 MΩ, when used with the Agilent 41941A/B Gain-phase measurements: 10 Hz to 100 MHz, -107 dBm to +15 dBm, 0.1 dB resolution Flexible measurement, computation, and analysis capabilities on a color graphic disply Fully programmable The Agilent HP 4194A is an integrated solution for efficient measurement and analysis or go/no-go testing of components and circuits. Detailed impedance and transmission characteristics, including secondary parameter derivations, can be simply and quickly evaluated or tested. The Agilent HP 4194A can contribute to improving engineering productivity and reducing test cost. The analyzer is flexible and has wide measurement capabilities in both impedance and transmission measurements. It is also fully programmable using Auto Sequence Programming (ASP). Desired measurements and computations, including graphics analysis,can be programmed simply by storing fron-panel keystroe operations, allowing you to customize measurements,computation, and analysis functions. The Agilent HP 4194A also features high-accuracy and error elimination functions to ensure reliable measurements.

Option	Description
.	MEASUREMENT UNIT ONLY
001	High-Stability Frequency Reference
350	50 Ohm System
375	75 Ohm System
