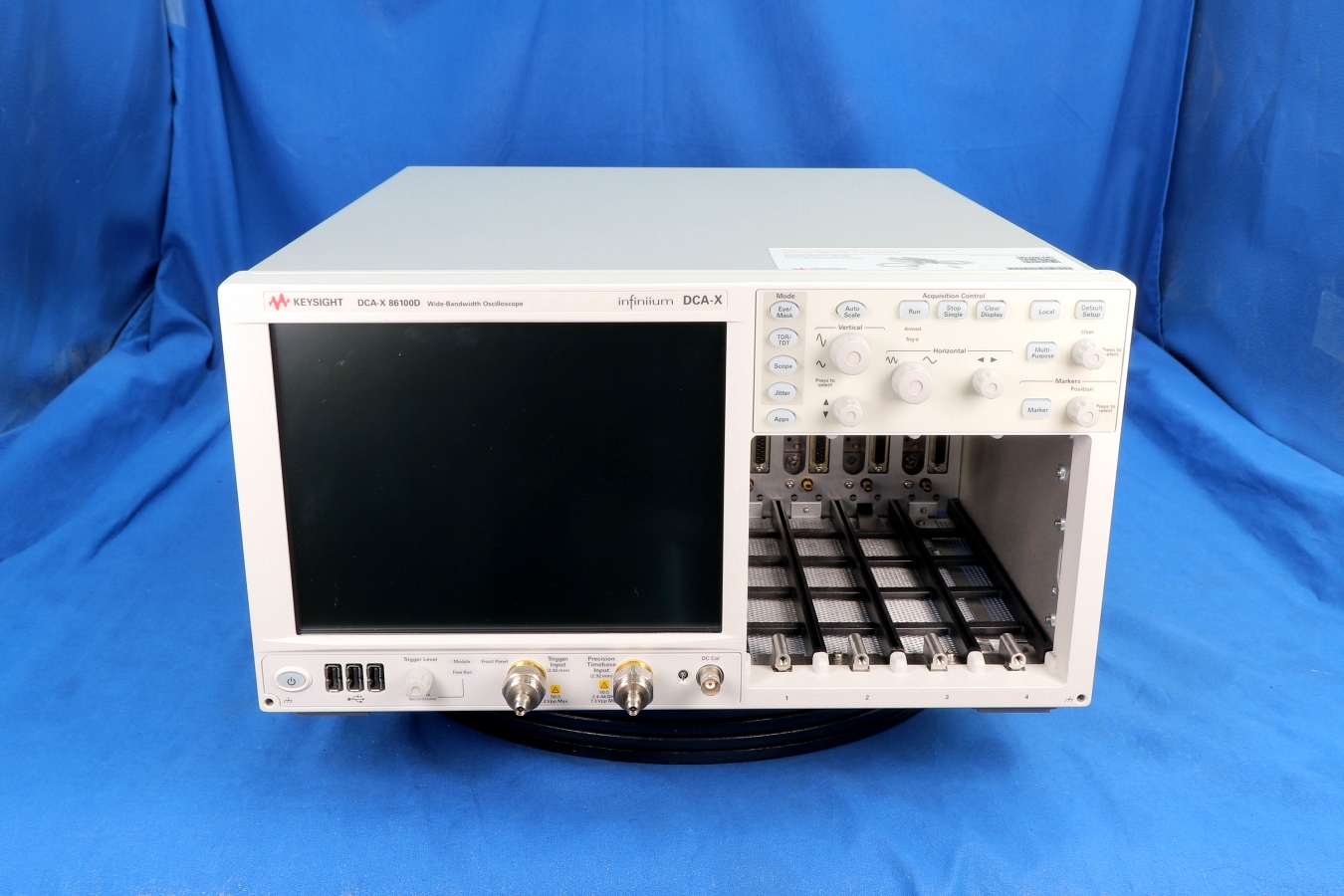

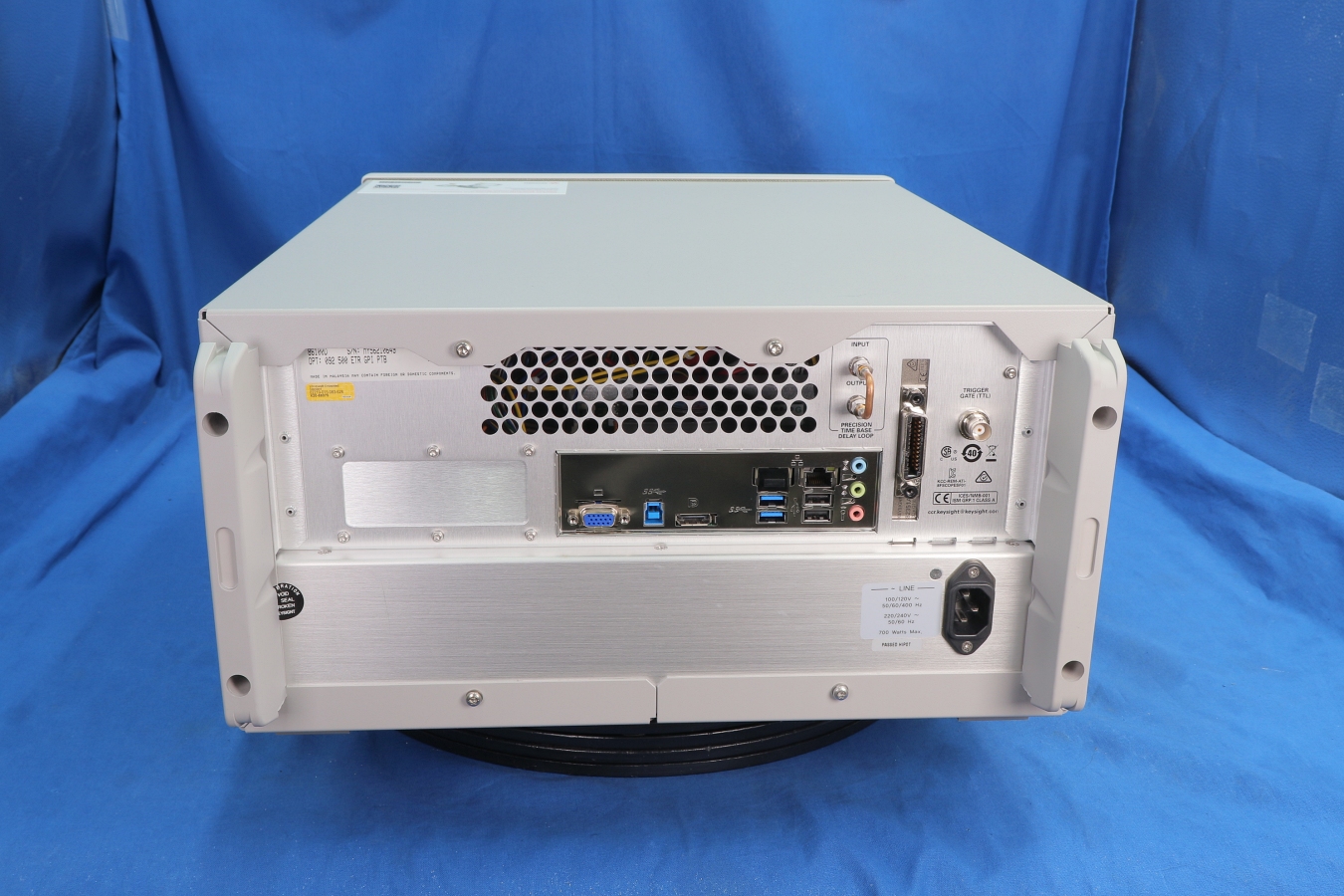

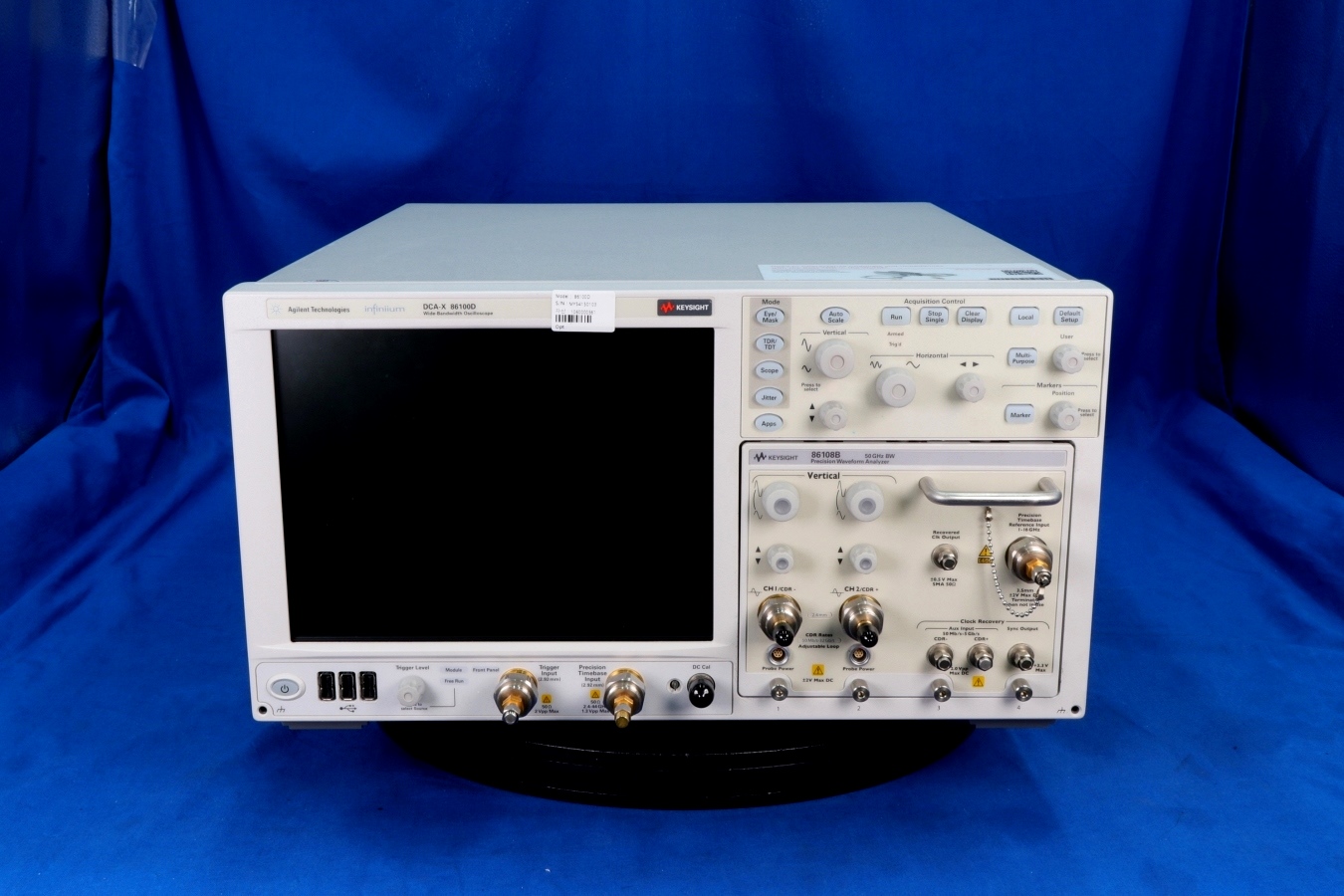

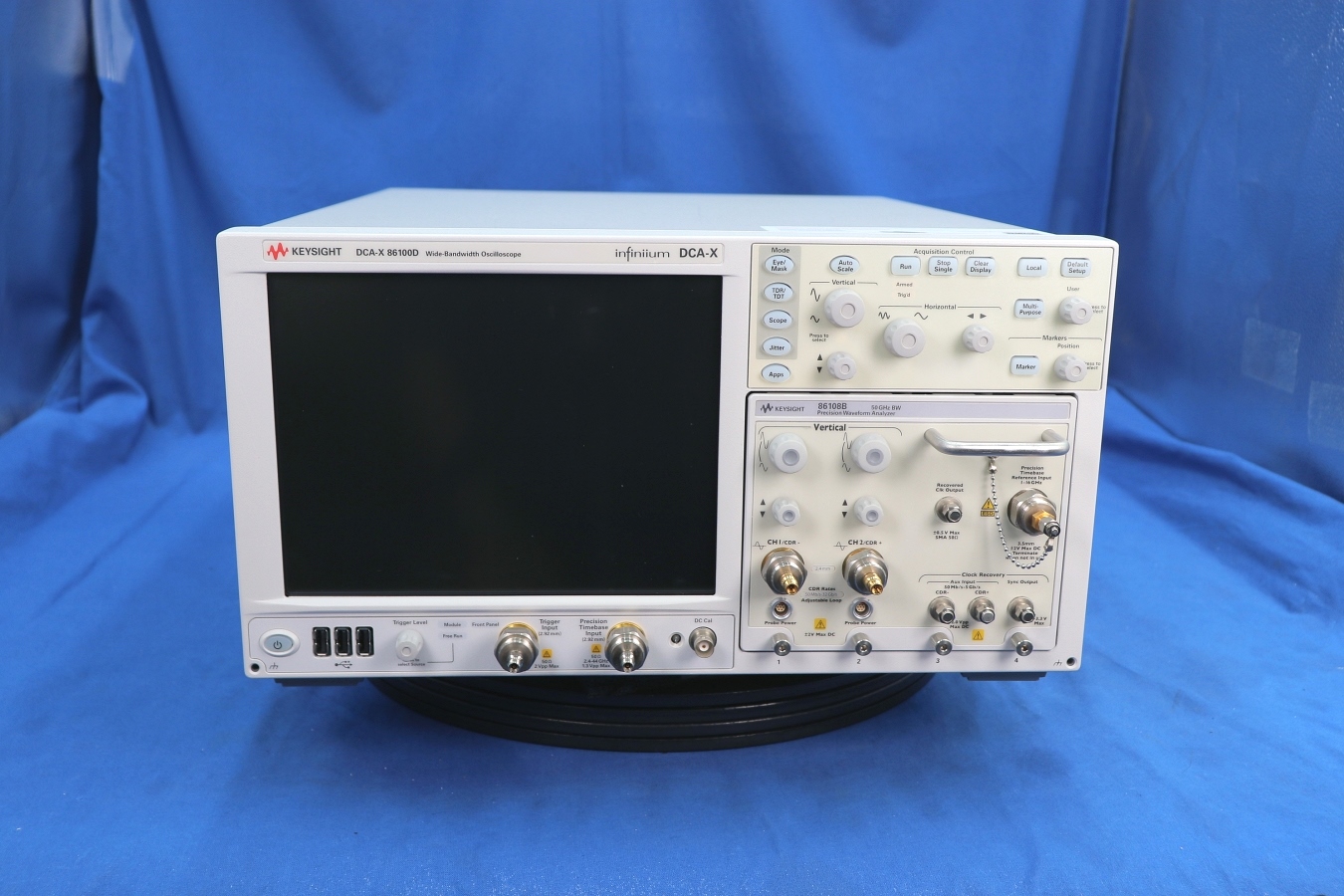

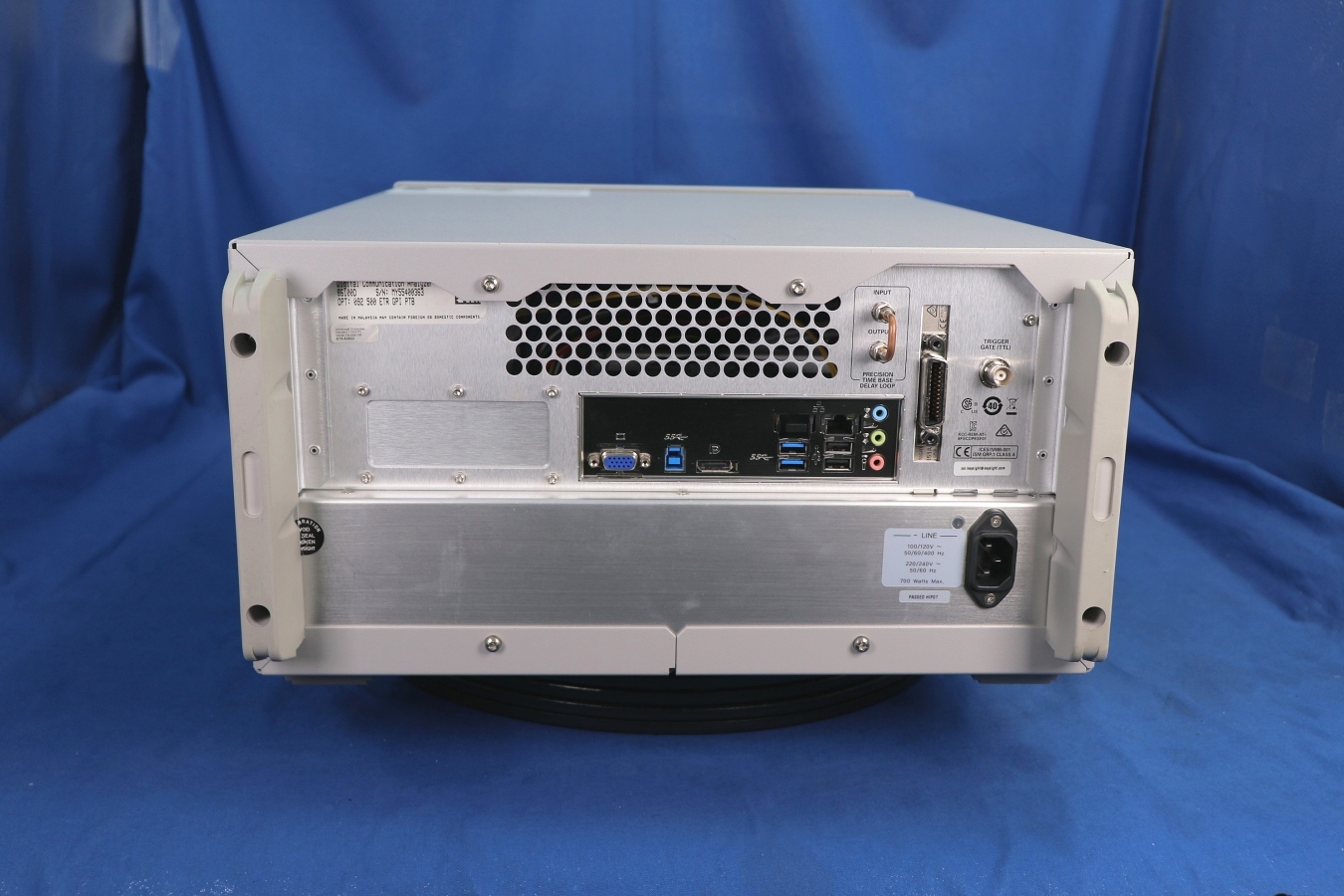

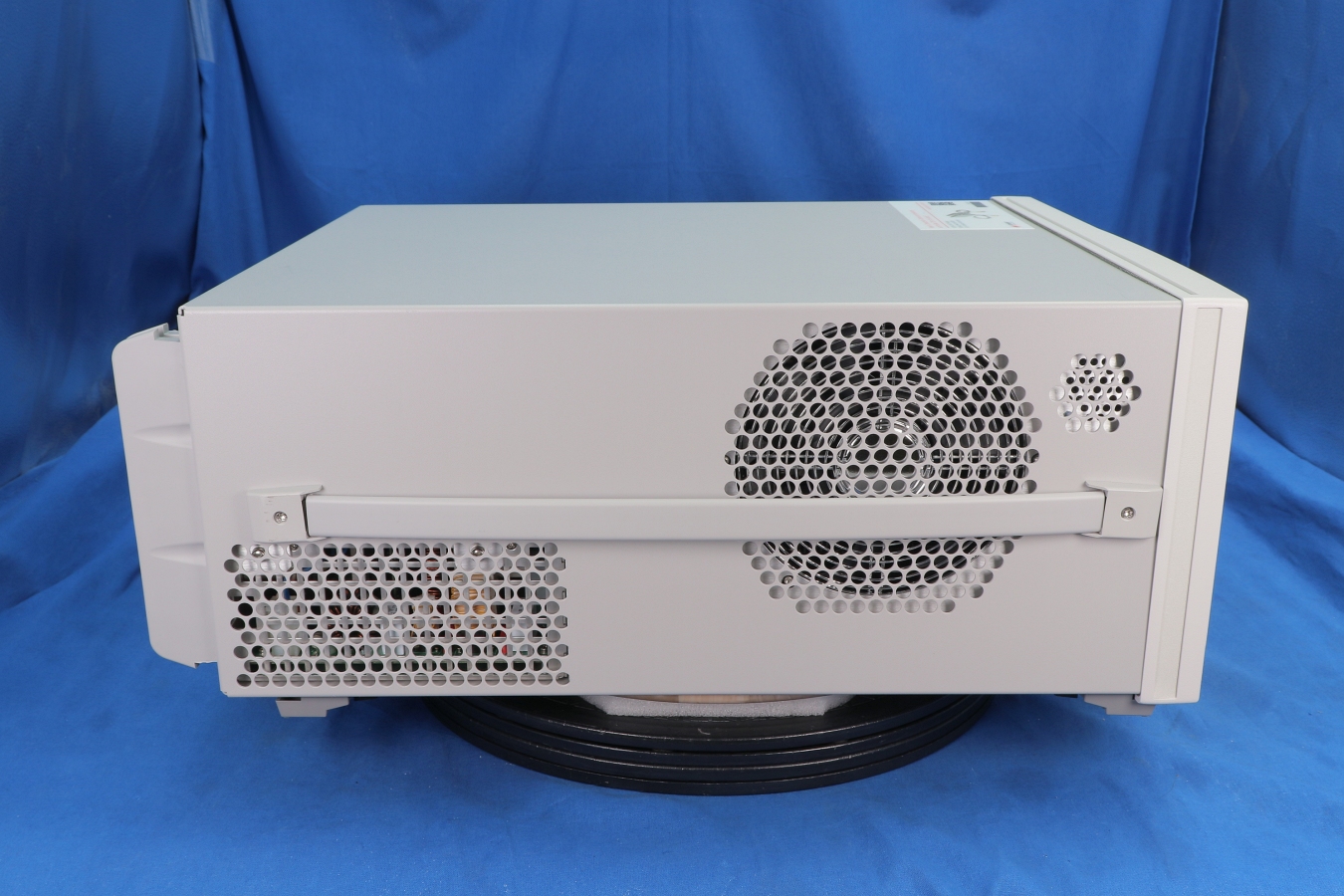

86100D Keysight Communication Analyzer
Infiniium DCA-X Wide-Bandwidth Oscilloscope Mainframe
REQUEST A QUOTE
86100D Keysight Communication Analyzer
Price: CALL
86100D Keysight Communication Analyzer
Price: CALL

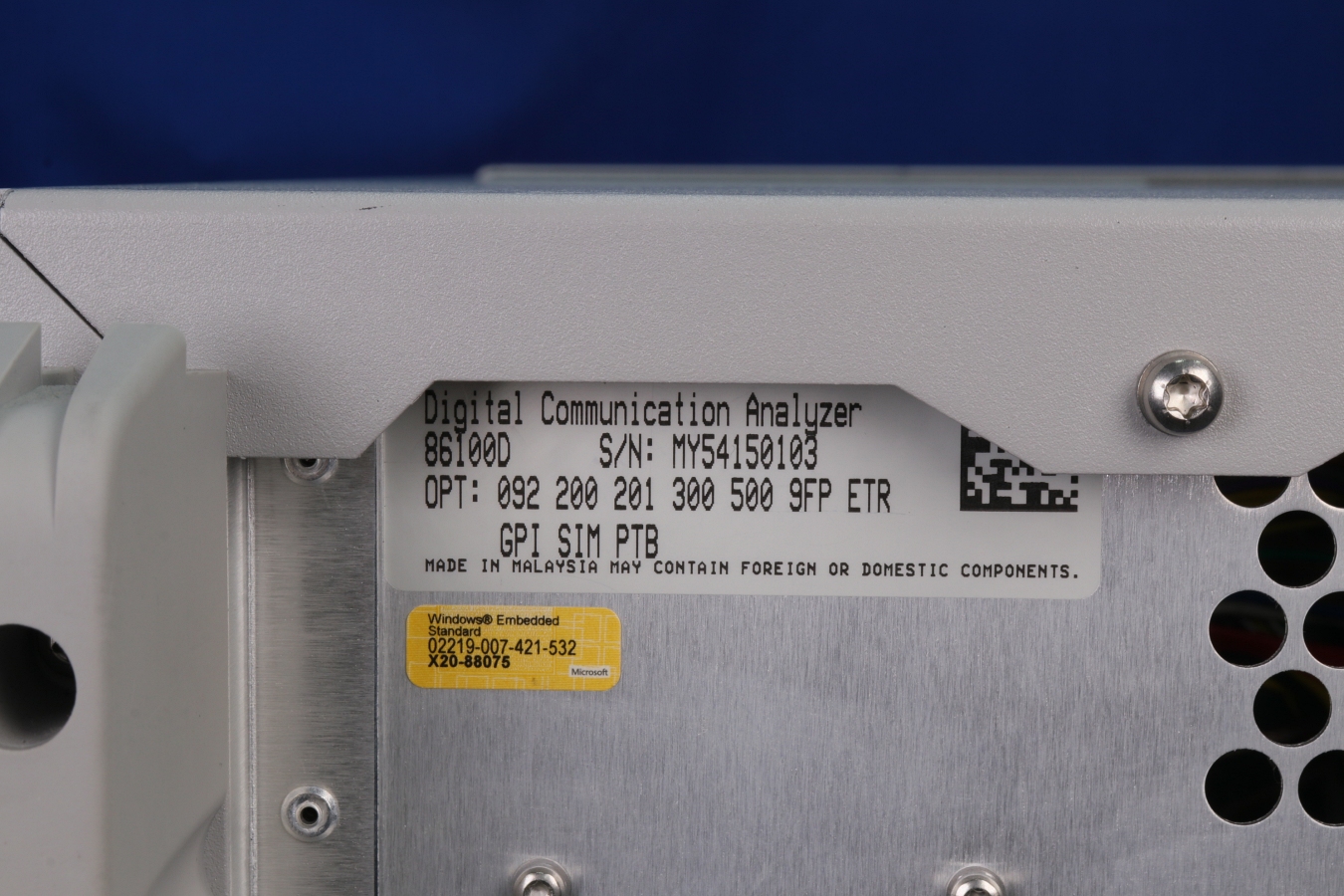

86100D Keysight Communication Analyzer
092: Internal Hard Disk /
ETR: Enhanced trigger for pattern waveform, jitter analysis /
GPI: GPIB /
Price: CALL

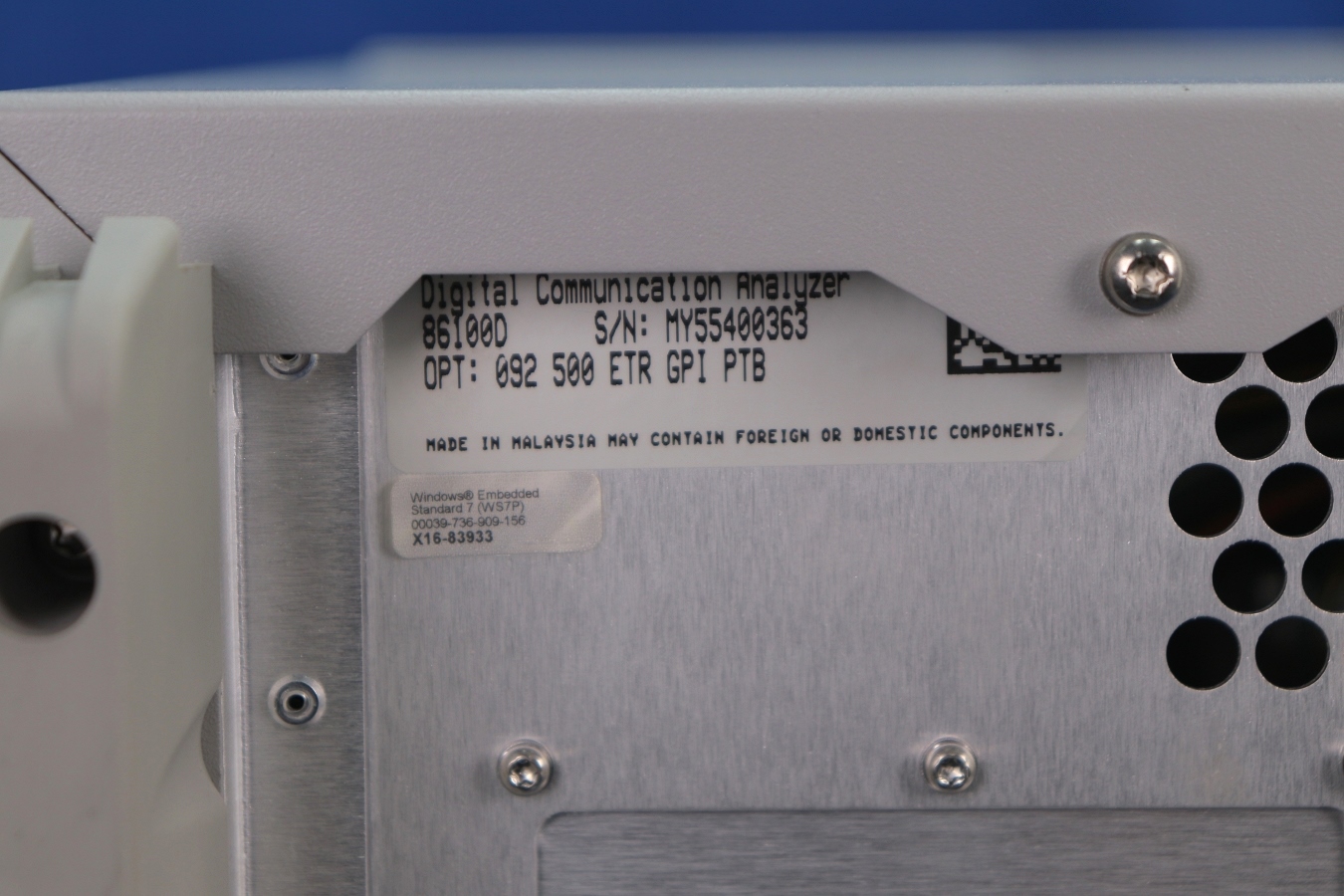

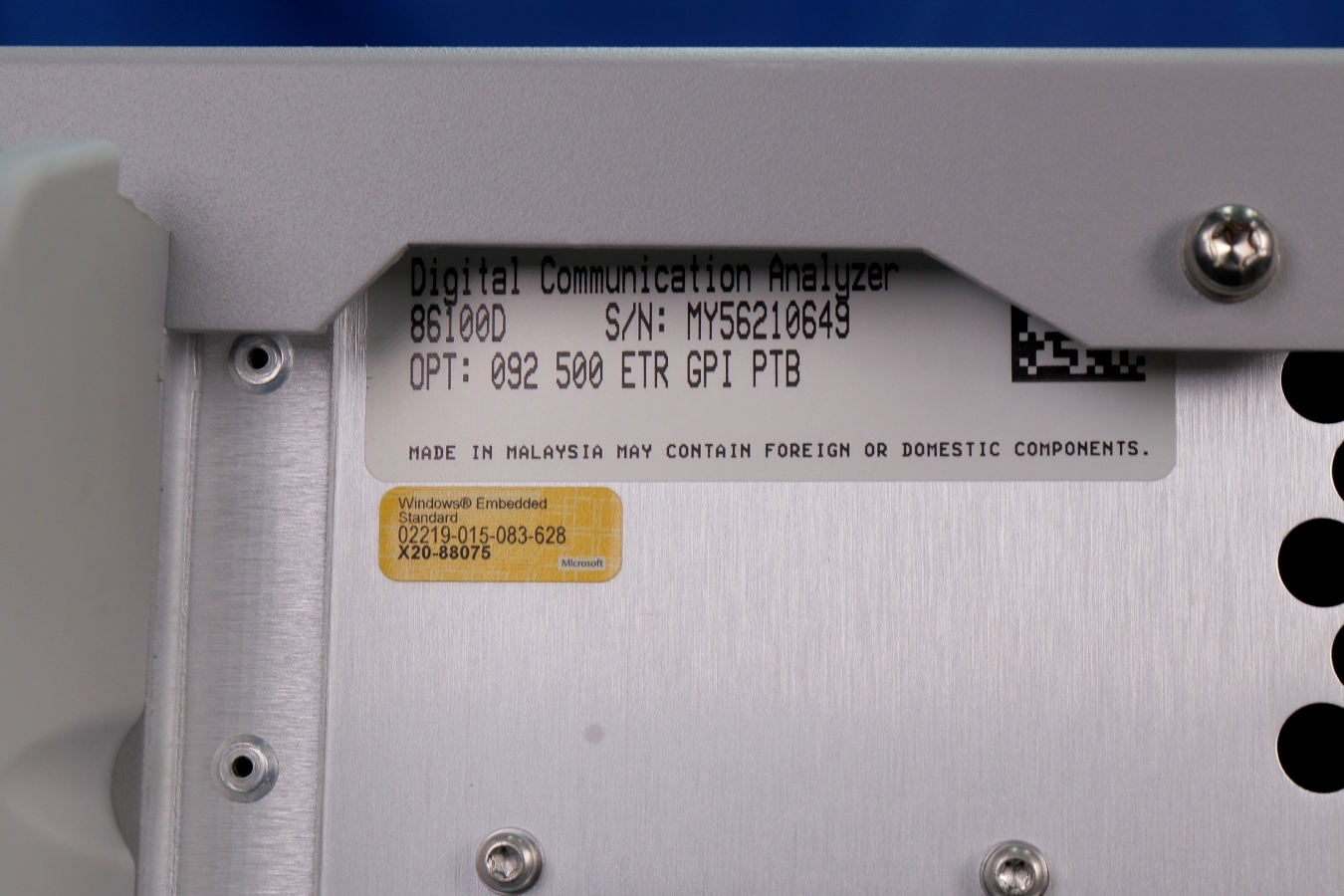

86100D Keysight Communication Analyzer
092: Internal Hard Disk /
500: Productivity Package Software /
ETR: Enhanced trigger for pattern waveform, jitter analysis /
GPI: GPIB /
PTB: Precision Timebase /
Price: CALL
Detail
Option
| Option | Description |
|---|---|
| 092 | Internal Hard Disk |
| 200 | Enhanced Jitter analysis software) |
| 201 | Advanced waveform analysis software |
| 202 | Enhanced Impedance and S-parameter software |
| 300 | Amplitude analysis/ RIN/ Q factor |
| 401 | Advanced EYE analysis software |
| 500 | Productivity Package Software |
| 9FP | PAM-N analysis software |
| ETR | Enhanced trigger for pattern waveform, jitter analysis |
| GPI | GPIB |
| GPN | No GPIB card |
| N1012A-1TP | OIF CEI compliance and debug application |
| N1084A-1TP | IEEE802.3 KR4/CR4 application |
| N1085A-1TP | PAM4 Pre-Compliance Measurement application for Ethernet and OIF-CEI IEEE Measurements option 1TP OIF-CEI Measurements option 4TP |
| N1085A-4TP | PAM4 Pre-Compliance Measurement application for Ethernet and OIF-CEI IEEE Measurements option 1TP OIF-CEI Measurements option 4TP |
| PTB | Precision Timebase |
| SIM | InfiniiSim-DCA sw |
| STR | standard trigger |
