DSO5054A Agilent Digital Oscilloscope
080: 8 Mpts memory upgrade (from base 1 Mpts) /
E00: Enhancements, version 5.25. Includes Lister, FlexRay eye diagram/trigger macros (requires option FRS) /
mem8M: Memory Upgrade /
MST: Measurement Statistics & Tracking Cursors /
Price: CALL
DSO5054A Agilent Digital Oscilloscope
Price: CALL
DSO5054A Agilent Digital Oscilloscope
Price: CALL
DSO5054A Agilent Digital Oscilloscope
Price: CALL
Detail
Big scope performance in a small package
- 500 MHz
- 4 channels
- 4 GSa/s sample rate
- Triggering and hardware-accelerated decode for I2C, I2S, SPI, CAN, LIN, and RS-232/UART option available.
MegaZoom III memory and display technology
- 8 Mpts acquisition memory standard
- Up to 100,000 waveform per second real-time update rate
- High-definition XGA (1024 x 768) display with 256 levels of intensity grading

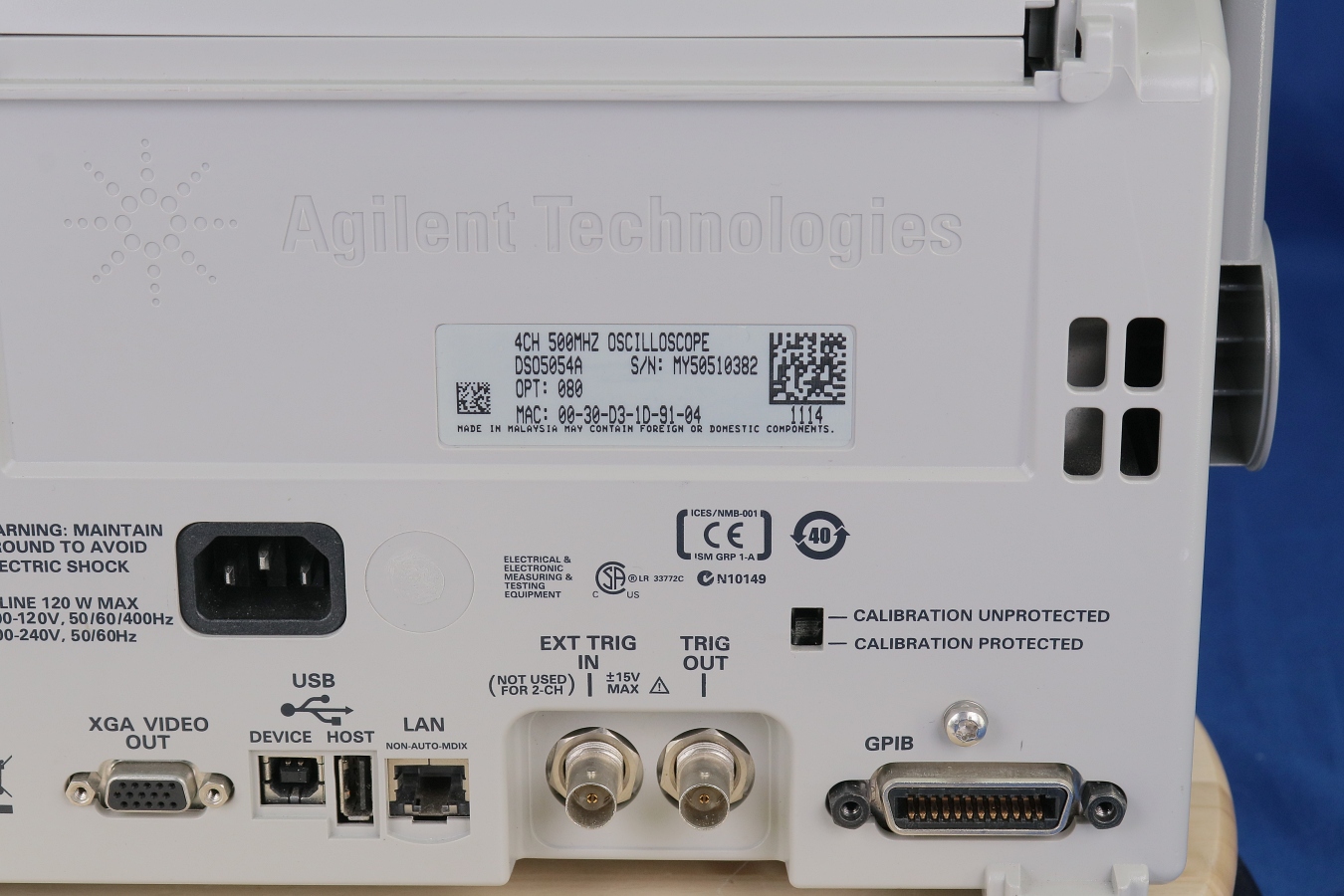

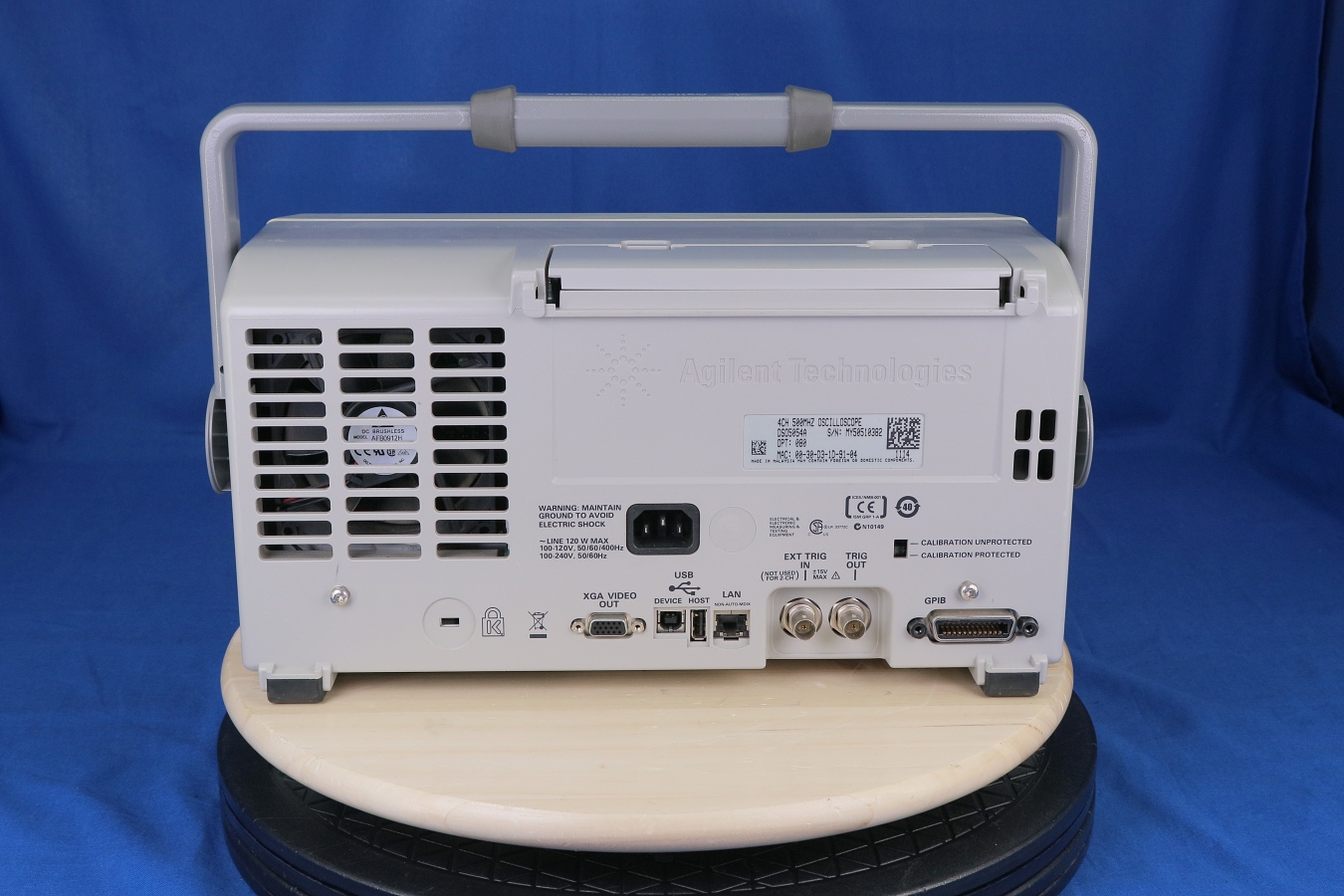

Complete connectivity – standard
- USB (2 host ports, 1 device port), LAN, GPIB – 100 MBit LAN
- XGA display out
- Full remote control, including web browser
- LXI compliant
Option
| Option | Description |
|---|---|
| 080 | 8 Mpts memory upgrade (from base 1 Mpts) |
| E00 | Enhancements, version 5.25. Includes Lister, FlexRay eye diagram/trigger macros (requires option FRS) |
| mem8M | Memory Upgrade |
| MST | Measurement Statistics & Tracking Cursors |
