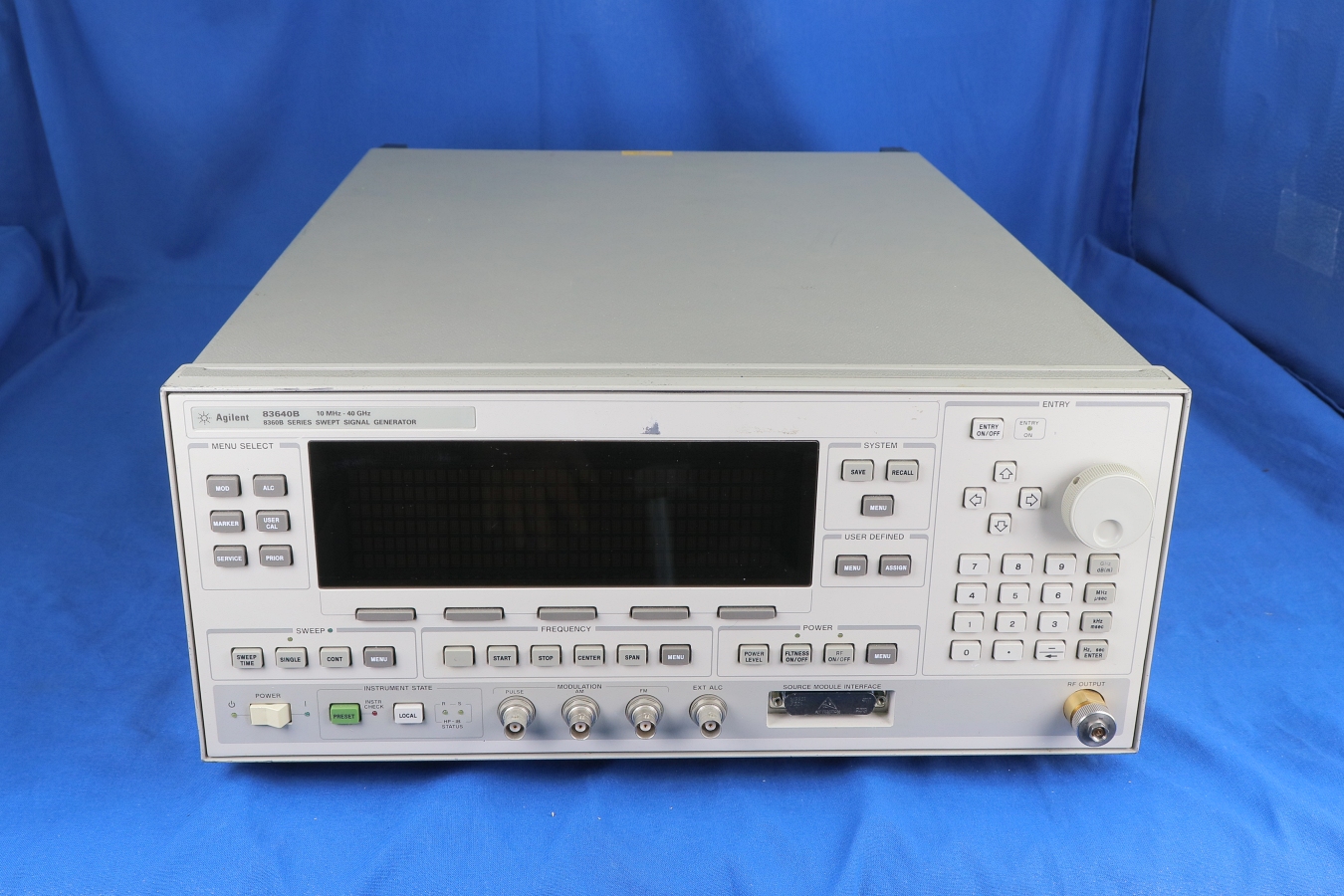

83640B Agilent Sweep Generator
Frequency range: 0.01-40 GHz
+10 dBm calibrated output power
-50 dBc harmonics <26.5 GHz typical
SSB phase noise <-80 dBc at 10 GHz and 10 kHz offset
Complete analog sweeper
1 Hz frequency resolution (Option 008)
Pulse, amplitude and frequency modulation (Agilent HP 8360B Series only)
-110 dBm output power with step attenuator (Option 001)
The Agilent 83640B is the standard of excellence for applications requiring the high performance and accuracy of a synthesized source and the speed and versatility of a sweep oscillator. Synthesized broadband frequency coverage and precise 1 Hz frequency resolution (Opt 008) are generated by indirect synthesis, enabling the Agilent 83640B to achieve low single-sideband phase noise performance. The Agilent 83640B also delivers excellent harmonic performance with harmonics at least 50 dB below the carrier from 2.0 to 26.5 GHz, and at least 40 dB below the carrier above 26.5 GHz.
