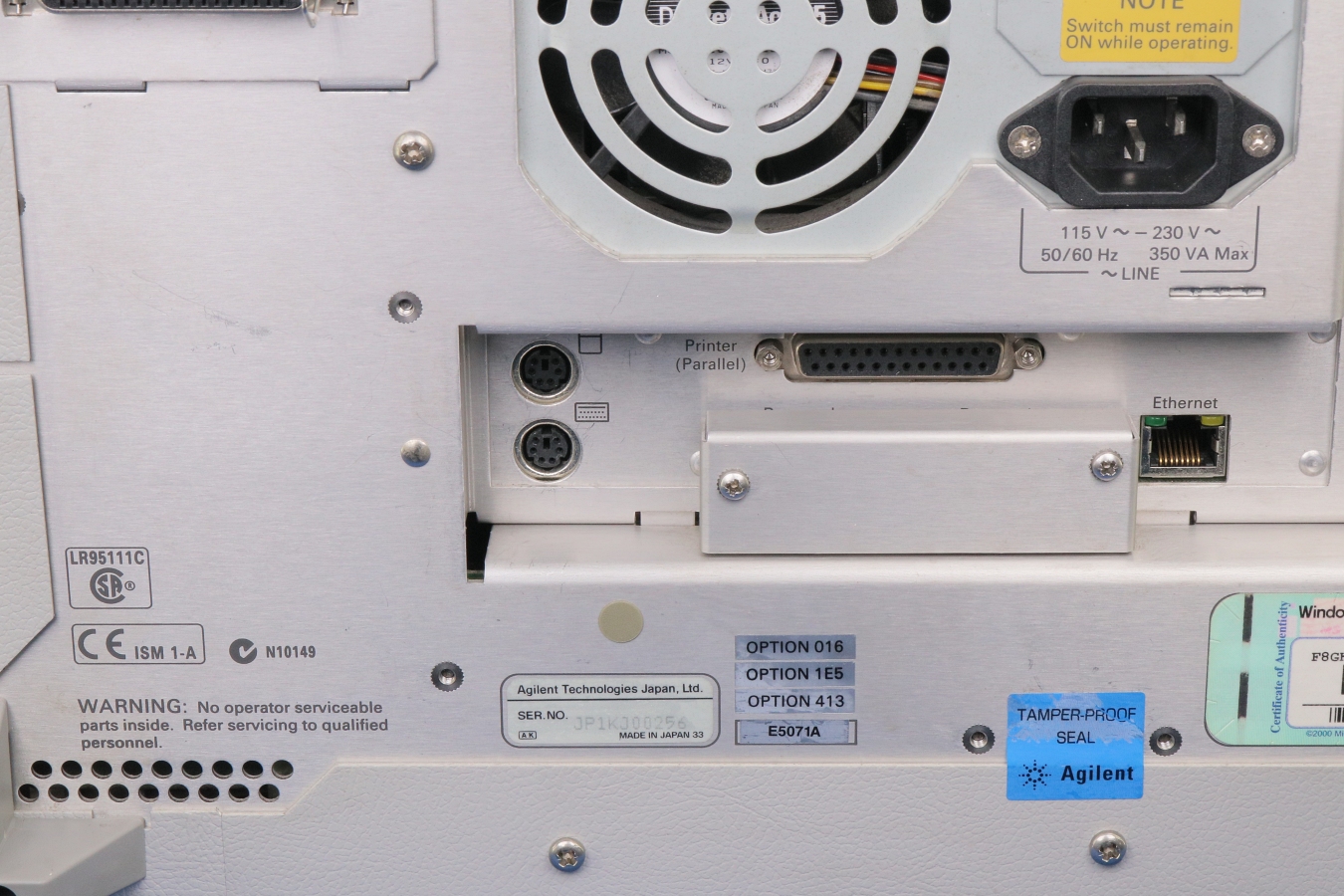

Additional Features: 300 kHz to 8.5 GHz 125 dB dynamic range at test port (typical) 9.6 us/point sweep speed 0.001 dB RMS trace noise Integrated 2-, 3- and 4-ports available with full port correction TRL/LRL calibration for non-coaxial measurements Built-in balanced measurement to interpret mixed mode S-parameters Fixtrue embedding/de-embedding and port characteristic impedance. conversion The Agilent E5071A network analyzer provides the comprehensive measurement capability required to test both multiport and balanced devices. The ENA Series offer 2-, 3-, or 4-test ports for simultaneous measurement of all signal paths in these multiport devices. The ENA series delivers extensive analysis capabilities such as time domain transform with gating and mixed mode S-parameter measurements with matching circuit embedding/de-embedding and impedance conversion. In addition to the built-in Microsoft Visual Basic for Applications (VBA) capability, the analyzer can be programmed via its COM or SCPI interface. The ENA Series has a Windows-based user interface and large 10.4-inch LCD. Built-in interfaces, such as GPIB, 10/100BaseT Ethernet, USB, VGA and parallel also included.
