The AWG400-Series Arbitrary Waveform Generator is a programmable Arbitrary Waveform Generator which have maximum 200 MS/s, 4 M word/ch waveform memory and 16-bits DAC.
Amplitude is programmable up to 2.5 V peak-to-peak into 50 W with independent offset control.

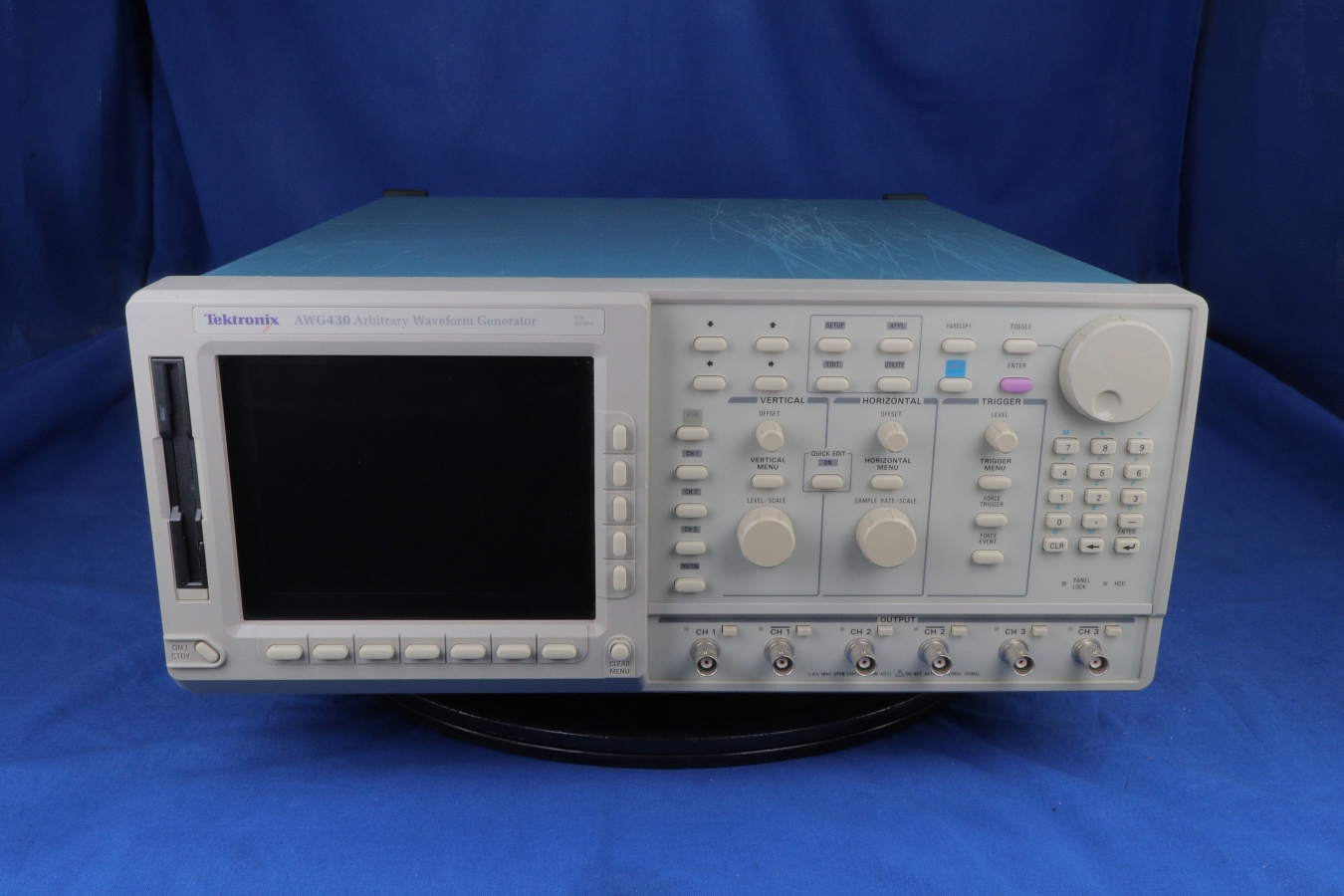

The exterior of the AWG400-Series is similar to the AWG500/AWG600 series product, except that the parameters and operating menus are displayed on LCD color monitor instead of B/W CRT on the front panel.
The instrument can be manually controlled from the front panel, remotely programmed via GPIB or Network.
The AWG400-Series GPIB is compatible with other devices that meet IEEE standard 488.2.
The AWG400-Series Arbitrary Waveform Generator contains the following main features:

• 200 MS/s sampling rate


• 16-bit DA converter


• 4 M-word waveform memory


• Two arbitrary marker outputs per channel
