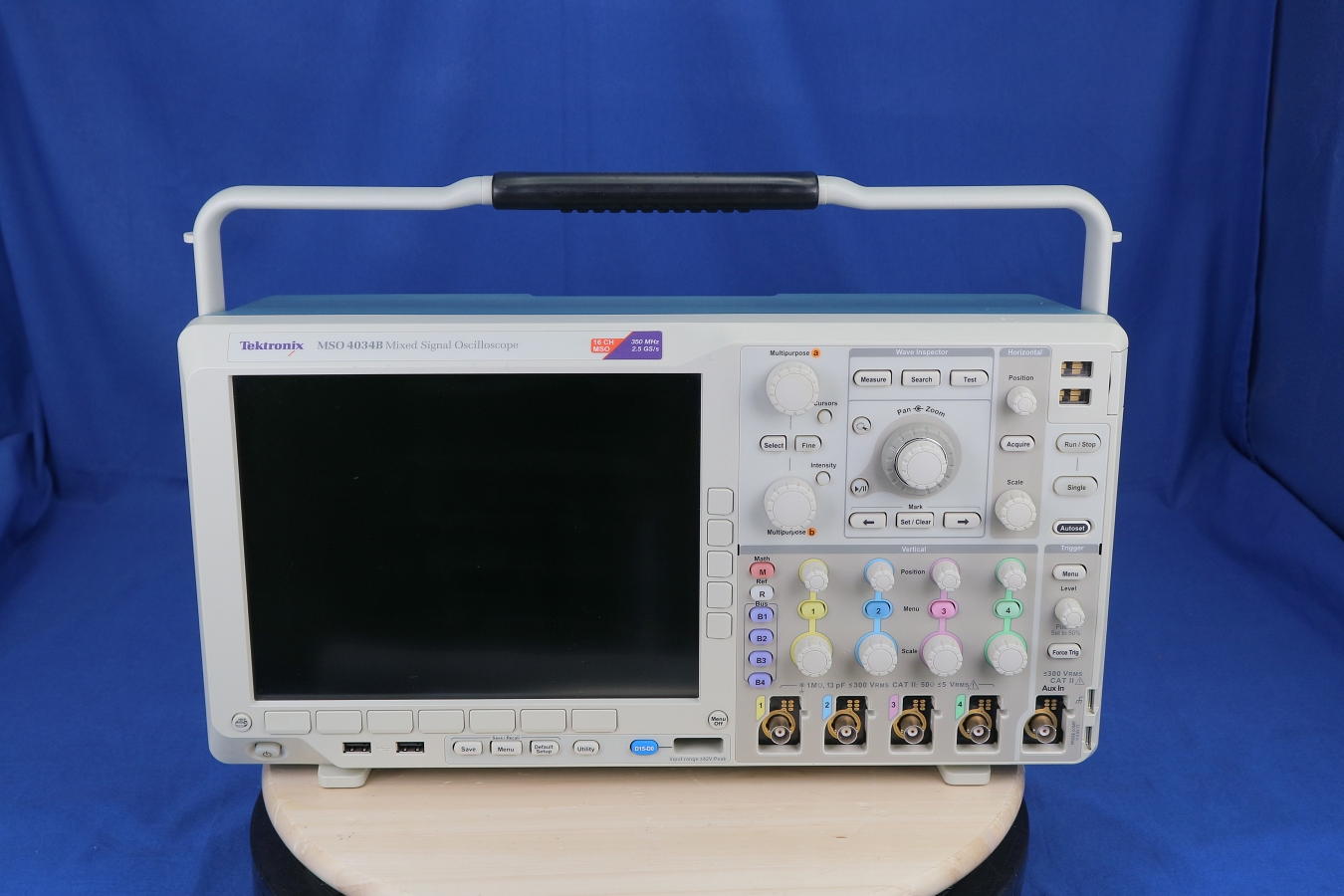

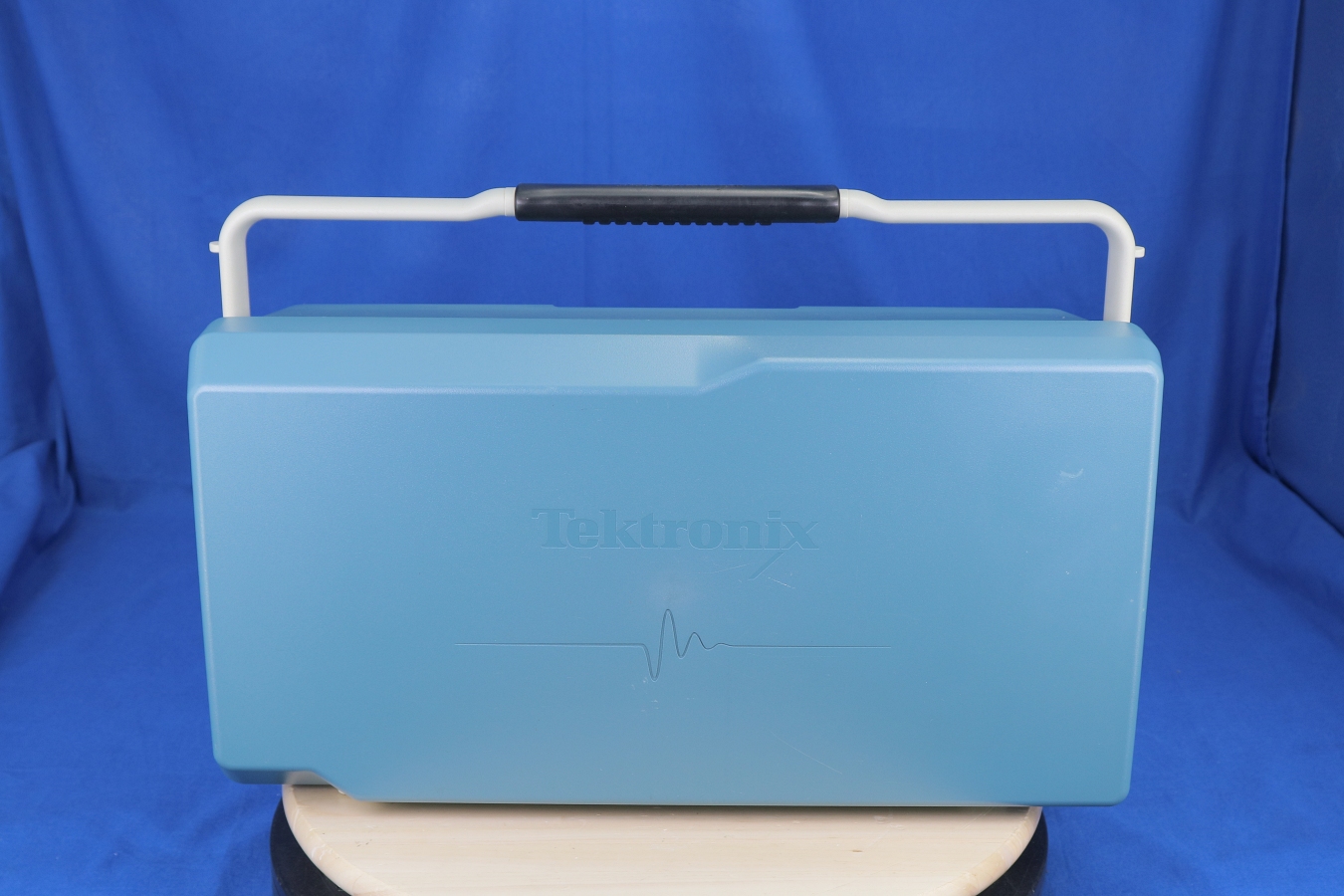

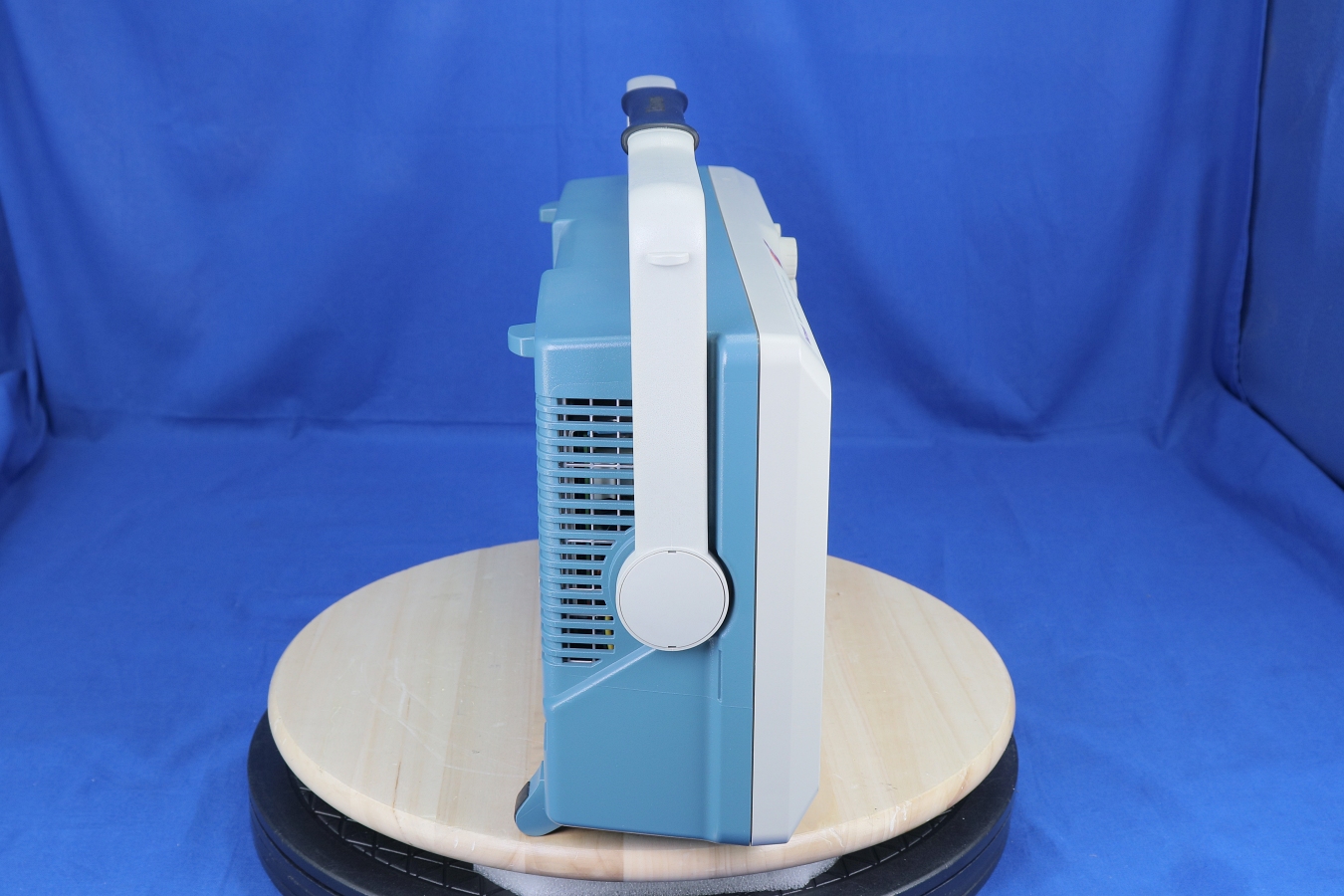

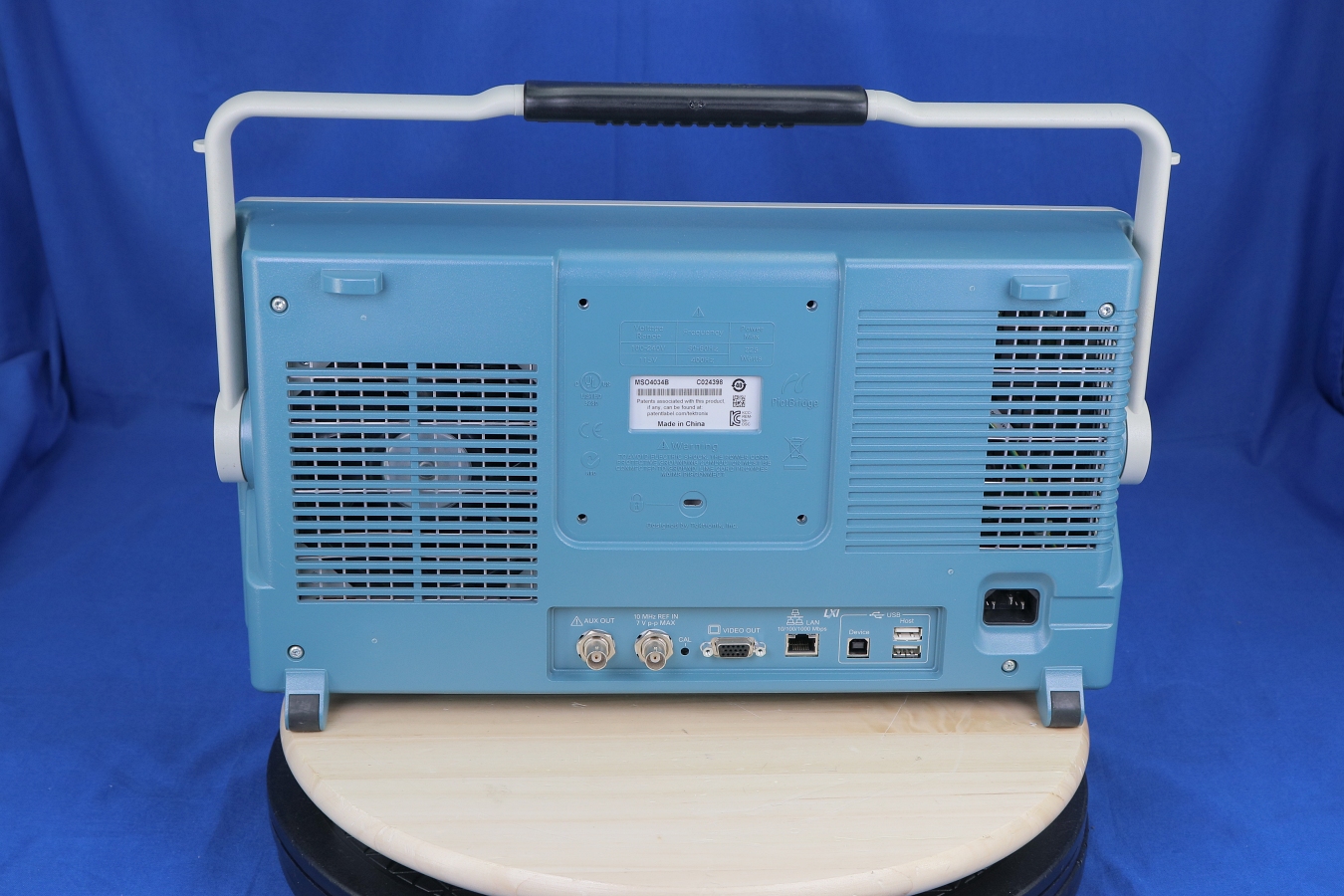

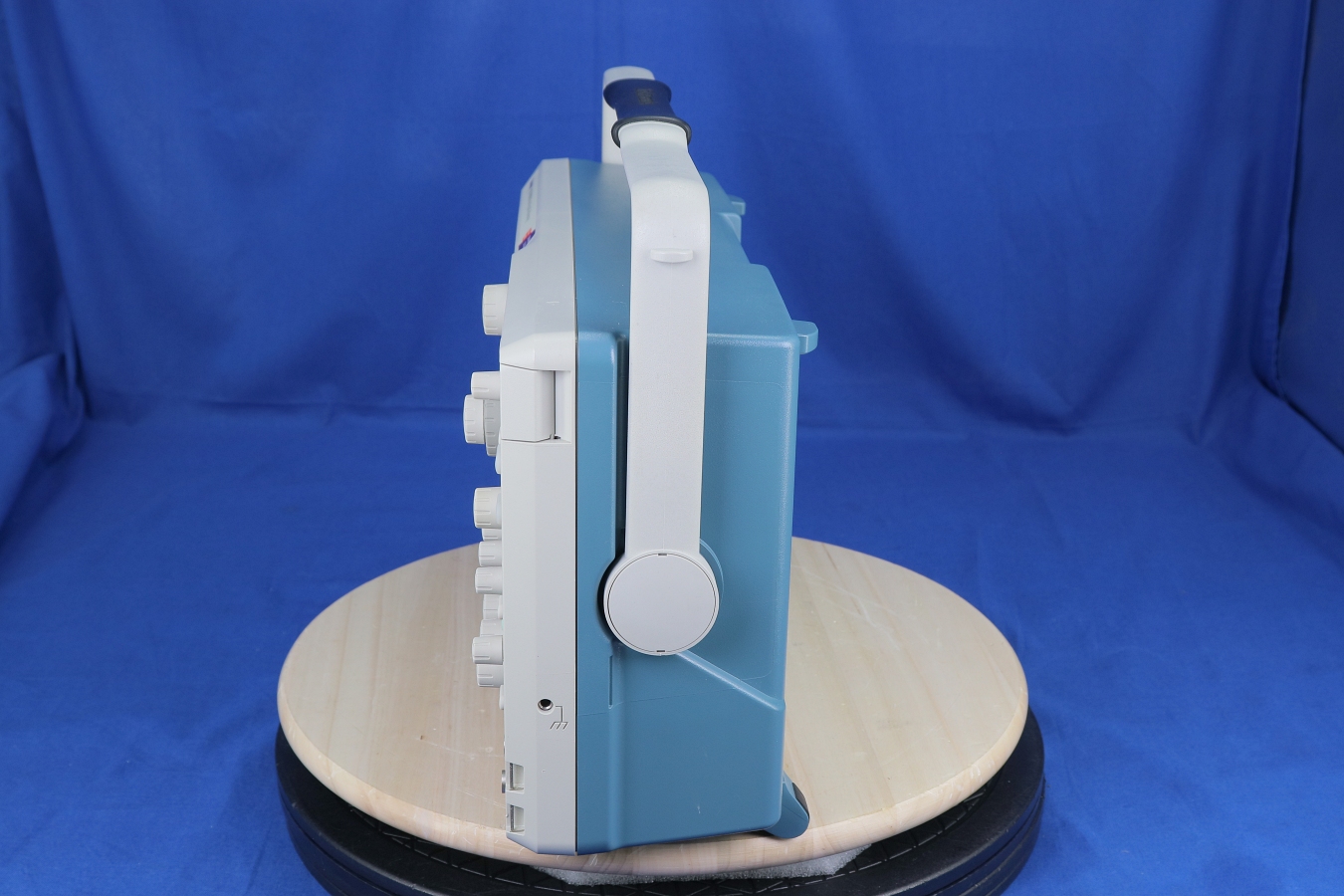

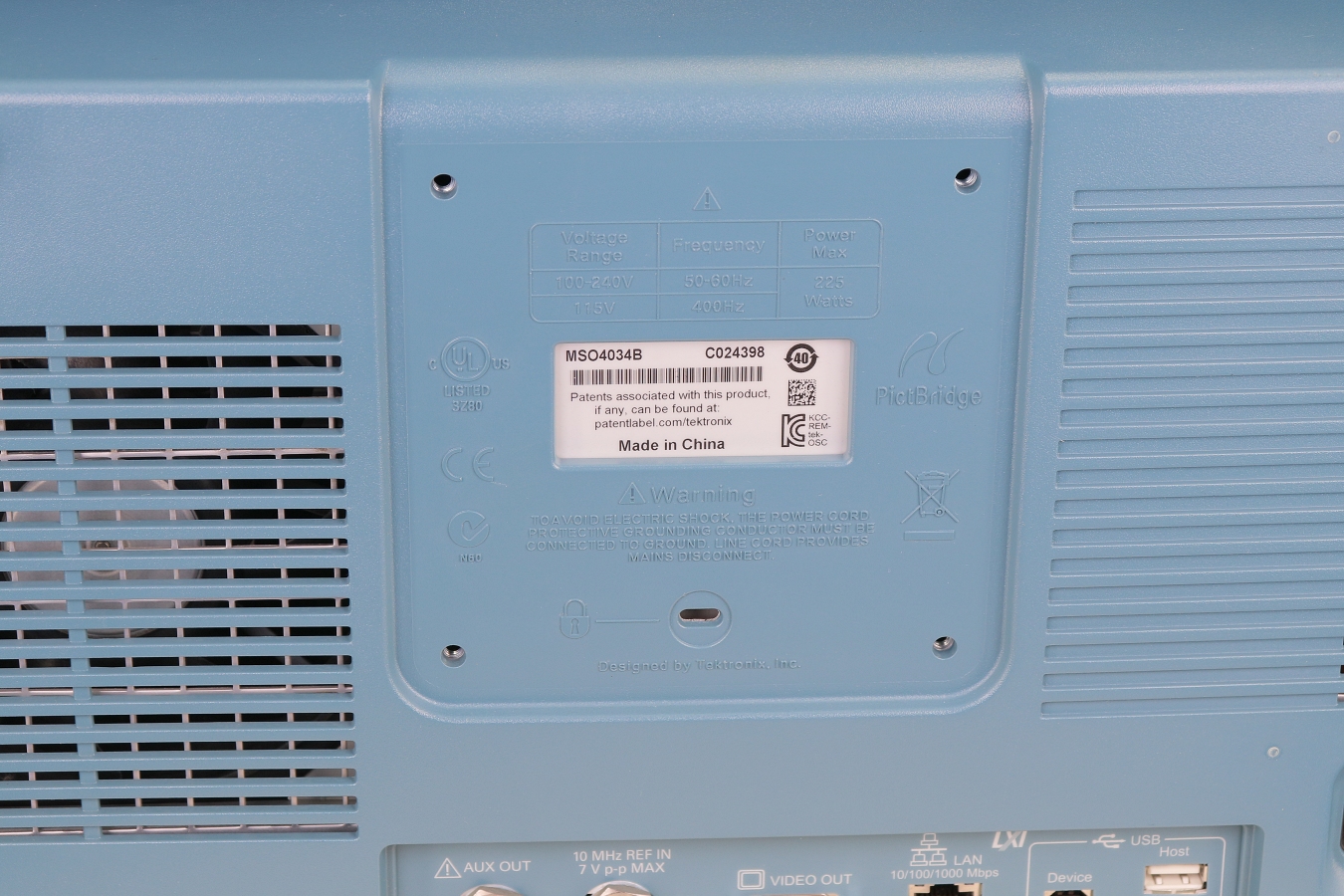

MSO4034B Tektronix Mixed Signal Oscilloscope
350 MHz Channels: 4 Analog + 16 Digital Sample Rate: 2.5 GS/s Record Length: 10 MPts 50,000 wfm/s
REQUEST A QUOTE
MSO4034B Tektronix Mixed Signal Oscilloscope
Price: CALL
MSO4034B Tektronix Mixed Signal Oscilloscope
Price: CALL
Detail
350 MHz
Channels: 4 Analog + 16 Digital
Sample Rate: 2.5 GS/s
Record Length: 10 MPts
50,000 wfm/s Maximum Waveform Capture Rate
Suite of Advanced Triggers
Wave Inspector® Controls Provide Unprecedented Efficiency in Waveform Analysis
10.4 in. (264 mm) XGA Color Display
USB and CompactFlash on Front Panel for Quick and Easy Storage
USB Plug-and-Play PC Connectivity
Small Footprint and Lightweight
Option
| Option | Description |
|---|---|
| DPO4AUTOMAX | FlexRay, CAN, and LIN serial triggering and analysis module for the DPO4000/MSO4000 Series |
| DPO4EMBD | Embedded Serial Triggering and Analysis Module for the DPO4000/MSO4000 Series |
