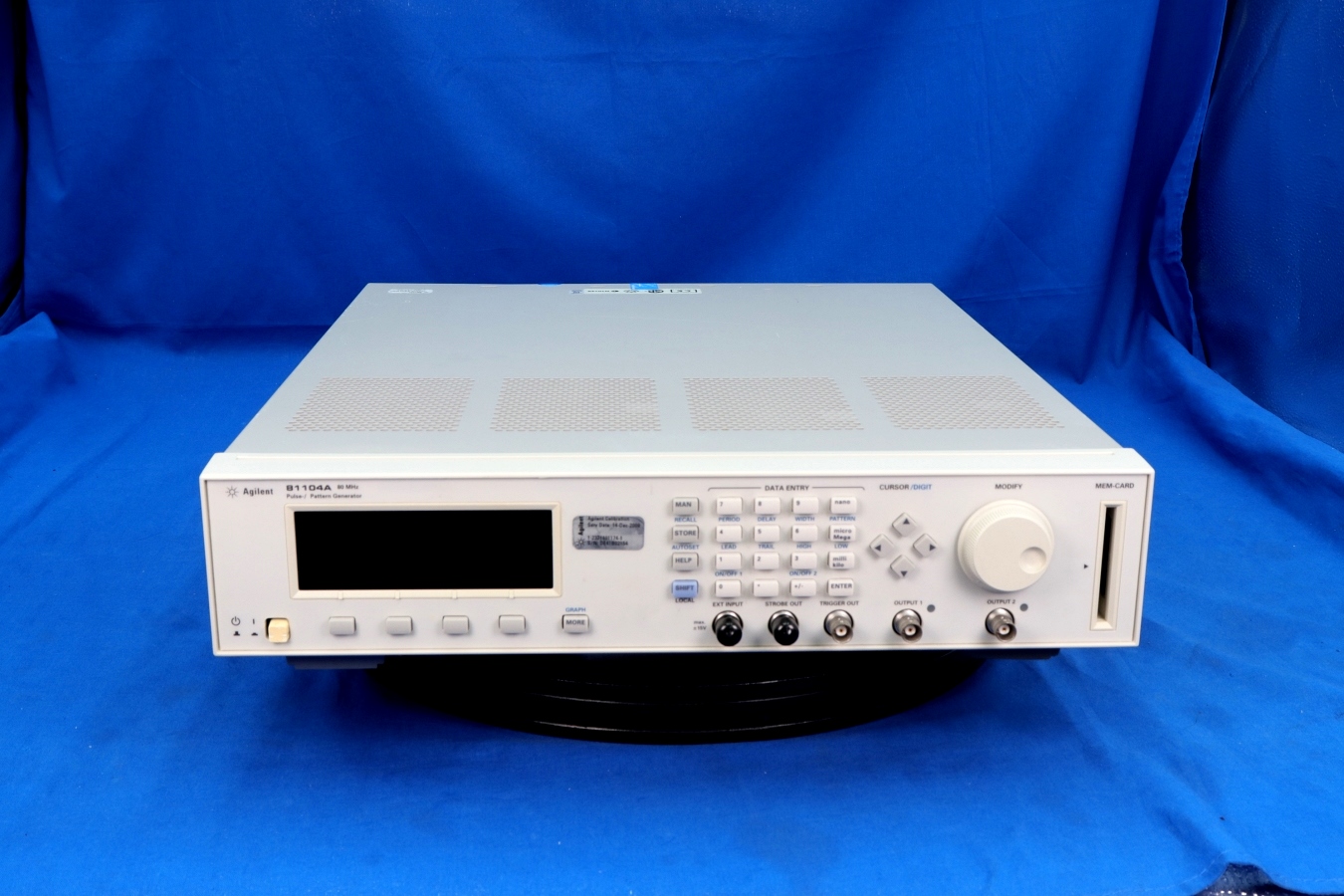

Additional Features: Frequency range: 1 mHz to 80 MHz Single-/dual-channel pulse pattern generator 80 MHz, 10 V from 50 Ohm into 50 Ohm Triggerable / PLL operation selectable Pulse / burst / pattern modes selectable Variable transition times BNC outputs, single-ended Single- or dual-channel: Requires 1 or 2 output modules 81105A The Agilent 81104A 80 MHz Pulse Pattern Generator with one or two Agilent 81105A output modules (single-/dual-channel) builds on the performance of the 81101A and is backward-compatible. The 81104A extends the frequency range and adds RZ/NRZ pattern capability up to 16 kbit per channel. An NRZ strobe channel provides a trigger at arbitrary points in the pattern, or can be used as an additional pattern source.
