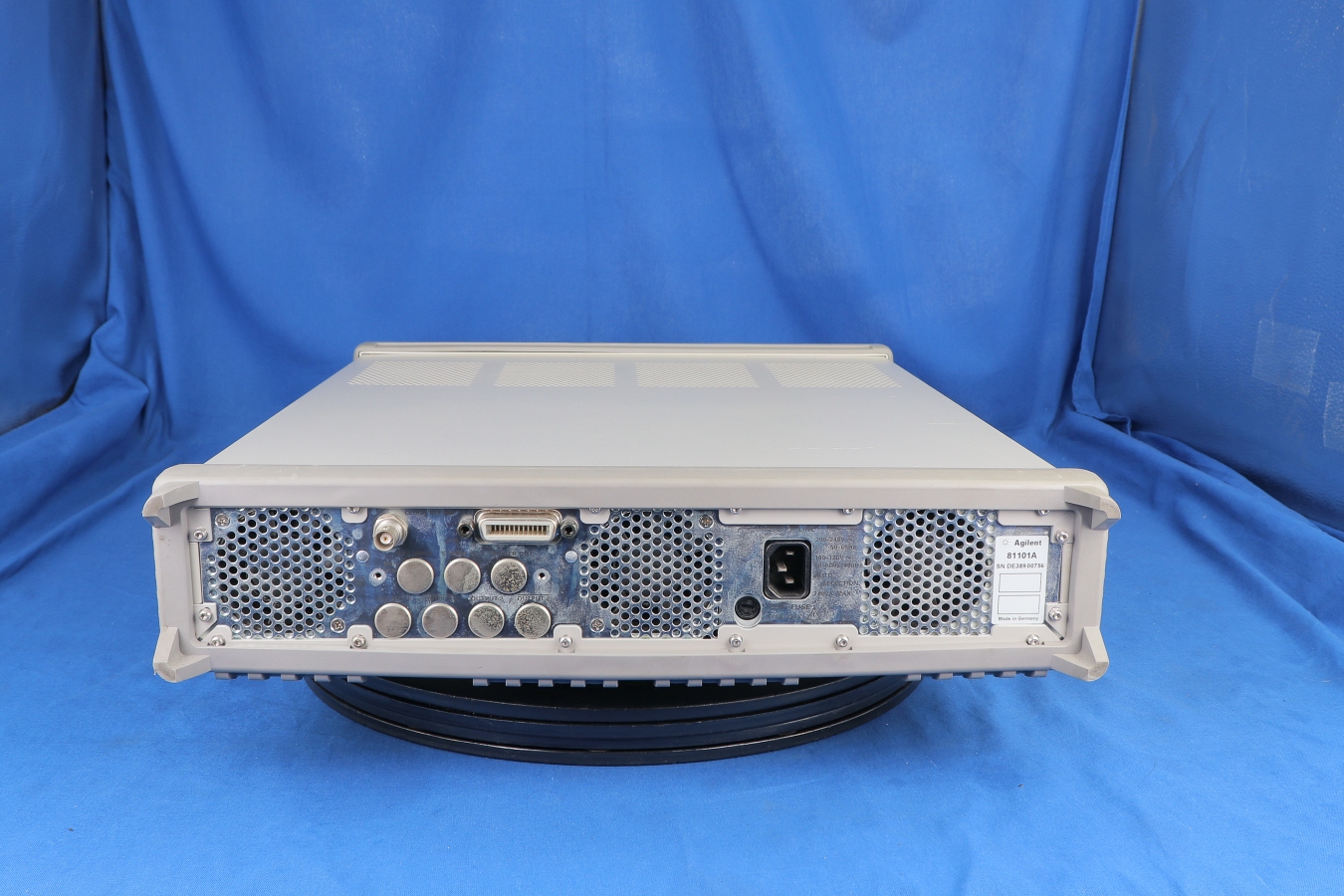

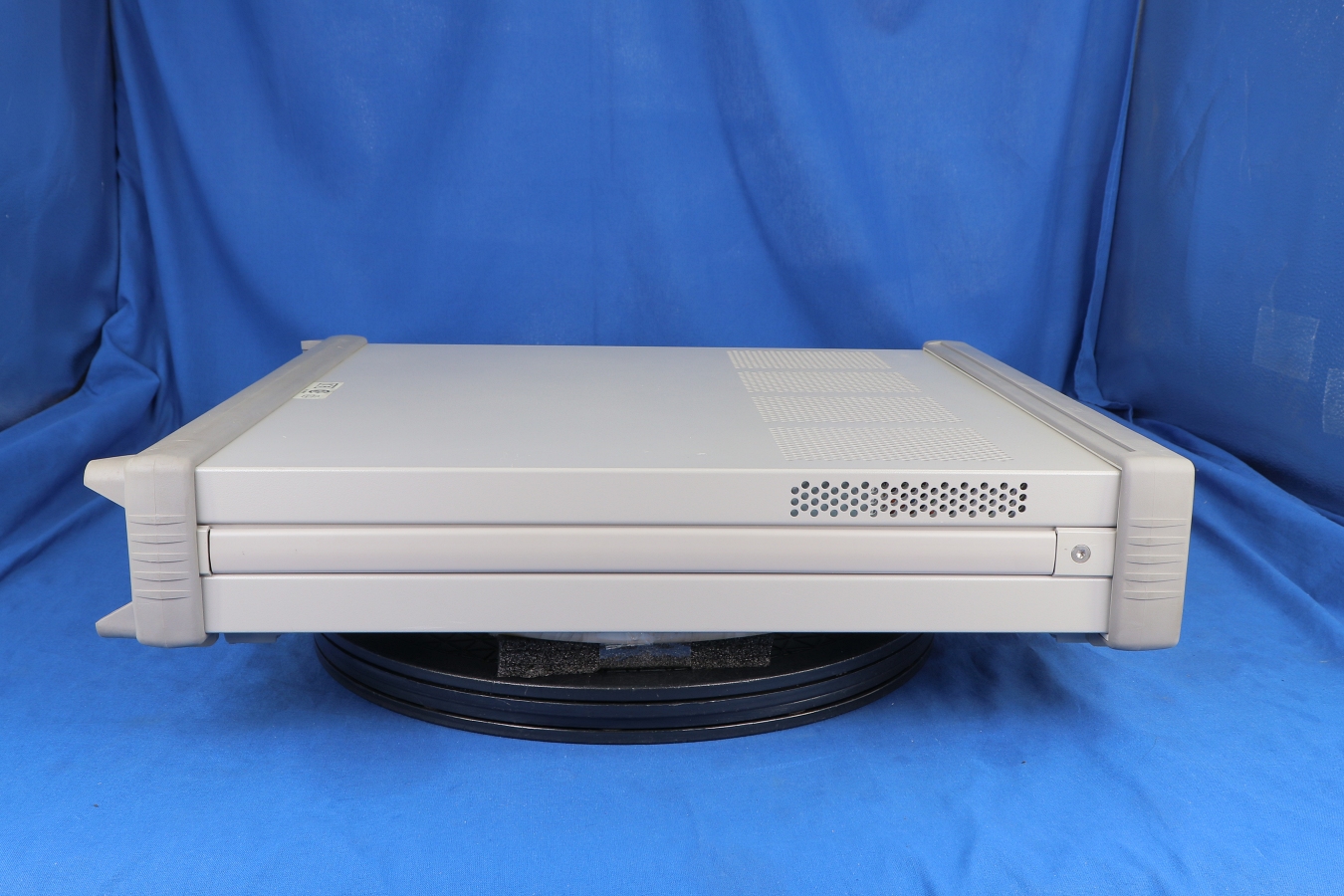

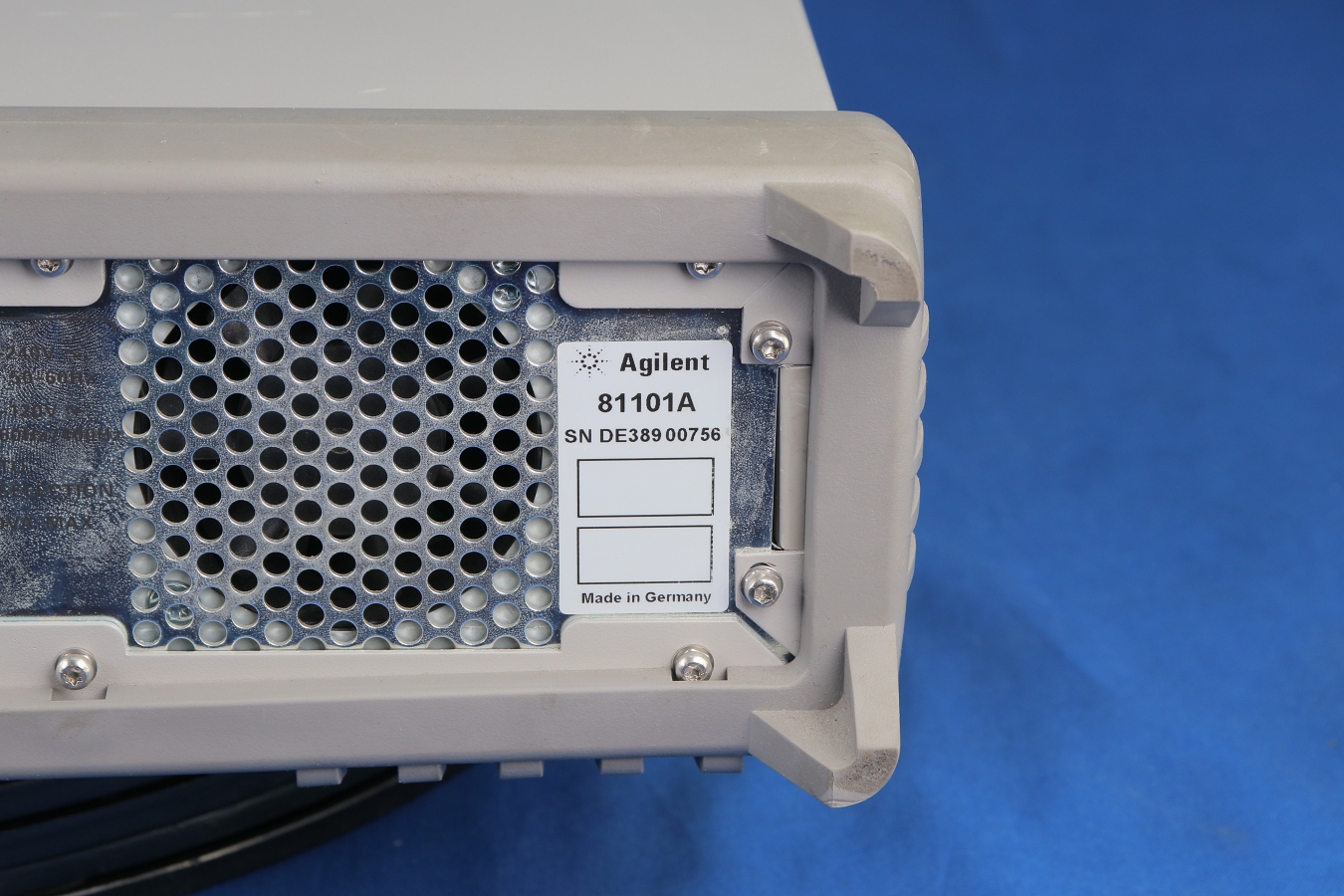

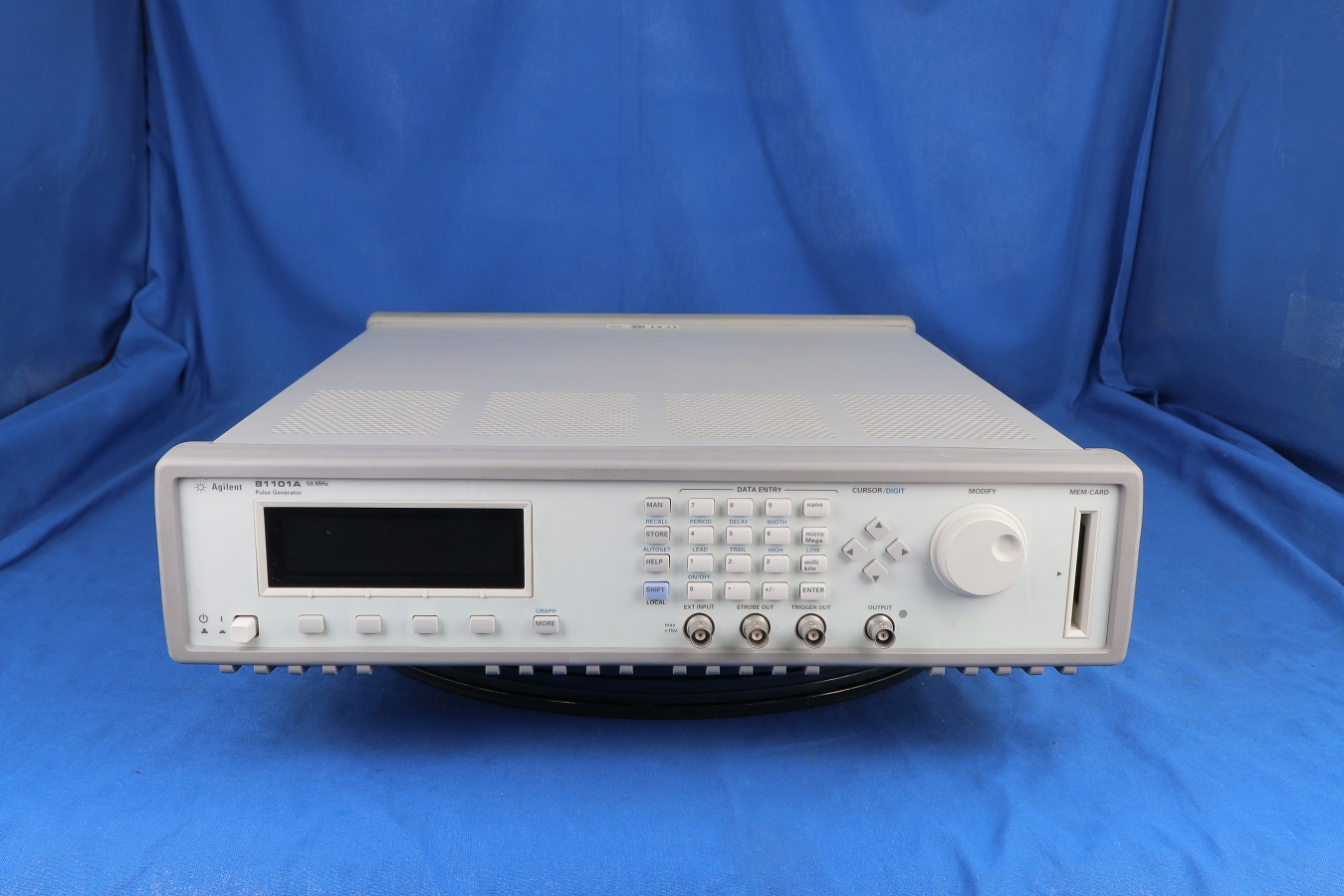

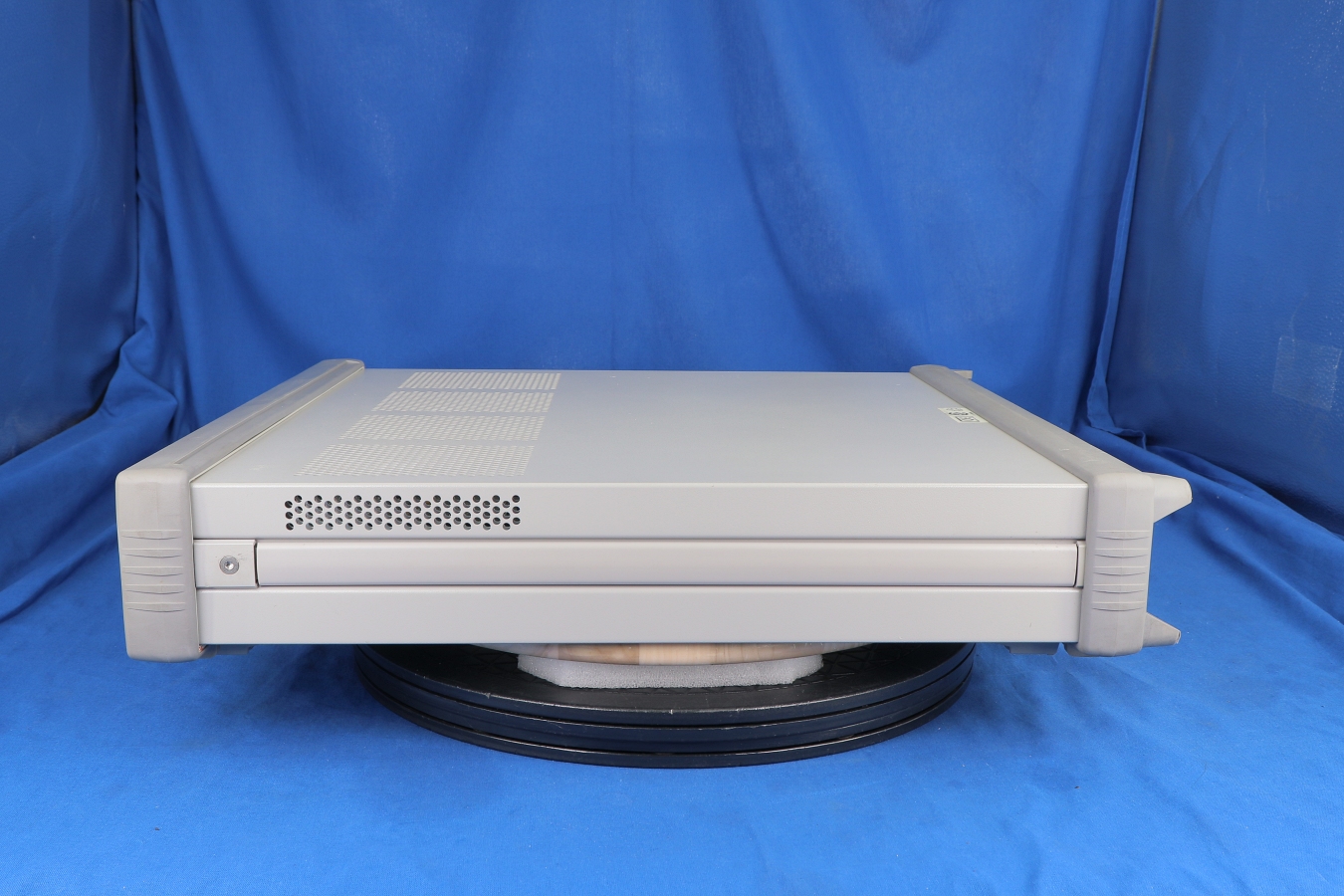

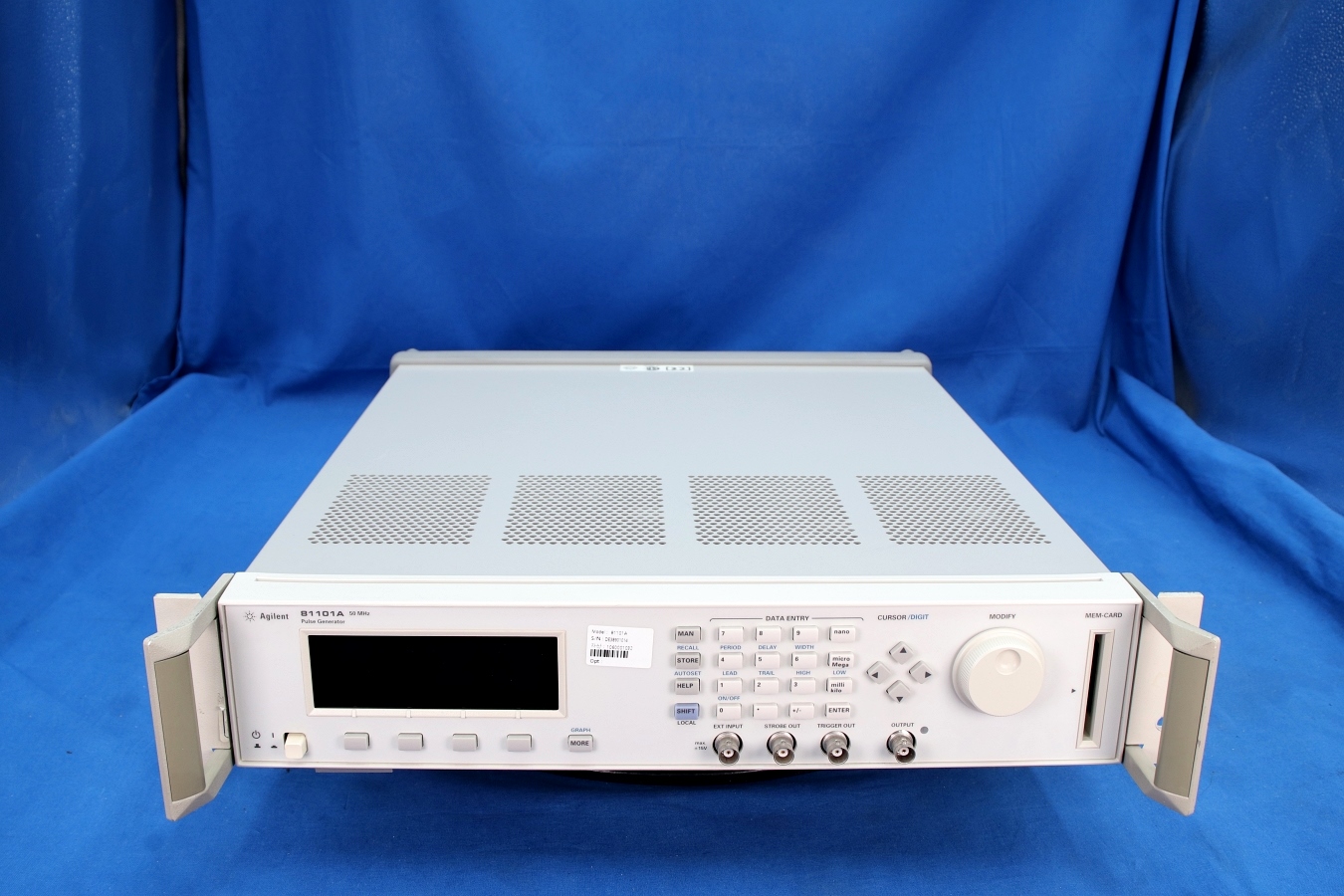

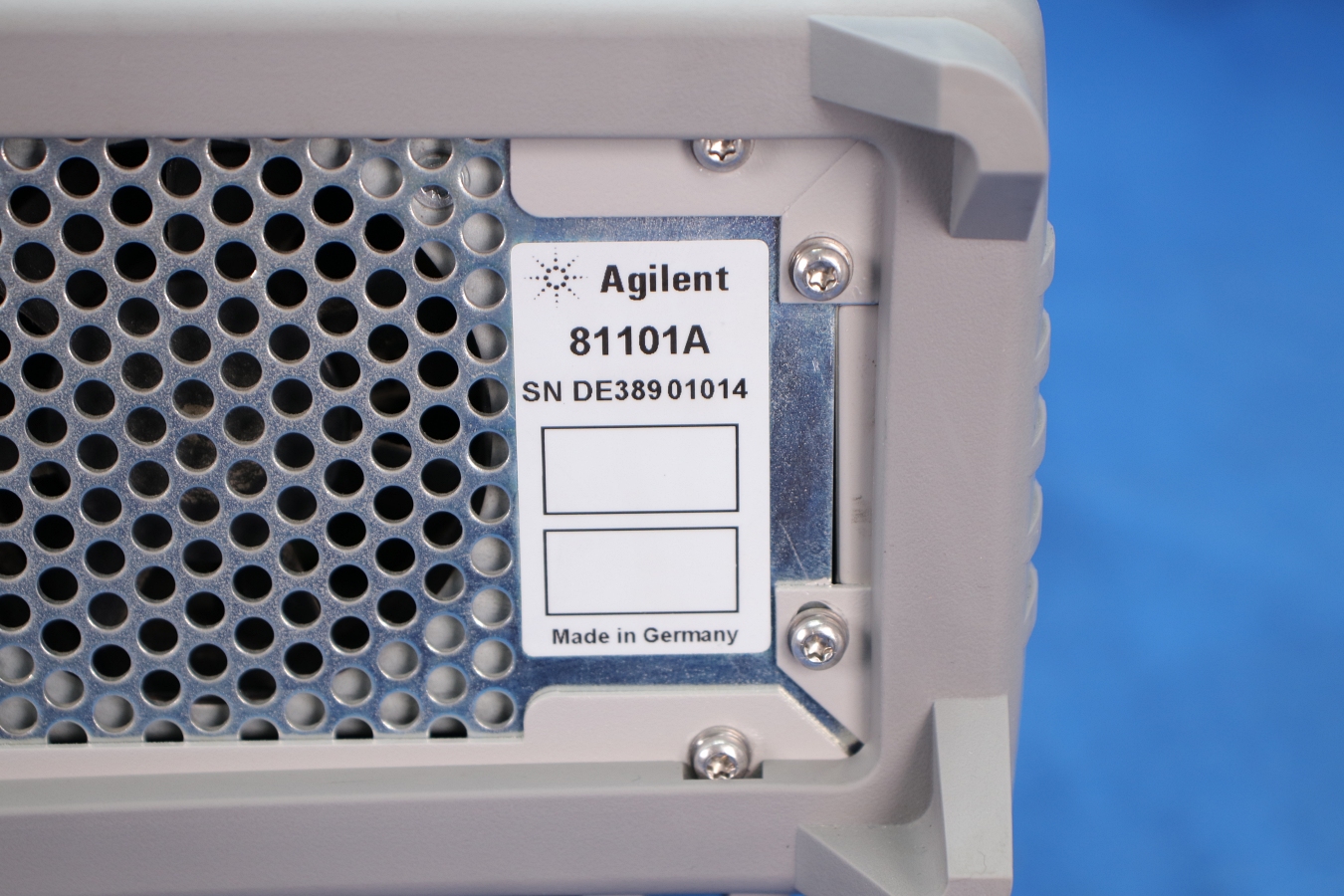

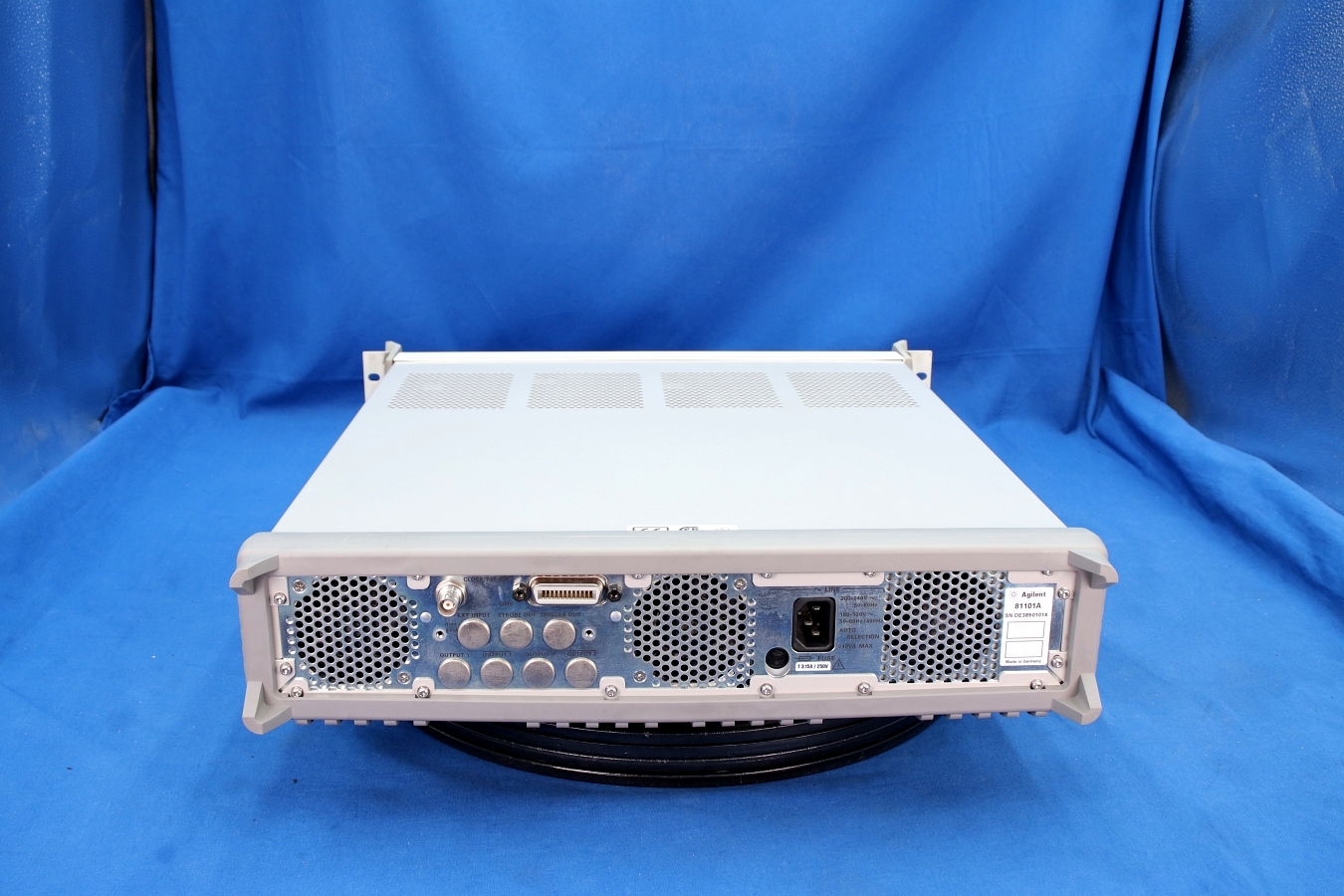

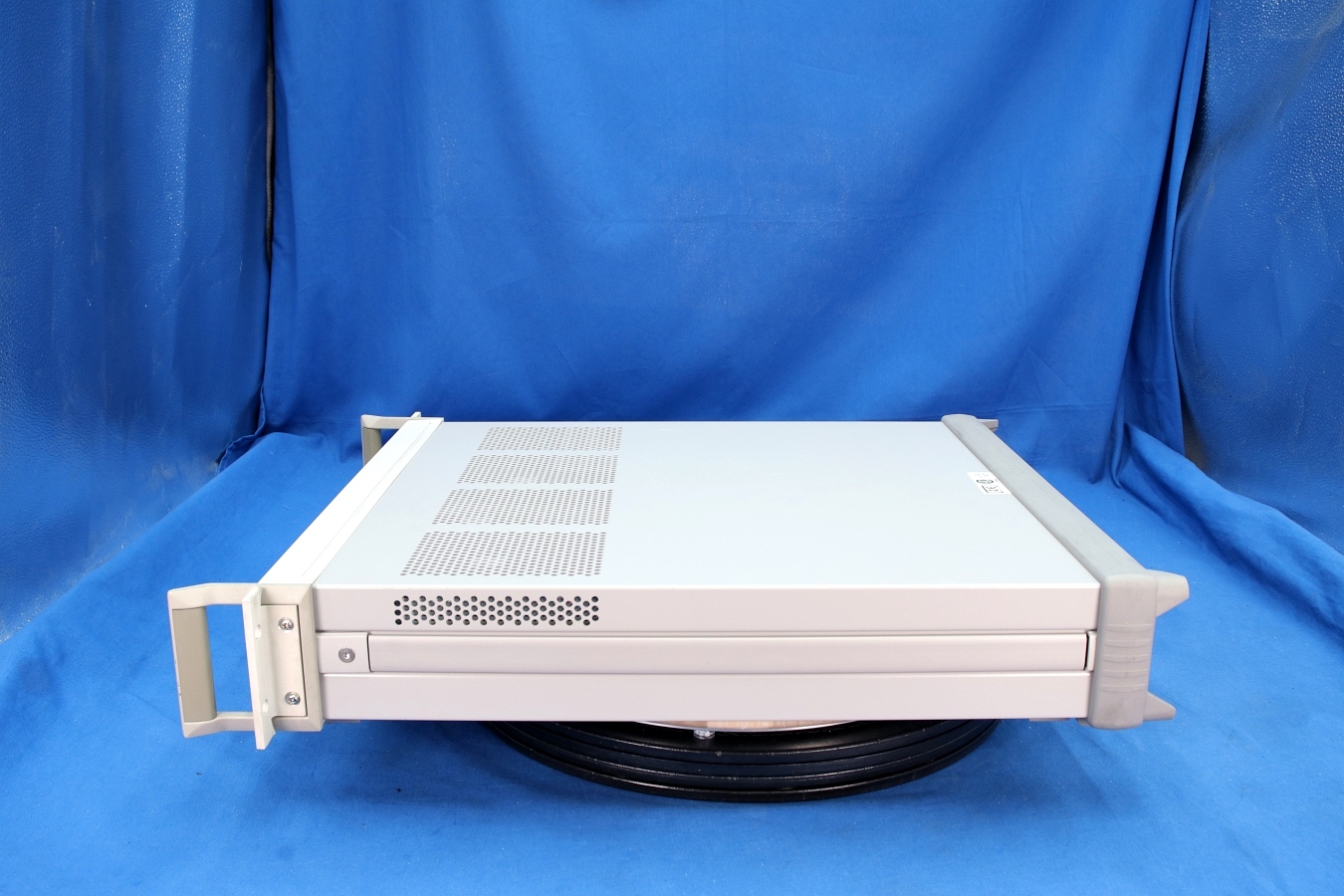

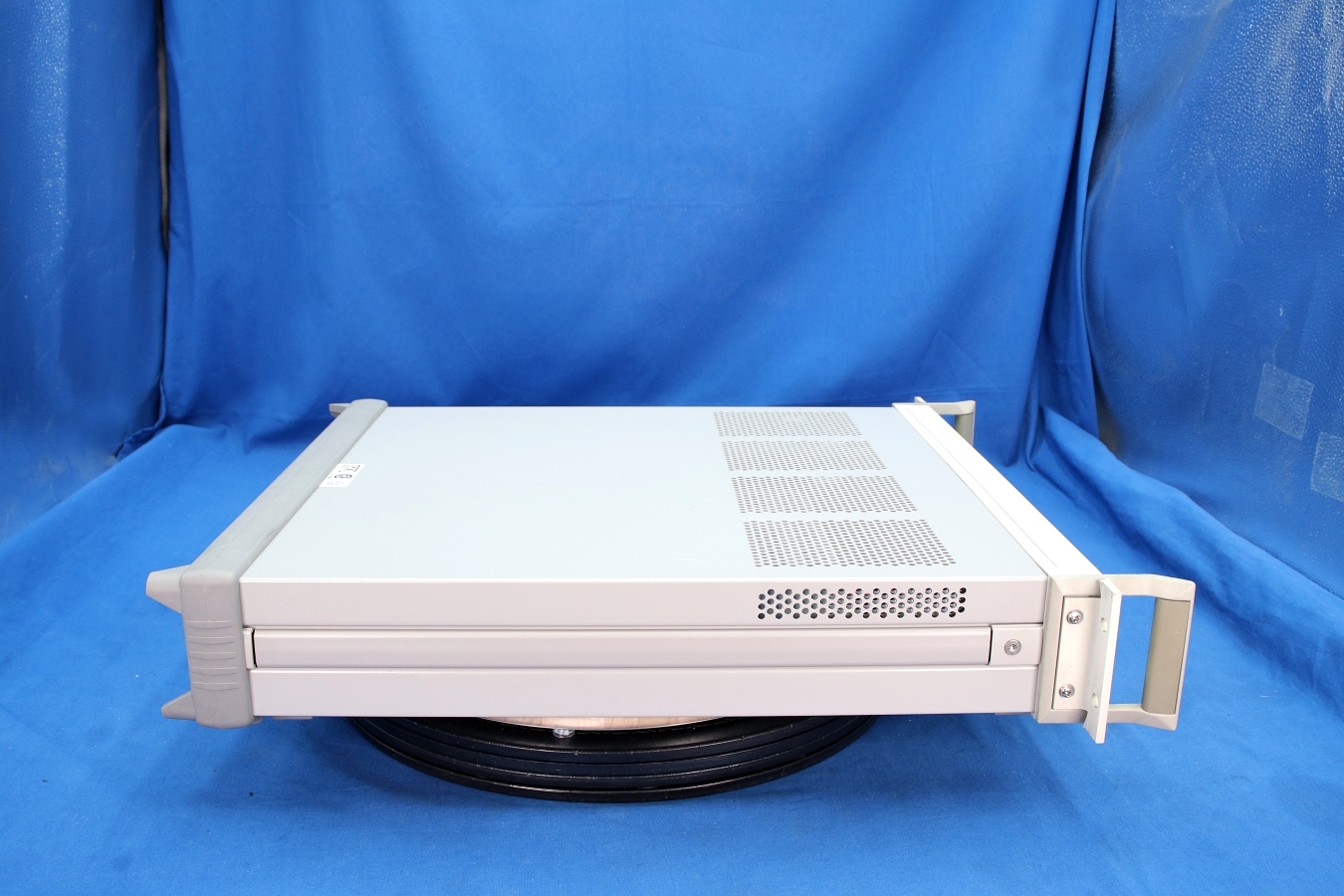

Single-channel pulse generator 50 MHz, 10 V from 50 Ohm into 50 Ohm Triggerable / PLL operation selectable Pulse / burst modes selectable Variable transition times BNC outputs, single-ended The Agilent 81101A Pulse Generator is a highly accurate one channel instrument that provides clean, accurate pulses with excellent repeatability. Timing changes are free of glitches and drop outs, even at the maximum frequency of 50 MHz. This pulse generator also features fast, variable transition times, flexible amplitudes and duty cycles. The unit generates all of the standard pulses needed to test current logic technologies (CMOS, TTL, ECL, etc). You can save test settings and program the unit for automated test routines.
