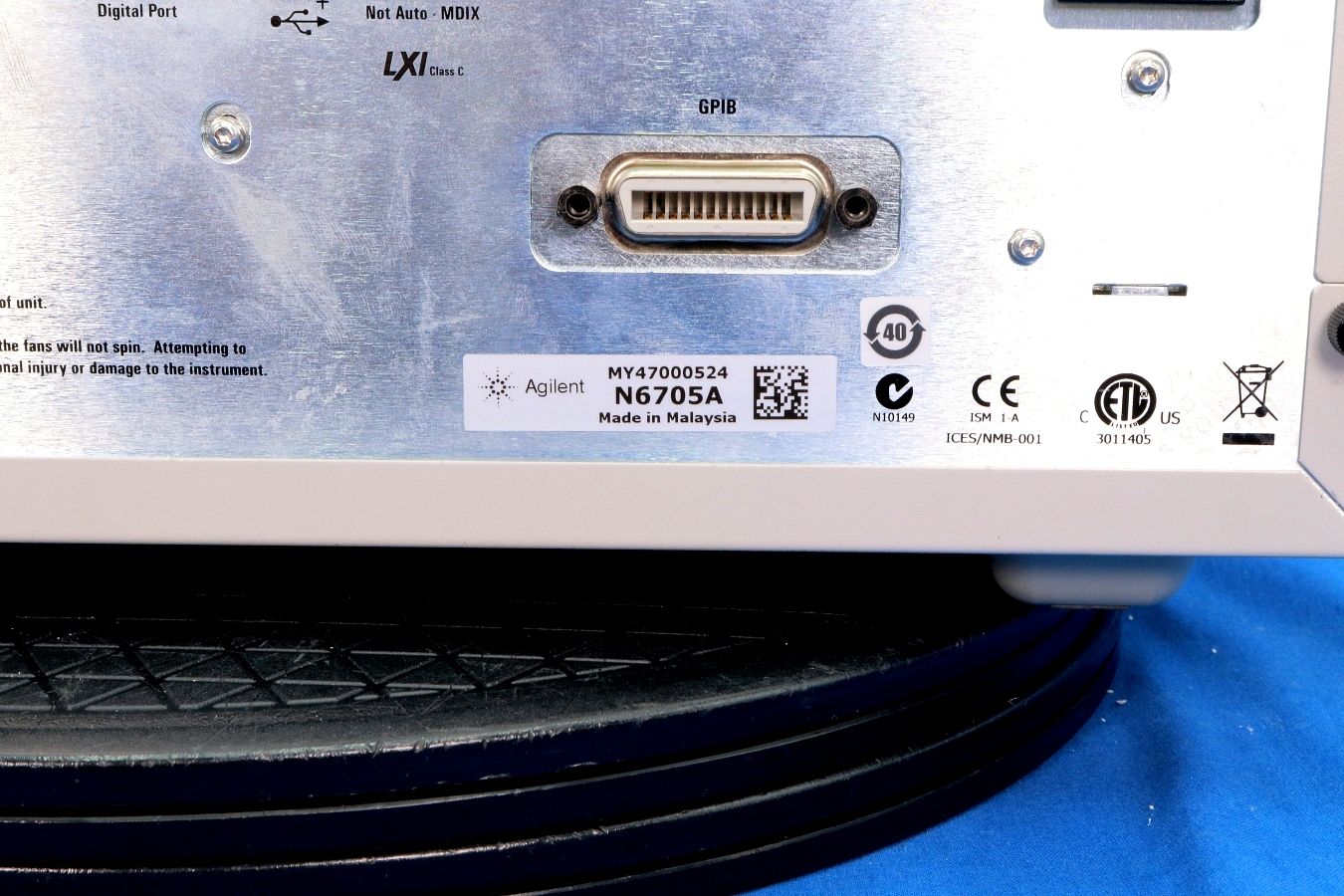

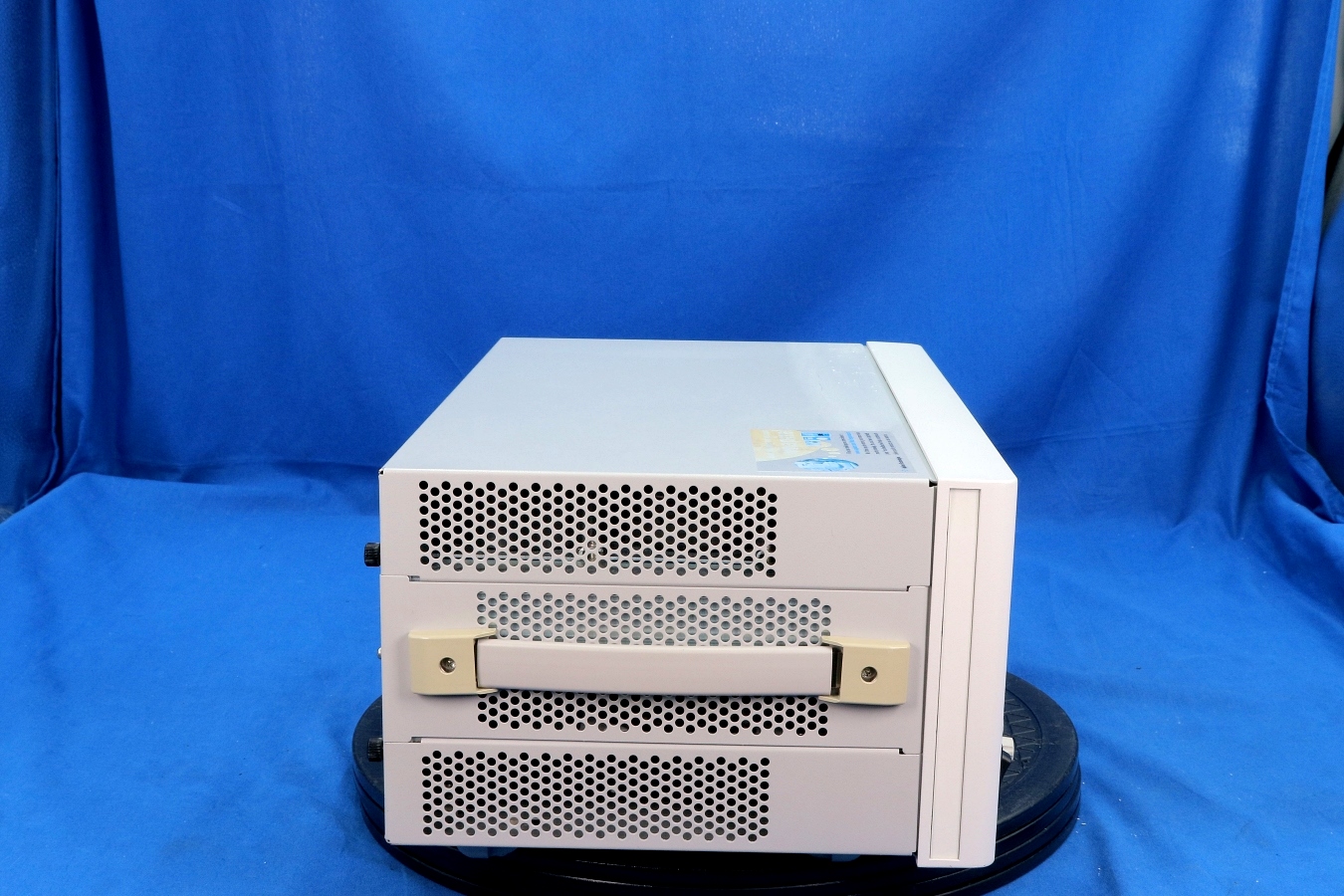

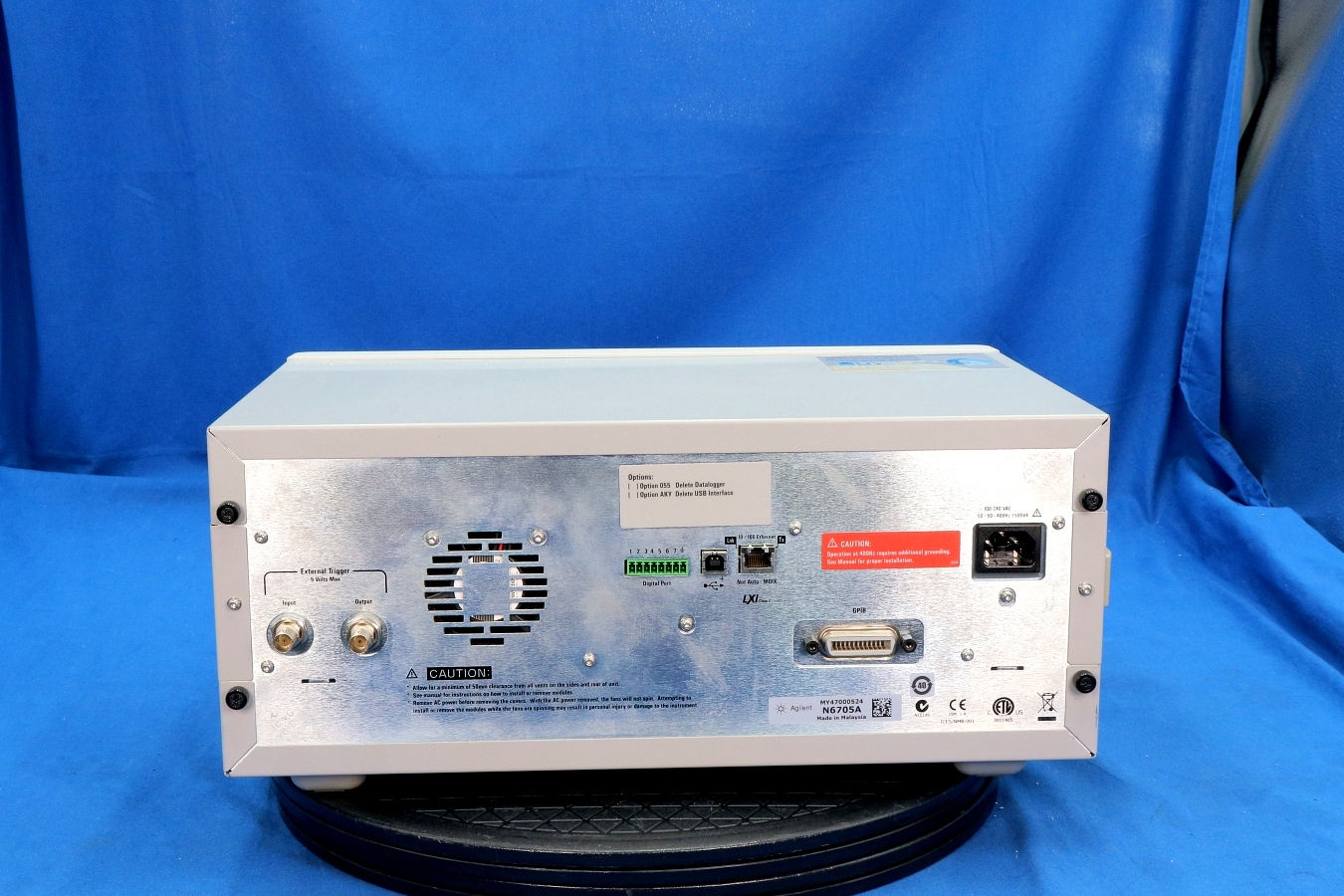

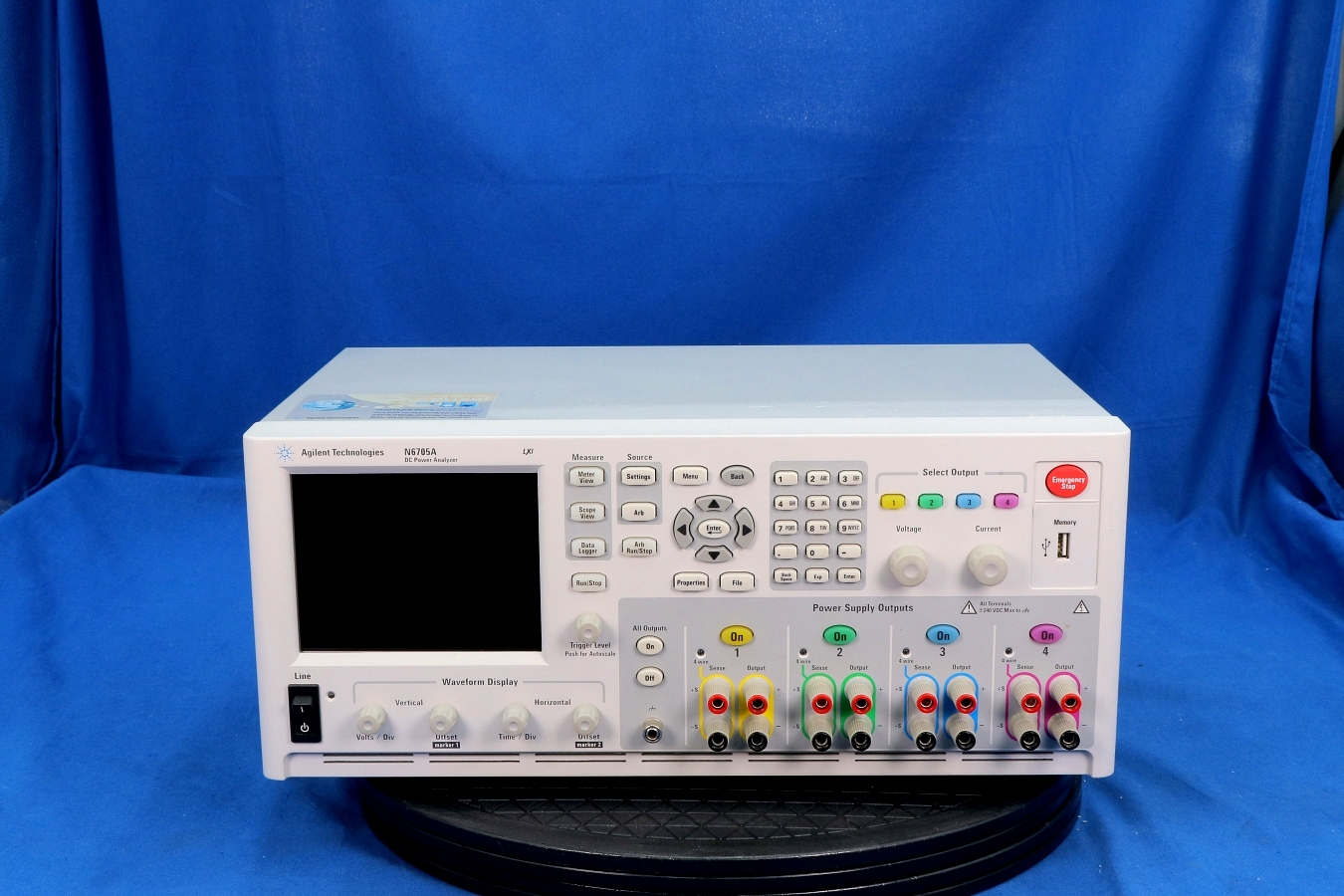

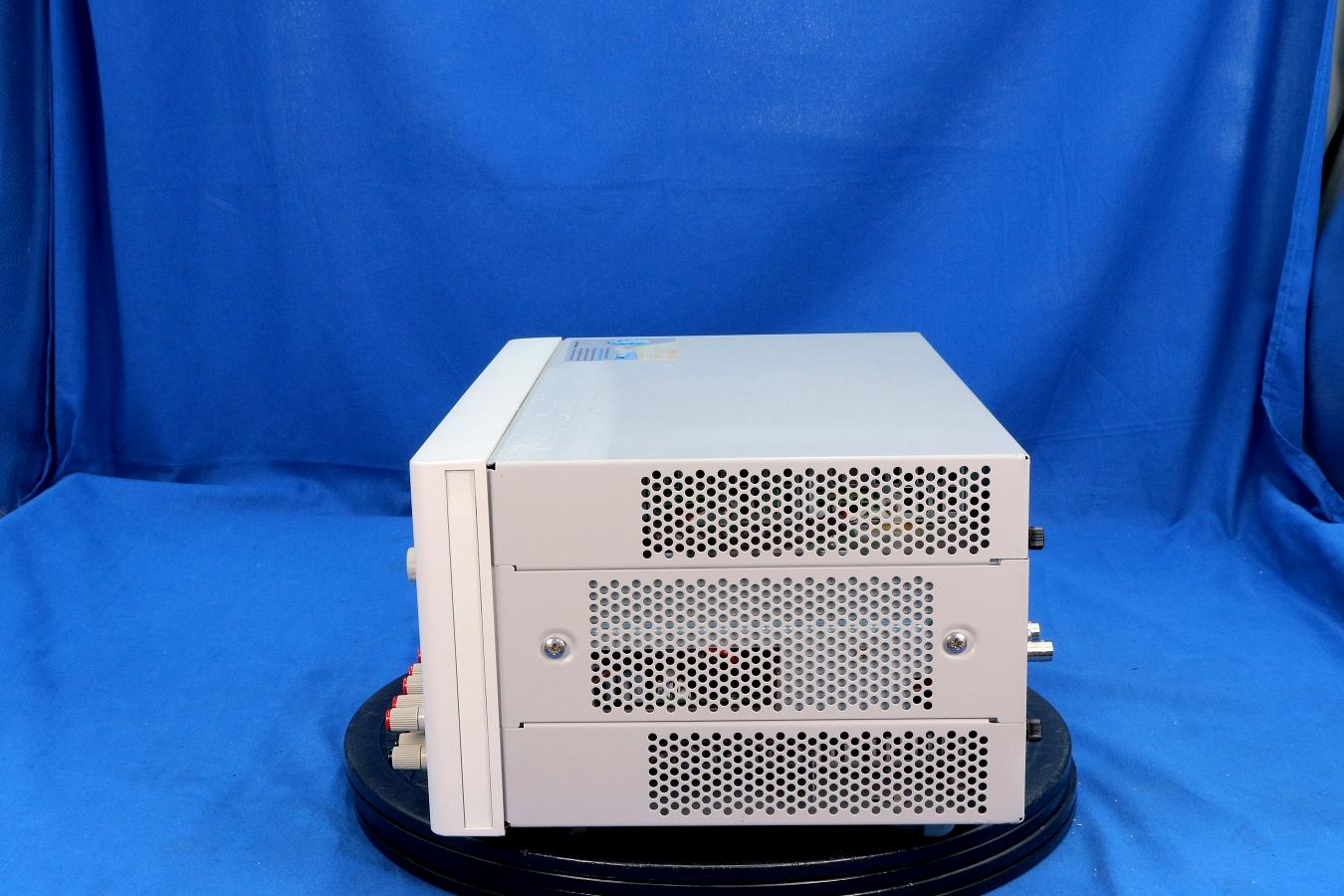

N6705A Agilent Digital Power Analyzer
N6744B: DC Power Module, 35V, 3A, 105W /
N6762A: Precision DC Power Module, 50V, 3A, 100W /
N6752A: High-Performance Autoranging DC Power Module, 50V, 10A, 100W /
Price: CALL
Detail
- 4-slot mainframe holds up to 600 W of total power and up to 4 modules, with 23 DC power modules to choose from (modules ordered separately)
- Output speeds of up to 160 microseconds per step voltage change
- Voltmeter Accuracy: Up to 0.016% + 1.5 mV, up to 18 bits
- Ammeter Accuracy: Up to 0.03% + 15 μA, up to 18 bits
- Arbitrary waveform generator function: Bandwidth up to 4500 Hz, output power up to 300 W
- Scope function digitizes voltage and current at up to 100 kHz, 512 kpts, up to 18 bits
- Data Logger function: Measurement interval from 20 µs to 60 s, max of 500 M readings per data log
- 512 MB of non-volatile data storage for datal log, scope traces, instrument settings
Option
| Option | Description |
|---|---|
| N6744B | DC Power Module, 35V, 3A, 105W |
| N6752A | High-Performance Autoranging DC Power Module, 50V, 10A, 100W |
| N6762A | Precision DC Power Module, 50V, 3A, 100W |
| N6774A | DC power module 300W 35V 8.5A |
| N6775A | DC power module 300W 60V 5A |
