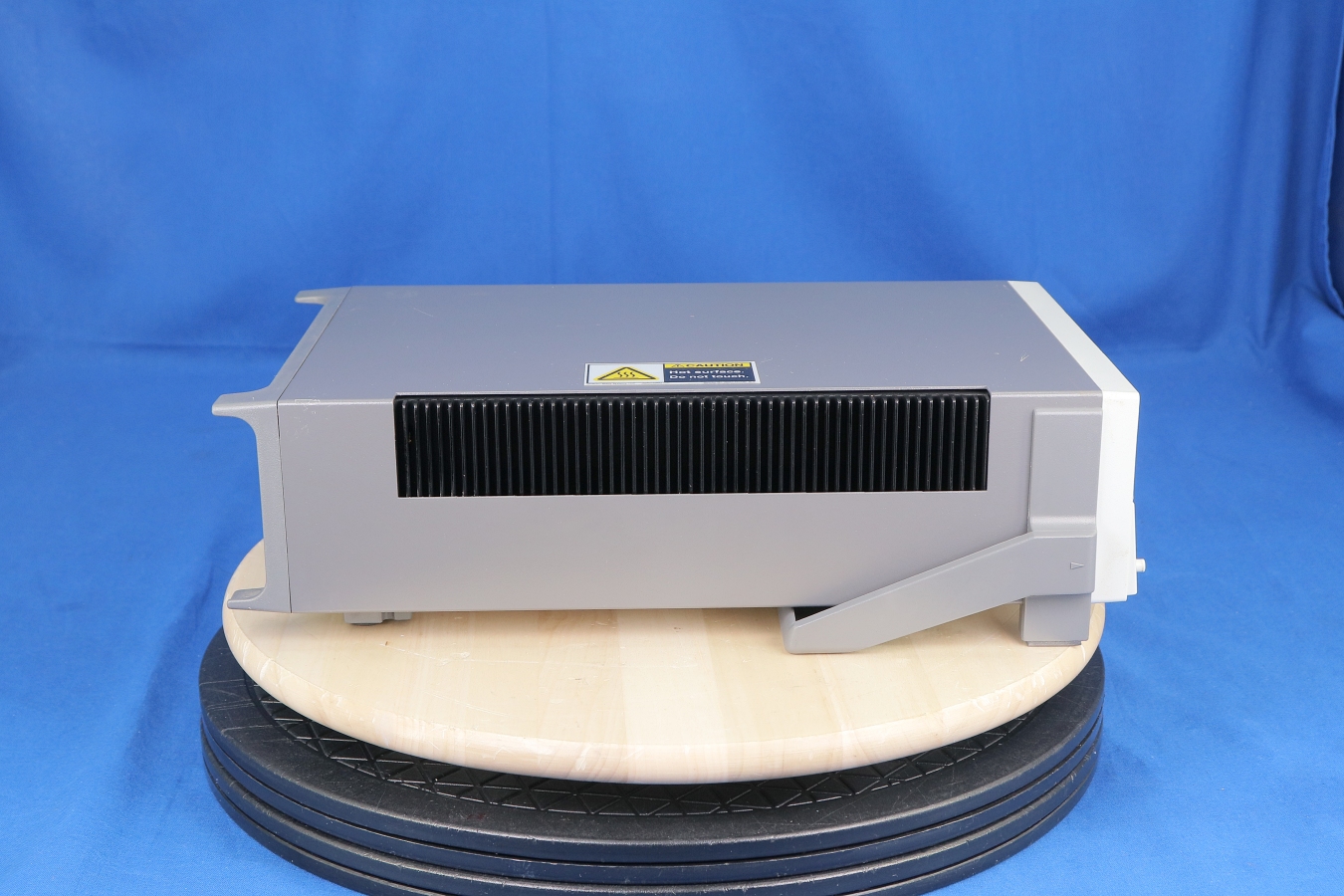

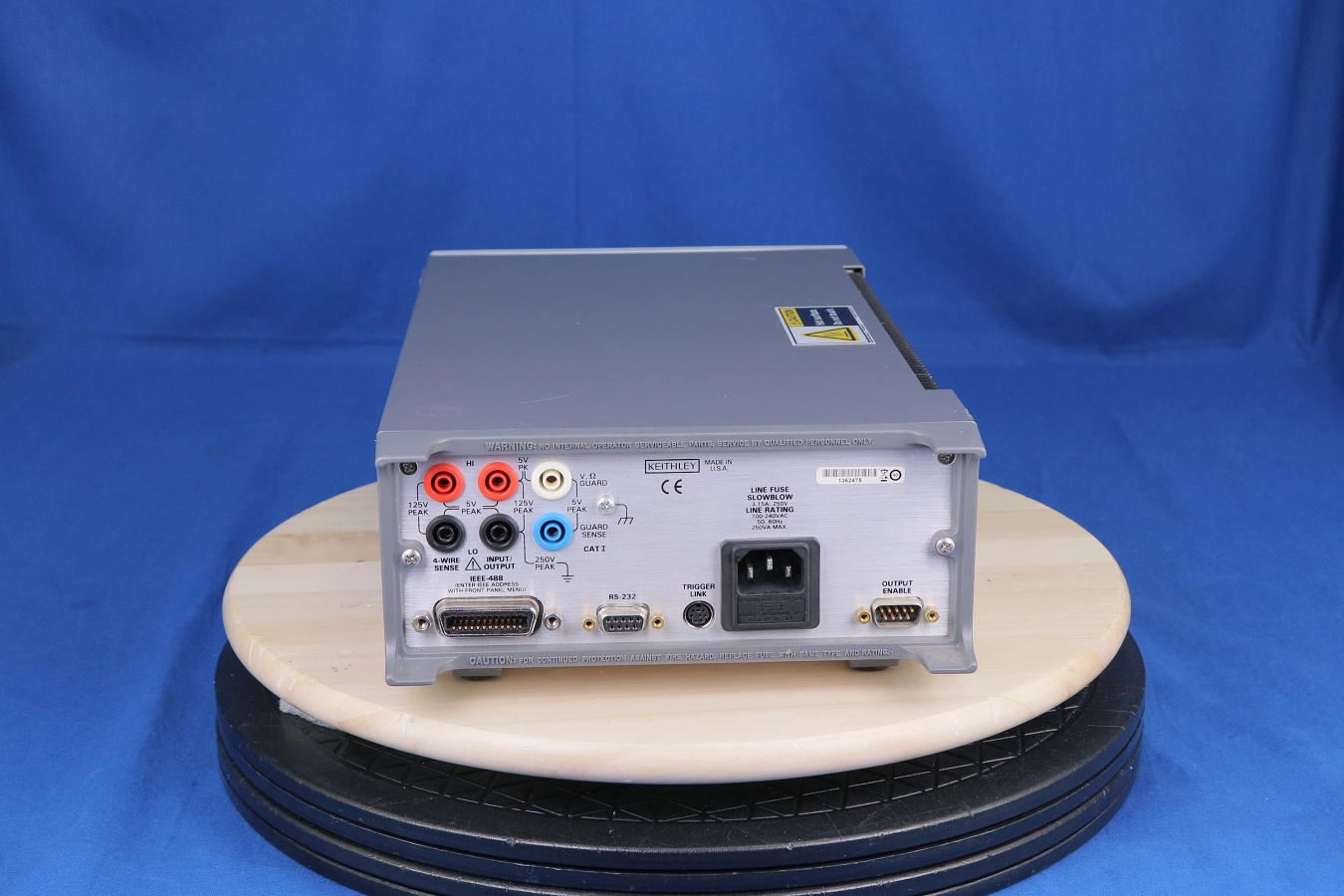

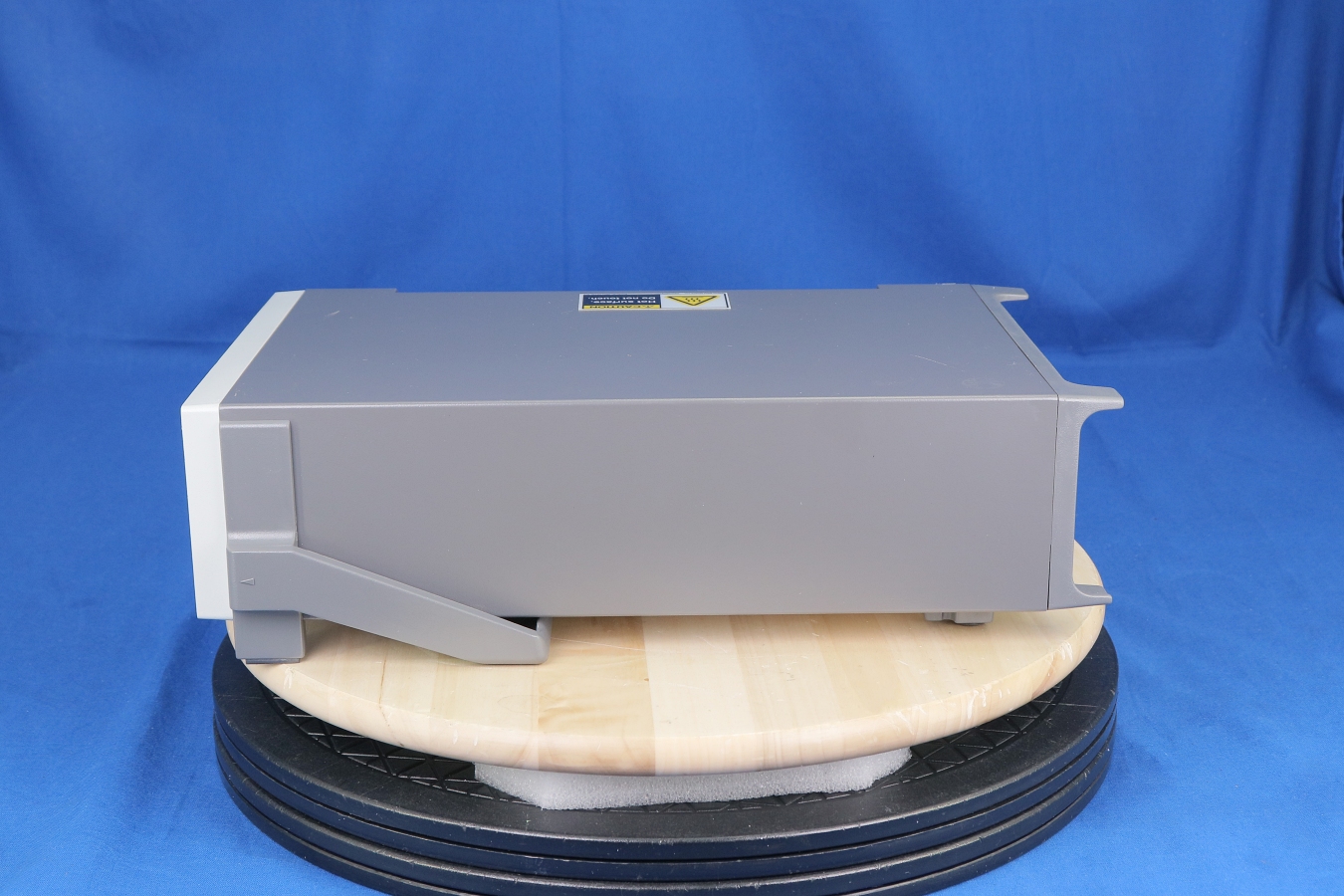

Features Five instruments in one (IV Source, IVR Measure) 100V, 3A, 100W Source and sync (4-quadrant) operation 0.012% basic measure accuracy 6 1/2-digit resolution 2-, 4-, and 6-wire remote V-source and measure sensing 1700 readings/second at 4 1/2 digits via GPIB Pass/Fail comparator for fast sorting/binning Programmable DIO port for automation/handler/prober control Standard SCPI GPIB, RS-232 and Keithley Trigger Link interfaces Applications Discrete semiconductor devices Passive devices Transient suppression devices ICs, RF ICs, MMICs Laser diodes, laser diode modules, LEDs, photodetectors Circuit protection devices (TVS, MOV, Fuses, etc.) Airbags Connectors, switches, relays High brightness LEDs (DC and pulse) Leakage tests Low voltage/resistances tests LIV tests IDDQ tests I-V characterization tests Isolation and trace resistance tests Temperature coefficient tests Forward voltage, reverse breakdown, leakage current tests DC parametric test DC power source tests HIPOT tests Photovoltaic cell efficiency (source and sync) tests Dielectric withstanding tests The Keithley 2425 100V/3A/100W SourceMeter SMU Instrument is designed specifically for test applications that demand tightly coupled sourcing and measurement. The 2425-C provides precision voltage and current sourcing as well as measurement capabilities; it is both a highly stable DC power source and a true instrument-grade 6 1/2-digit multimeter. The power source characteristics include low noise, precision, and readback. The multimeter capabilities include high repeatability and low noise. The result is a compact, single-channel, DC parametric tester. In operation, this instrument can act as a voltage source, a current source, a voltage meter, a current meter, and an ohmmeter. Manufacturers of components and modules for the communications, semiconductor, computer, automotive, and medical industries will find the 2425-C invaluable for a wide range of characterization and production test applications.
