Output ratings (4 outputs)
- Low-range volts, amps: 0 to 20 V, 0 to 2 A
- High range volts, amps: 0 to 50 V, 0 to 0.8 A
Programming accuracy at 25°C ±5°C (4 outputs each)
- Voltage: 0.06% + 50 mV
- Current: 0.16% + 20 mA
Ripple & noise (20 Hz to 20 MHz) 4 outputs
- Voltage rms: 500 µV
- Peak-to-peak: 3 mV
- Current rms: 1 mA
This product will be discontinued on July 1, 2016. The recommended substitute solution is N6700B with 4 x N6751A.
Keysight high performance DC power supplies offer spec and accuracy for test optimization. The precision multiple output, 40W - 105W GPIB 6621A - 6624A and 6627A provide fast, low-noise outputs; dual-range, precision low current measurement; built-in measurements and advanced programmable features; and protection features to ensure DUT safety.

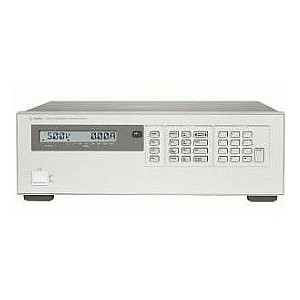

The Keysight 40W, four-output 6627A is a versatile solution to help improve system accuracy and reduce test time in a 3U high package.
