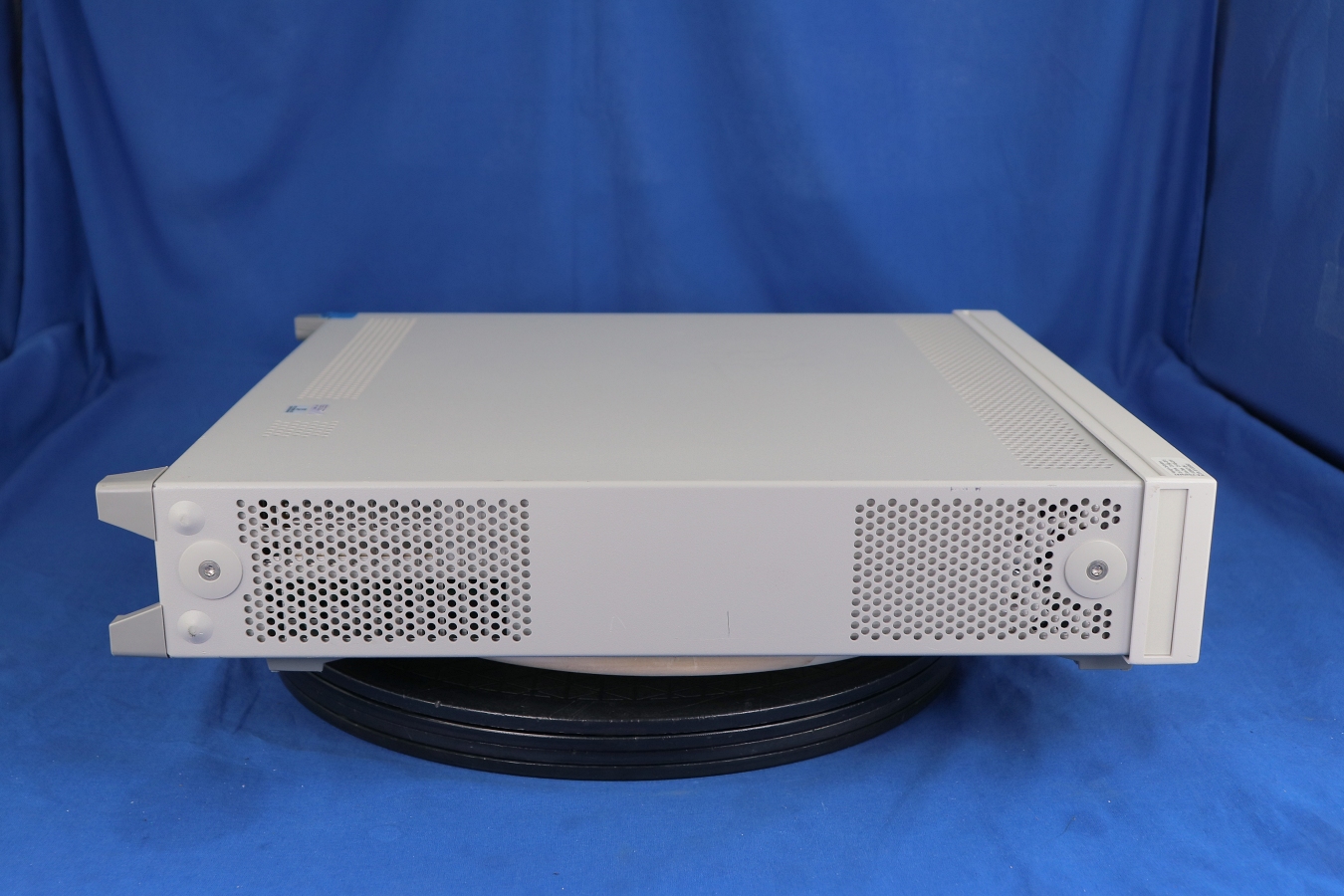

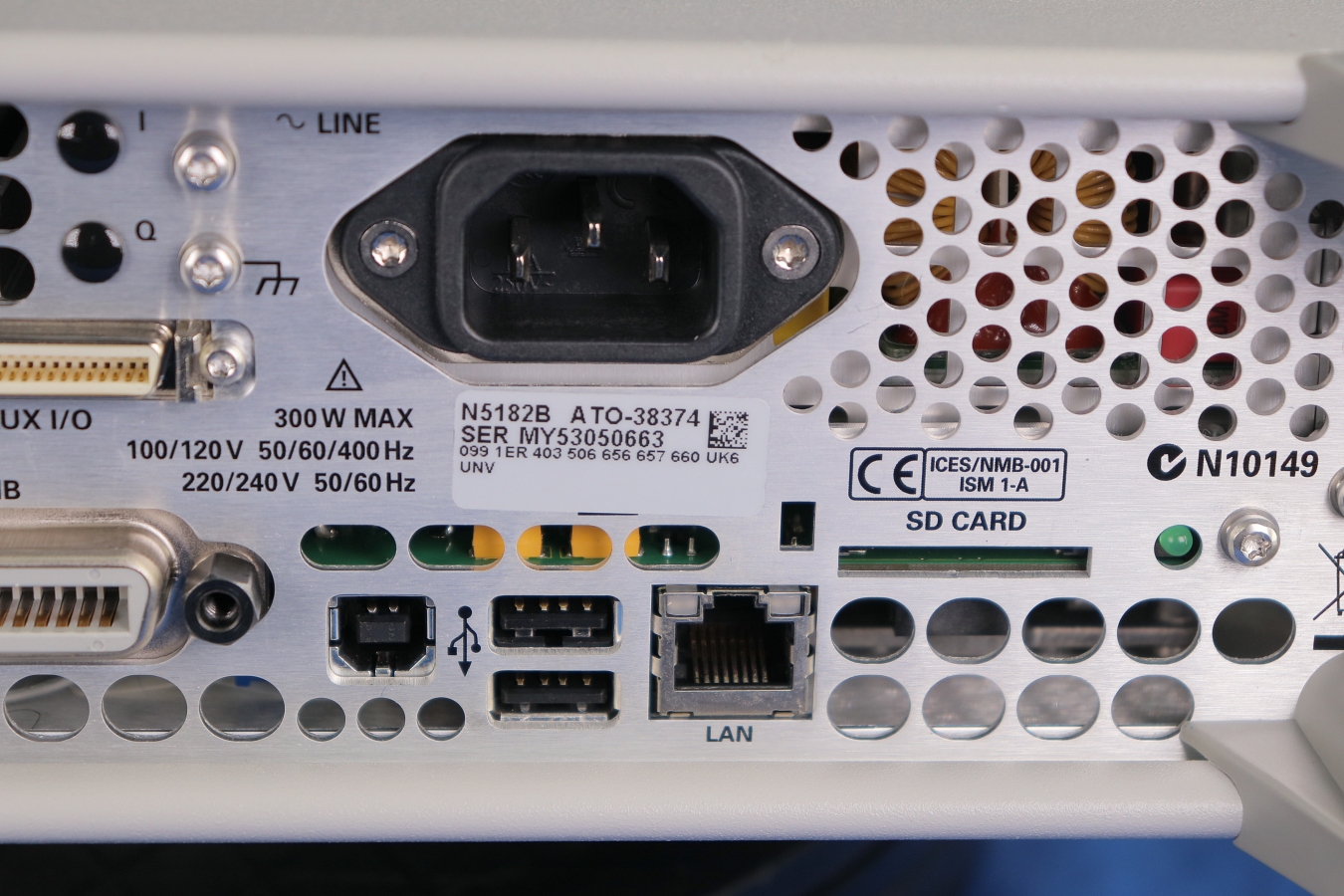

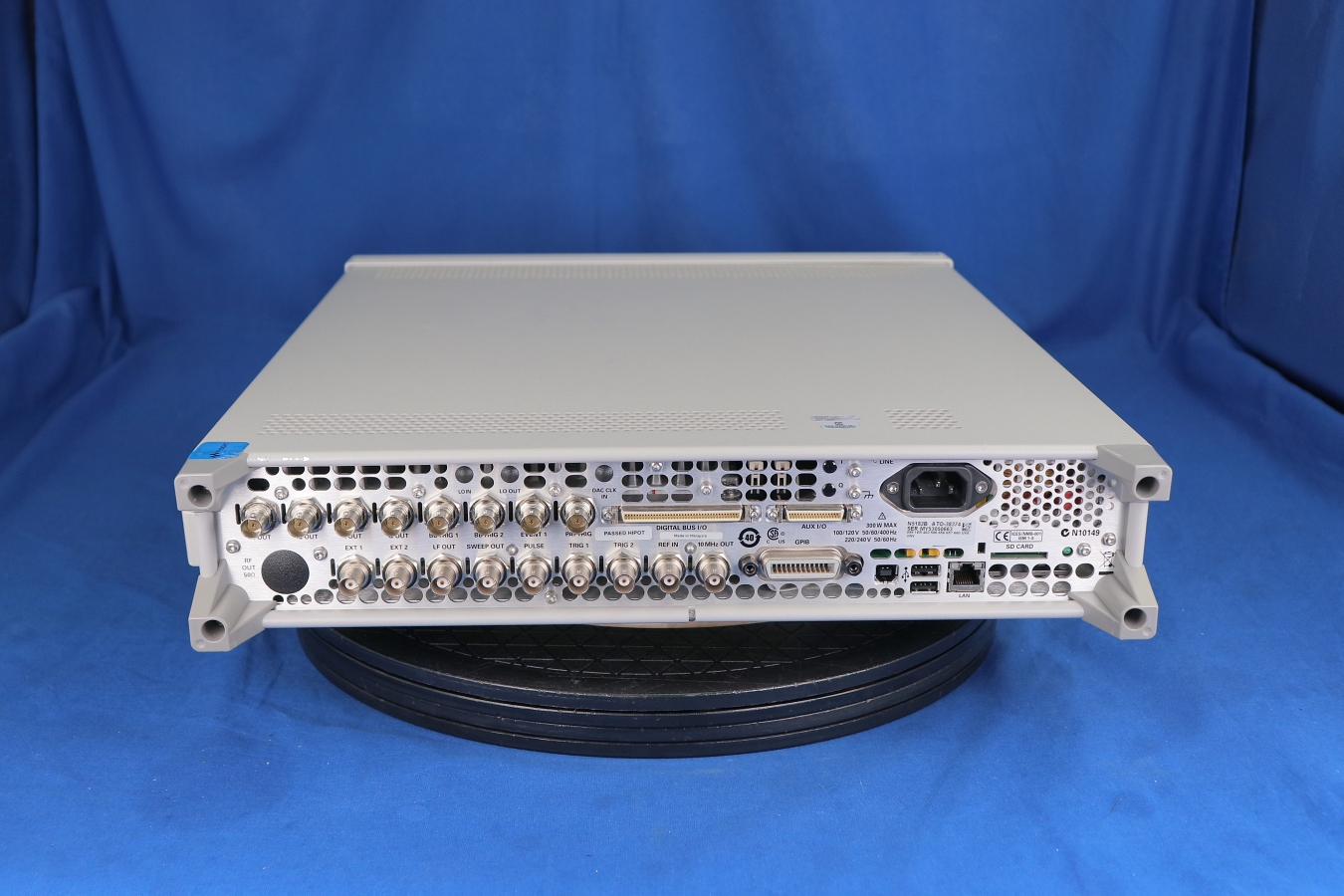

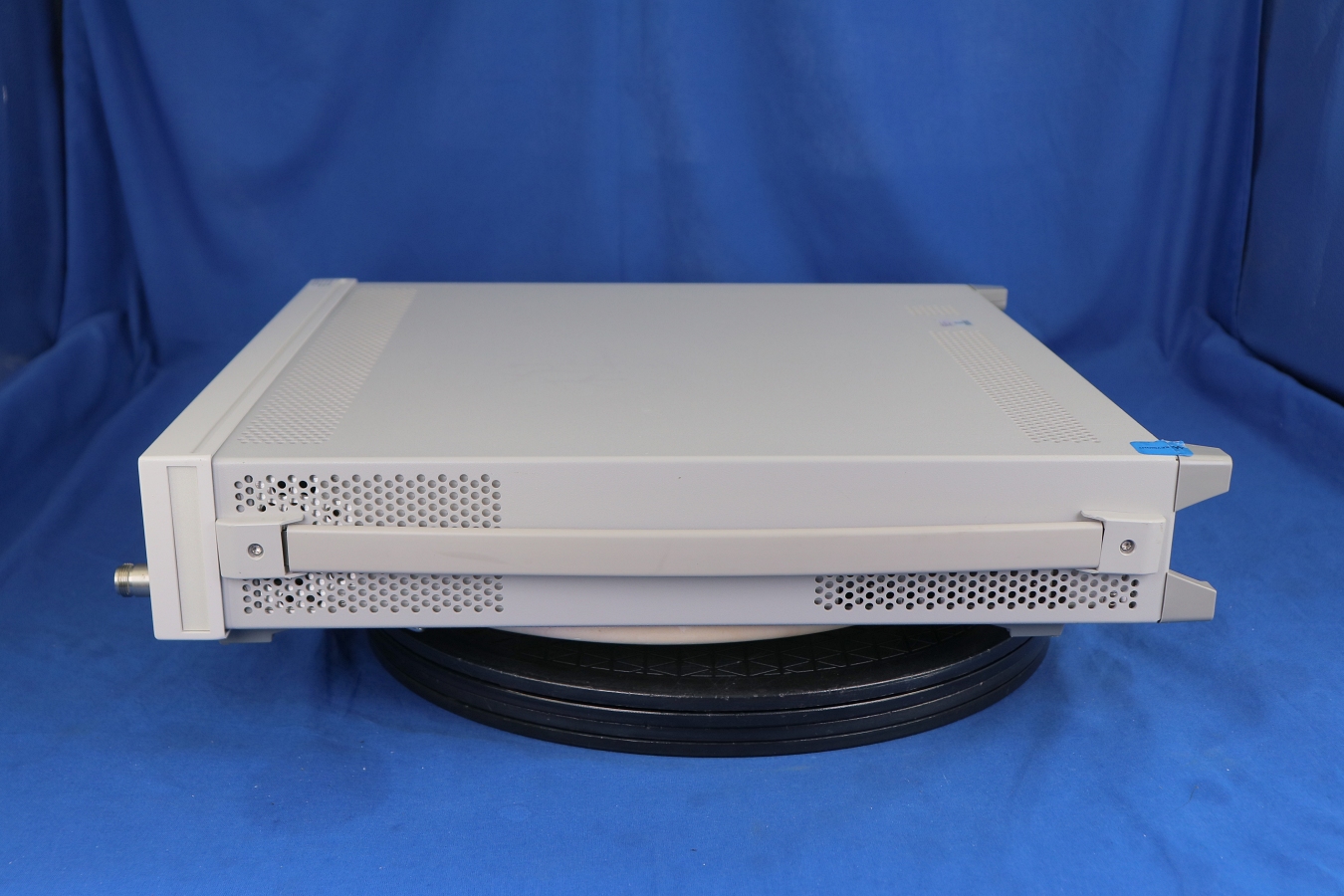

N5182B Agilent Signal Generator
099: Expanded license key upgradability /
1ER: Flexible reference input (1-50 MHz) /
403: Calibrated AWGN /
506: Frequency Range 9 kHz to 6 GHz /
656: ARB baseband generator 80MHz RF Bandwidth /
657: Upgrade baseband generator to 160 MHz RF bandwidth /
660: Upgrade baseband generator with real time capability /
UNV: Enhanced dynamic range /
N7609B-3FP: Connect to N5182 MXG, N5172 EXG /
N7609B-EFP: Basic single satellite waveforms /
N7609B-PFP: Advanced GPS real-time and scenario generator /
N7609B-SFP: Advanced GLONASS real-time /
N7617B-3FP: WLAN - Connect to N5182A signal generator /
N7617B-EFP: Basic 802.11a/b/g/j/p WLAN /
N7617B-FFP: Basic 802.11n WLAN /
N7617B-GFP: Basic 802.11ac WLAN /
N7617B-HFP: Update to 802.11a/b/g/i/p and 802.11n /
N7617B-QFP: Advanced 802.11a/b/g/j/p WLAN /
N7617B-RFP: Advanced 802.11n WLAN /
N7617B-SFP: Advanced 802.11n WLAN (D6.0 July 2008) /
N7617B-TFP: Advanced 802.11ac WLAN /
N7624B-3FP: Connect to N5182A signal generator /
N7624B-HFP: Basic LTE (3GPP Rel8 Sep 08) /
N7624B-SFP: Advanced LTE (3GPP Rel8 Sep 08) /
Price: CALL
Detail
Option
| Option | Description |
|---|---|
| 009 | Expanded license key upgradability |
| 022 | Upgrade baseband generator memory from 32 Msa to 512 Msa |
| 023 | Upgrade baseband generator memory from 32 Msa to 1 Gsa |
| 099 | Expanded license key upgradability |
| 1EA | High output power |
| 1ER | Flexible reference input (1-50 MHz) |
| 250 | Waveform license 50-pack1 |
| 403 | Calibrated AWGN |
| 506 | Frequency Range 9 kHz to 6 GHz |
| 656 | ARB baseband generator 80MHz RF Bandwidth |
| 657 | Upgrade baseband generator to 160 MHz RF bandwidth |
| 660 | Upgrade baseband generator with real time capability |
| EFP | |
| N7602B-3FP | Signal Studio for Pulse Building |
| N7609B-3FP | Connect to N5182 MXG, N5172 EXG |
| N7609B-EFP | Basic single satellite waveforms |
| N7609B-PFP | Advanced GPS real-time and scenario generator |
| N7609B-SFP | Advanced GLONASS real-time |
| N7617B-3FP | WLAN - Connect to N5182A signal generator |
| N7617B-EFP | Basic 802.11a/b/g/j/p WLAN |
| N7617B-FFP | Basic 802.11n WLAN |
| N7617B-GFP | Basic 802.11ac WLAN |
| N7617B-HFP | Update to 802.11a/b/g/i/p and 802.11n |
| N7617B-QFP | Advanced 802.11a/b/g/j/p WLAN |
| N7617B-RFP | Advanced 802.11n WLAN |
| N7617B-SFP | Advanced 802.11n WLAN (D6.0 July 2008) |
| N7617B-TFP | Advanced 802.11ac WLAN |
| N7624B-3FP | Connect to N5182A signal generator |
| N7624B-HFP | Basic LTE (3GPP Rel8 Sep 08) |
| N7624B-SFP | Advanced LTE (3GPP Rel8 Sep 08) |
| N7624EMBC-T | LTE/LTE-Advanced/LTE-Pro FDD |
| UNV | Enhanced dynamic range |
