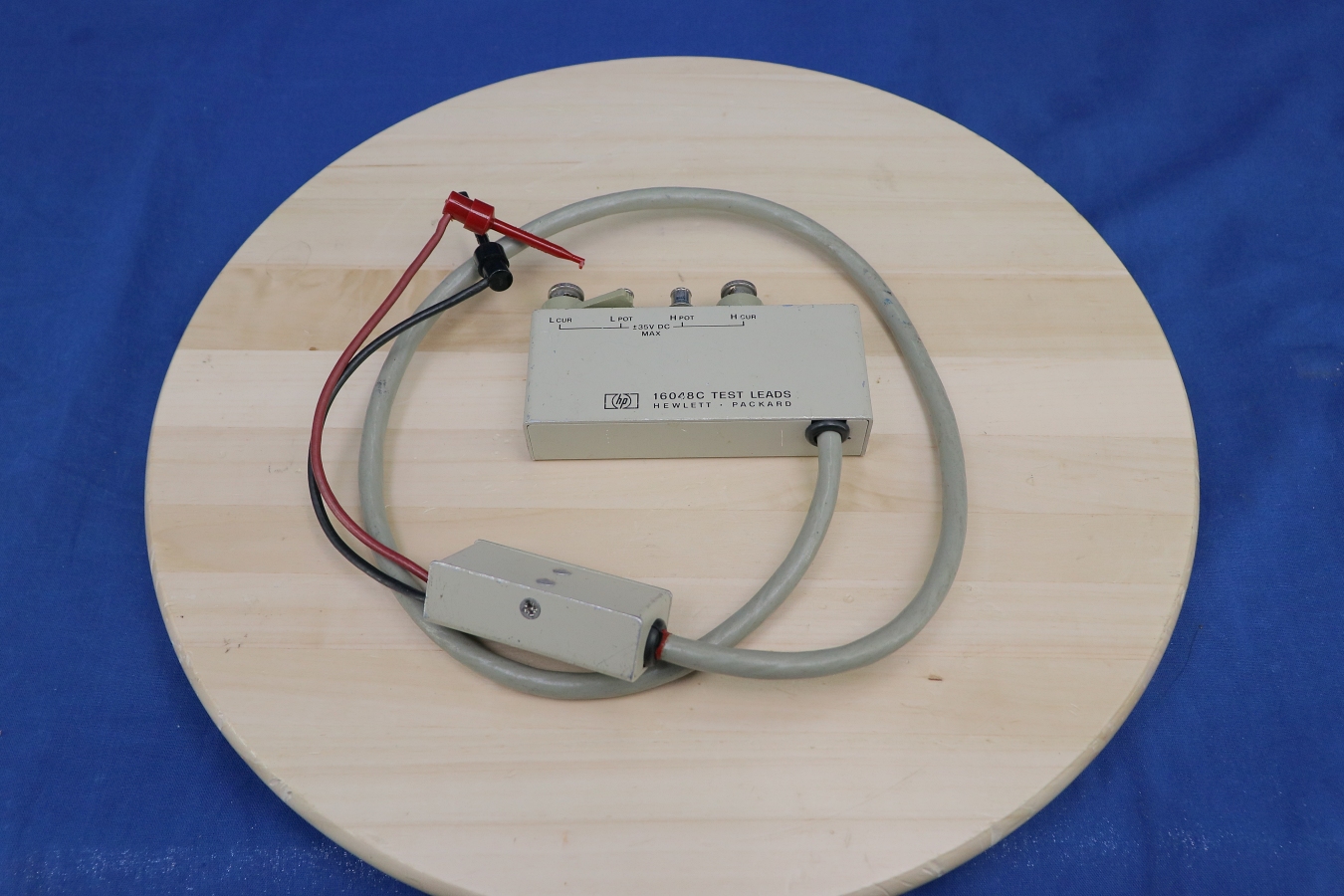

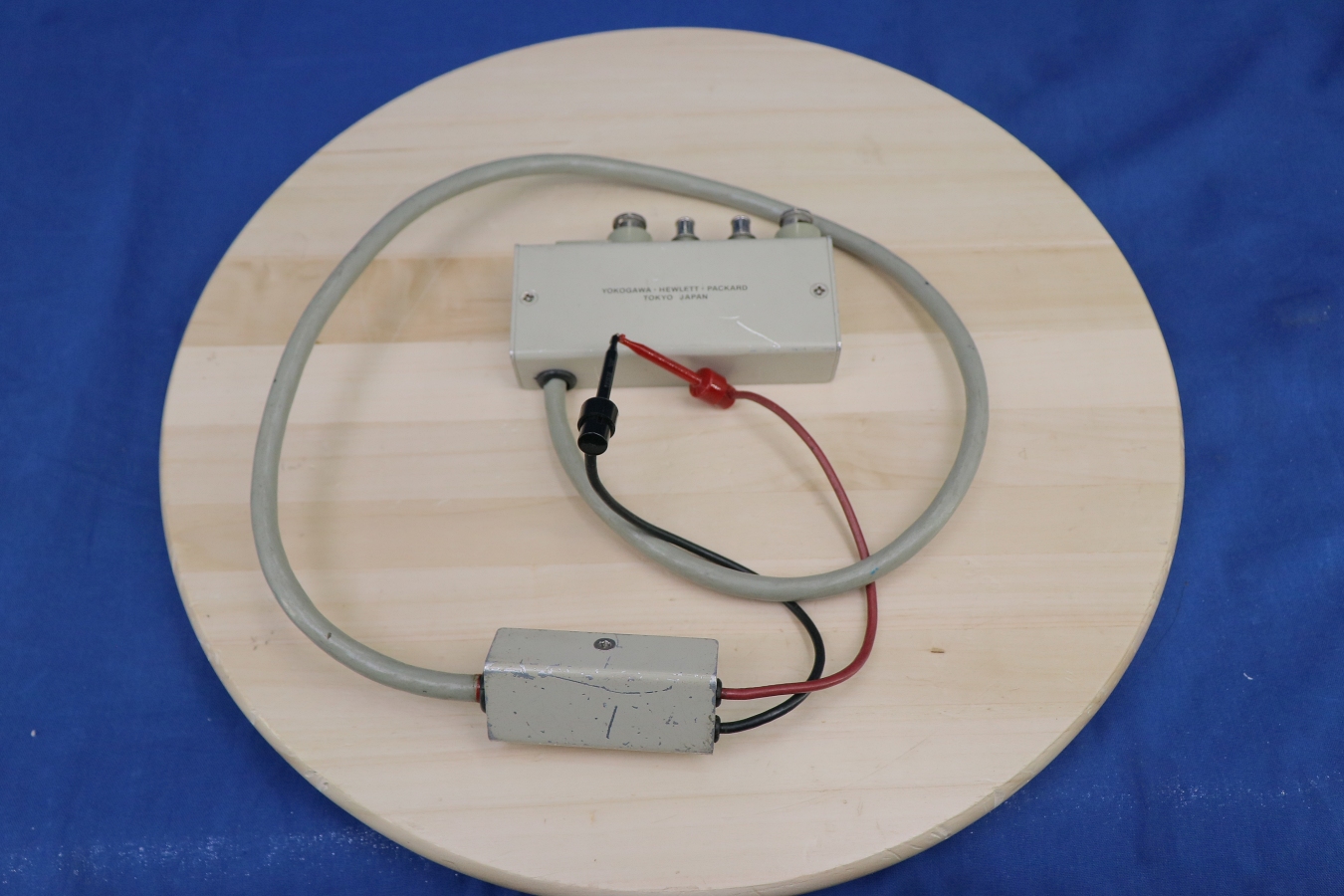

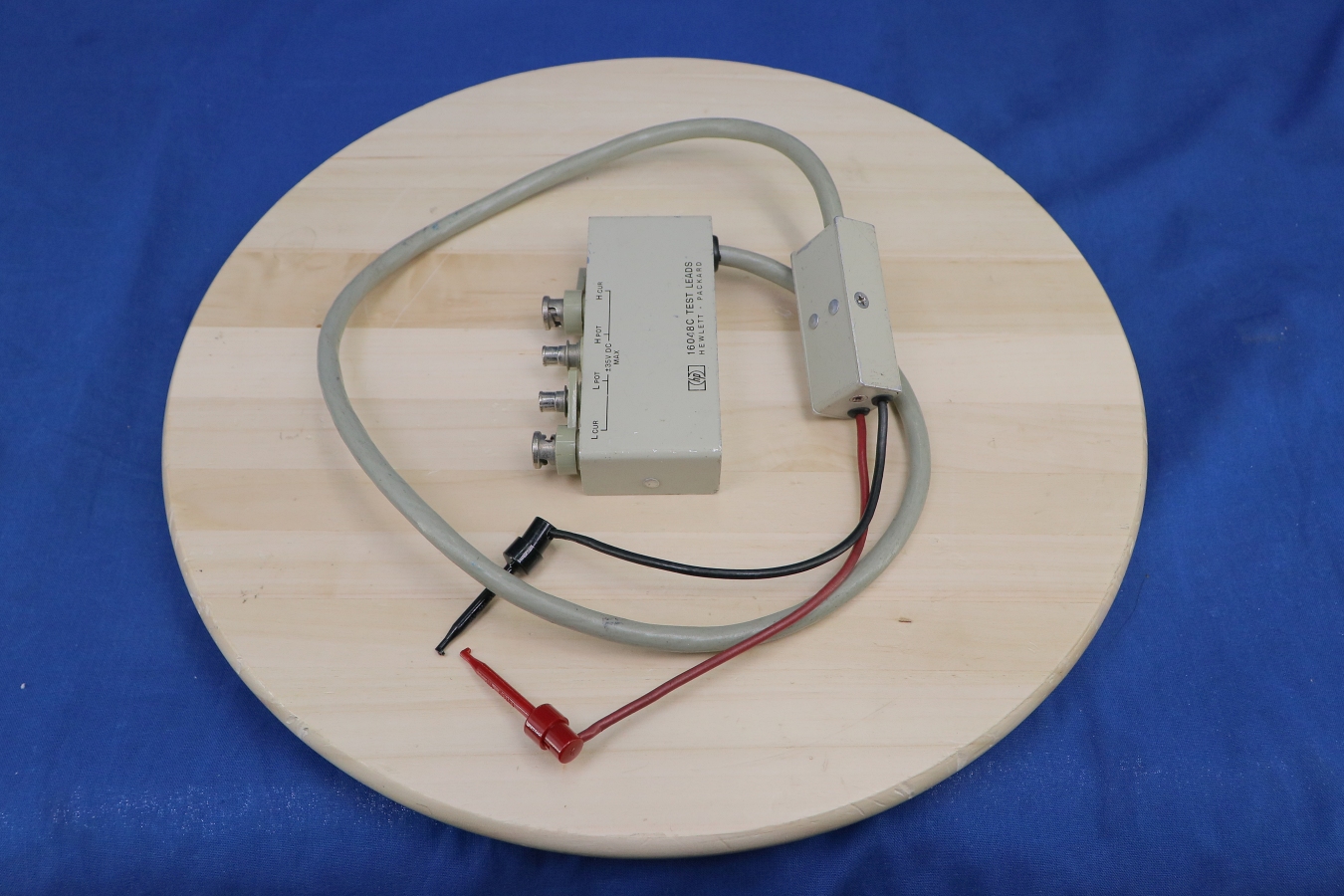

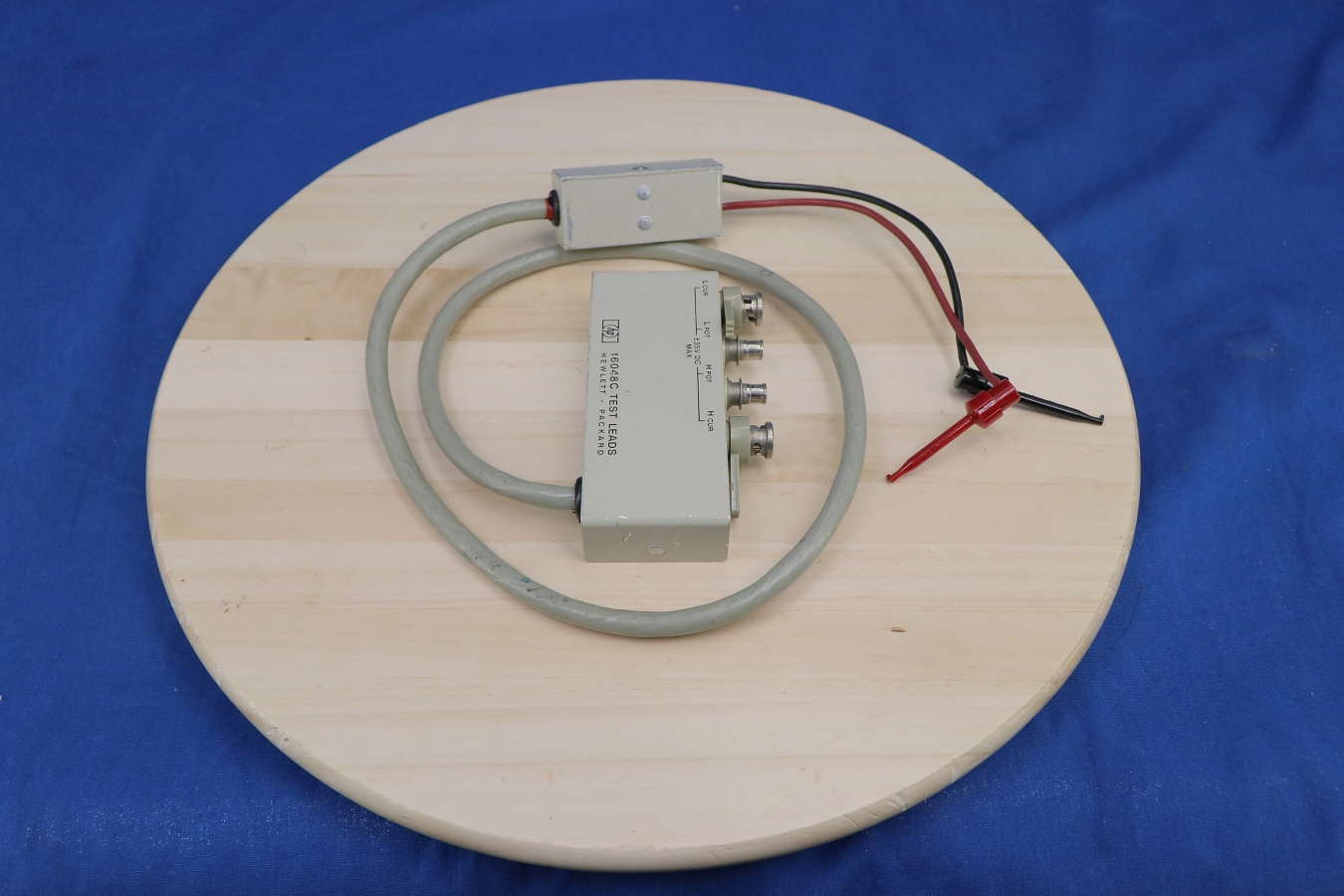

Additional Features: Test Fixture Probe: Dual alligator clip type DC Bias: ±35V maximum Cable Length: Approximately 1m (39.4 inches)  Applicable Measurement Range: Capacitance> 1000 pF, Inductance > 100 µH  Frequency Range: 100 kHz maximum The Model 16048C Test Fixture is designed for use with the following instruments: Model 4192A LF Impedance Analyzer  Model 4274A Multi-Frequency LCR Meter  Model 4275A Multi-Frequency LCR Meter The Agilent 16048C consists of a direct attachment, 4-terminal pair type fixture which is equipped with two large, insulated alligator clips. These alligator clips make it possible to measure odd-shaped components that cannot be measured with conventional test fixtures.
