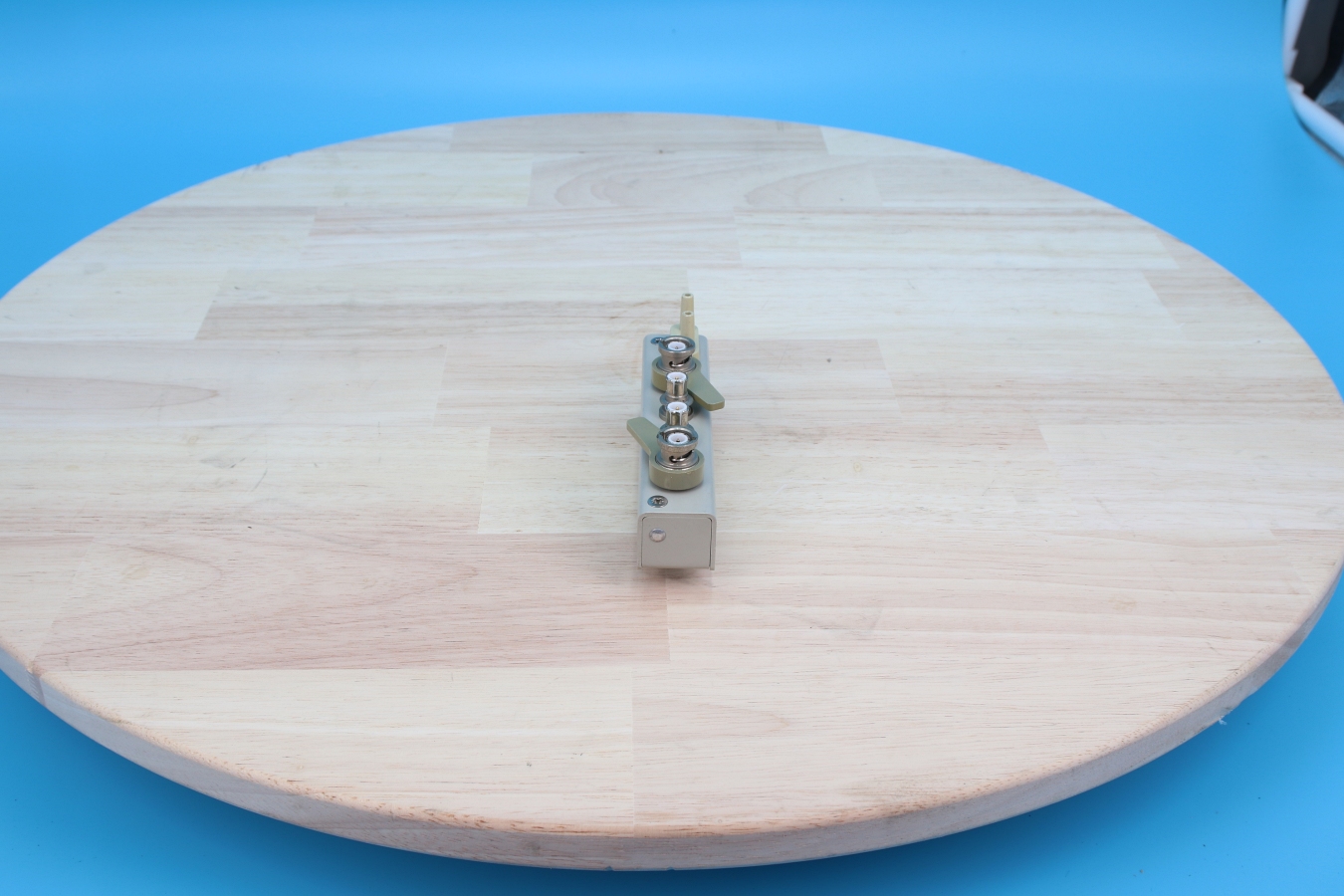

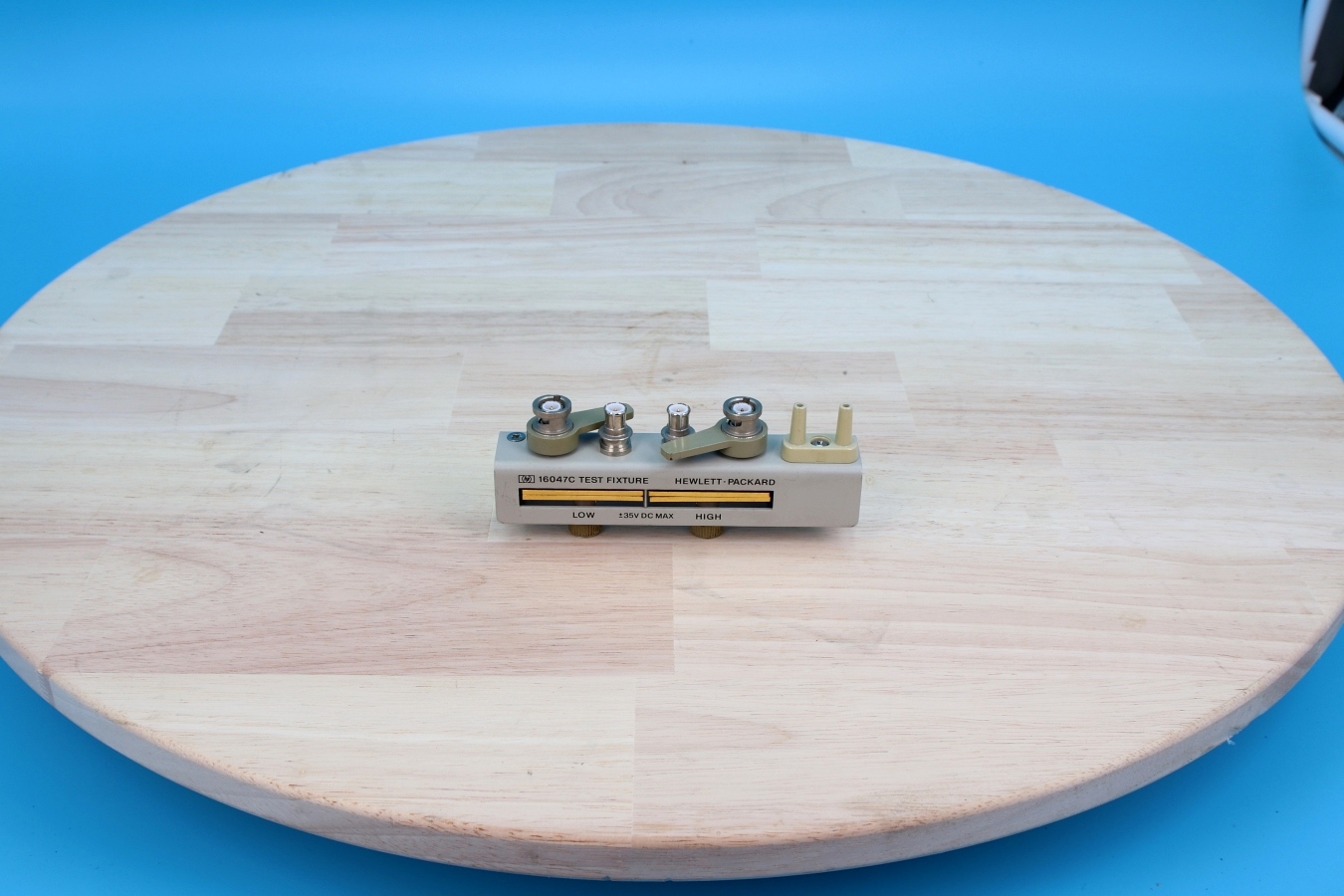

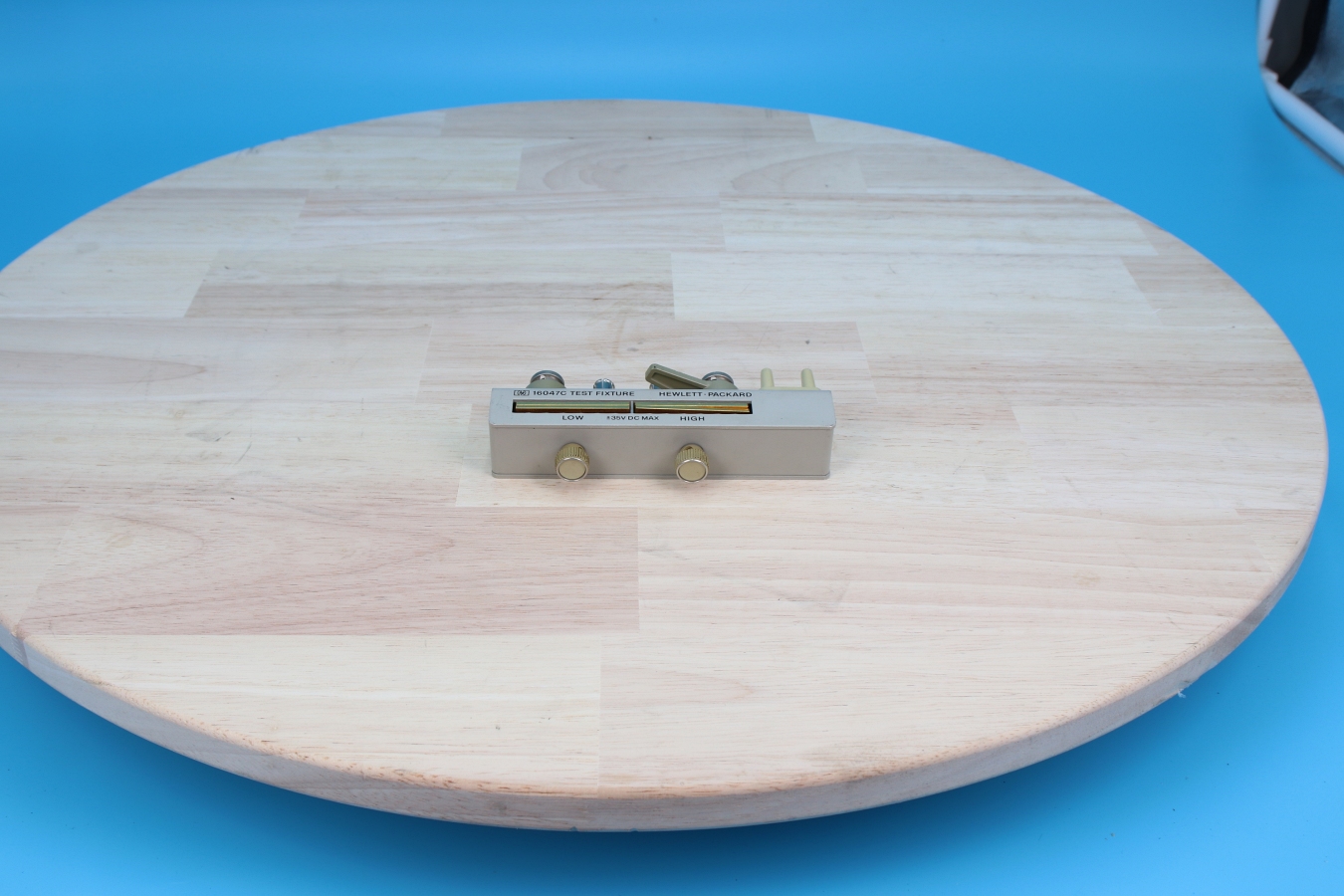

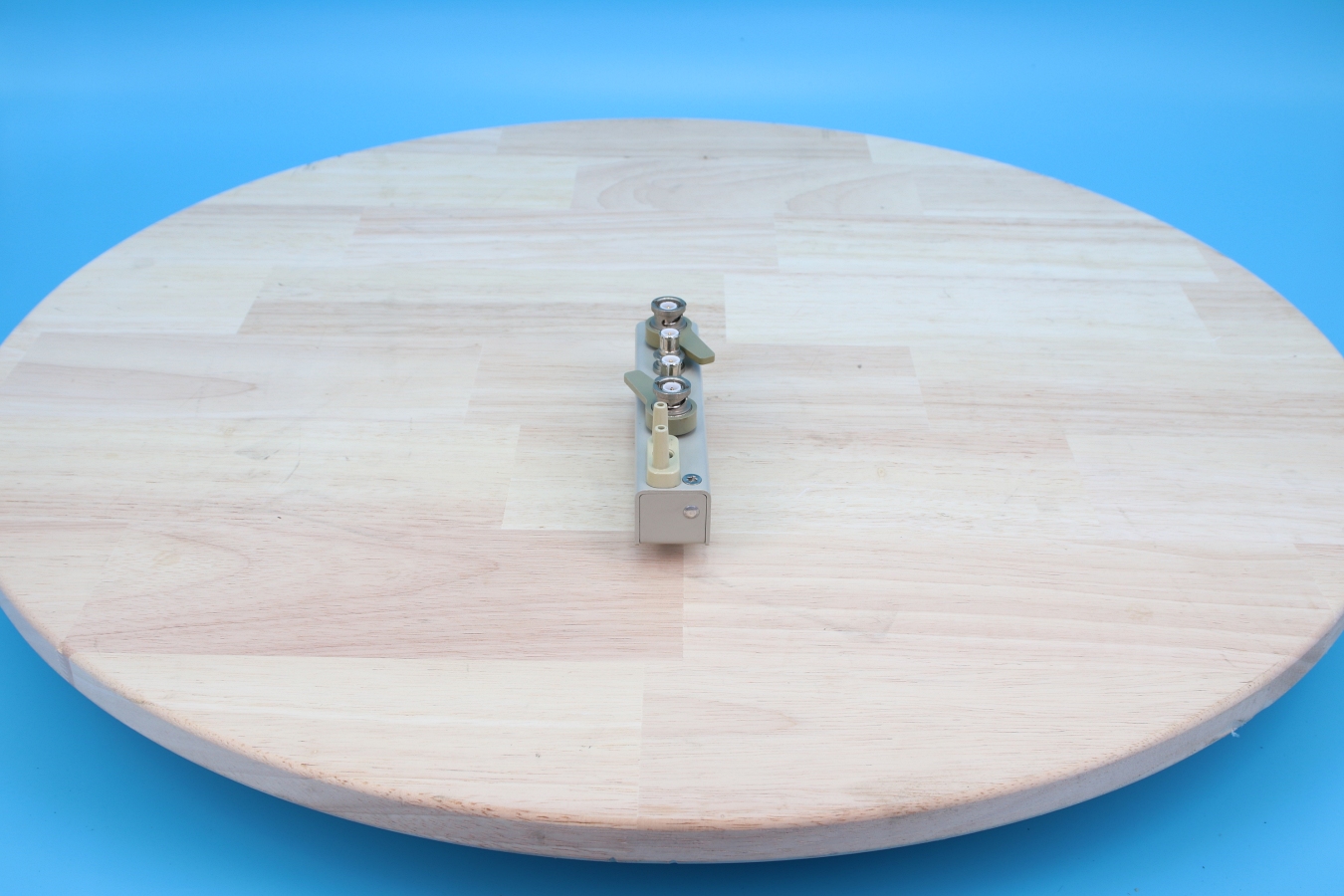

16047C HP Fixture
Price: CALL
Detail
Frequency: DC to 40 MHz
Maximum Voltage: +/-35V peak max (AC+DC)
Operating Temperature: 0 to 55degreesC
Terminal Connection: 4 terminal-pair, BNC
DUT Connection: 2 terminal
Dimensions (approx.): 128 (W) x 26 (H) x 35 (D) [mm]
Weight (approx.): 165g
Measurement Instrument: 4192A, 4194A (Impedance Mode), 4263A/B, 4268A, 4278A, 4279A, 4284A, 4285A, 4294A
