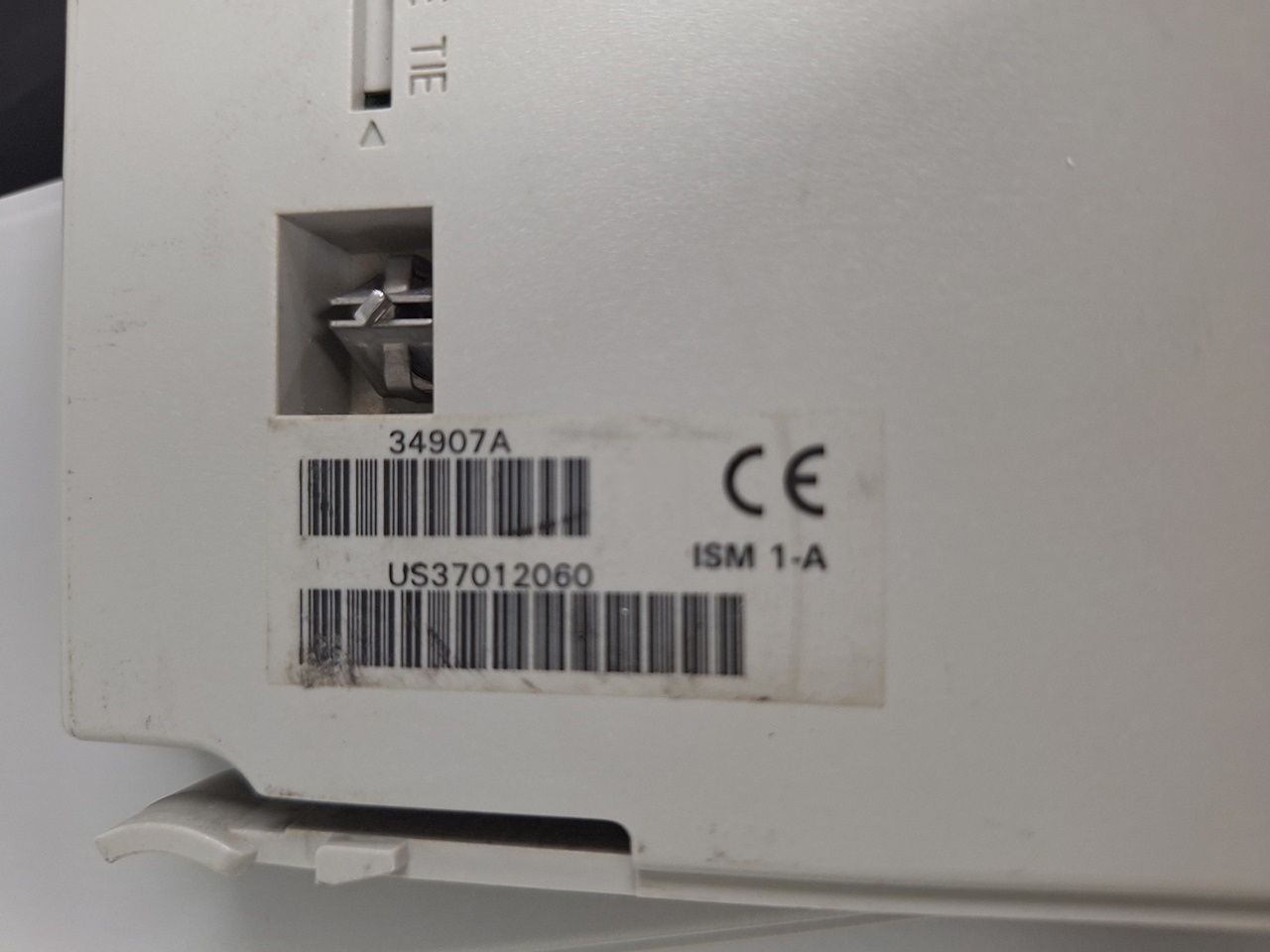

34907A HP Data Logger
Additional Features:
Multifunction Module
16 bits of digital input and output
100 kHz totalizer input
Two ±12V analog outputs

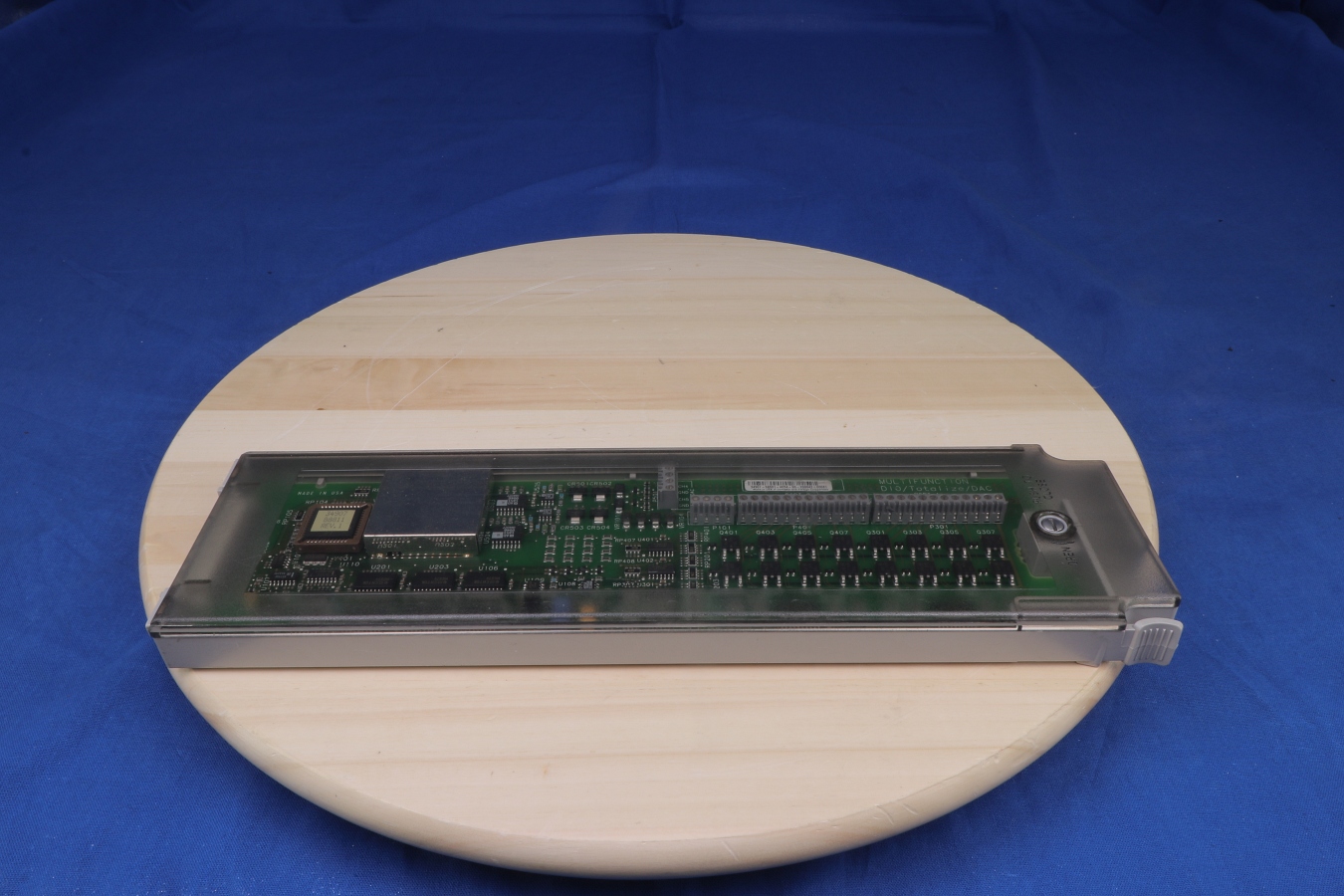

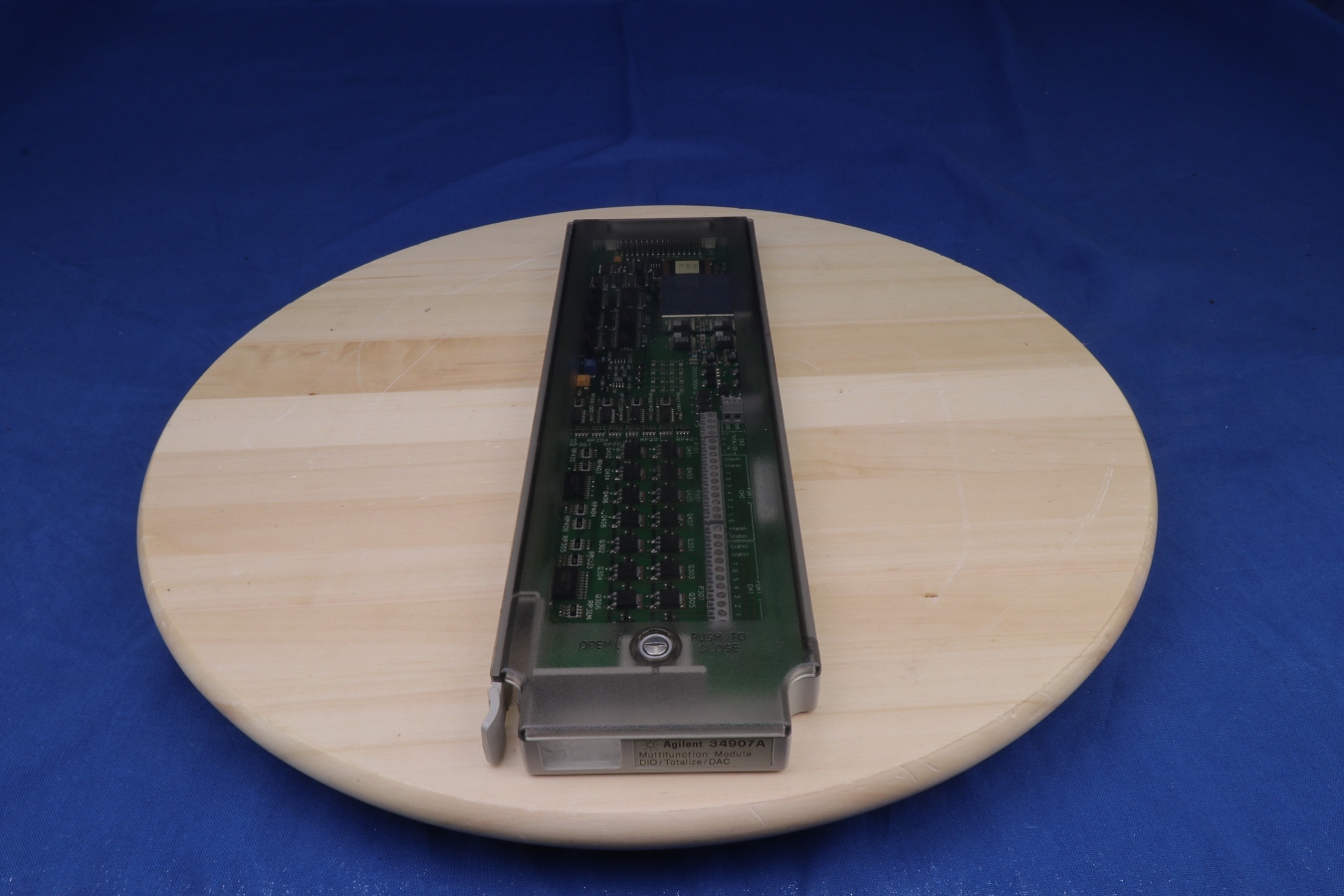

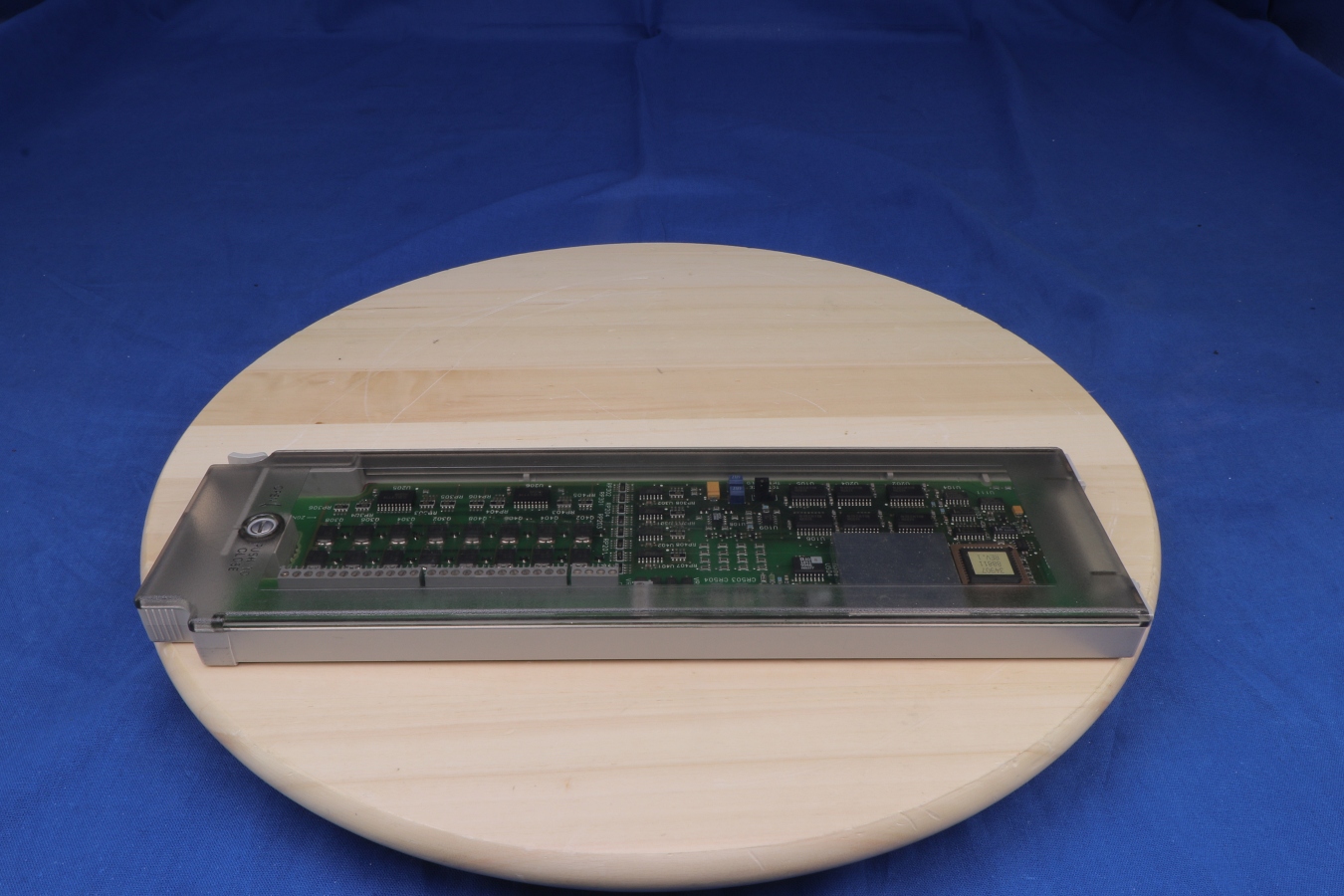

The Agilent 34907A allows great flexibility for a variety of sense and control applications. The Agilent 34907A combines two 8-bit ports of digital input and output, a 100 kHz gated totalizer, and two ±12V analog outputs - all on a single earth-referenced module. The digital inputs and totalizer input may be included in a scan. Alarm limits for the digital and event counter inputs are evaluated continuously, capturing and logging alarm conditions even between scans.
Digital Input/Ouput
Use-the digital inputs to sense limit switch and digital bus status. There are no complex handshake modes; reads and writes are initiated either from the front panel or the bus.
Digital Input/Output
Port 1, 2: 8 bit, input or output, nonisolated
Vin(L): < 0.8V (TTL)
Vin(H): > 2.0V (TTL)
Vout(L): < 0.8V @ Iout = -400 mA
Vout(H): > 2.4V @ Iout = 1 mA
Vin(H) max: < 42V with external open drain pull-up
Alarming: Maskable pattern match or state change
Speed: 4 ms (max) alarm sampling
Latency: 5 ms (typical) to 34970A alarm output
Read/Write: Speed 95/s
Totalize Input
Totalize Input
Max Count: 226 - 1
Totalize Input: 100 kHz (max) Rising or falling edge, programmable
Signal level: 1 Vp-p (min) 42 Vpk (max)
Threshold: 0V or TTL, jumper selectable
Gate Input: TTL-Hi, TTL-Lo, or none
Count Reset: Manual or Read + Reset
Read Speed: 85/s
Analog Output
Analog Output
DAC 1, 2: ± 12V, nonisolated
Resolution: 1 mV
IOUT: 10 mA max
Settling time: 1 ms to 0.01% of output
Accuracy: ±(% of output + mV)
1 year ±5°C: 0.25% + 20 mV
Temp. Coefficient: ± ( 0.015% + 1 mV)/°C
