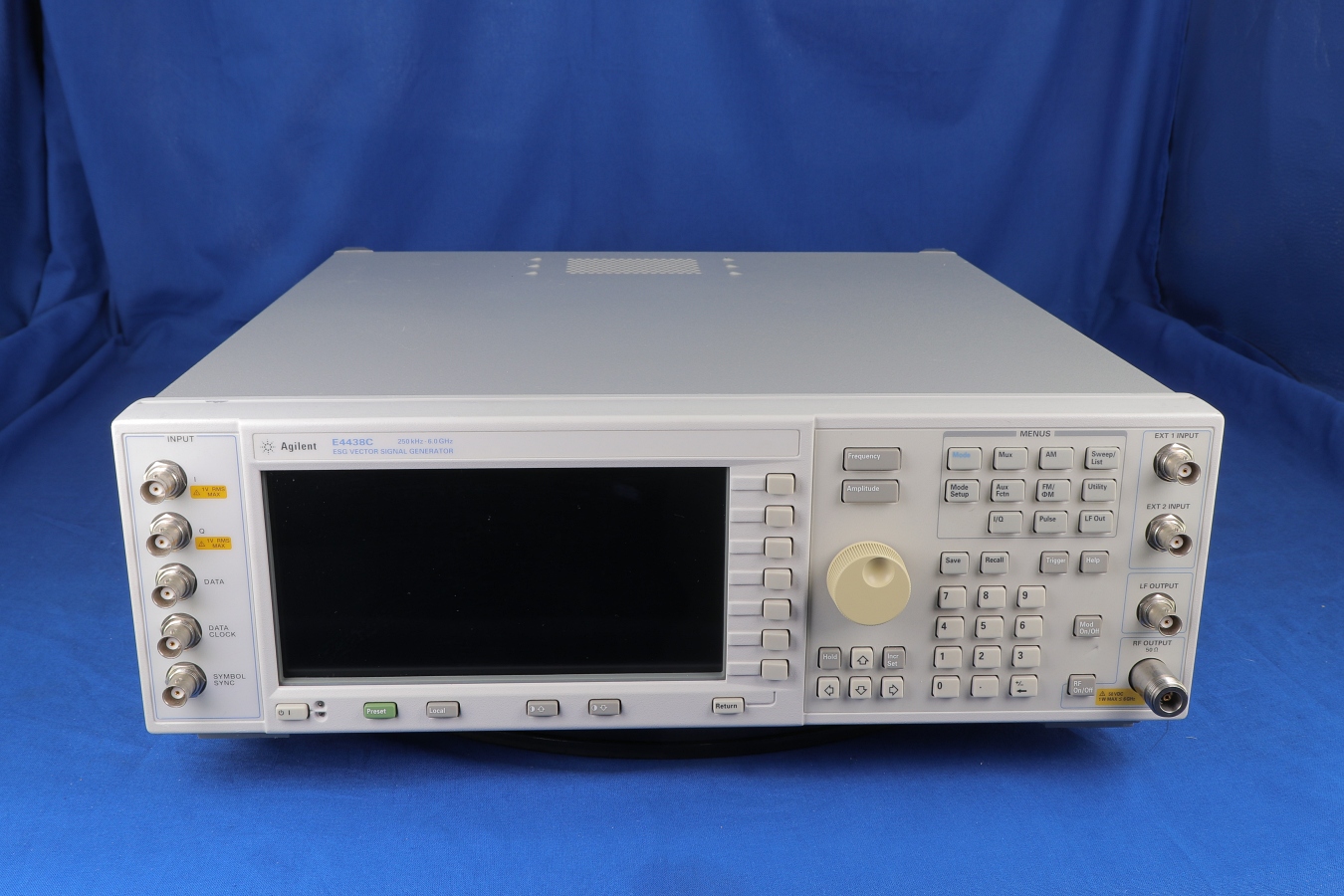

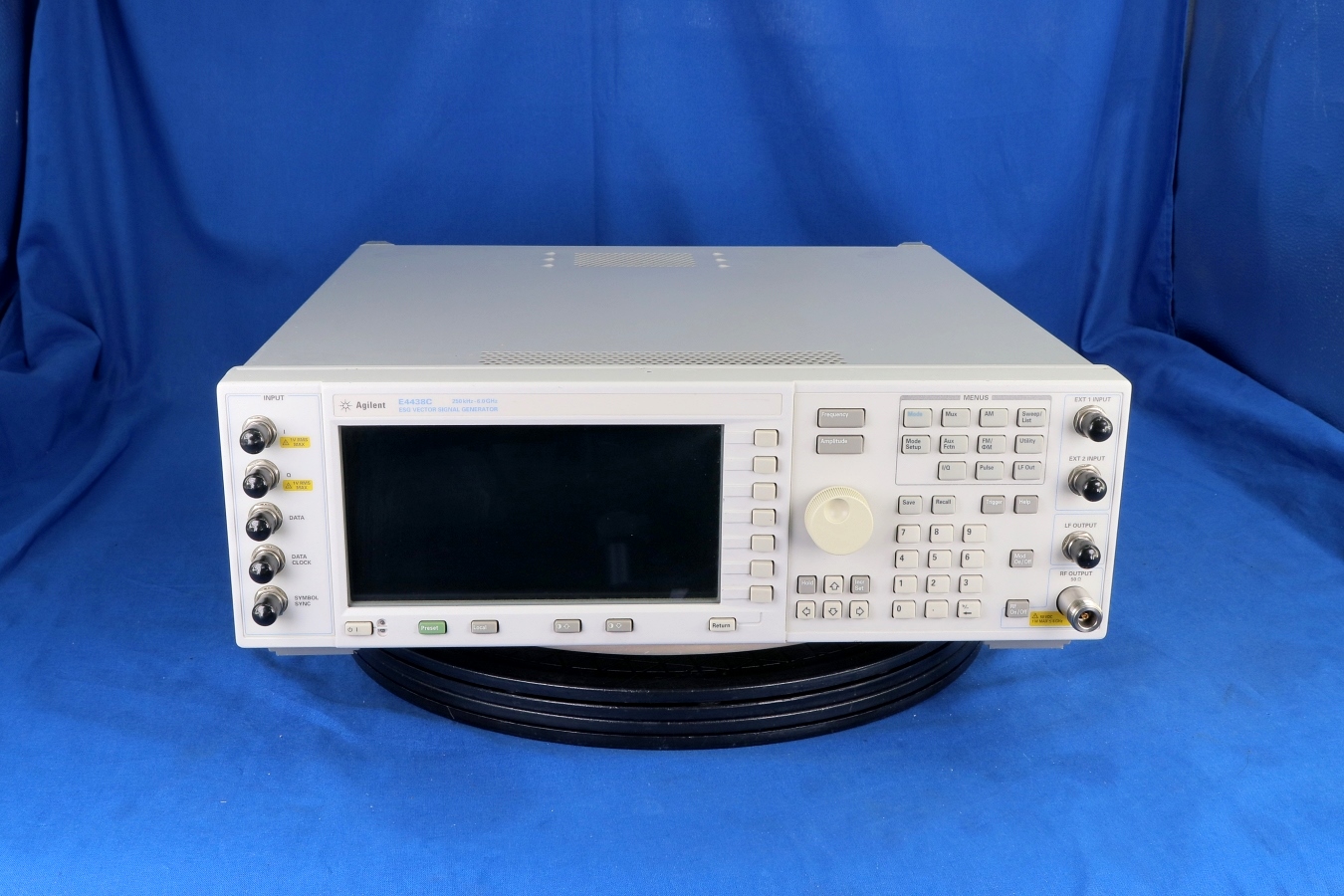

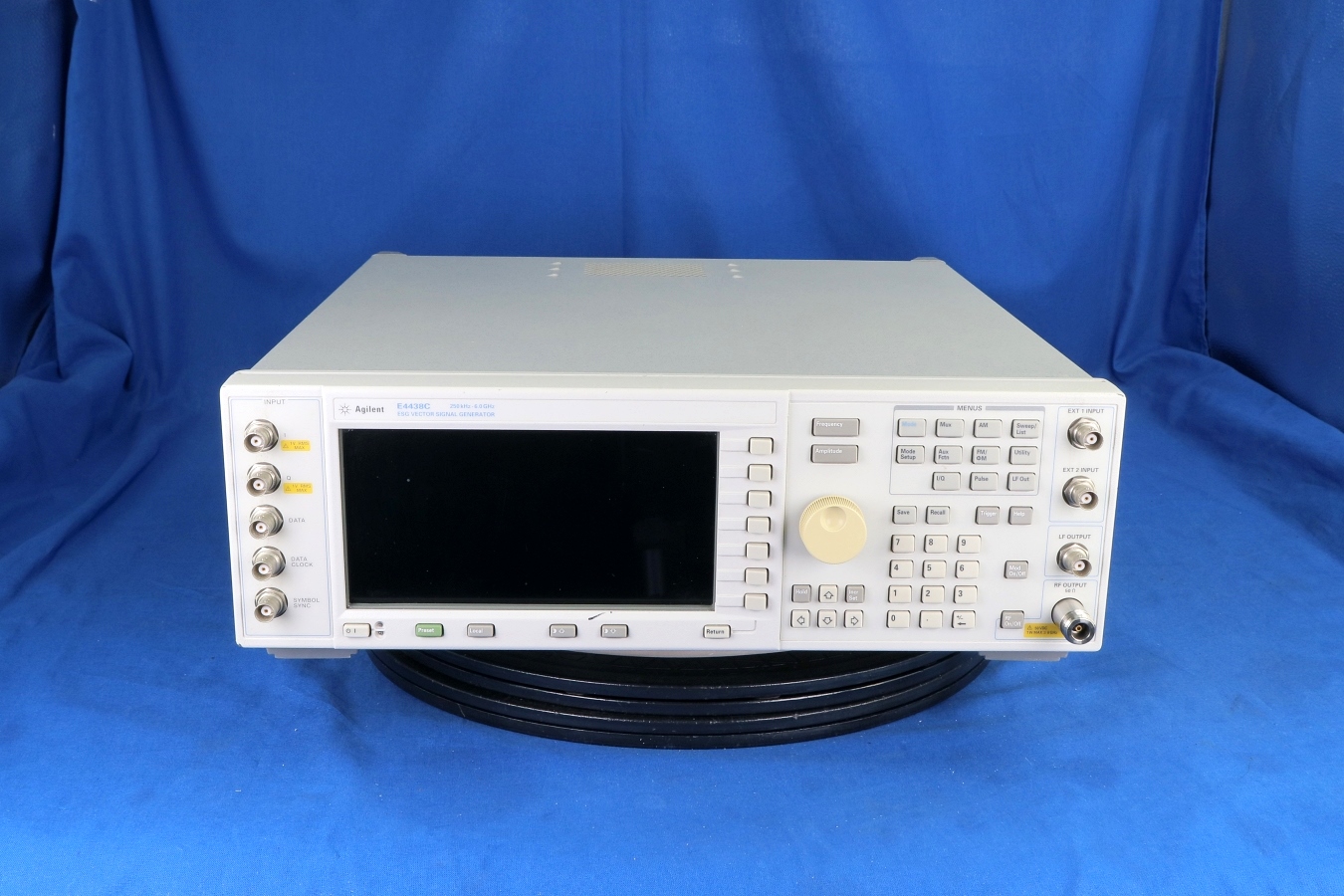

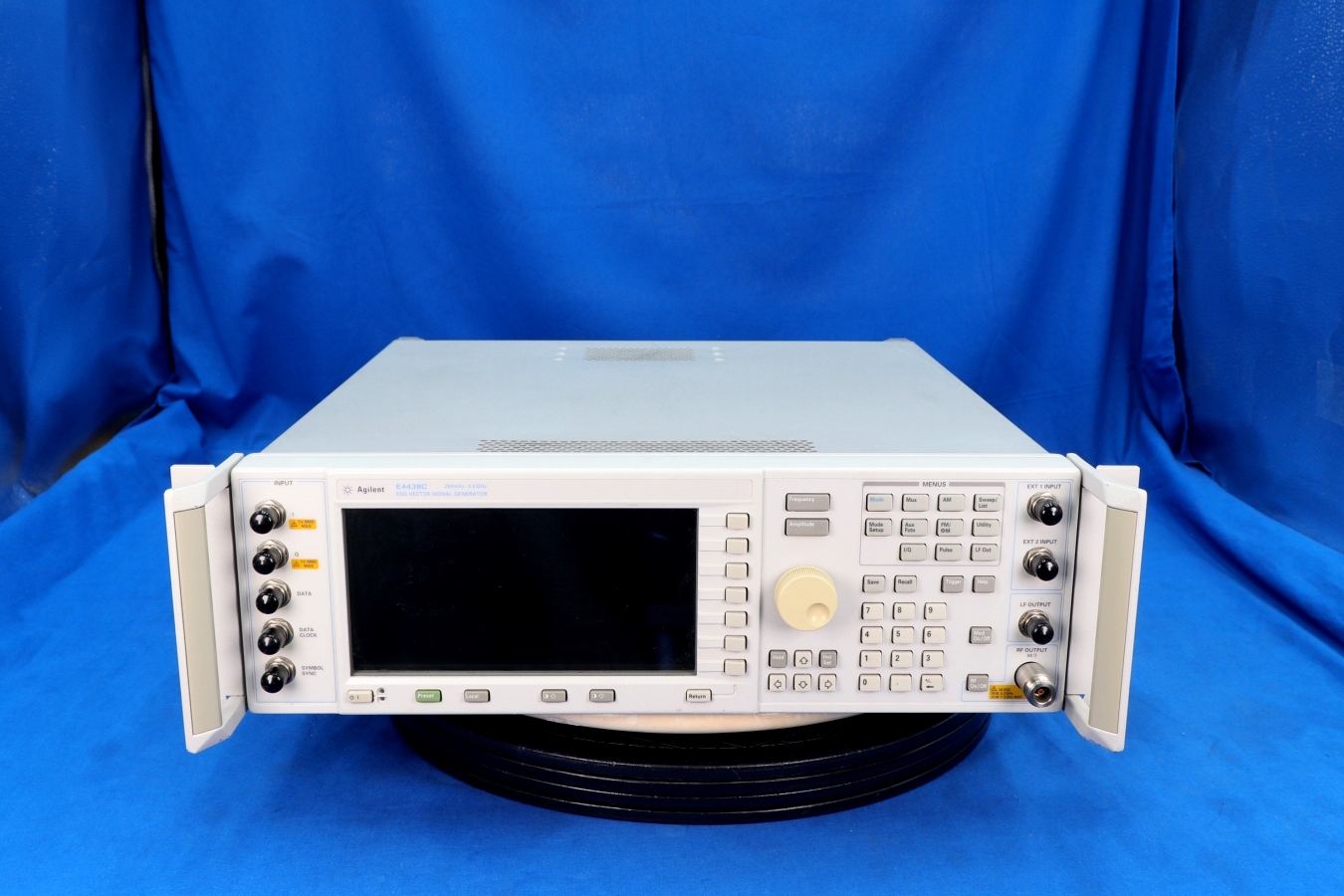

250 kHz to 1, 2, 3,4, or 6 GHz +17 dBm output power <-134 dBc phase noise at 1 GHz and 20 kHz offset typical AM, FM, ØM, and pulse ASK, FSK, MSK, PSK, QAM, custom I/Q 80 MHz dual mode internal baseband generator: arbitrary waveform and real-time I/Q 64 MSa playback memory and 1 GSa storage Create reference signals: LTE, HSPA+, WiMAX™, WLAN, DVB-H, GPS/GNSS, MATLAB and more - Signal Studio Multi-channel baseband generation with N5102A Digital I/O, MIMO fading and RF to RF fading with PXB Baseband Generator and Channel Emulator 10BaseT LAN and GPIB SCPI and IVI-COM drivers Backwards compatible with ESG, PSG and 8648 signal generators The Agilent E4438C ESG vector signal generator combines outstanding RF performance and sophisticated baseband generation to deliver calibrated test signals at baseband, IF, and RF frequencies up to 6 GHz. Offering an internal baseband generator with arbitrary waveform and real-time I/Q capabilities, ample waveform playback and storage memory, and a wide RF modulation bandwidth, the Agilent E4438C ESG is equipped to test today's complex wireless systems and their components. The Agilent E4438C ESG is an adaptable platform with optional capabilities to customize the instrument for baseband and RF test applications ranging from simple distortion test and general purpose troubleshooting to baseband coding algorithm development, advanced transceiver design verification, and high volume manufacturing. Its modular architecture makes it easy to configure the instrument with the level of performance and signal creation capability you need today with the option to upgrade in the future.
