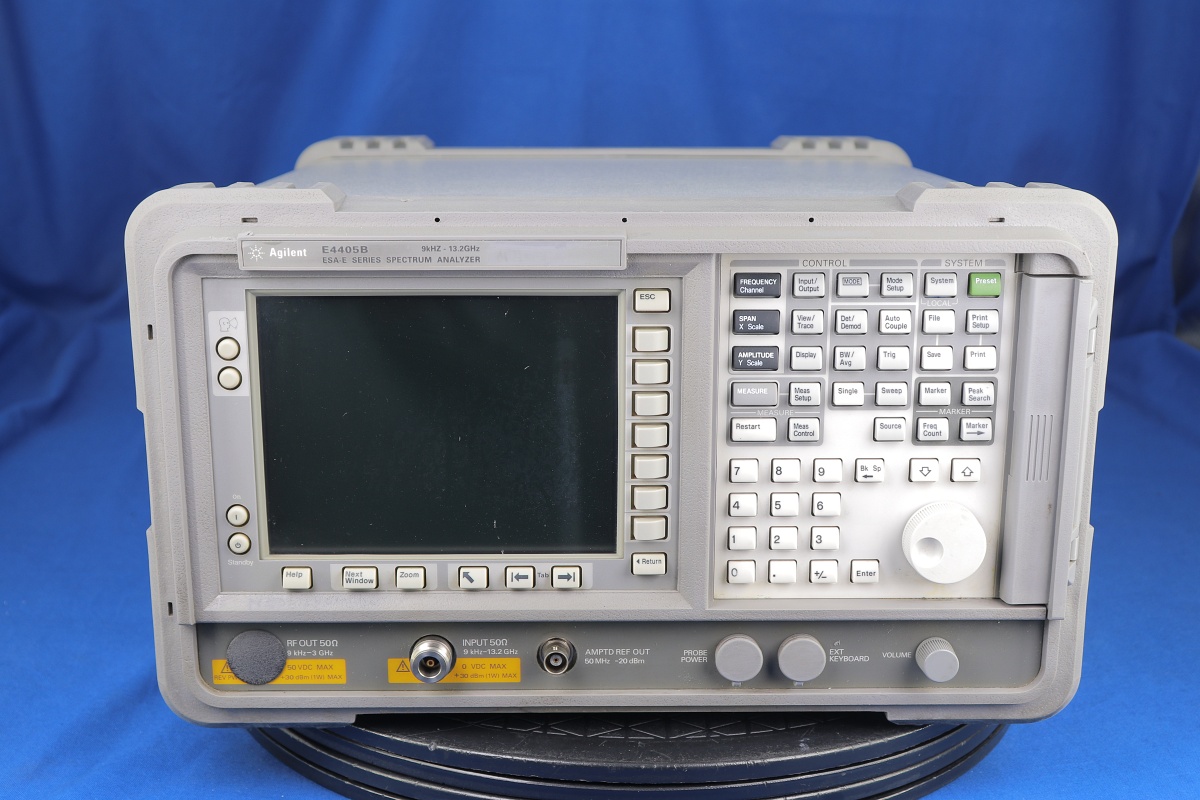

E4405B Agilent Spectrum Analyzer

Frequency range: 9 kHz to 13.2 GHz Rugged and portable for lab grade performance in the field One-millisecond RF sweep time, 45 measurements per second RMS, peak, neg peak, quasi-peak detectors ± 0.4 dB overall amplitude accuracy -166 dBm sensitivity, with internal preamp, +12.5 dBm TOI Variable sweep (trace points) from 2 to 8192 Segmented sweep for up to 32 discontinuous spans in one sweep

REQUEST A QUOTE

E4405B Agilent Spectrum Analyzer

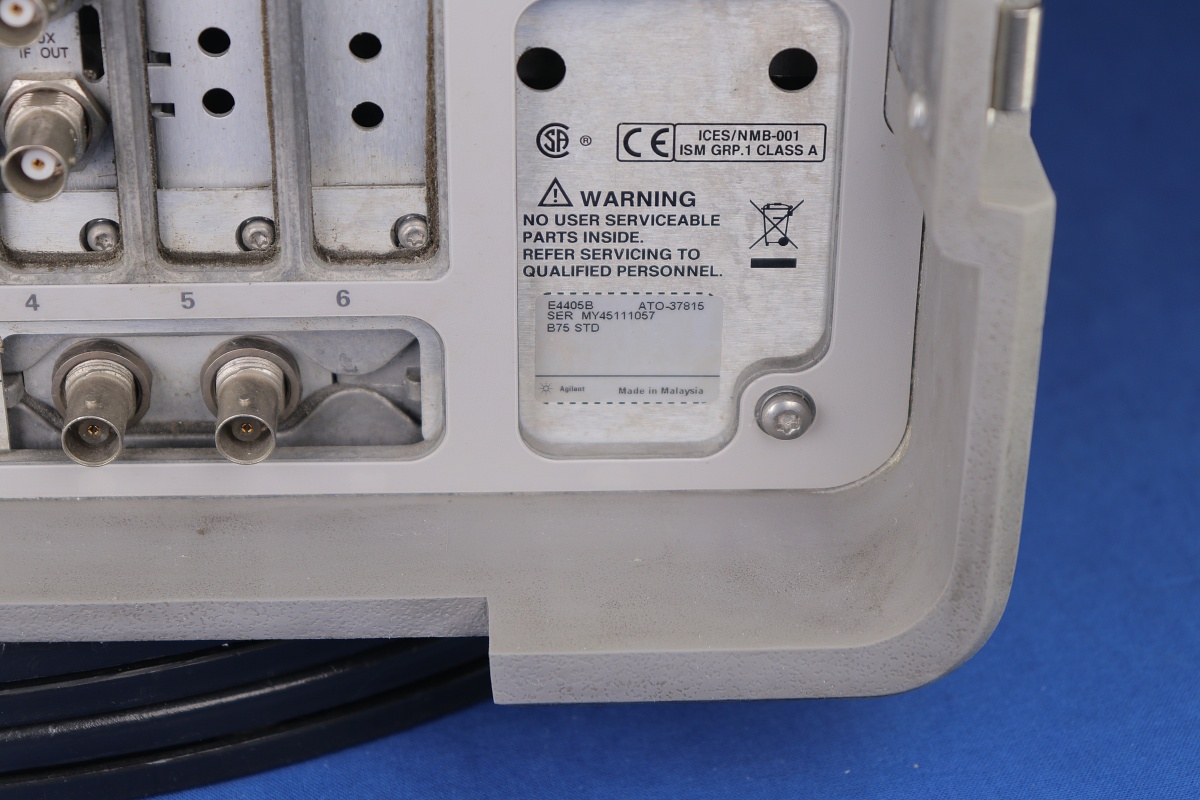

B75: Performance Bundle (1D5+1DR+1DS) / STD /

Price: CALL

REQUEST A QUOTE

Detail

Performance

0.4 dB overall amplitude accuracy
+16 dBm TOI
-167 dBm DANL, with internal preamp
1 Hz narrow resolution bandwidth (optional)

Measurement application software

Phase Noise, Noise Figure, GSM/EDGE, cdmaOne and more view full list of measurement applications
PowerSuite one-button power measurements as standard

Features

Fast delivery and favorably priced
Segmented sweep for up to 32 discontinuous spans in one sweep
Rugged and portable for lab grade performance in the field
5 minute warm-up to guaranteed measurement accuracy

Configuration selections

Standard express analyzer E4405B-STD for faster delivery time, includes options AYX, BAA.
Standard express analyzer with tracking generator E4405B-STG for faster delivery time, includes options 1DN, AYX, BAA.
Communications test express analyzer E4405B-COM for faster delivery time, includes options 1D5, 1DR, B7D, BAA.
Custom configuration for maximum flexibility with standard delivery time.

Option

Option	Description
049	Color Display
060	Low emissions shielding
106	Bluetooth FSK demodulator
120	ACPR dynamic range extension
1AX	Serial Interface
1D5	High Stability Frequency Reference
1D6	Time-gated spectrum analysis
1DN	Tracking generator
1DR	Narrow resolution bandwidths
1DS	Preamp
219	Noise Figure
226	Phase Noise
228	Bluetooth measurement personality
229	Modulation Analysis
231	ESA to 89601A VSA software link
535	Type N Input Connector
A4H	GPIB and Centronics interface
A4J	IF and sweep ports
AYX	Fast time-domain sweep
AYZ	External Mixing
B72	Enhanced Memory Upgrade
B74	RF/Digital communication hardware
B75	Performance Bundle (1D5+1DR+1DS)
B7D	Digital Signal Processing and Fast ADC
B7E	RF Communications Hardware
BAA	FM Demodulation
BAC	cdmaOne Measurement Personality
BAH	GSM/GPRS measurement personality
BAS	Includes IF/sweep port (A4J) and GPIB connection (A4H)
STD
STG	Standard analyzer with tracking generator (1DN,AYX, BAA)
UKB	100 Hz low frequency extension

Download

ESA-E Series Datasheet
