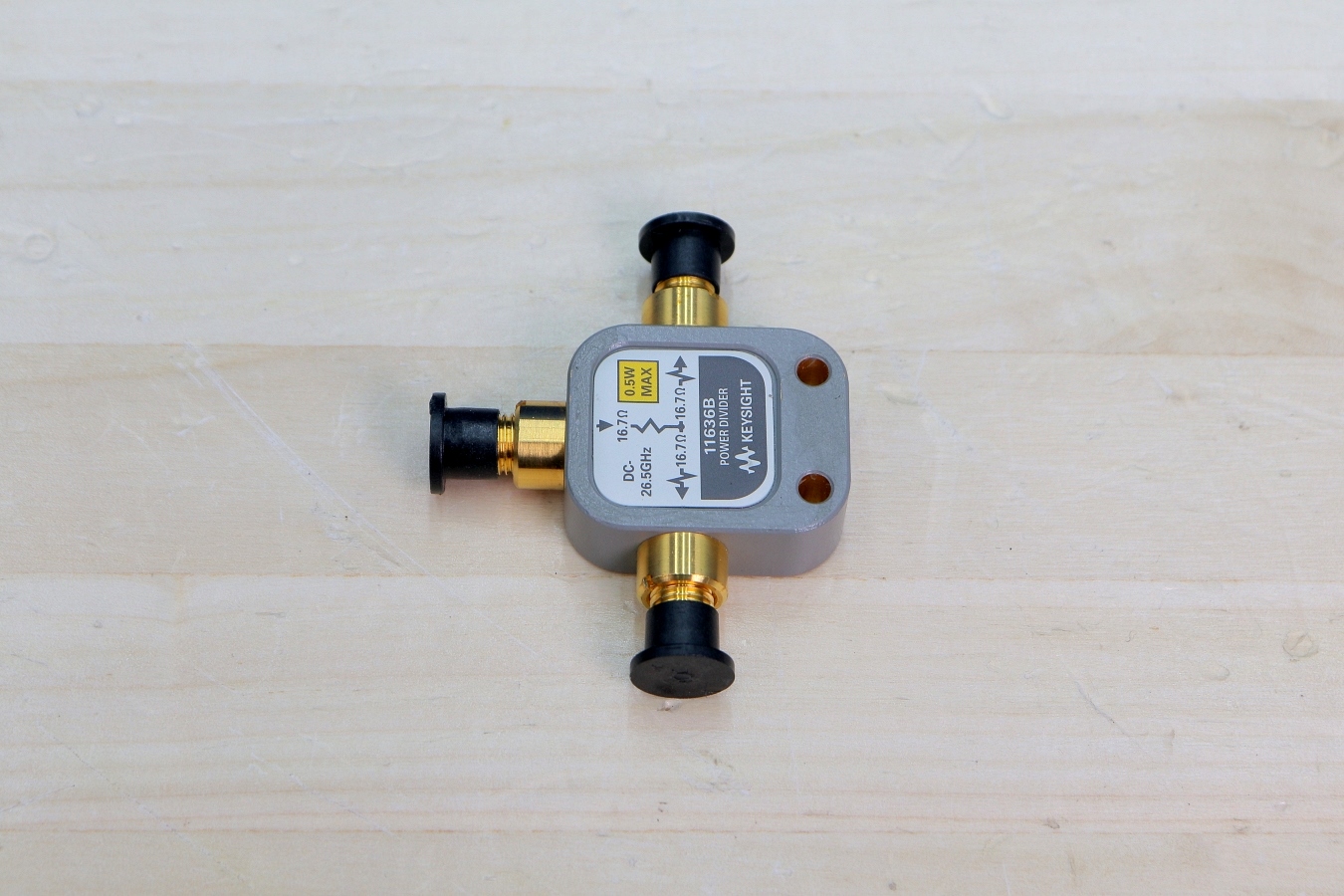

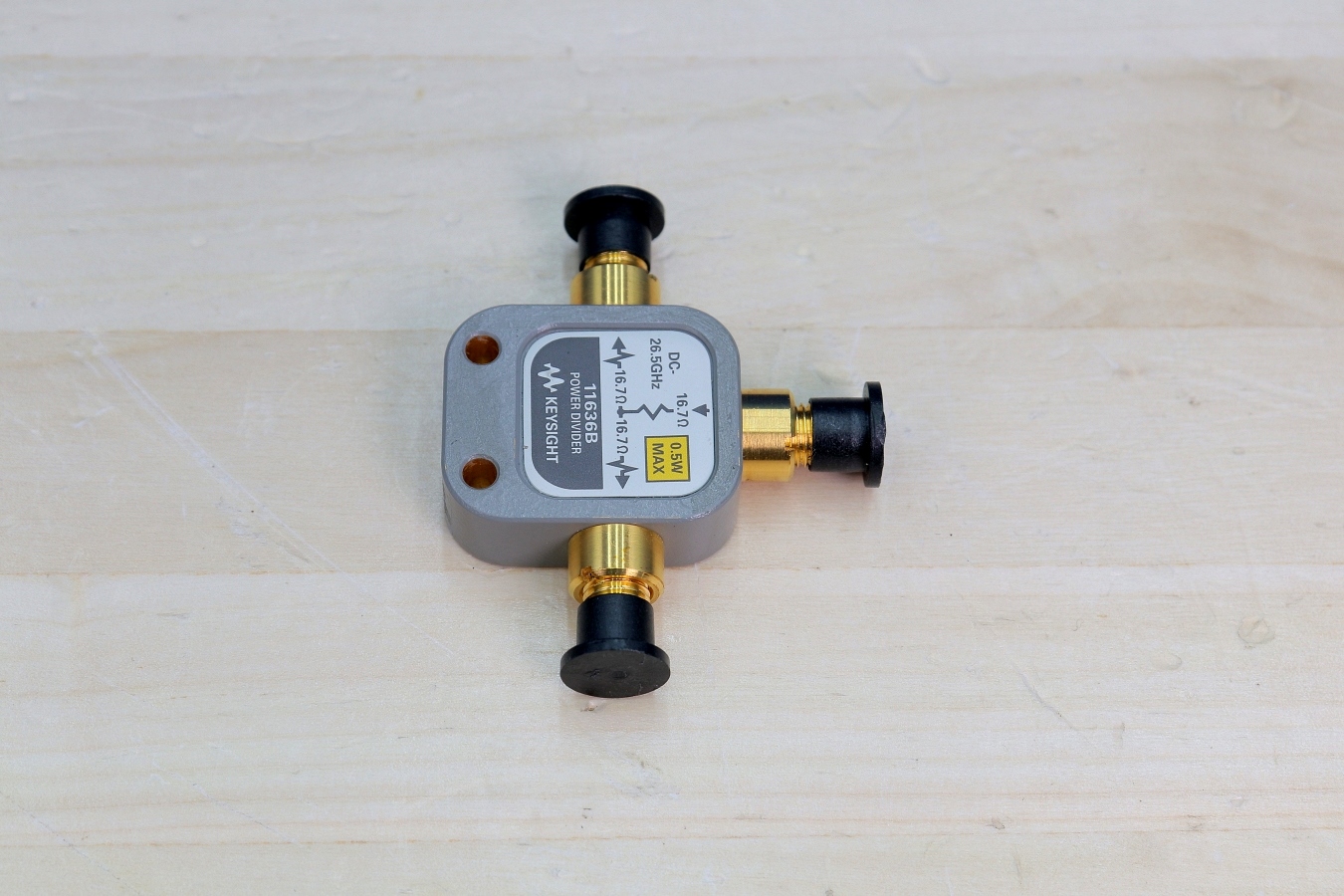

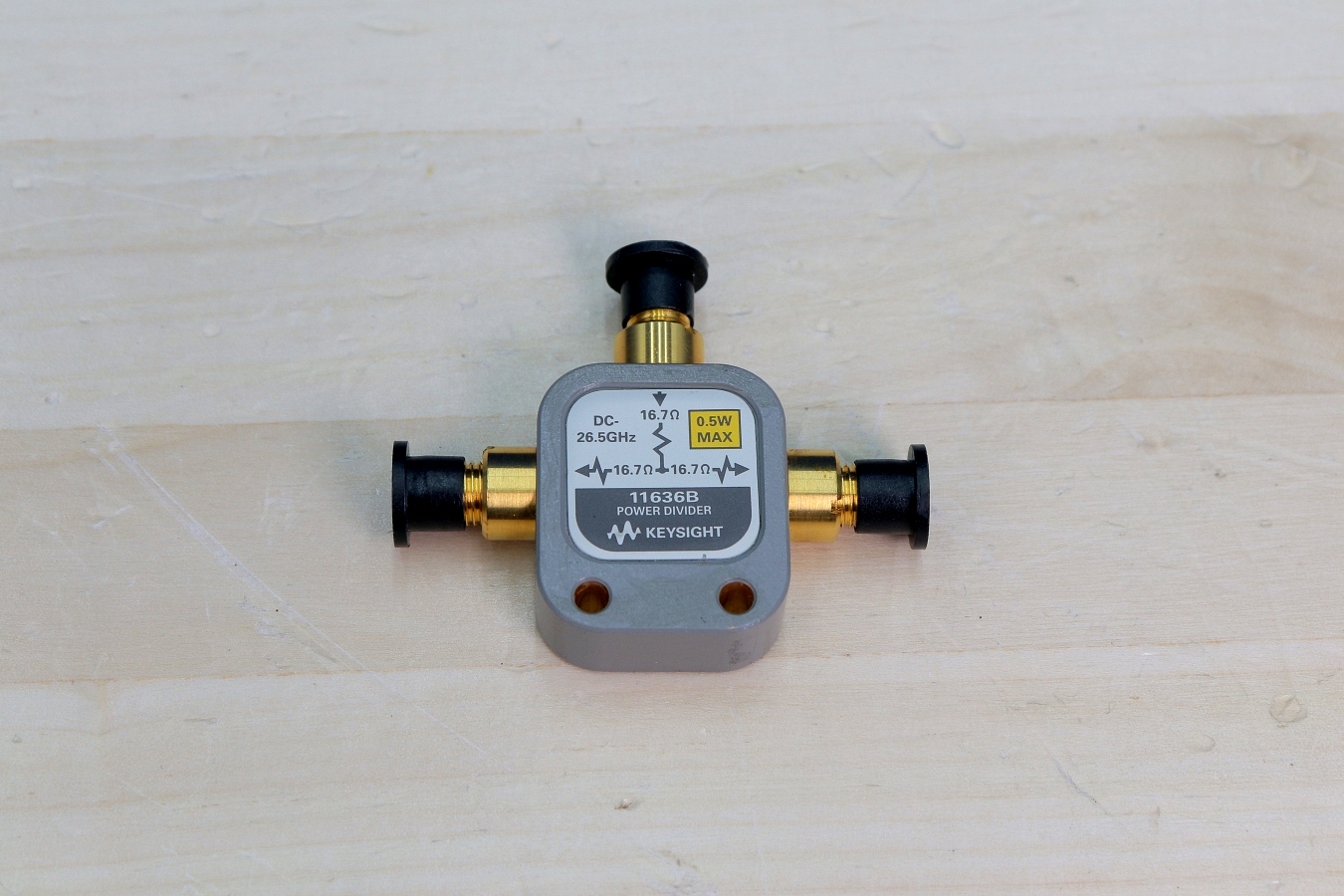

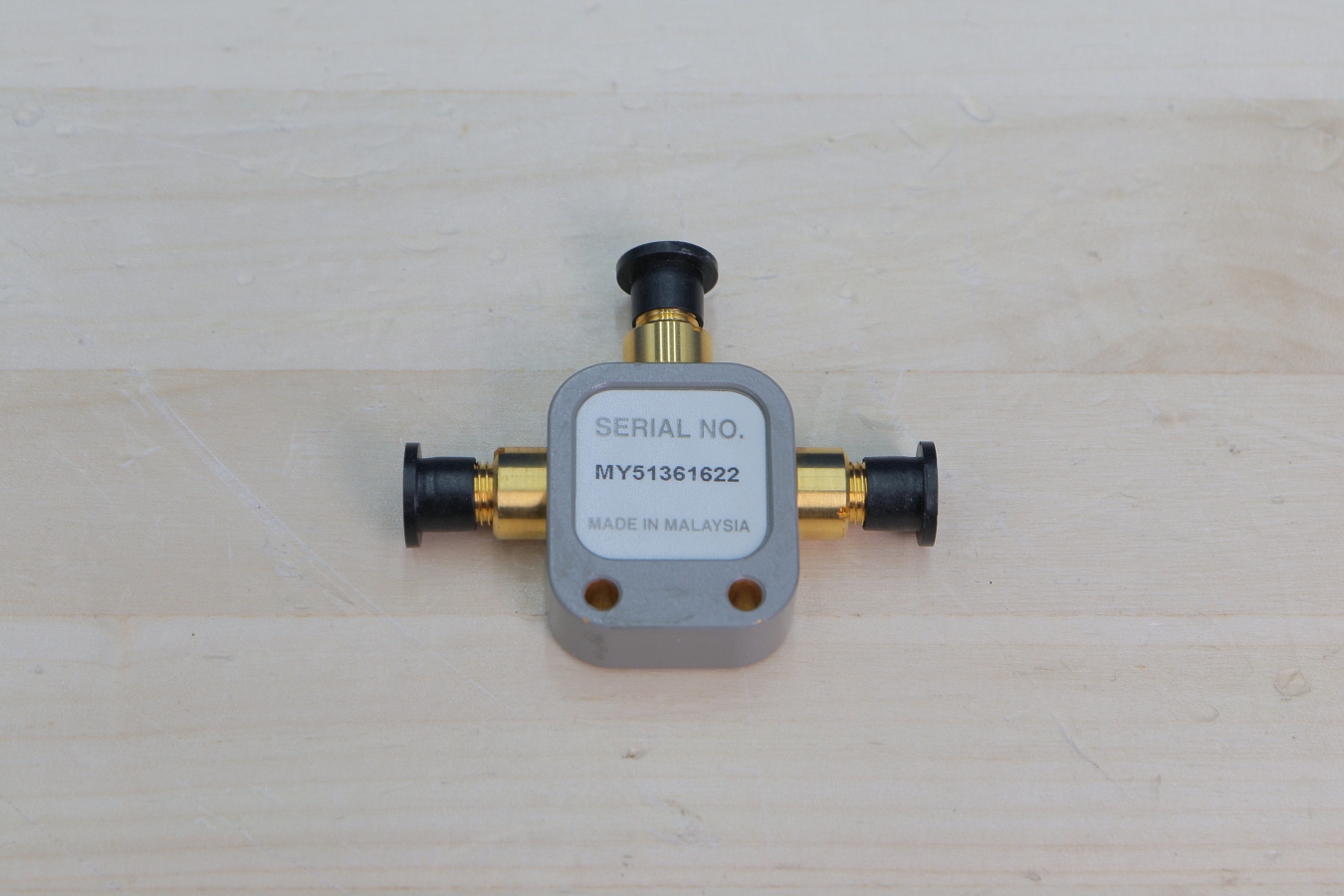

11636B Keysight Divider
Features: Frequency range: DC to 26.5 GHz Maximum SWR: 1.29 Insertion loss: 7.5 dB Maximum amplitude tracking: 0.25 dB at 18 GHz Maximum phase tracking: 2 deg typical The Agilent 11636B is a DC to 26.5 GHz power divider for direct power dividing applications. The excellent impedance match of all three ports improves fault location measurements by reducing re-reflections. The Agilent 11636B power divider/combiner is recommended when making wideband comparison measurements with the Agilent 8757 scalar vector network analyzer. These power dividers provide good match and excellent tracking characteristics from DC to 26.5 GHz. Power dividers are recommended for applications such as transmission line fault testing, as well as power combining. They are not recommended for ratio and leveling applications.
REQUEST A QUOTE
Stock
|
Detail
|
Option
|
Download
|
Video
11636B Keysight Divider
Price: CALL
Detail
Features: Frequency range: DC to 26.5 GHz Maximum SWR: 1.29 Insertion loss: 7.5 dB Maximum amplitude tracking: 0.25 dB at 18 GHz Maximum phase tracking: 2 deg typical The Agilent 11636B is a DC to 26.5 GHz power divider for direct power dividing applications. The excellent impedance match of all three ports improves fault location measurements by reducing re-reflections. The Agilent 11636B power divider/combiner is recommended when making wideband comparison measurements with the Agilent 8757 scalar vector network analyzer. These power dividers provide good match and excellent tracking characteristics from DC to 26.5 GHz. Power dividers are recommended for applications such as transmission line fault testing, as well as power combining. They are not recommended for ratio and leveling applications.
