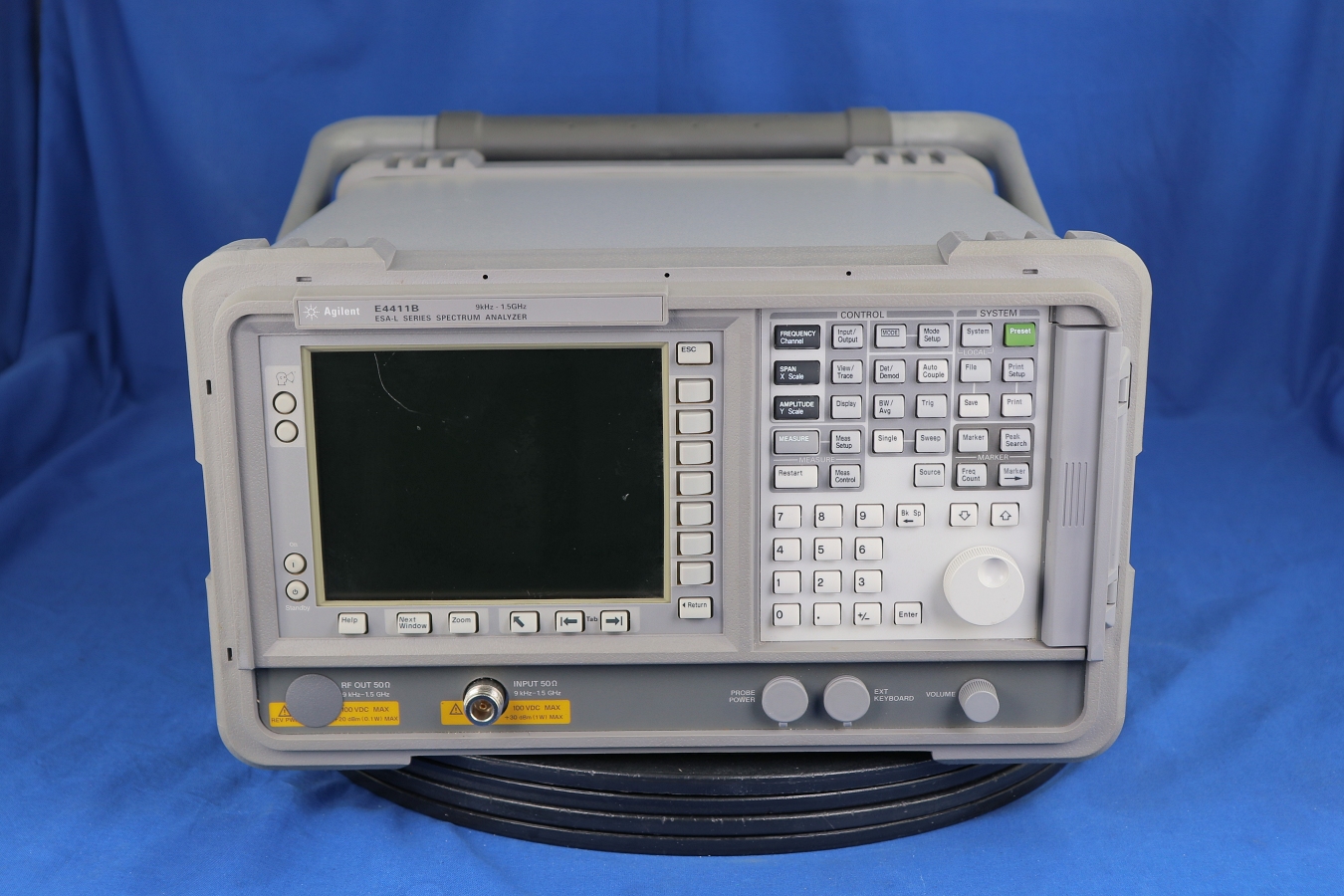

Additional Features: Frequency range: 9 kHz-1.5 GHz Multiformat RF power measurement suite Four-millisecond RF sweep time ±1.1 dB overall amplitude accuracy Large, high-resolution, color VGA display Rugged, portable, weather-resistant package Five-minute warm up Built-in help button The Agilent E4411B general-purpose portable spectrum analyzer provides basic spectrum analysis, with the speed and accuracy you need.

Option	Description
049	Color Display
060	Low emissions shielding
0B0	Deletes manuals
106	Bluetooth FSK demodulator
120	ACPR dynamic range extension
1AX	Serial Interface
1D5	High Stability Frequency Reference
1D6	Time-gated spectrum analysis
1DN	Tracking generator
1DP	75ohm Input
1DR	Narrow resolution bandwidths
1DS	Preamp
219	Noise Figure
226	Phase Noise
227	CATV Meas, Personality
228	Bluetooth measurement personality
229	Modulation Analysis
231	ESA to 89601A VSA software link
535	Type N Input Connector
A4H	GPIB and Centronics interface
A4J	IF and sweep ports
AYX	Fast time-domain sweep
AYZ	External Mixing
B72	Enhanced Memory Upgrade
B74	RF/Digital communication hardware
B75	Performance Bundle (1D5+1DR+1DS)
B7D	Digital Signal Processing and Fast ADC
B7E	RF Communications Hardware
BAA	FM Demodulation
BAC	cdmaOne Measurement Personality
BAH	GSM/GPRS measurement personality
BAS	Includes IF/sweep port (A4J) and GPIB connection (A4H)
HDJ	75 ohm
STG	Standard analyzer with tracking generator (1DN,AYX, BAA)
UK6	Commercial calibration certificate with data
UKB	100 Hz low frequency extension
