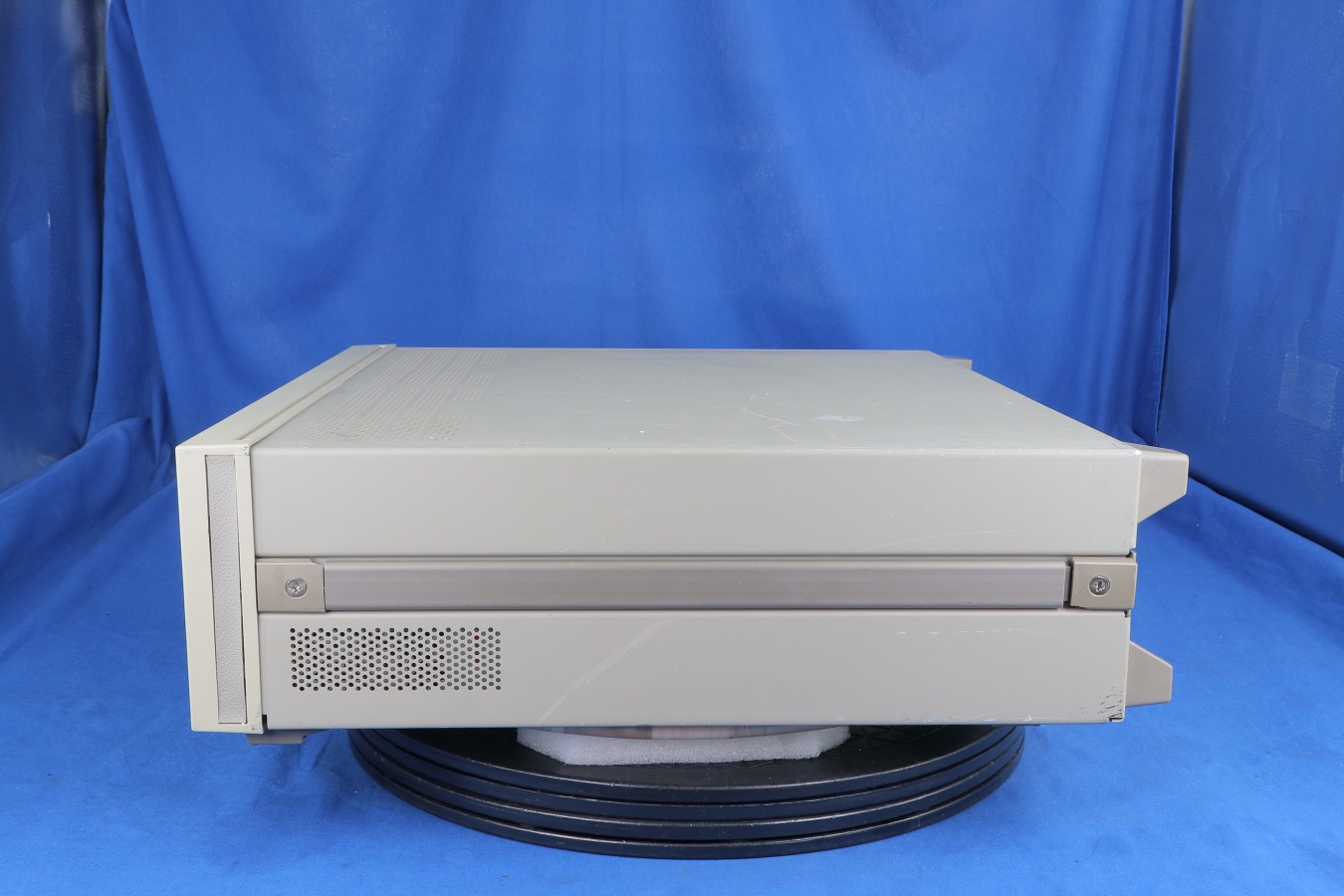

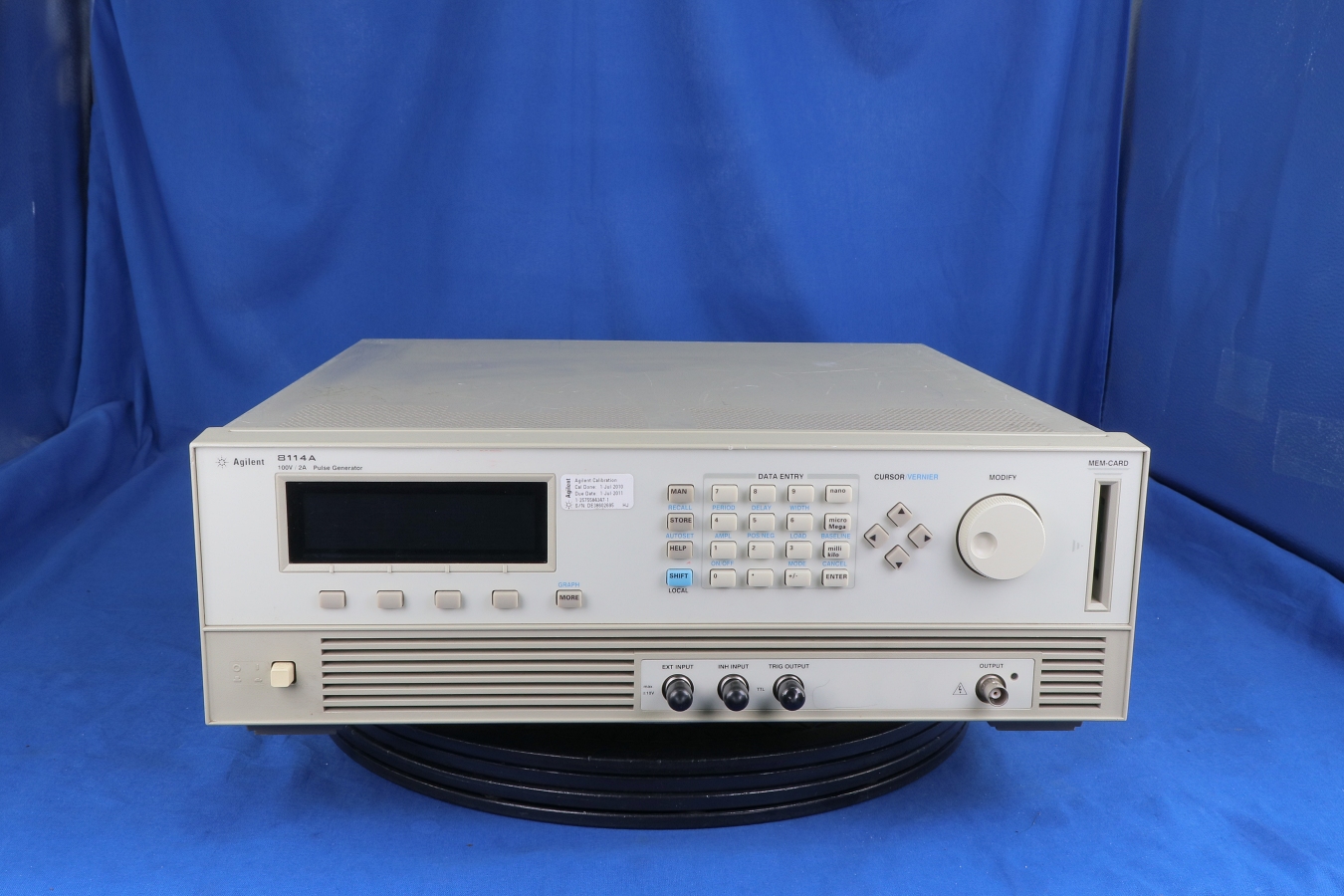

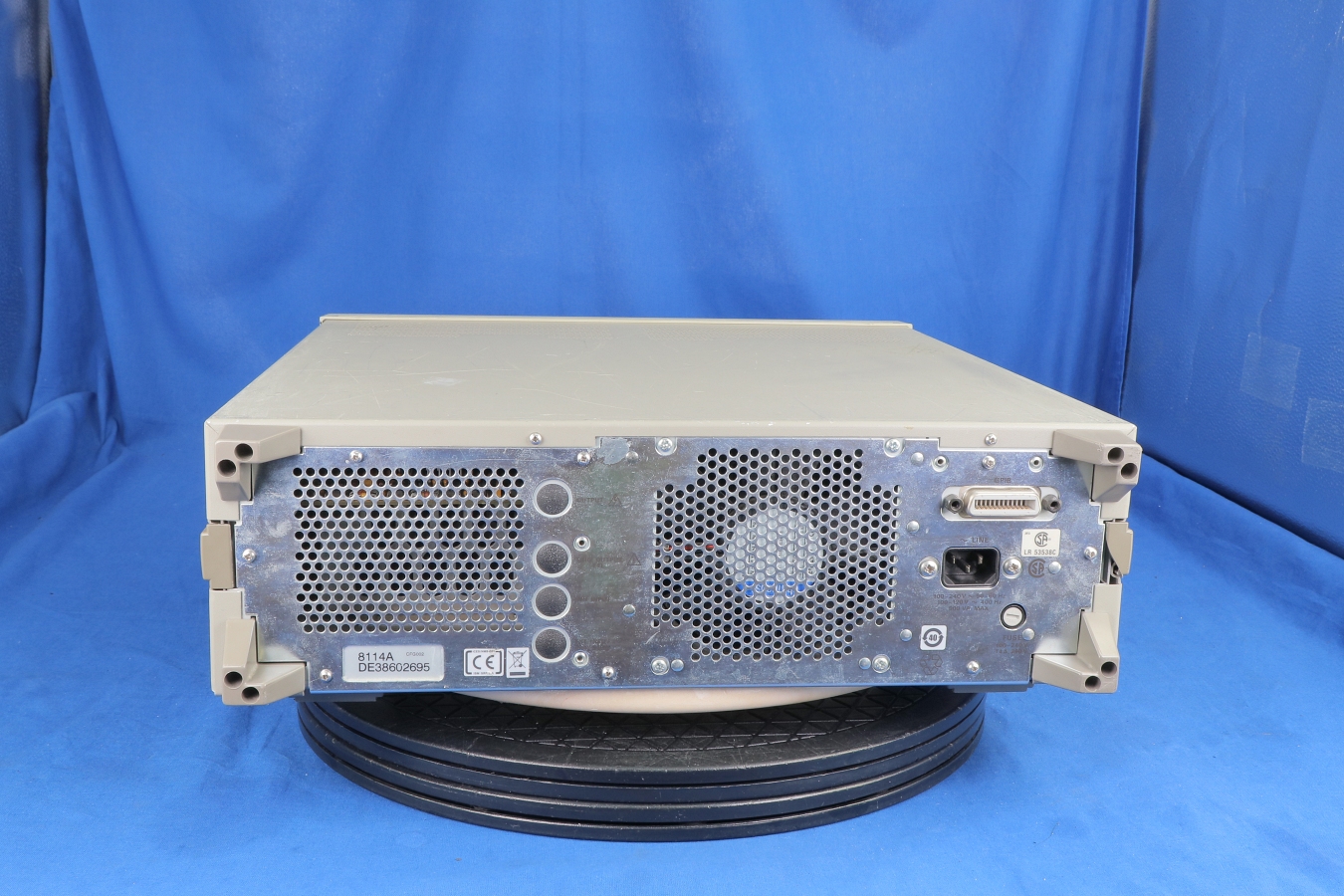

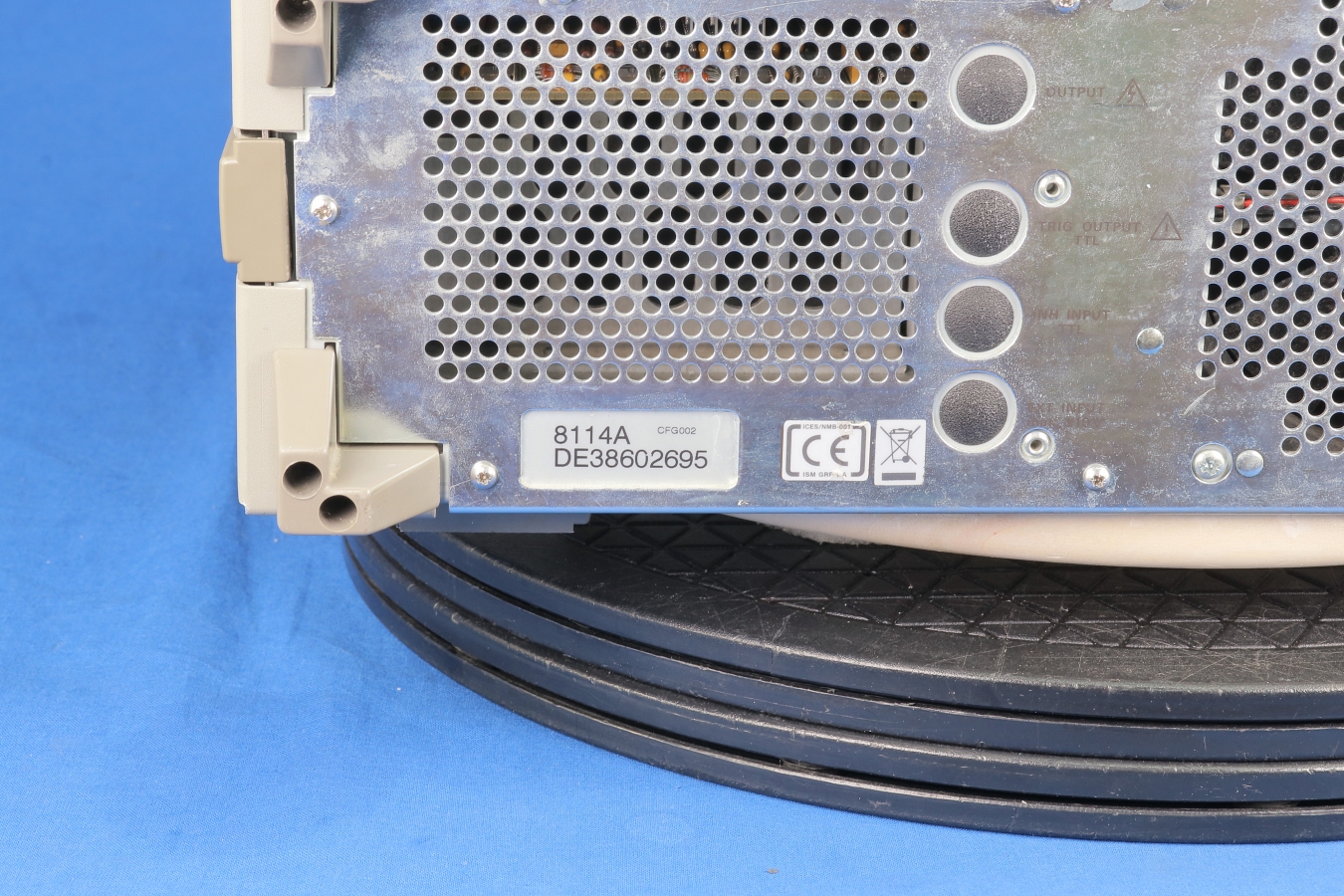

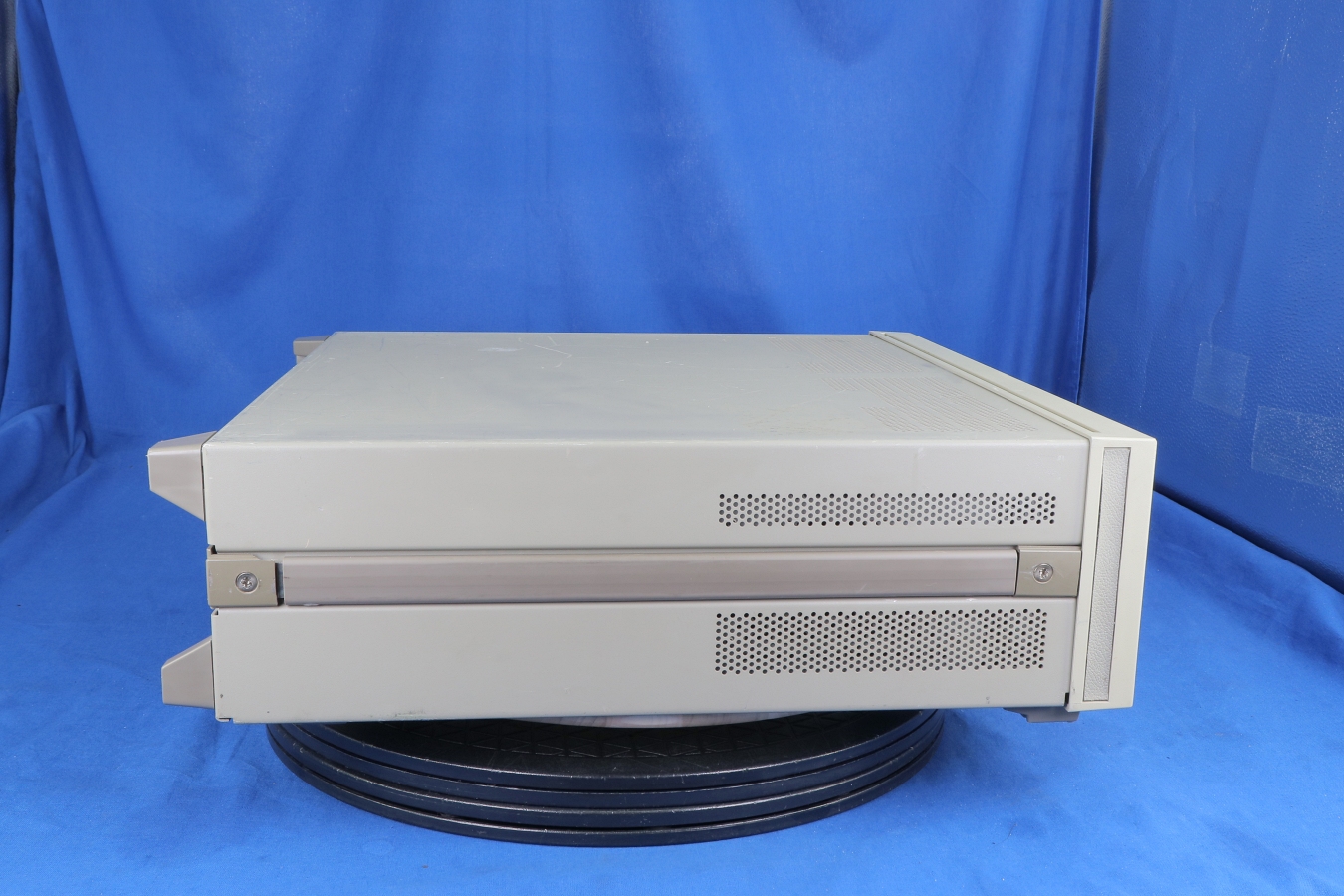

8114A Agilent Pulse Generator
Additional Features: Single-channel high power pulse generator 15 MHz 50 Vpp 50 Ω / 50 Ω Max. amplitude 100 V (HI-Z/50 Ω) Max. current 2 A (HI-Z/50 Ω) Voltage, current, and duty cycle protection Optional baseline shift of +/- 25 V The Agilent 8114A generates clean pulses with low jitter and excellent pulse performance at all specified settings in any triggering mode and, of course, across the entire operating temperature range. Parameters and trigger modes can be changed without generating unwanted pulses, so that reliable measurements are guaranteed.
REQUEST A QUOTE
Stock
|
Detail
|
Option
|
Download
|
Video
8114A Agilent Pulse Generator
001: Variable baseline +-25V /
Price: CALL
Detail
Additional Features: Single-channel high power pulse generator 15 MHz 50 Vpp 50 Ω / 50 Ω Max. amplitude 100 V (HI-Z/50 Ω) Max. current 2 A (HI-Z/50 Ω) Voltage, current, and duty cycle protection Optional baseline shift of +/- 25 V The Agilent 8114A generates clean pulses with low jitter and excellent pulse performance at all specified settings in any triggering mode and, of course, across the entire operating temperature range. Parameters and trigger modes can be changed without generating unwanted pulses, so that reliable measurements are guaranteed.
Option
Option Description
001 Variable baseline +-25V
