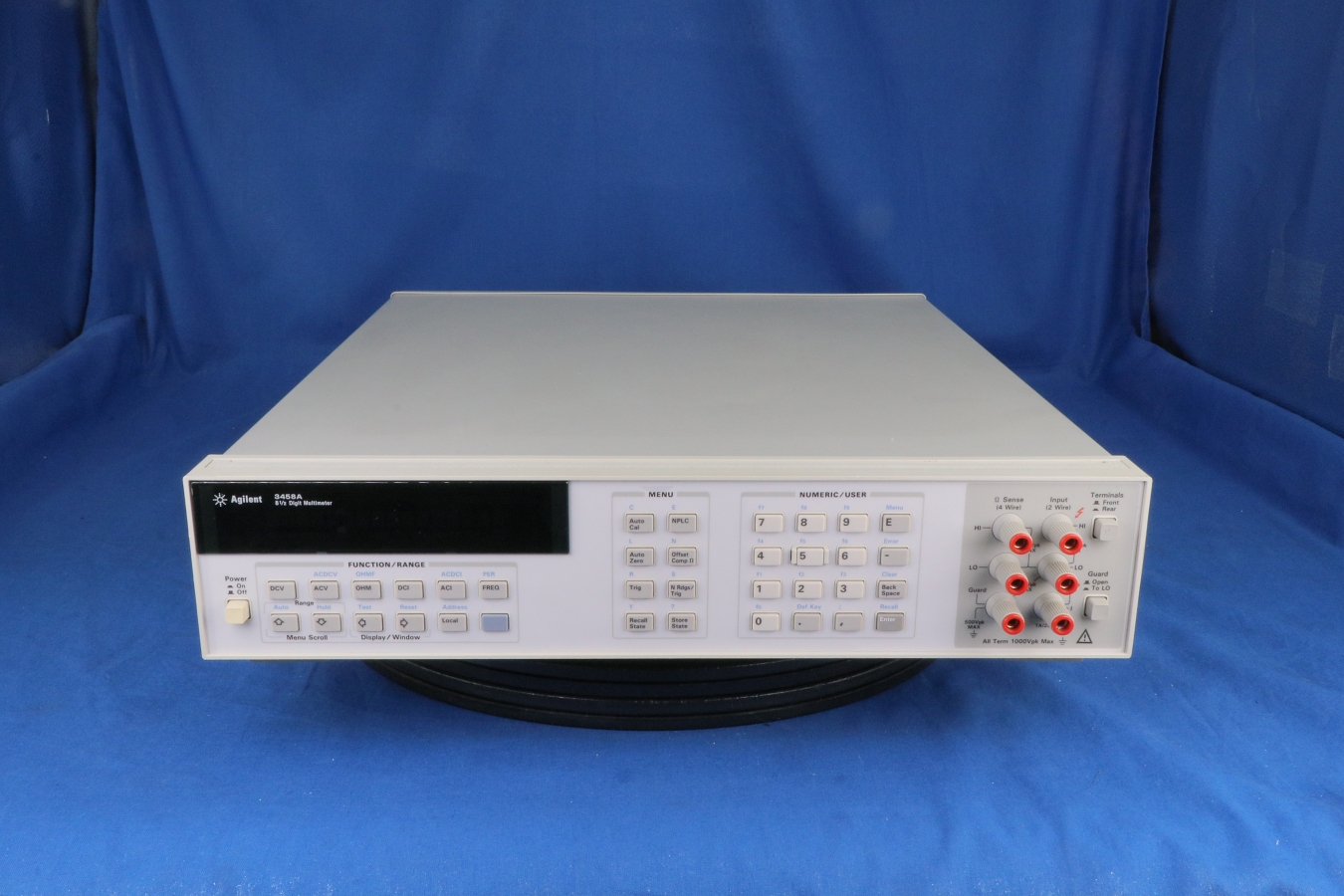

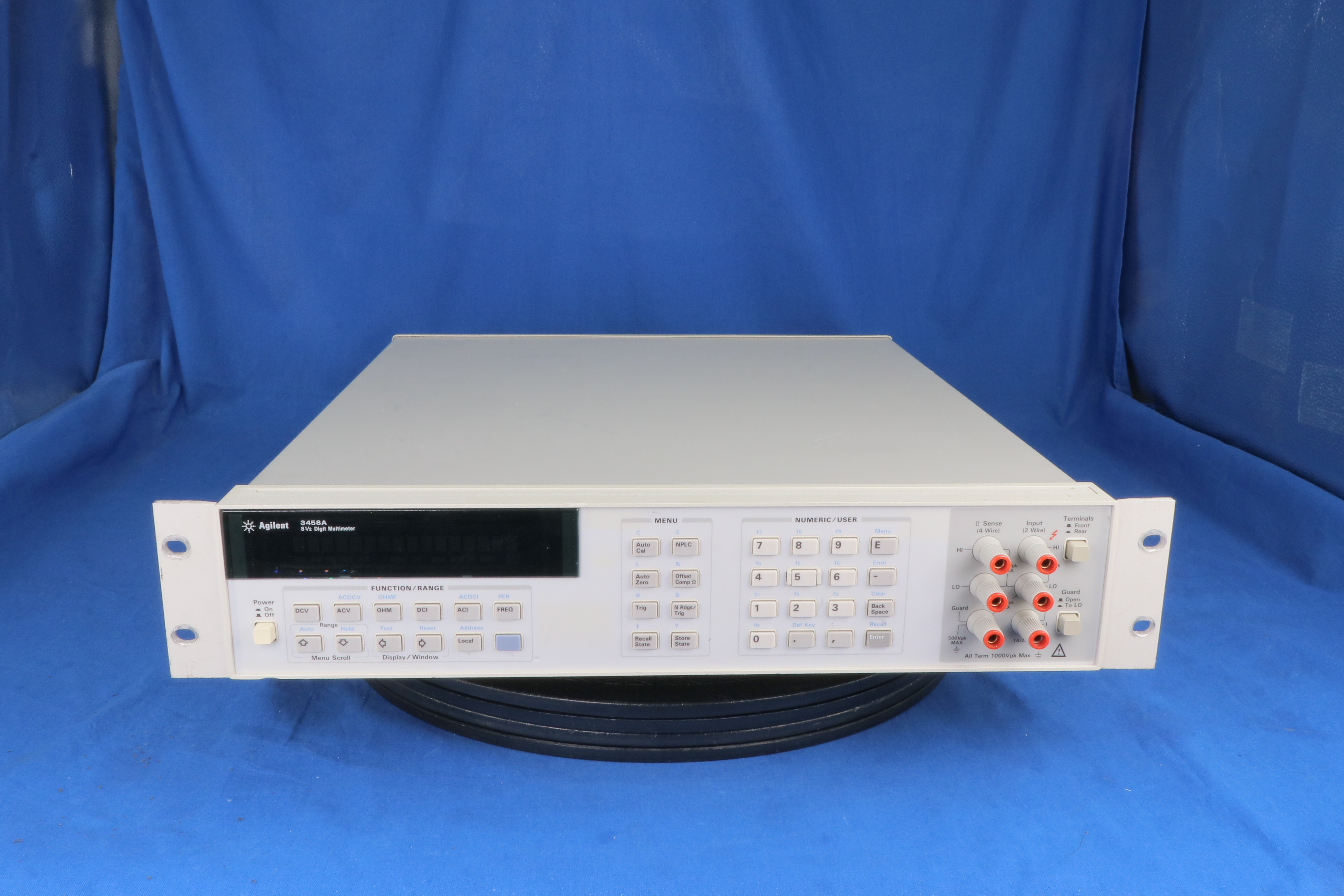

3458A Agilent Multimeter
Digital Multimeter, 8 ½ Digit
REQUEST A QUOTE
Stock
|
Detail
|
Option
|
Download
|
Video
3458A Agilent Multimeter
Price: CALL
3458A Agilent Multimeter
002: High stability 4 ppm per year reference /
Price: CALL
3458A Agilent Multimeter
ABJ: Japanese manual /
Price: CALL
3458A Agilent Multimeter
Price: CALL
Detail
Features: Faster testing: Up to 100,000 readings/sec Internal test setups >340/sec Programmable integration times from 500 ns to 1 sec Greater test yield: More accuracy for tighter test margins Up to 8.5 digits resolution Longer up-time: Two-source (10V,10kΩ) calibration, including AC Self-adjusting, self-verifying autocalibration for all functions and ranges, including AC Superb transfer measurements: 8.5 digits resolution 0.1 ppm DC Volts linearity 0.1 ppm DC Volts transfer capability 0.01 ppm rms internal noise Extraordinary accuracy: 0.6 ppm for 24 hours in DC Volts 2.2 ppm for 24 hours in Ohms 100 ppm mid-band AC Volts 8 ppm (4 ppm optional) per year voltage reference stability Greater waveform resolution and accuracy: 16 to 24 bits resolution 100,000 to 0.2 samples/sec 12 MHz bandwidth Timing resolution to 10 ns Less than 100 ps time jitter Over 75,000 reading internal memory 3458A-001 - Extended Reading Memory (Expands total to 148 k bytes) The Agilent 3458A System Multimeter heightens test performance in three phases of your production test: faster test system start-up, faster test throughput, and lower cost of ownership through longer system uptime, designed-in reliability, and fast and easy calibration. Most instruments are operationally checked and shipped with Accessories and Operating Manuals. Contact your Application Engineer for details.
Option
Option Description
001 Extended Memory
002 High stability 4 ppm per year reference
ABJ Japanese manual
H01 Special 1000 Vrms ac maximum input voltage
