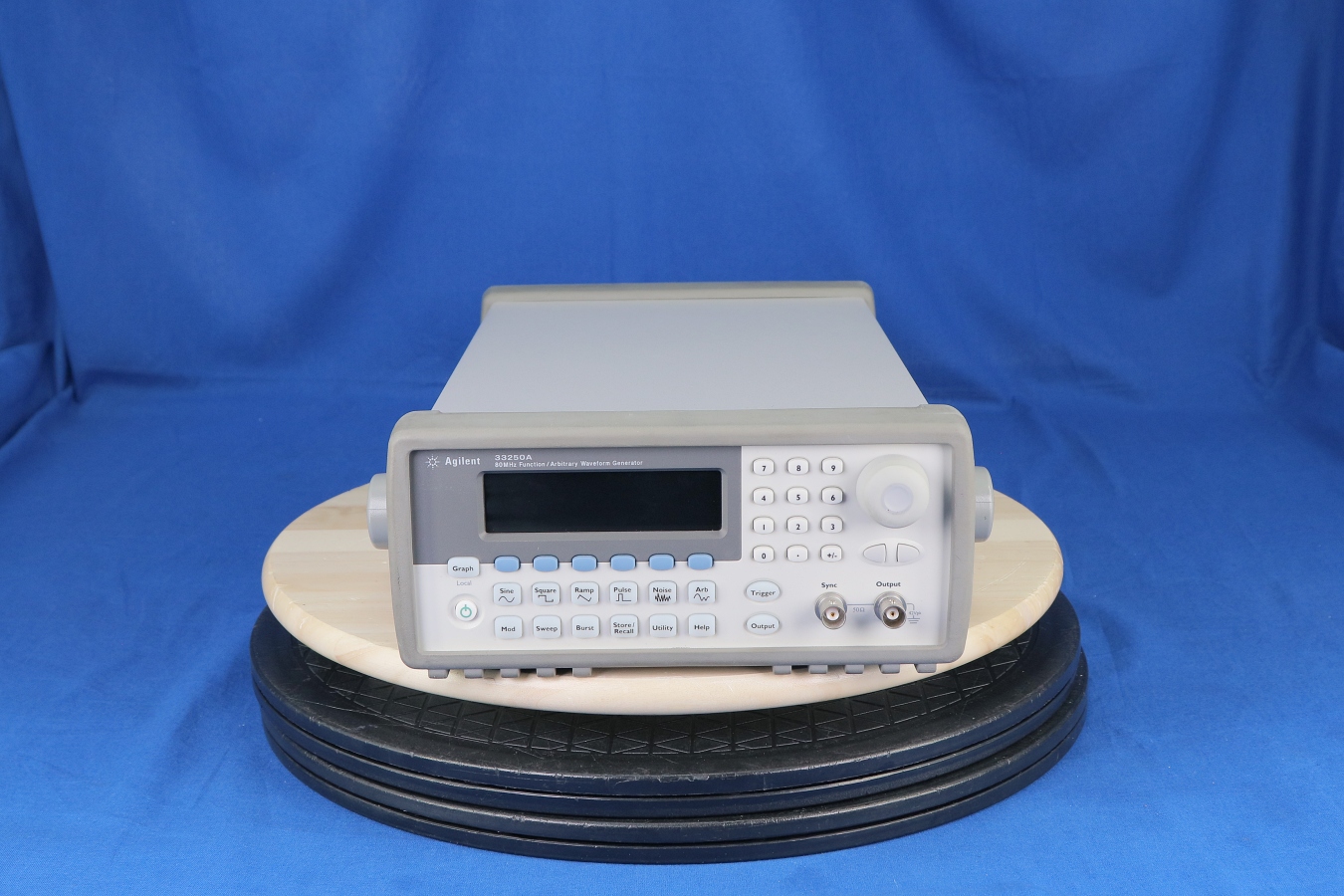

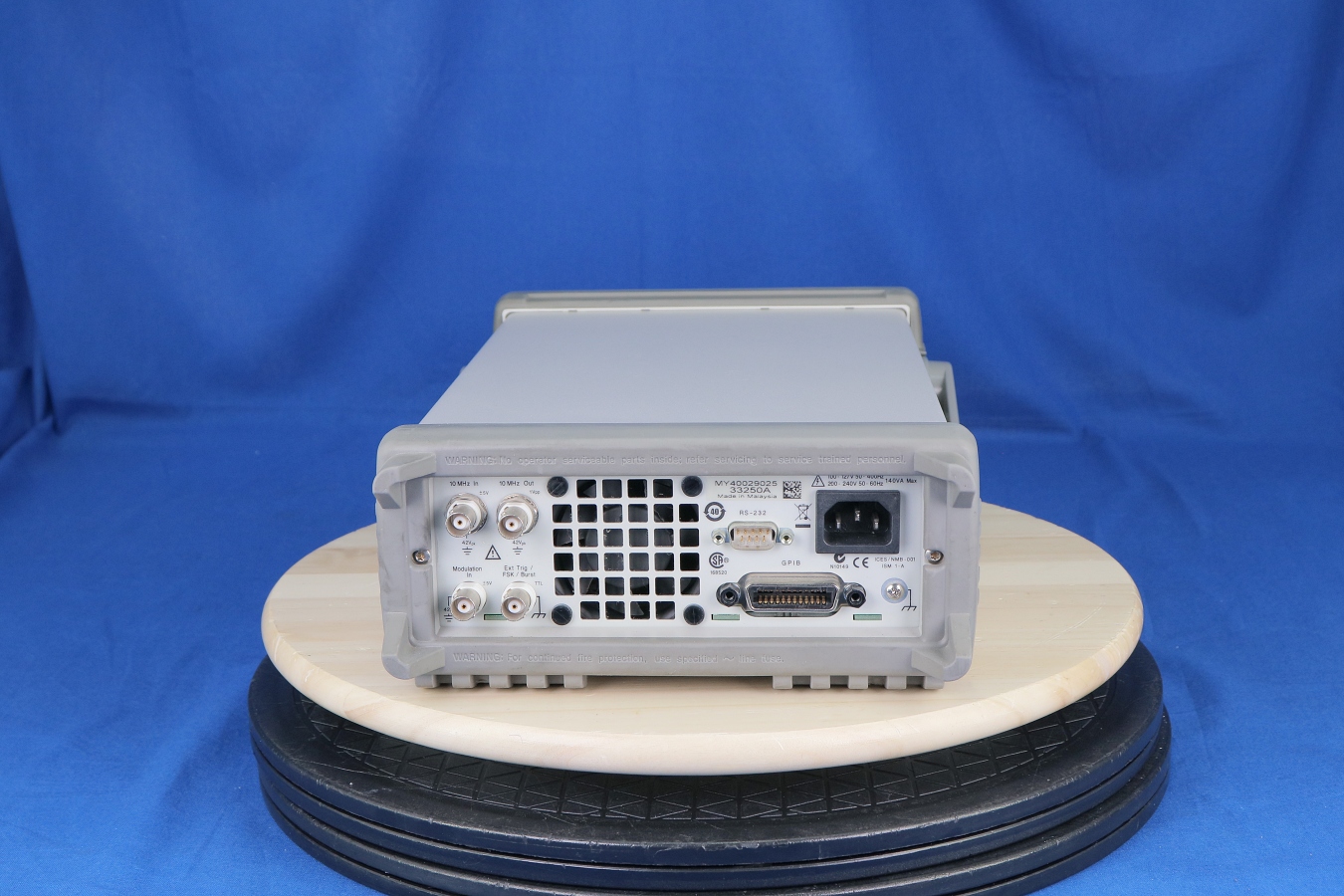

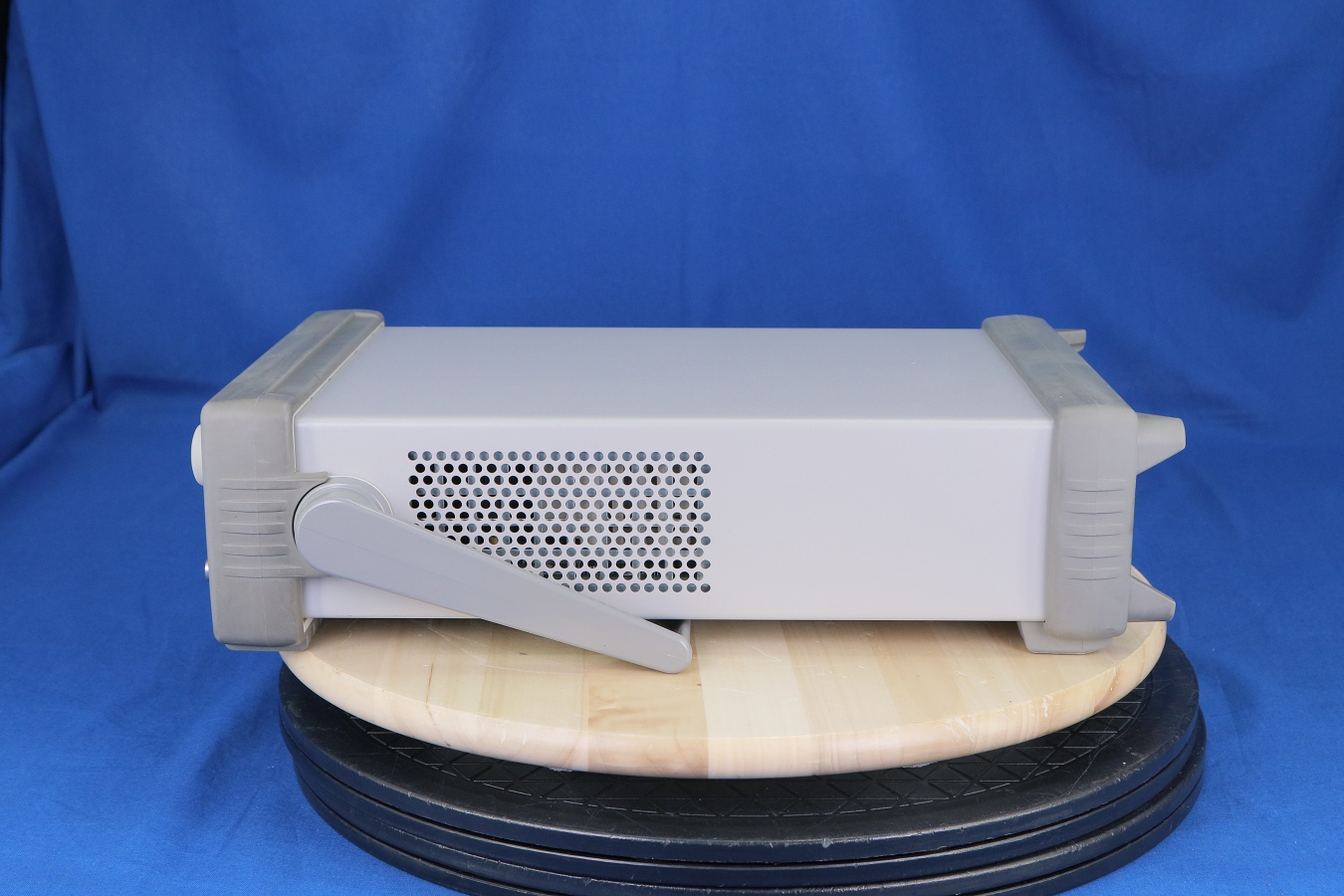

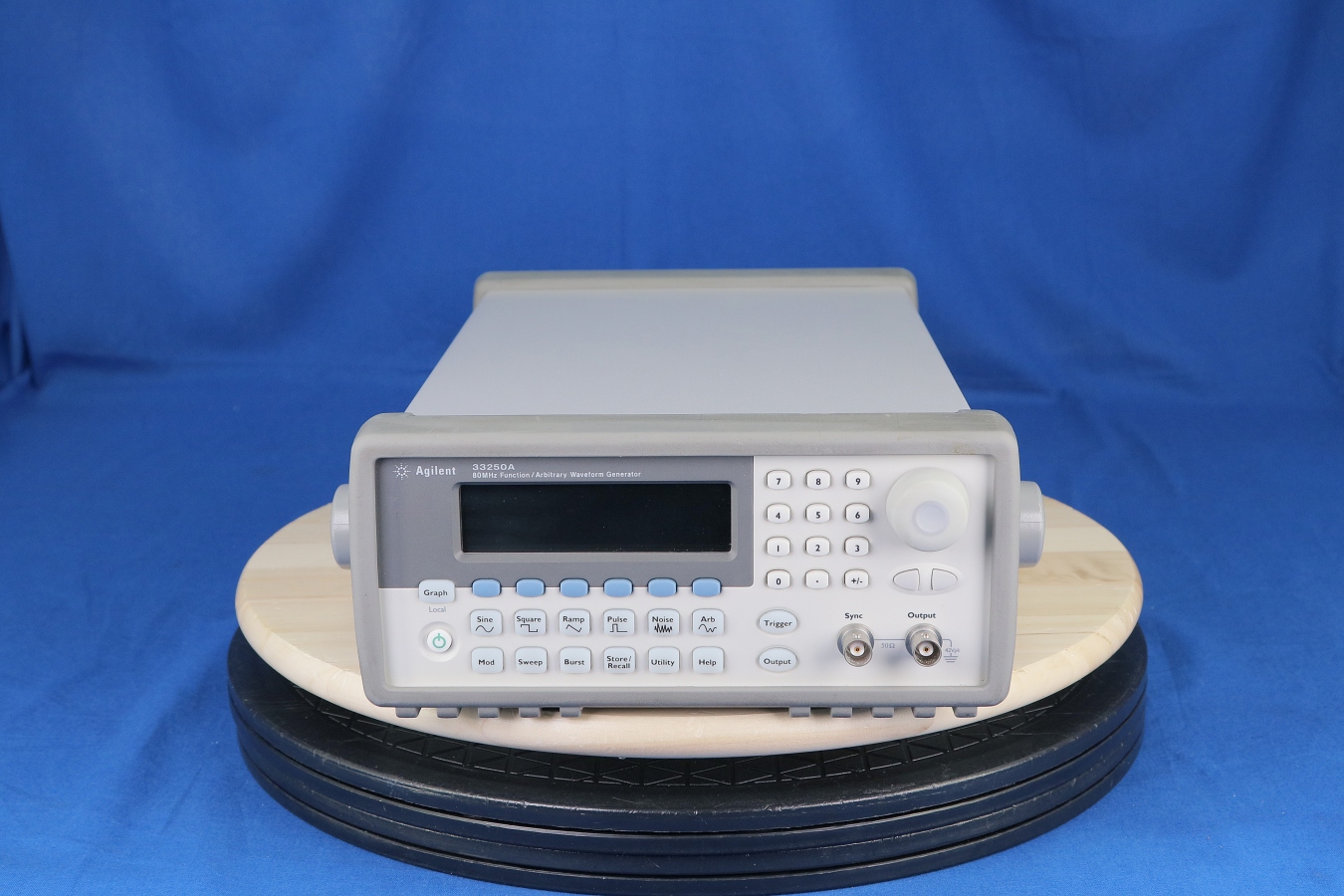

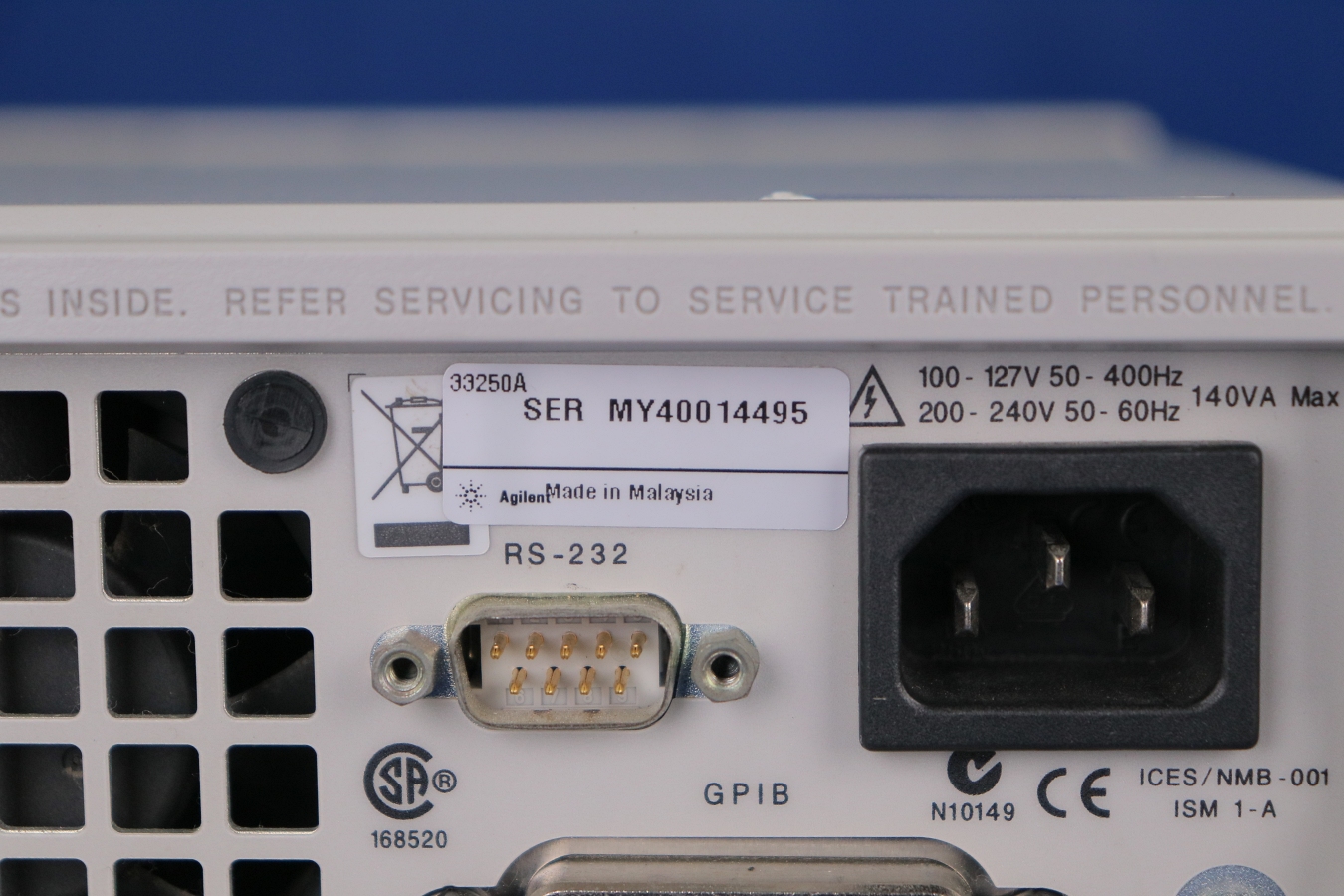

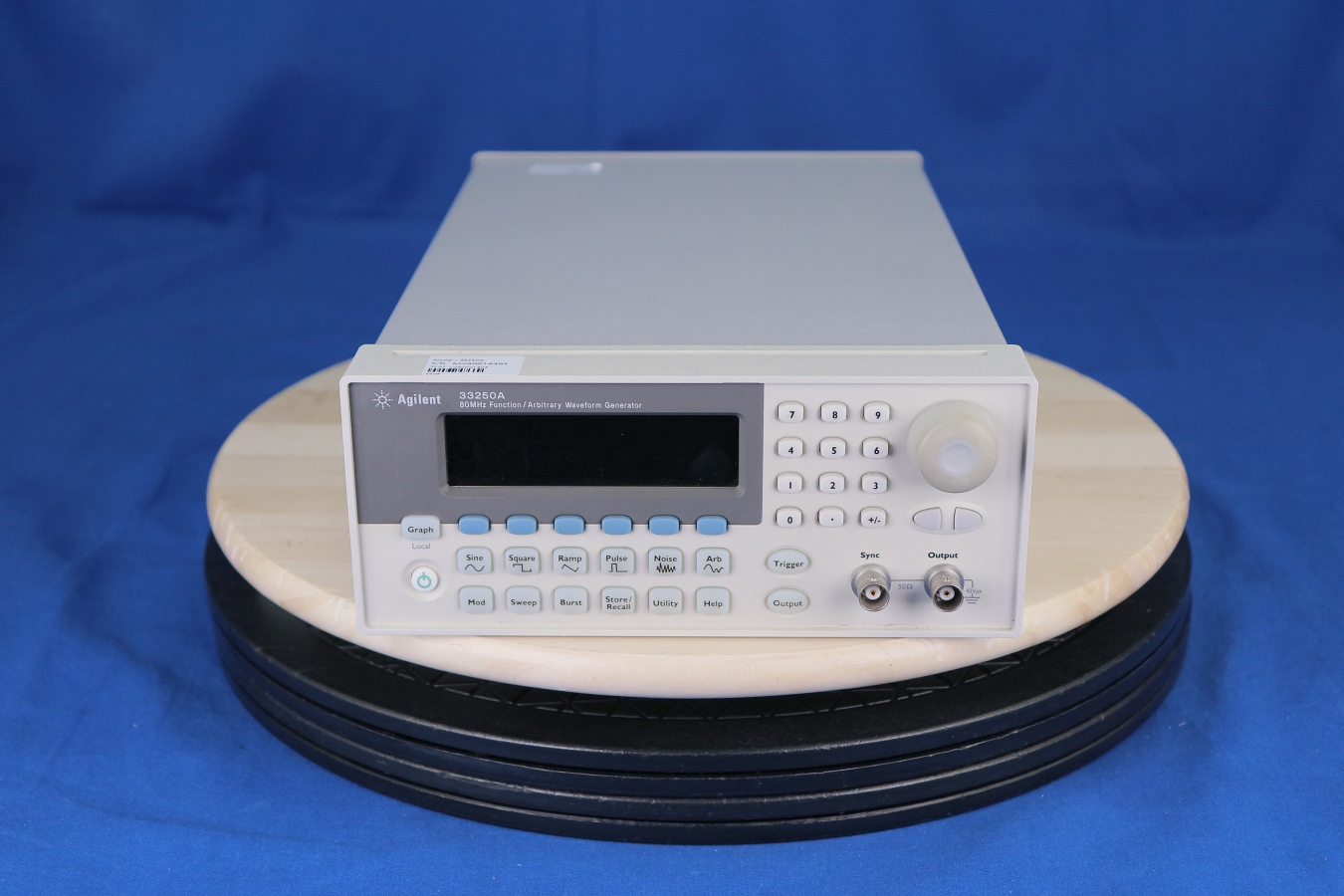

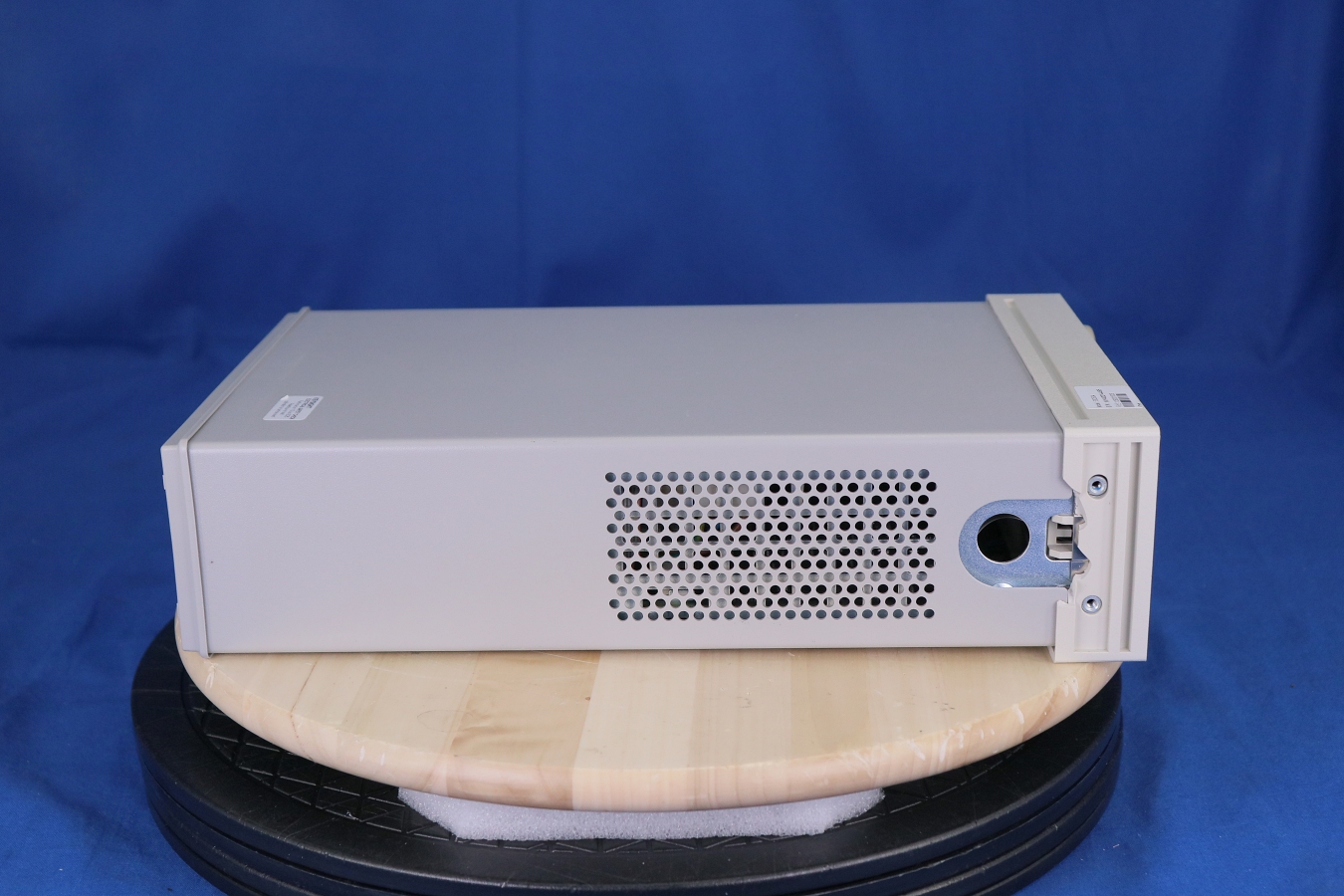

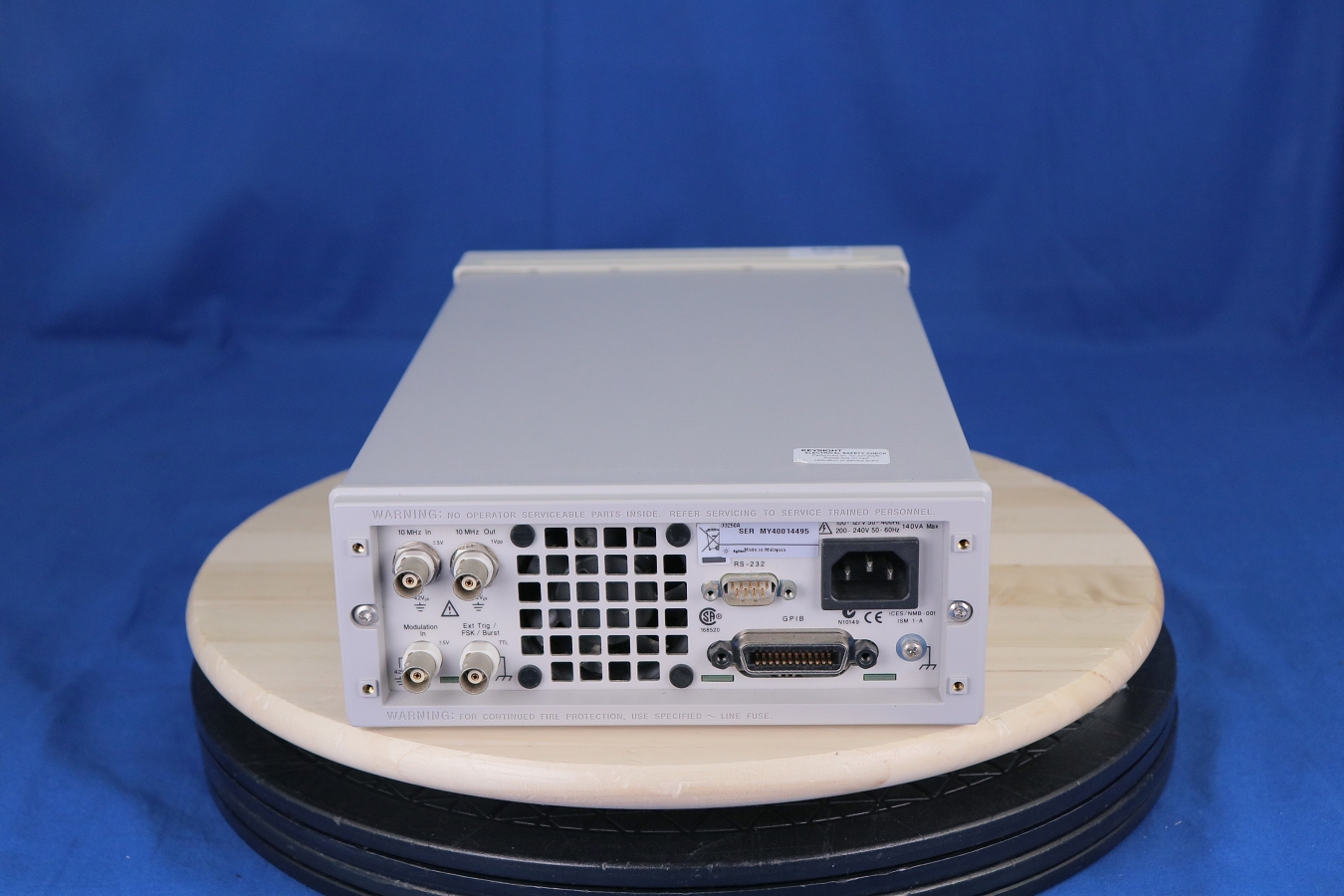

33250A Agilent Arbitrary Waveform Generator
80 MHz sine and square waveforms
Ramp, triangle, pulse, noise & DC waveforms
12-bit, 200 MSa/s, 64 Kpoint arbitrary waveforms
50 MHz pulse waveforms with variable rise/fall times
AM, FM & FSK, burst (all internal/external)
Linear & logarithmic sweeps and burst operation modes
Graph mode for visual verification of signal settings
IntuiLink software plus GPIB & RS-232 interfaces included
Built-in multiple-unit link for synchronous channels
REQUEST A QUOTE

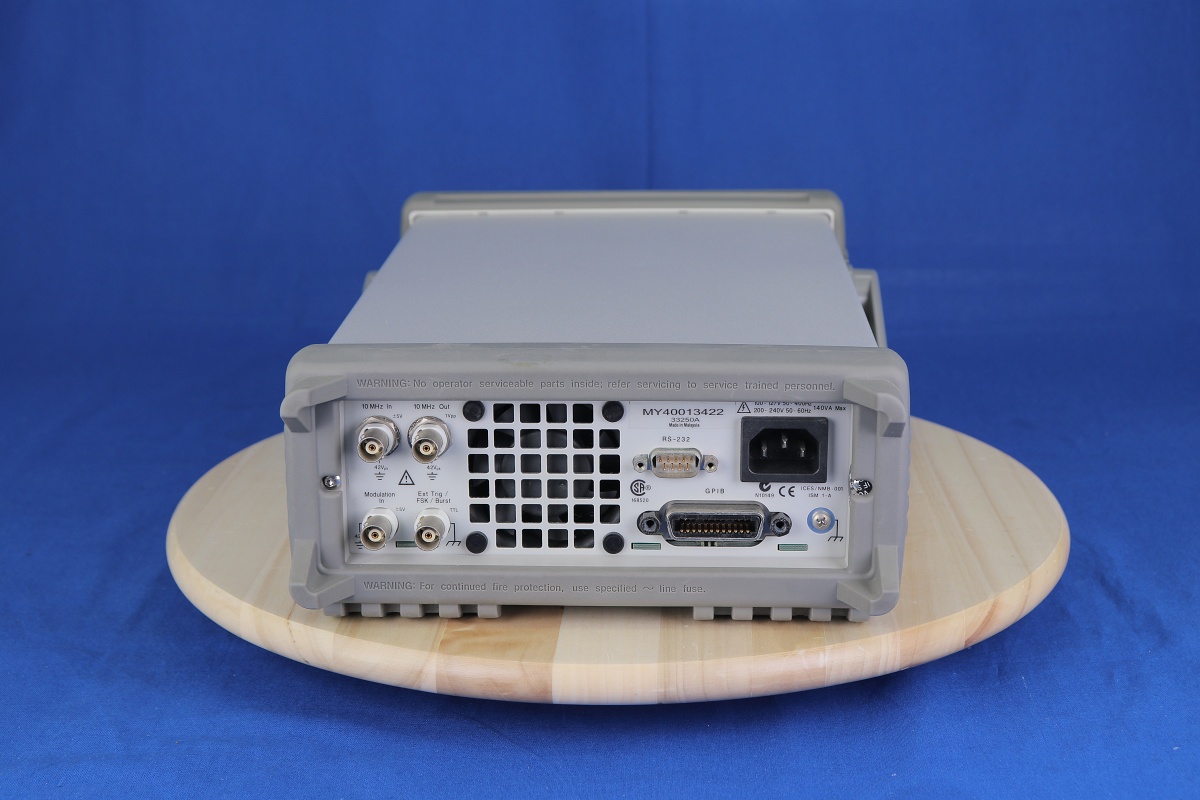

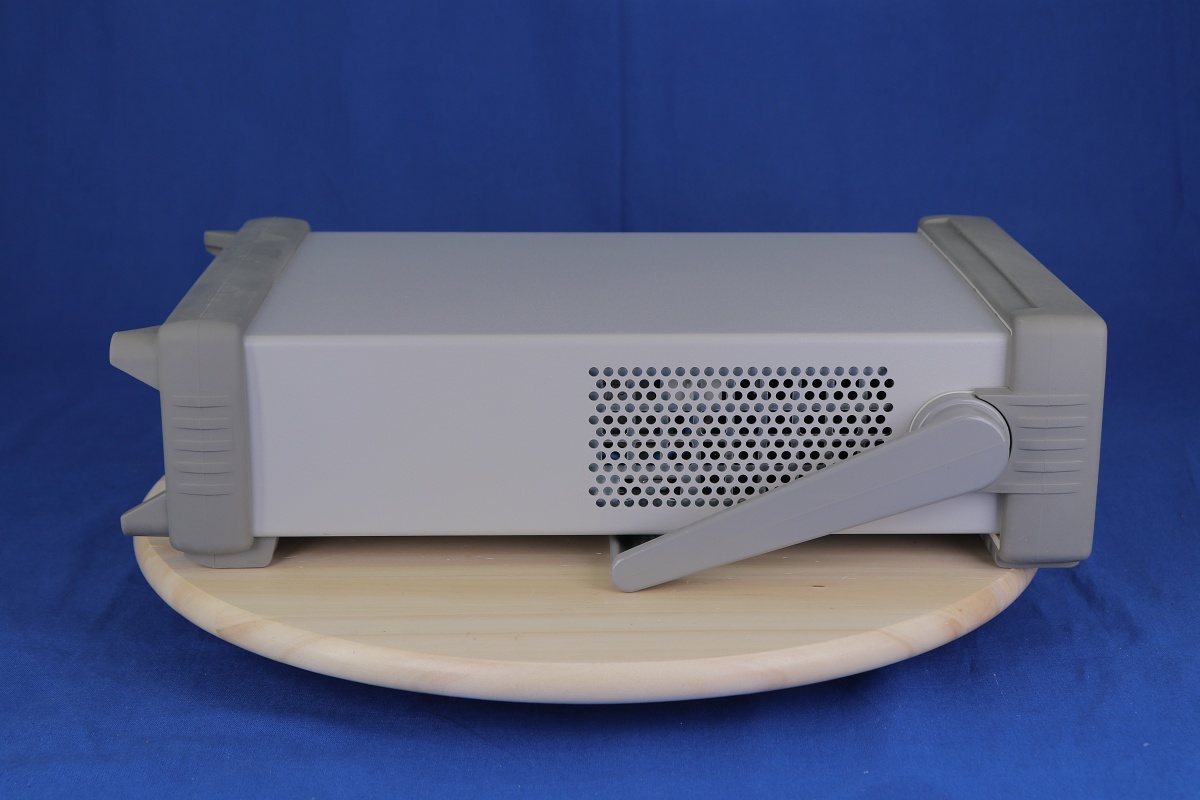

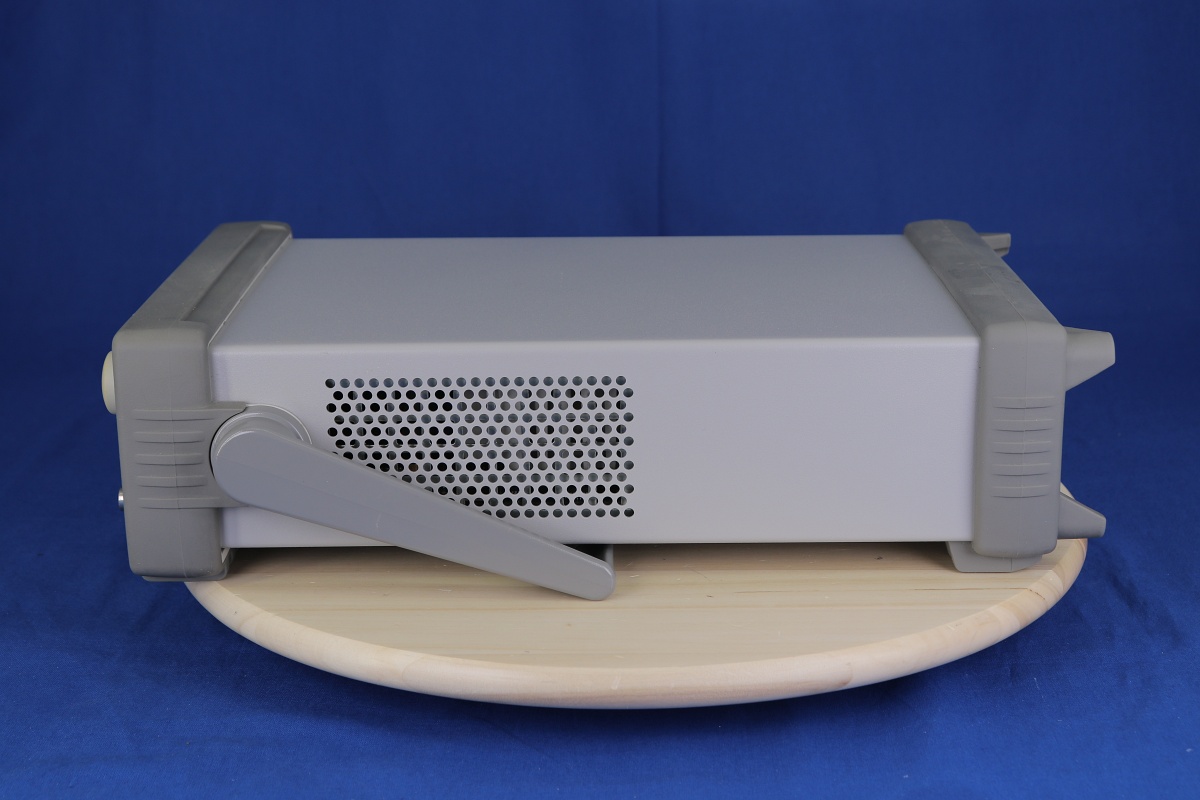

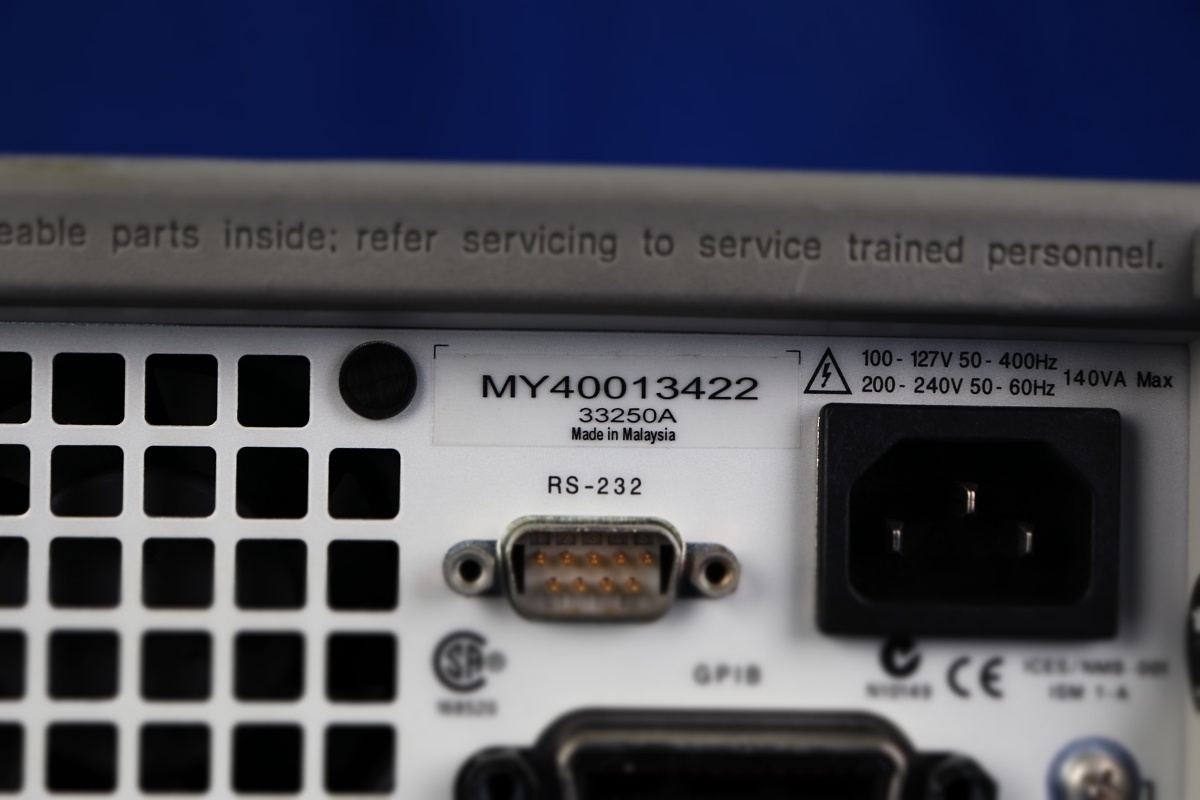

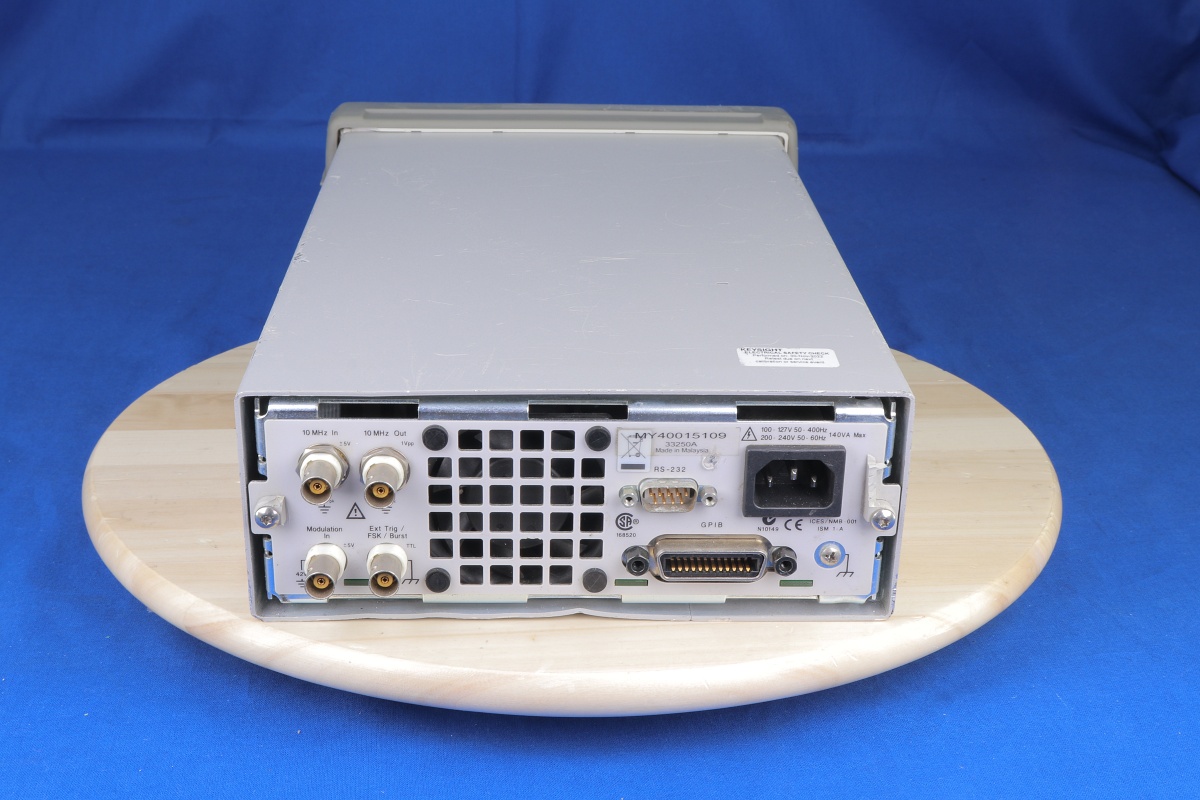

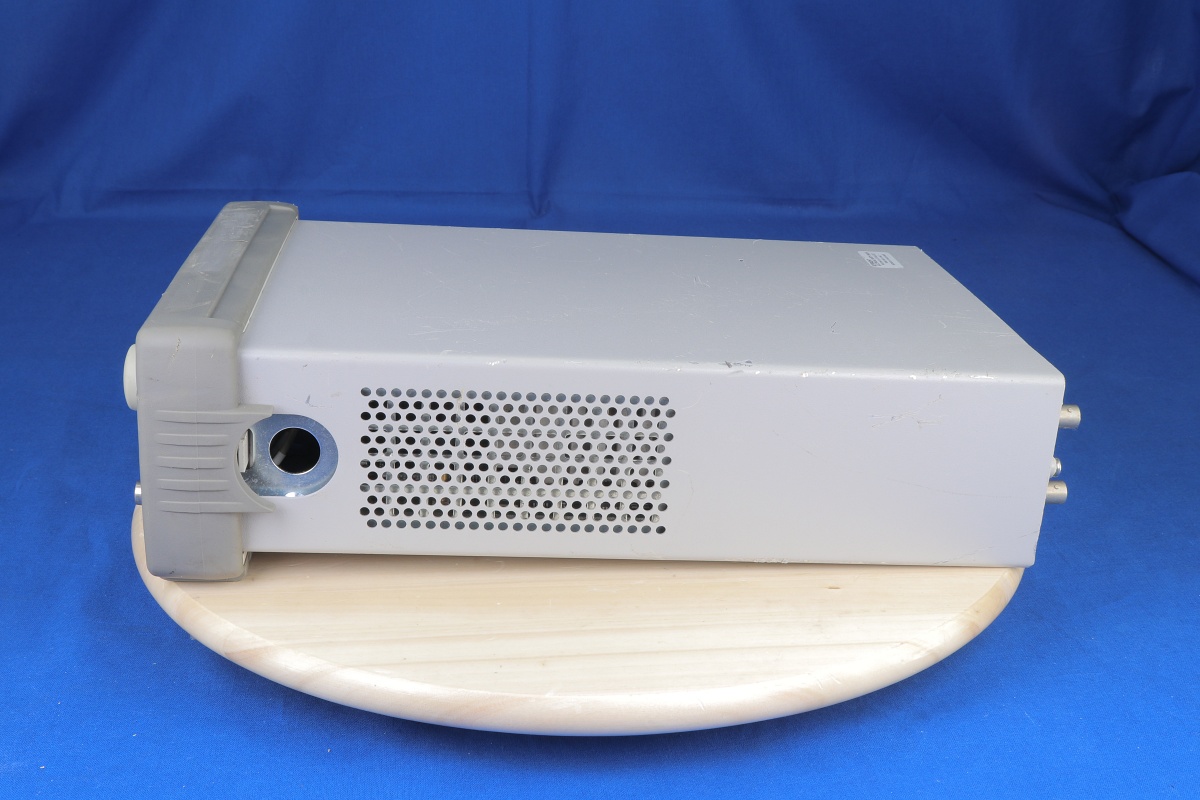

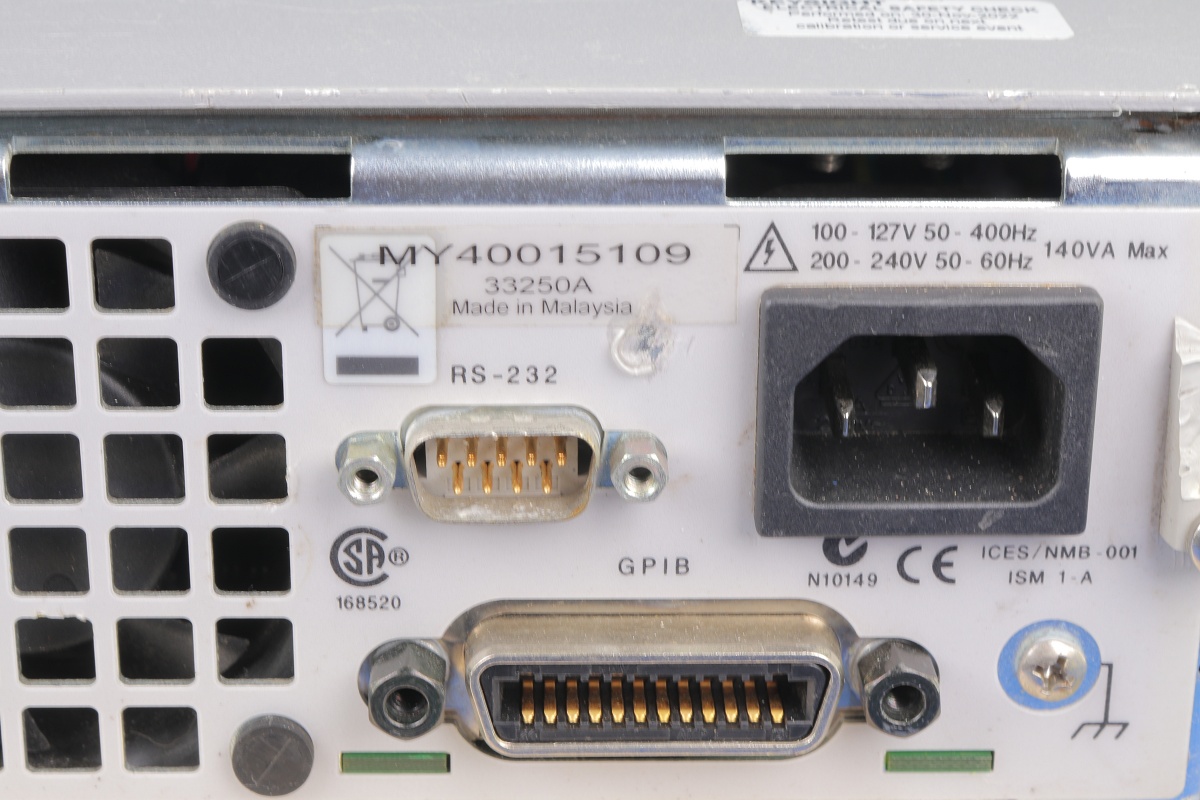

33250A Agilent Arbitrary Waveform Generator
33250A Agilent Arbitrary Waveform Generator
33250A Agilent Arbitrary Waveform Generator
33250A Agilent Arbitrary Waveform Generator
33250A Agilent Arbitrary Waveform Generator
33250A Agilent Arbitrary Waveform Generator
Detail
Features:
80 MHz sine and square waveforms
Ramp, triangle, pulse, noise & DC waveforms
12-bit, 200 MSa/s, 64 Kpoint arbitrary waveforms
50 MHz pulse waveforms with variable rise/fall times
AM, FM & FSK, burst (all internal/external)
Linear & logarithmic sweeps and burst operation modes
Graph mode for visual verification of signal settings

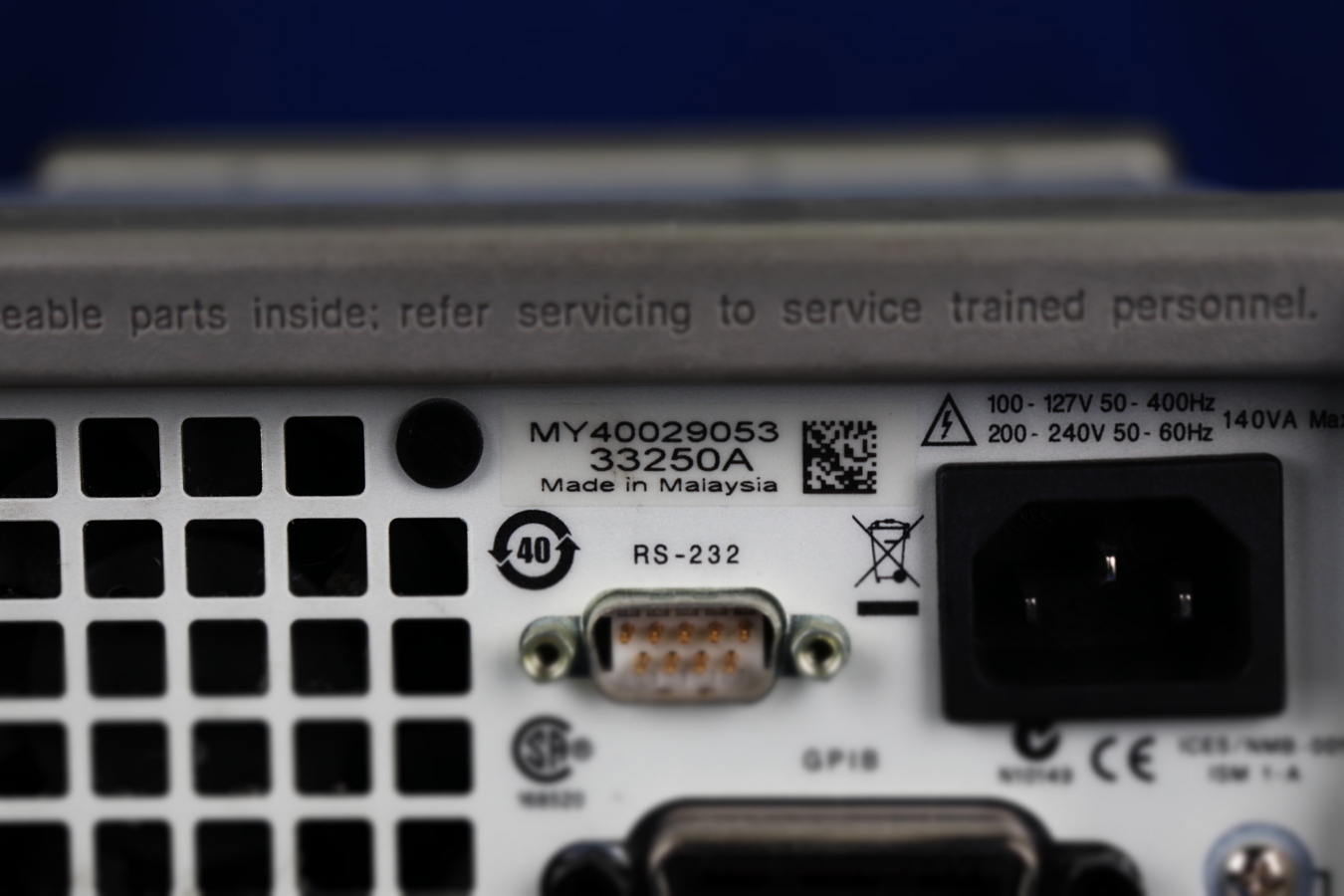

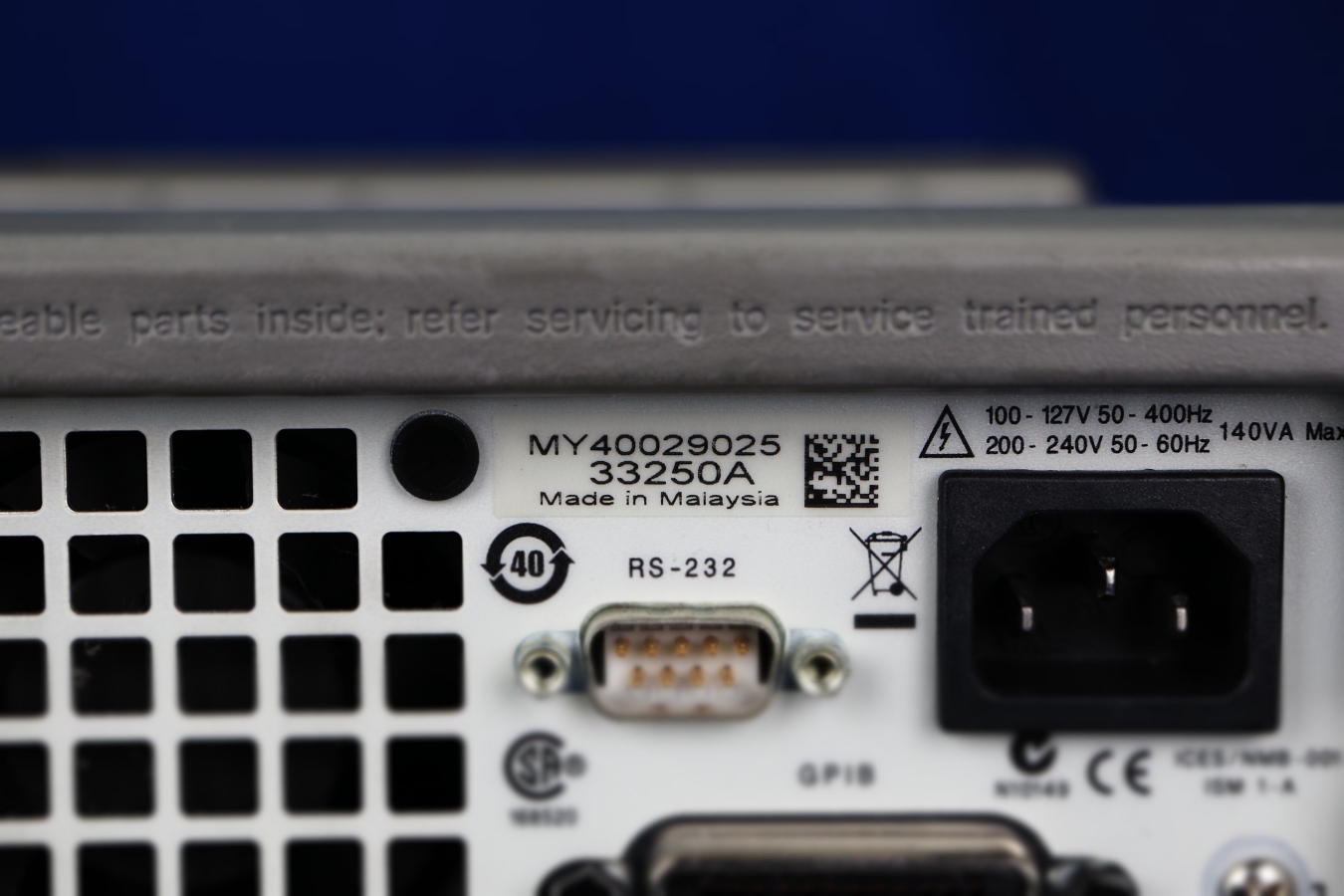

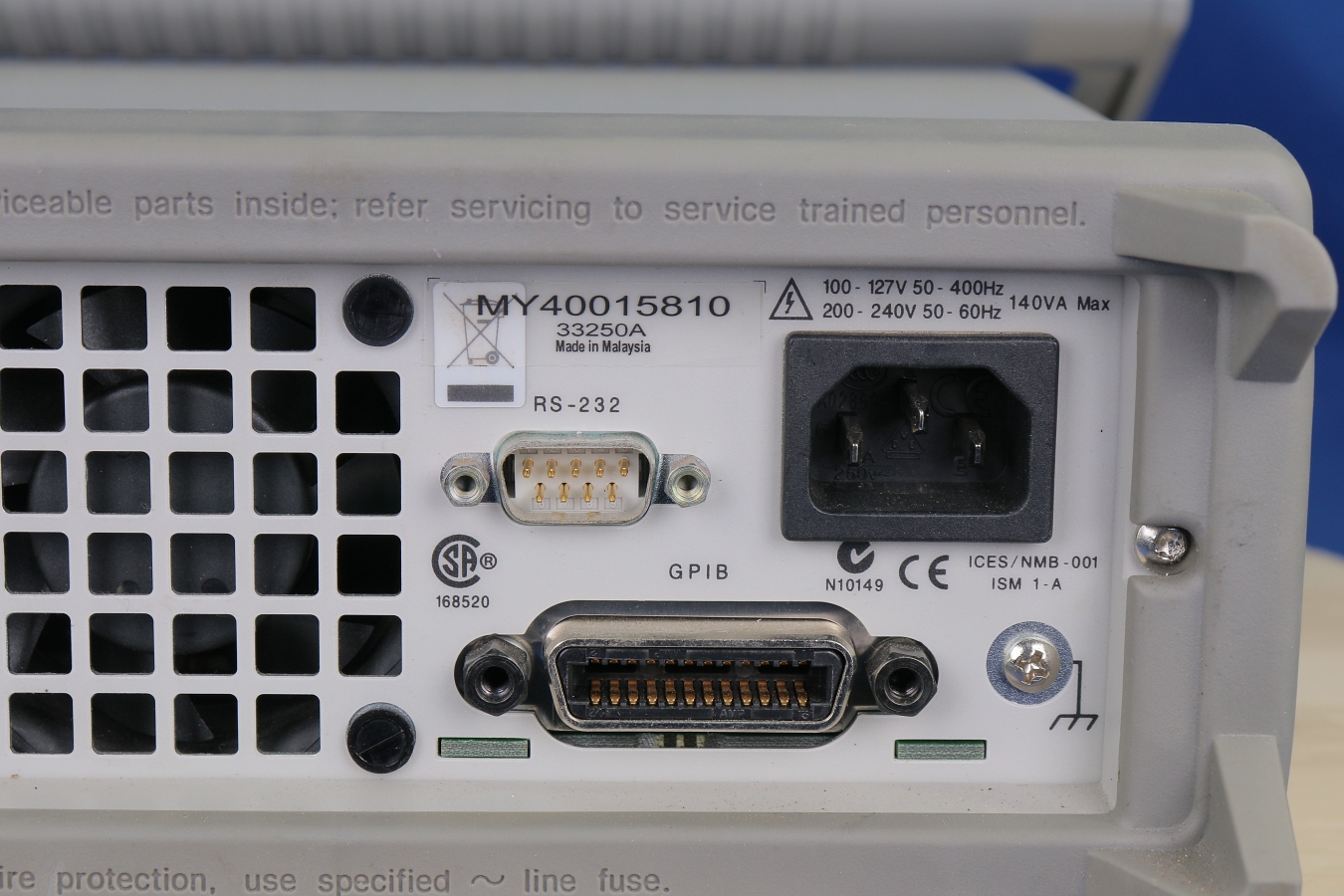

IntuiLink software plus GPIB & RS-232 interfaces included
Built-in multiple-unit link for synchronous channels

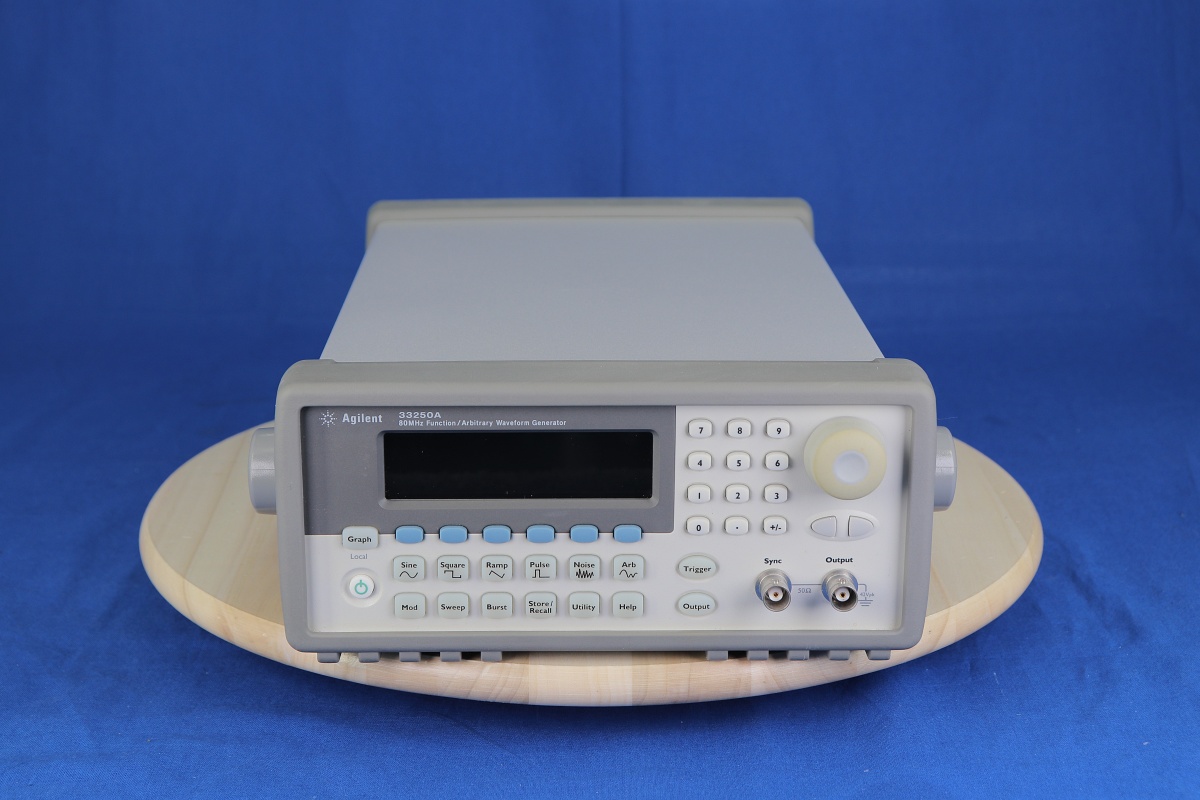

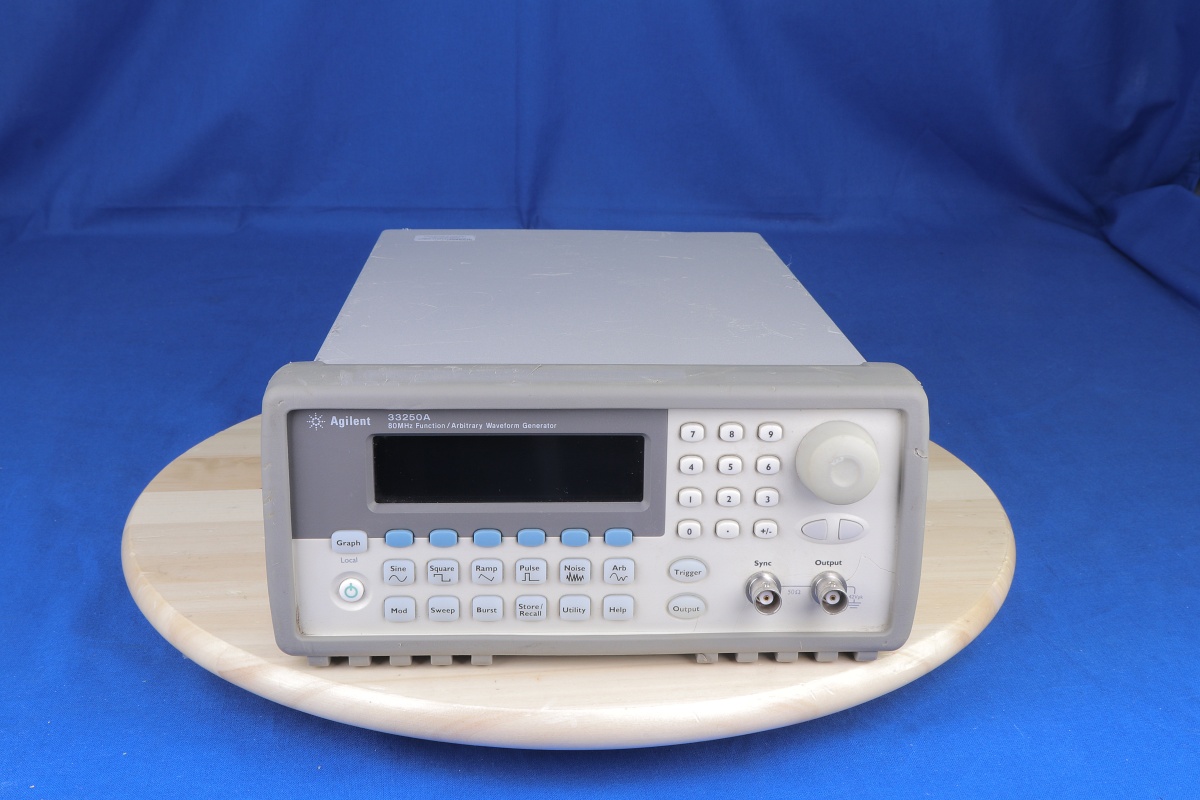

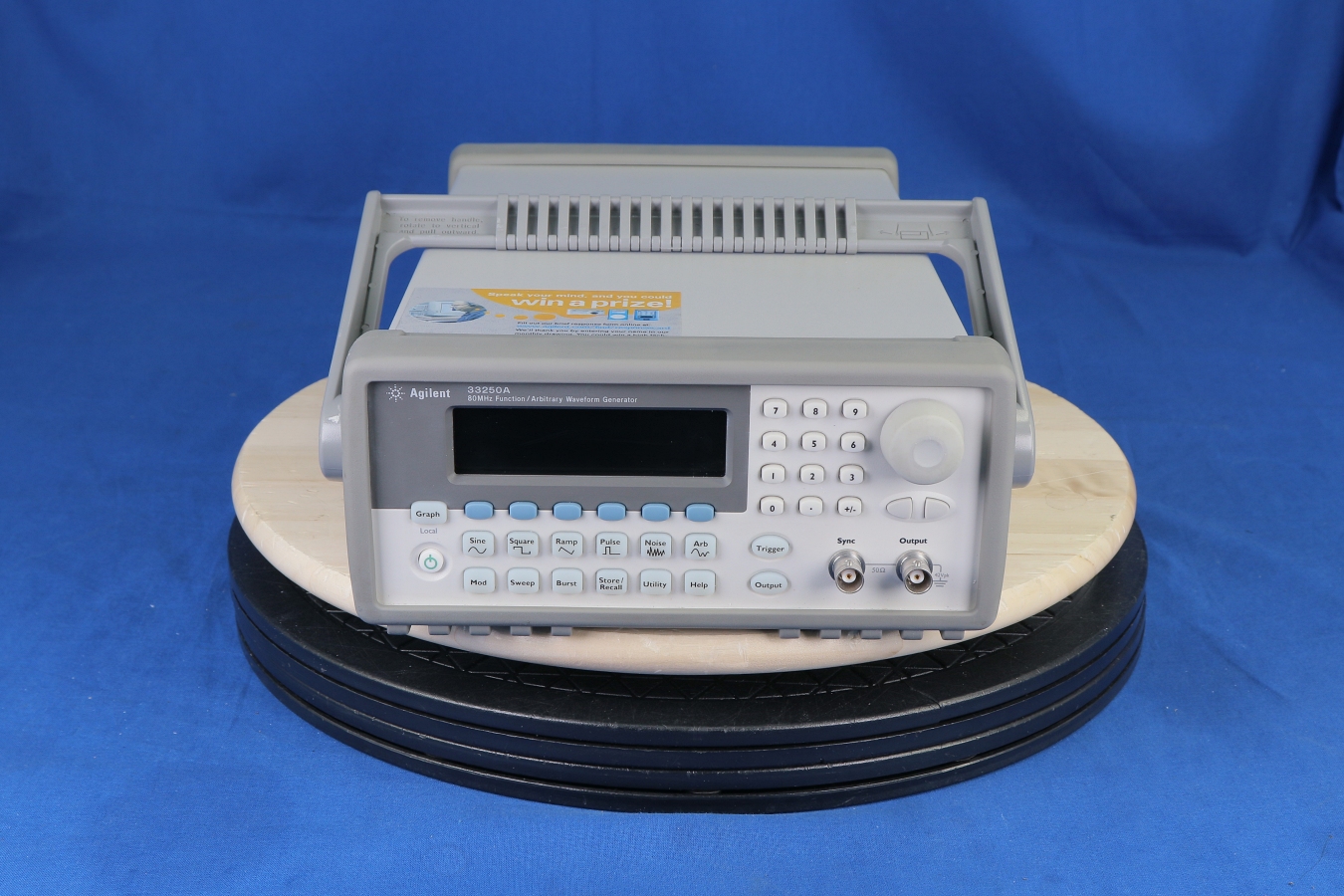

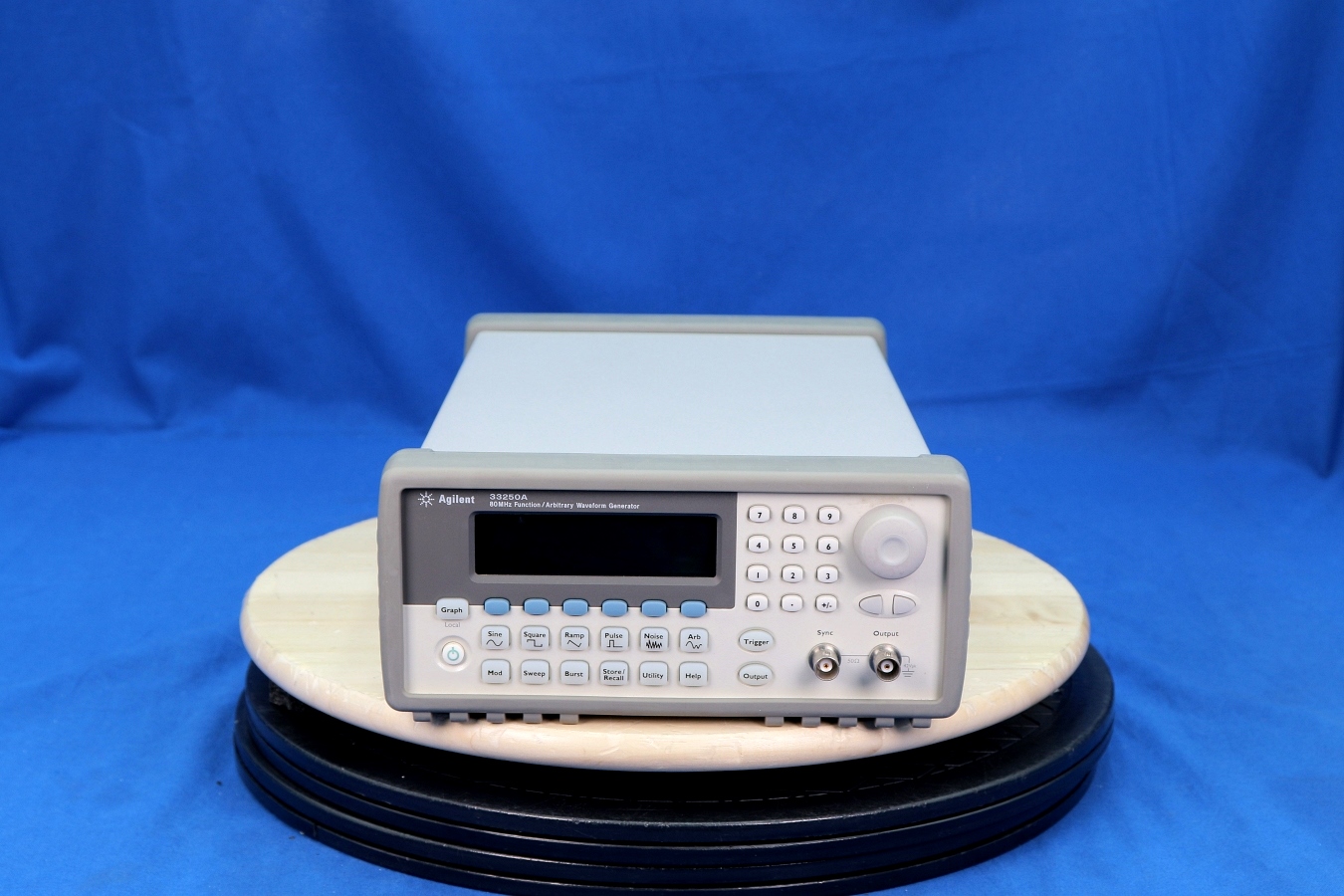

Front-panel operation of the is straightforward and user-friendly. The knob or numeric keypad can be used to adjust frequency, amplitude and offset. You can even enter voltage values directly in Vpp, Vrms, dBm, or high/low levels. Timing parameters can be entered in hertz (Hz) or seconds.
At Valuetronics we have the 33250A datasheet, User's Guide, and Service Manual available - Just Ask!
Option
Option |
Description |
ADF |
Australian Defense Force Option Chassis and Front Panel |
