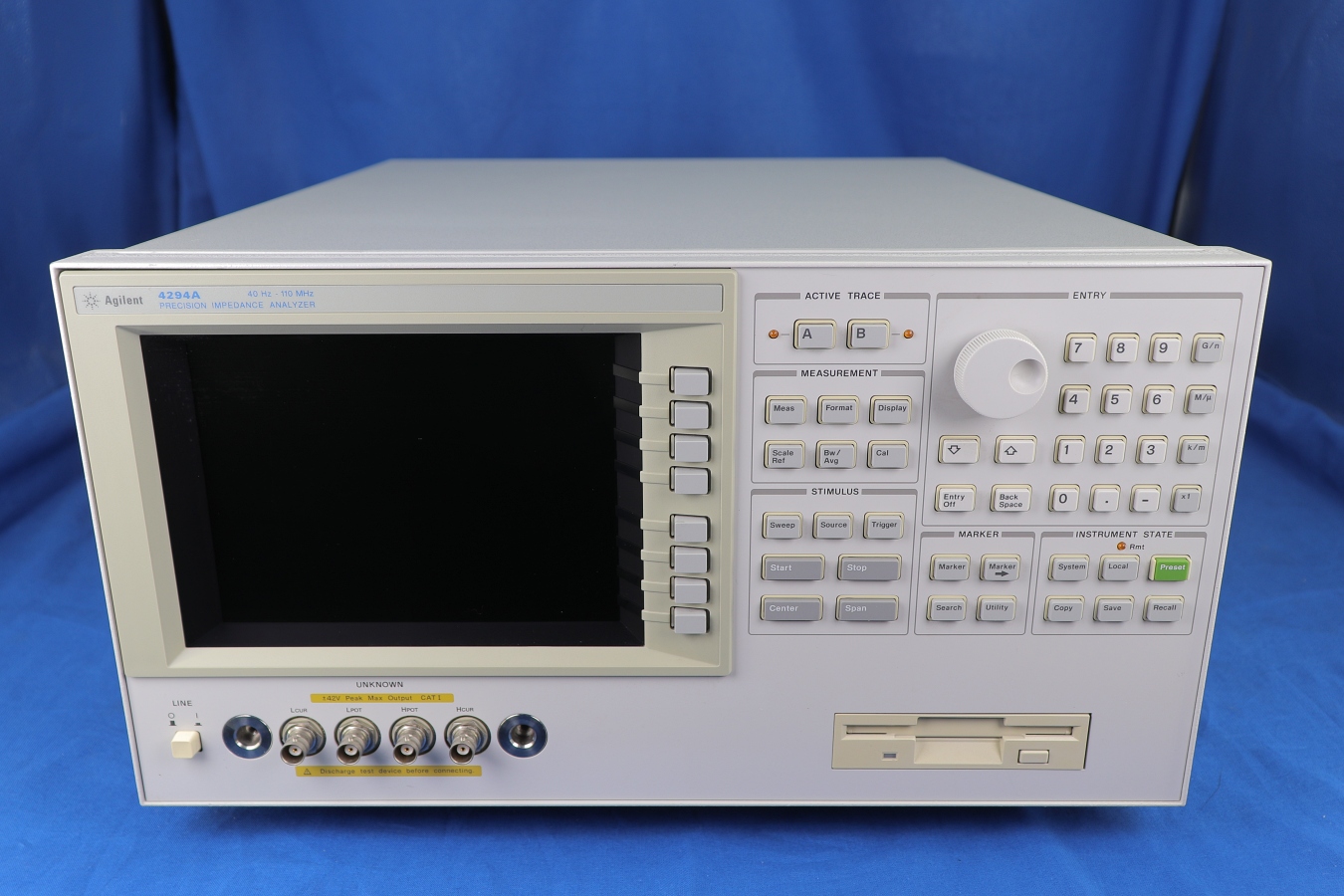

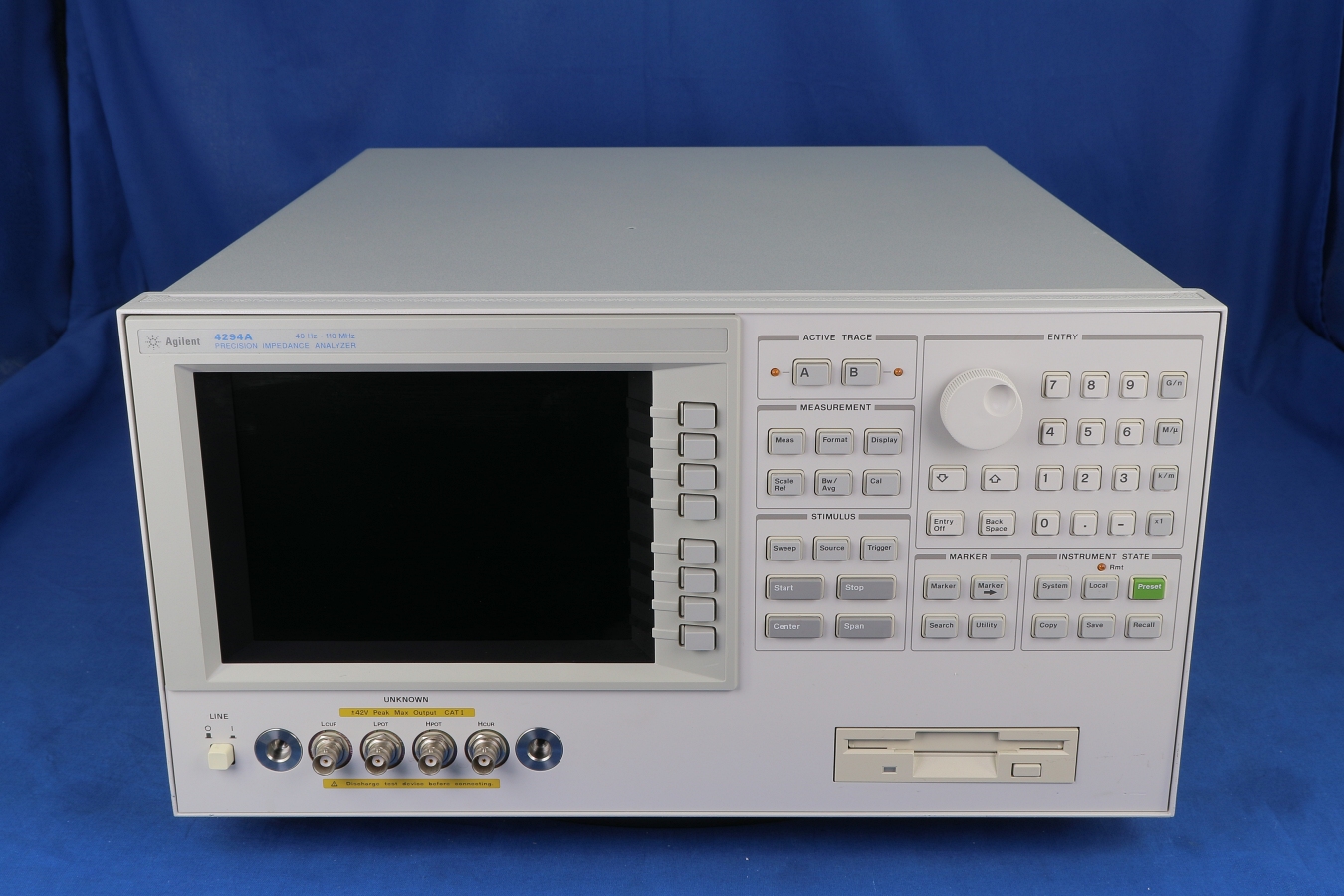

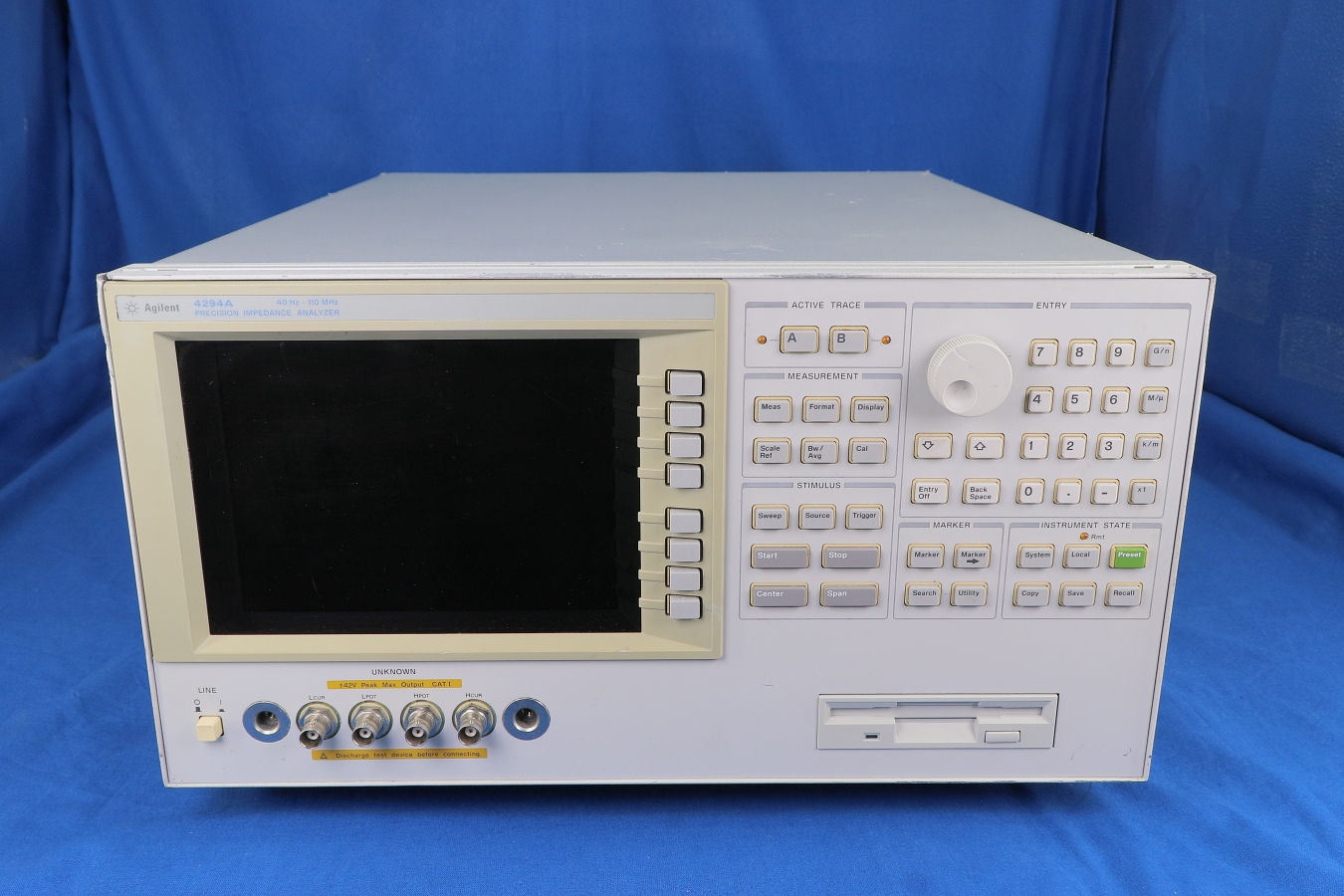

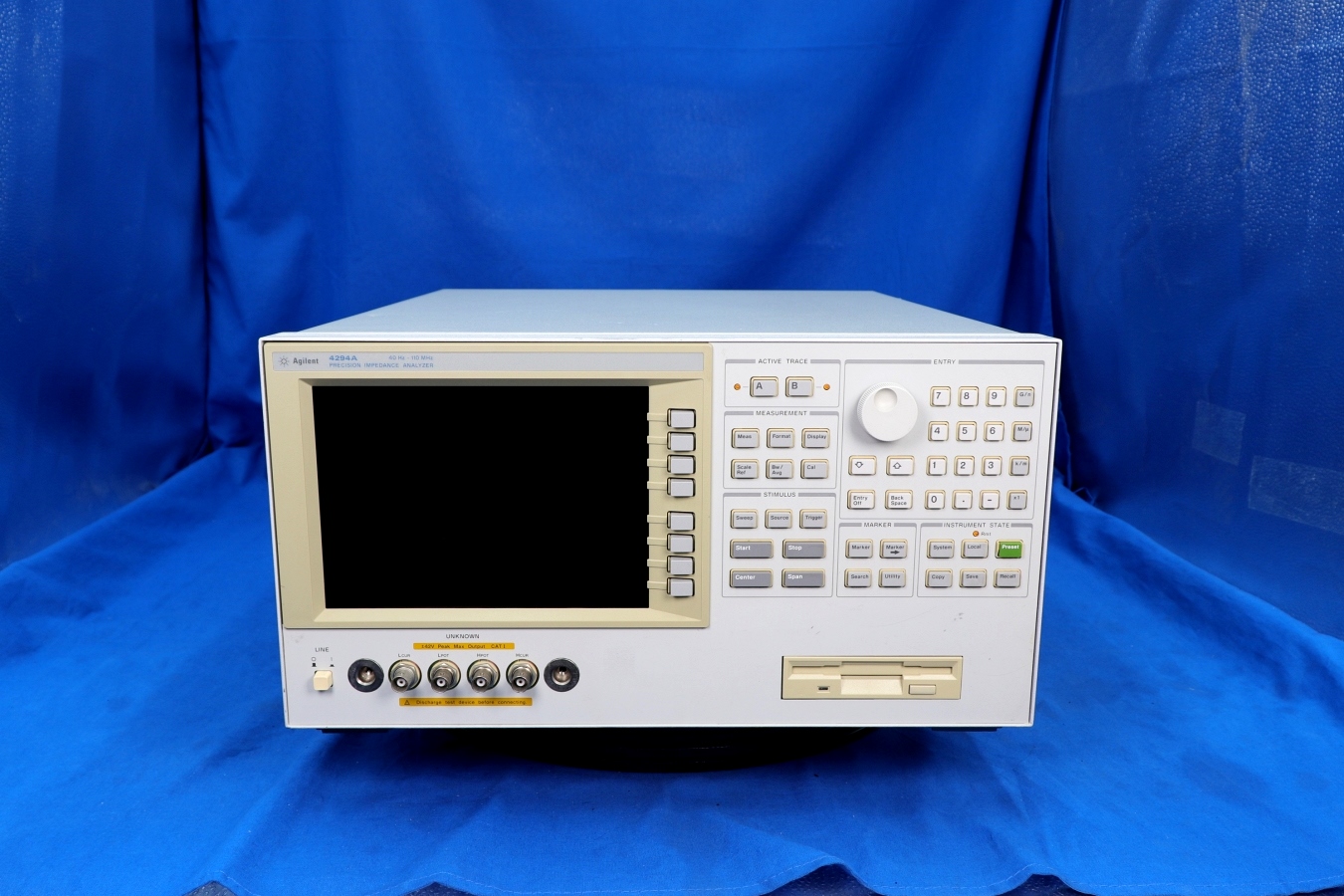

Accurate measurement over wide impedance range and wide frequency range Basic impedance accuracy +/- 0.08% 40 Hz to 110 MHz, 3 m ohm 500M ohm Powerful impedance analysis function Ease of use and versatile PC connectivity The Keysight Agilent HP 4294A precision impedance analyzer is an integrated solution for efficient impedance measurement and analysis of components and circuits. The Keysight Agilent HP 4294A covers a broader test-frequency range (40 Hz to 110 MHz) with Basic impedance accuracy:+/-0.08 %. Excellent High Q/Low D accuracy enables analysis of low-loss components. The wide signal-level ranges enable device evaluation under actual operating conditions. The test signal level range is 5m V to 1 Vrms or 200 uA to 20m Arms, and the DC bias range is 0 V to +/-40 V or 0m A to +/-100m A. Advanced calibration and error compensation functions eliminate measurement error factors when performing measurements on in-fixture devices. The Keysight Agilent HP 4294A is a powerful tool for design, qualification and quality control, and production testing of electronic components. Circuit designers and developers can also benefit from the performance/functionality offered. Note: For printer compatibility information, click here. Features Accurate measurement over wide impedance range and wide frequency range Basic impedance accuracy: +/- 0.08 % 40 Hz to 110 MHz, 3 m ohm 500M ohm Powerful impedance analysis function Ease of use and versatile PC connectivity.

Option	Description
1A7	ISO 17025 compliant cal by factory

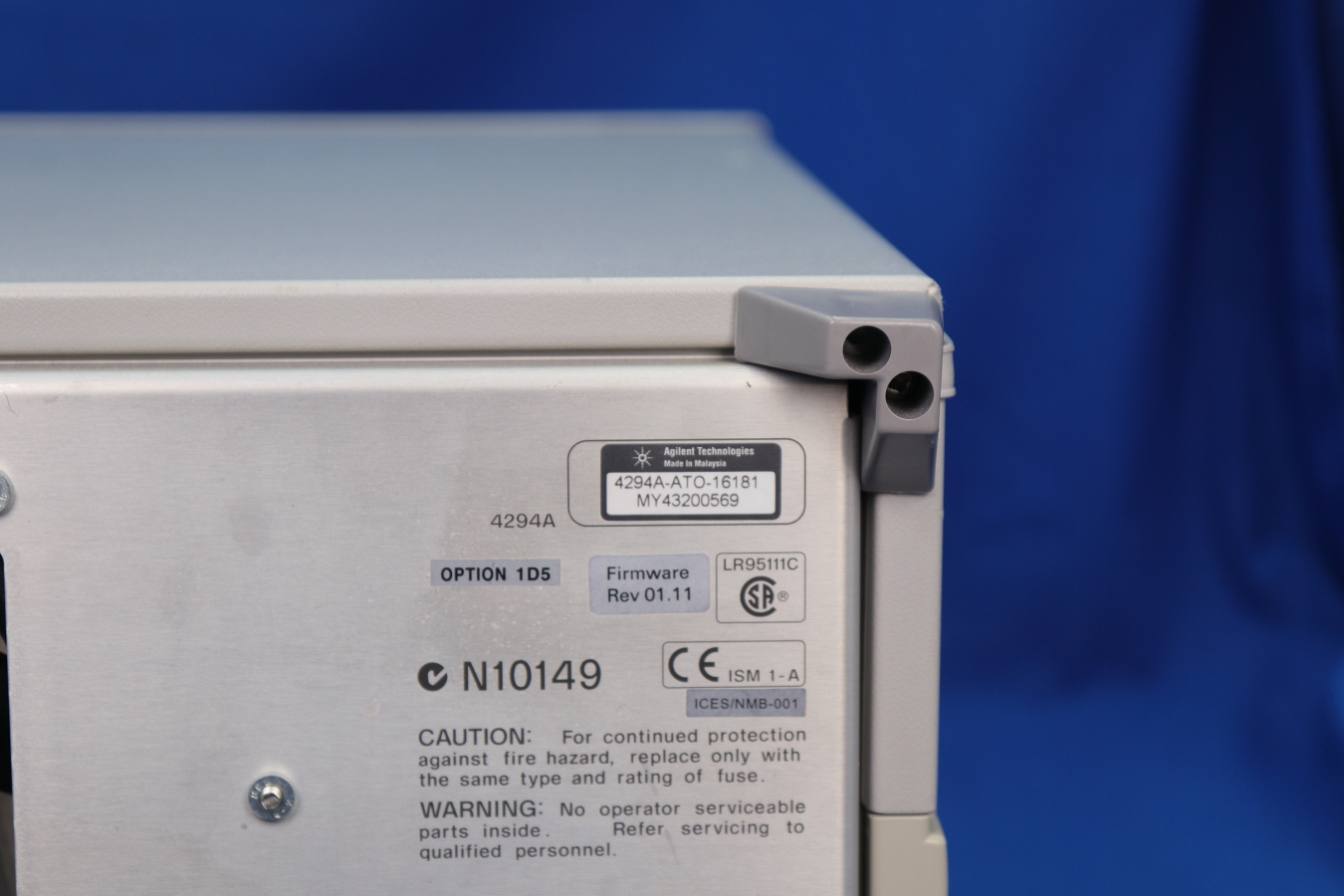

1D5	High-Stability Frequency Reference
800	STANDARD FREQUENCY REFERENCE
801	Bottom Feet
802	No Bottom Feet
