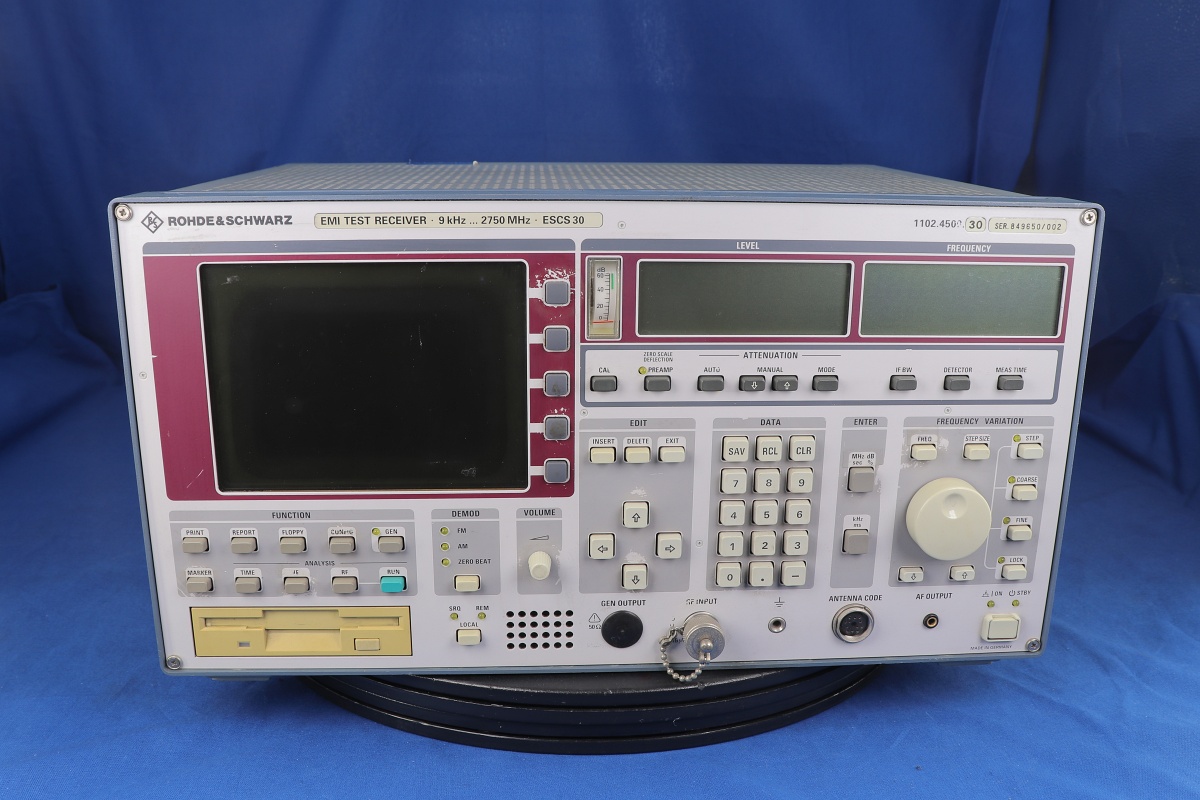

Features of ESCS30 include:
- Measurement Uncertainty <1 dB (typ. <0.5 dB)
- Ten Integrated Preselectors
- Selectable Preamplifier 10 dB
- CISPR Bandwidths 200 Hz, 9 kHz, 120 kHz, 1 MHz
- Detectors (Peak, Average, Quasipeak) with parallel output of results and bargraph display on color monitor
- Direct Selection of CISPR Measurement Ranges with bandwidth, step width and measurement time
- Automatic Scan of Frequency Ranges and lists with up to 400 different frequencies
- Automatic Level Calibration and Builtin Selftest Function
- Macros for RFI Voltage, RFI Power and RFI Field-Strength Measurements
- Nonvolatile Storage of Complete Instrument Setups as well as Limit Lines and Frequency-Dependent Correction Factors of Antennas and Accessories
- Storage of Results, Limit and Correction Values on built-in 3.5" Disk Drive
- Time Domain Analysis with display range from 5 ms to 1 h, manual trigger (internal and external), userselectable zooming of up to 30,000 measured values

Options:
ESCS-B1 = 2 Battery Controller
ESCS-B4 = IF Analysis
ESCS-B5 = Tracking Generator
ESCS-B6 = Reference Oscillator
ESCS-B9 = RMS Detector
